4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#136428) — 113 parça

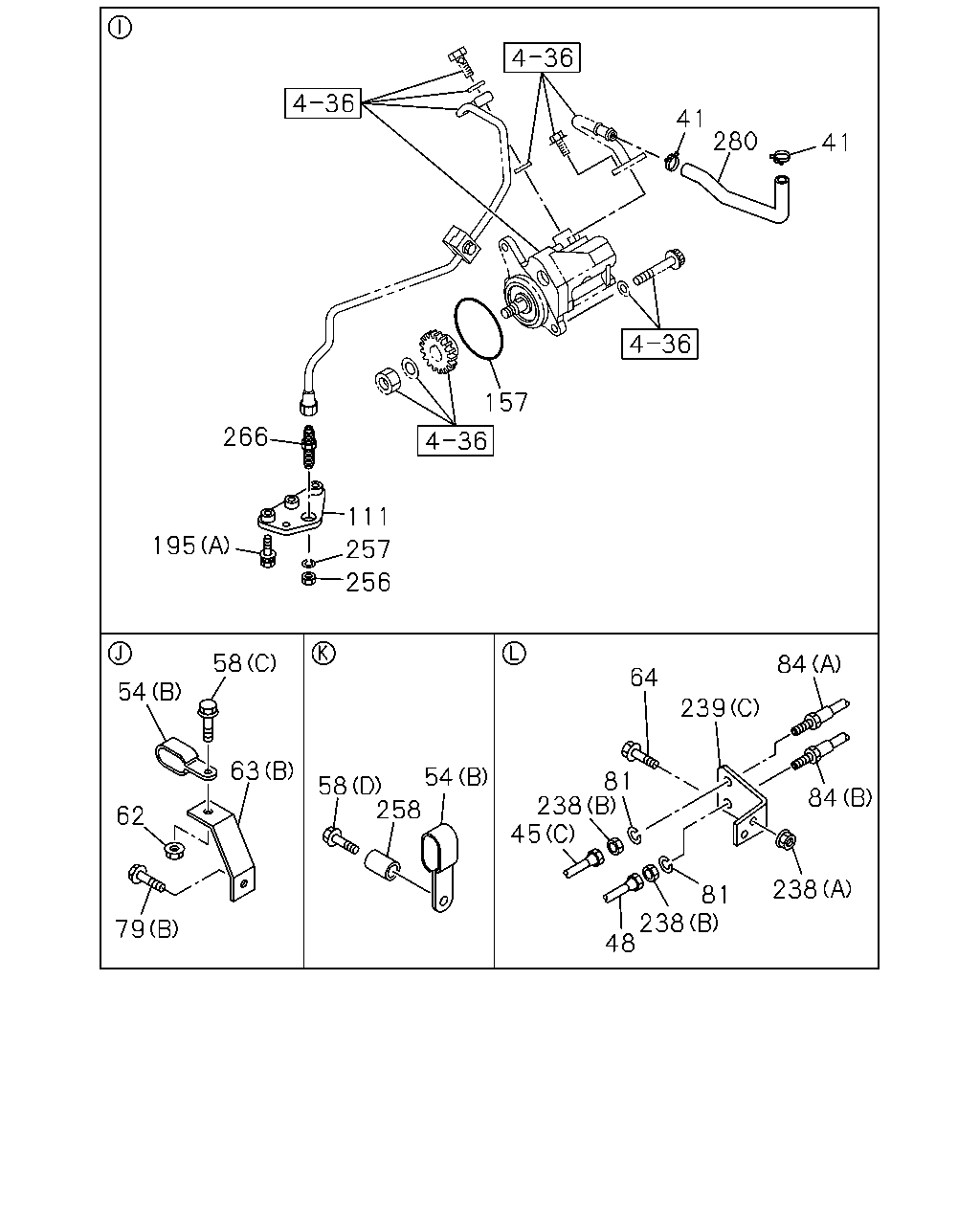

41 41 280 157 111 256 257 266 195 58 54 63 62 79 58 54 258 238 45 64 84 239 81 81 238 48 238 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1403-
45	PIPE; OIL,P/S UNIT TO UNION (A) THA	8-98166-065-0	01	1	1403-
45	PIPE; OIL,P/S UNIT TO UNION (B) THA	8-98166-066-0	01	1	1403-
45	PIPE; OIL,P/S UNIT TO UNION (C) THA	8-98182-413-0	01	1	1403-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT THA	8-98182-414-0	01	1	1403-
54	CLIP; OIL PIPE (A) ID=19 L=60	0-95235-896-0	01	1	1403-
54	CLIP; OIL PIPE (B) ID=13X2 L=20	0-95325-236-0	04	1	1403-
58	BOLT; CLIP (C) M8X16 FLANGE THA	0-28050-816-0	02	1	1403-
58	BOLT; CLIP (D) M8X50 FLANGE THA	0-28050-850-0	02	1	1403-
58	BOLT; CLIP (A) M8X20 FLANGE THA	0-28650-820-0	01	1	1403-
58	BOLT; CLIP (B) M8X25 FLANGE THA	0-28650-825-0	04	1	1403-
62	NUT; CLIP FIX M8 FLANGE THA	0-91180-108-0	02	1	1403-
63	BRACKET; CLIP,P/S (B)	1-47478-371-0	02	1	1403-
63	BRACKET; CLIP,P/S (A)	1-47479-482-0	01	1	1403-
64	BOLT; CLIP BRKT M8X30 FLANGE THA	0-28650-830-0	02	1	1403-
79	BOLT; BRKT (A) M8X25 FLANGE THA	0-28650-825-0	02	1	1403-
79	BOLT; BRKT (B) M8X30 FLANGE THA	0-28650-830-0	02	1	1403-
81	WASHER; LK,FLEX HOSE ID=20.2	0-91510-620-0	02	1	1403-
84	HOSE; FLEX,P/S (A) L=430 THA	0-89538-430-0	01	1	1403-
84	HOSE; FLEX,P/S (B) THA	8-97948-584-0	01	1	1403-
111	BRACKET; OIL PIPE	8-98086-991-0	01	1	1403-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=77	1-09623-143-0	01	1	1403-
195	BOLT; BRKT (B) M10X20 FLANGE THA	0-28651-020-0	02	1	1403-
195	BOLT; BRKT (A) M8X35 W/LK&PL WASHER	0-50640-835-0	03	1	1403-
238	NUT; FLEX HOSE (B) M20	0-91111-520-0	02	1	1403-
238	NUT; FLEX HOSE (A) M8 FLANGE THA	0-91180-108-0	02	1	1403-
239	BRACKET; FLEX HOSE (C)	1-47479-146-0	01	1	1403-
239	BRACKET; FLEX HOSE (B)	8-97608-869-1	01	1	1403-
239	BRACKET; FLEX HOSE (A)	8-97621-113-0	01	1	1403-
256	NUT; UNION M22	0-91111-522-0	01	1	1403-
256	NUT; UNION M22	0-91111-522-0	01	1	1403-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1403-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1403-
258	TUBE; DISTANCE,BRKT L=22	9-22159-024-0	02	1	1403-
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	1403-
280	HOSE; P/S OIL PUMP,INL	8-98191-607-0	01	1	1403-

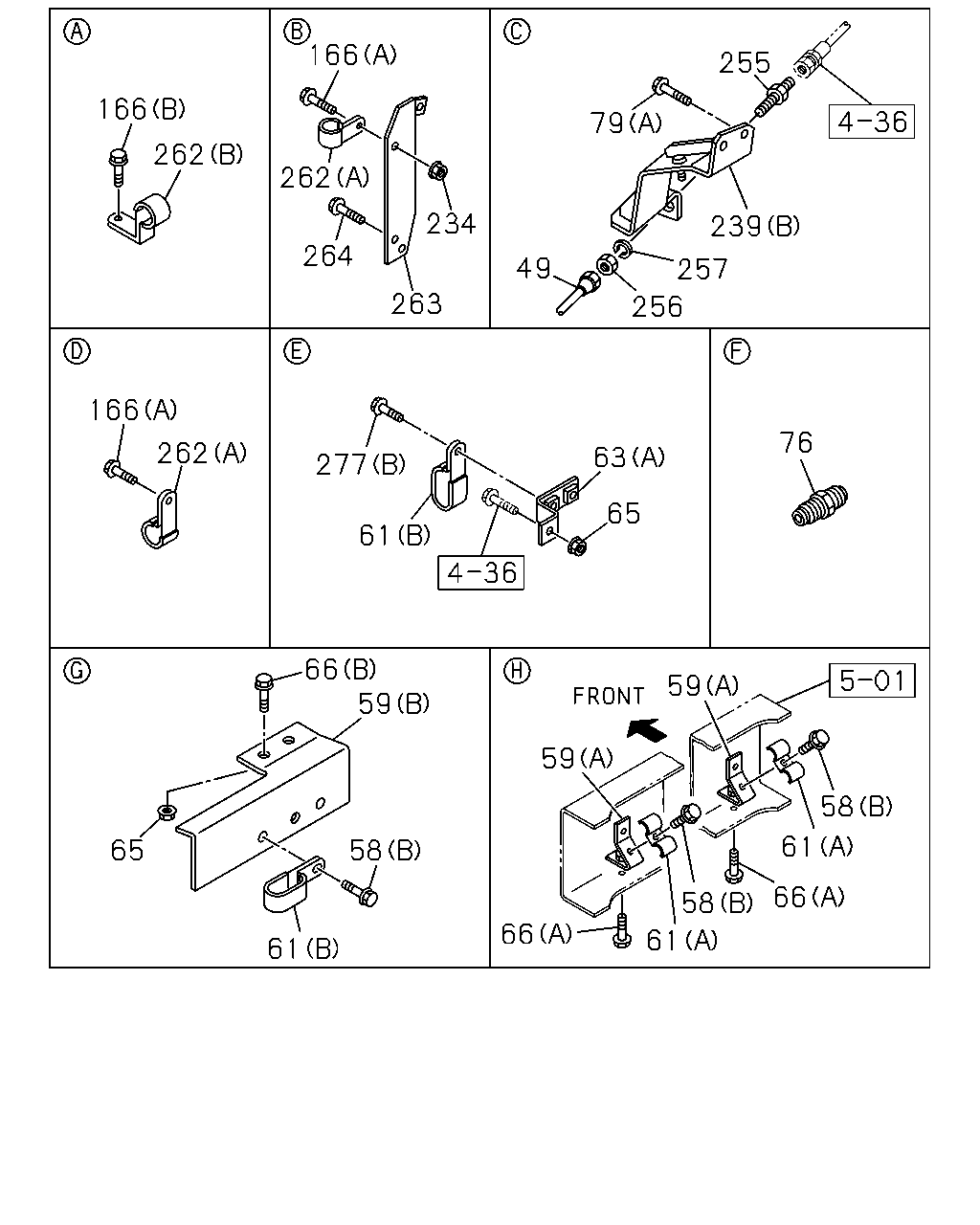

166 166 262 262 234 263 264 49 79 255 239 257 256 63 65 76 277 61 166 262 66 58 61 65 59 59 59 66 61 61 58 66 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
49	PIPE; OIL,FLEX HOSE TO UNION	8-98123-063-0	01	1	1403-
58	BOLT; CLIP (C) M8X16 FLANGE THA	0-28050-816-0	02	1	1403-
58	BOLT; CLIP (D) M8X50 FLANGE THA	0-28050-850-0	02	1	1403-
58	BOLT; CLIP (A) M8X20 FLANGE THA	0-28650-820-0	01	1	1403-
58	BOLT; CLIP (B) M8X25 FLANGE THA	0-28650-825-0	04	1	1403-
59	BRACKET; CLIP,OIL PIPE (A)	1-47479-521-0	02	1	1403-
59	BRACKET; CLIP,OIL PIPE (B)	8-97618-675-0	01	1	1403-
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	02	1	1403-
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	02	1	1403-
63	BRACKET; CLIP,P/S (B)	1-47478-371-0	02	1	1403-
63	BRACKET; CLIP,P/S (A)	1-47479-482-0	01	1	1403-
65	NUT; BRKT M8 FLANGE THA	0-91180-108-0	03	1	1403-
66	BOLT; BRKT,OIL PIPE (A) M8X20 FLANGE THA	0-28650-820-0	02	1	1403-
66	BOLT; BRKT,OIL PIPE (B) M8X25 FLANGE THA	0-28650-825-0	02	1	1403-
76	UNION; OIL PIPE M22	0-92123-015-0	02	1	1403-
79	BOLT; BRKT (A) M8X25 FLANGE THA	0-28650-825-0	02	1	1403-
79	BOLT; BRKT (B) M8X30 FLANGE THA	0-28650-830-0	02	1	1403-
166	BOLT; CLIP (A) M8X20 FLANGE THA	0-28650-820-0	02	1	1403-
166	BOLT; CLIP (B) M8X25 FLANGE THA	0-28650-825-0	01	1	1403-
234	NUT; PIPE CLIP,P/S M8 FLANGE THA	0-91180-108-0	01	1	1403-
239	BRACKET; FLEX HOSE (C)	1-47479-146-0	01	1	1403-
239	BRACKET; FLEX HOSE (B)	8-97608-869-1	01	1	1403-
239	BRACKET; FLEX HOSE (A)	8-97621-113-0	01	1	1403-
255	UNION; FLEX HOSE M22 & M22 STRAIGHT	1-09654-204-2	01	1	1403-
256	NUT; UNION M22	0-91111-522-0	01	1	1403-
256	NUT; UNION M22	0-91111-522-0	01	1	1403-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1403-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1403-
262	CLIP; P/S PIPE (A) ID=16 L=20	0-95235-535-0	02	1	1403-
262	CLIP; P/S PIPE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	1403-
263	BRACKET; P/S PIPE	8-98090-366-0	01	1	1403-
264	BOLT; PIPE BRKT M8X35 FLANGE THA	0-28650-835-0	02	1	1403-
277	BOLT; HOSE CLIP (A) M8X20 FLANGE THA	0-28650-820-0	01	1	1403-
277	BOLT; HOSE CLIP (B) M8X25 FLANGE THA	0-28650-825-0	01	1	1403-

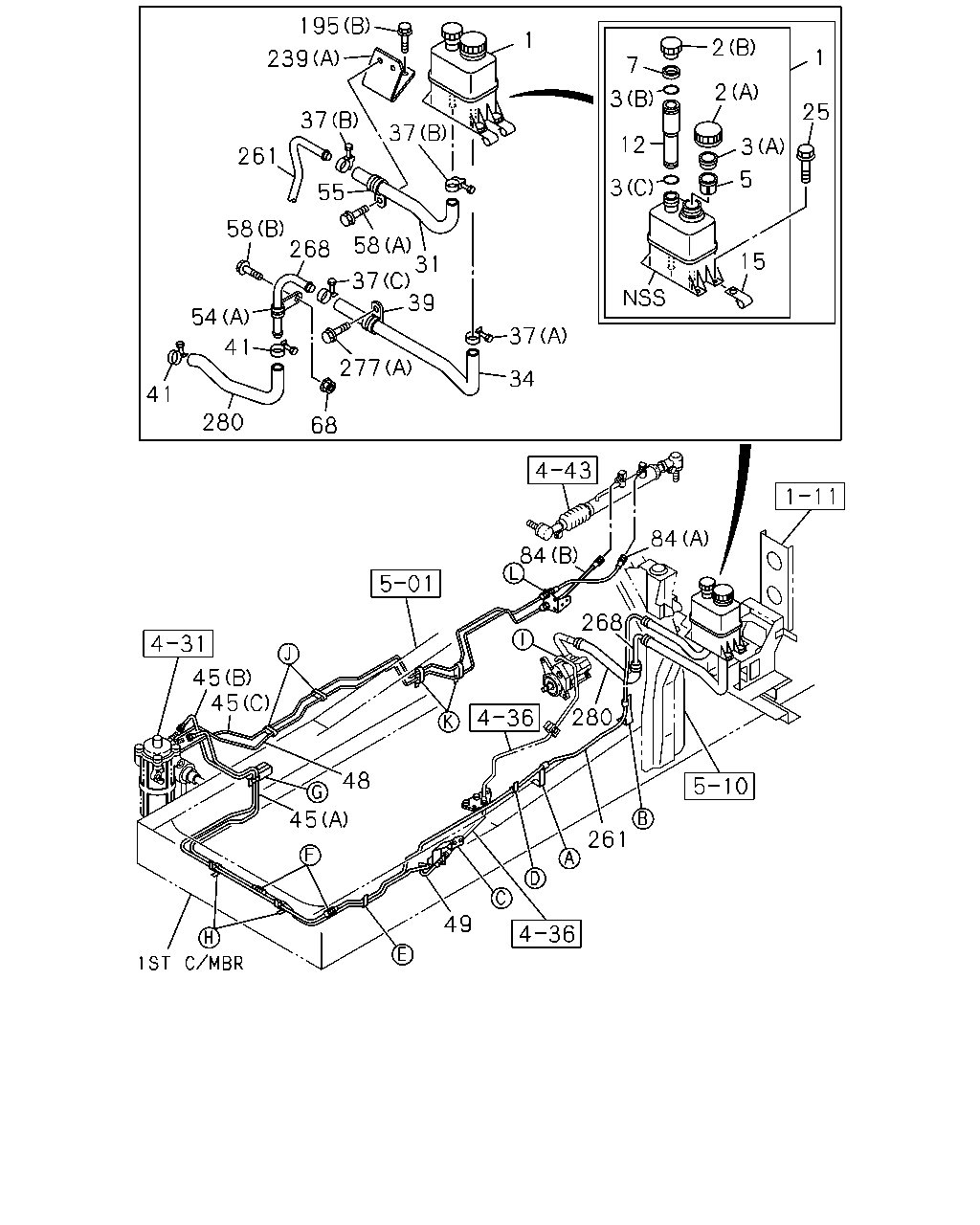

195 239 261 268 277 34 58 55 37 37 1 1 7 2 3 2 5 3 12 3 15 37 68 280 41 41 54 58 37 31 39 25 84 84 268 280 261 49 45 45 45 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S THA	8-97948-304-1	01	1	1403-
2	CAP; OIL TANK,P/S (A) THA	8-97948-293-0	01	1	1403-
2	CAP; OIL TANK,P/S (B) THA	8-97948-294-0	01	1	1403-
3	GASKET; OIL TANK,P/S (A) THA	8-97948-296-0	01	1	1403-
3	GASKET; OIL TANK,P/S (B) THA	8-97948-298-0	01	1	1403-
3	GASKET; OIL TANK,P/S (C) THA	8-97948-307-0	01	1	1403-
5	STRAINER; OIL TANK,P/S THA	8-97948-306-0	01	1	1403-
7	RING; GASKET,OIL TANK,P/S THA	8-97948-437-0	01	1	1403-
12	FILTER; MICROBON,OIL TANK,P/S THA	8-97948-301-0	01	1	1403-
15	PLATE; FILTER,OIL TANK THA	8-97948-297-0	04	1	1403-
25	BOLT; OIL TANK BRKT M8X25 FLANGE THA	0-28650-825-0	04	1	1403-
31	HOSE; P/S OIL TANK,INL	8-98166-662-0	01	1	1403-
34	HOSE; P/S OIL TANK,OUTLET	8-98166-663-0	01	1	1403-
37	CLIP; HOSE,P/S (C) ID=32	1-09704-085-0	01	1	1403-
37	CLIP; HOSE,P/S (A) ID=38	9-09915-041-1	01	1	1403-
37	CLIP; HOSE,P/S (B) ID=28	9-09915-672-1	02	1	1403-
39	CLIP; FLEX HOSE ID=31 L=35	1-09700-329-1	01	1	1403-
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1403-
45	PIPE; OIL,P/S UNIT TO UNION (A) THA	8-98166-065-0	01	1	1403-
45	PIPE; OIL,P/S UNIT TO UNION (B) THA	8-98166-066-0	01	1	1403-
45	PIPE; OIL,P/S UNIT TO UNION (C) THA	8-98182-413-0	01	1	1403-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT THA	8-98182-414-0	01	1	1403-
49	PIPE; OIL,FLEX HOSE TO UNION	8-98123-063-0	01	1	1403-
54	CLIP; OIL PIPE (A) ID=19 L=60	0-95235-896-0	01	1	1403-
54	CLIP; OIL PIPE (B) ID=13X2 L=20	0-95325-236-0	04	1	1403-
55	CLIP; P/S RUBBER HOSE ID=28 L=32	1-09701-107-1	01	1	1403-
58	BOLT; CLIP (C) M8X16 FLANGE THA	0-28050-816-0	02	1	1403-
58	BOLT; CLIP (D) M8X50 FLANGE THA	0-28050-850-0	02	1	1403-
58	BOLT; CLIP (A) M8X20 FLANGE THA	0-28650-820-0	01	1	1403-
58	BOLT; CLIP (B) M8X25 FLANGE THA	0-28650-825-0	04	1	1403-
68	NUT; CLIP,OIL PIPE M8 FLANGE THA	0-91180-108-0	01	1	1403-
84	HOSE; FLEX,P/S (A) L=430 THA	0-89538-430-0	01	1	1403-
84	HOSE; FLEX,P/S (B) THA	8-97948-584-0	01	1	1403-
195	BOLT; BRKT (B) M10X20 FLANGE THA	0-28651-020-0	02	1	1403-
195	BOLT; BRKT (A) M8X35 W/LK&PL WASHER	0-50640-835-0	03	1	1403-
239	BRACKET; FLEX HOSE (C)	1-47479-146-0	01	1	1403-
239	BRACKET; FLEX HOSE (B)	8-97608-869-1	01	1	1403-
239	BRACKET; FLEX HOSE (A)	8-97621-113-0	01	1	1403-
261	PIPE; OIL,UNION TO HOSE THA	8-98124-680-0	01	1	1403-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE THA	8-97618-672-0	01	1	1403-
277	BOLT; HOSE CLIP (A) M8X20 FLANGE THA	0-28650-820-0	01	1	1403-
277	BOLT; HOSE CLIP (B) M8X25 FLANGE THA	0-28650-825-0	01	1	1403-
280	HOSE; P/S OIL PUMP,INL	8-98191-607-0	01	1	1403-
