Isuzu WW
▶
TRUCKS
▶
FYH
▶
11590 - FYH(THAILAND)EURO3
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-31 - STEERING COLUMN AND SHAFT
▶

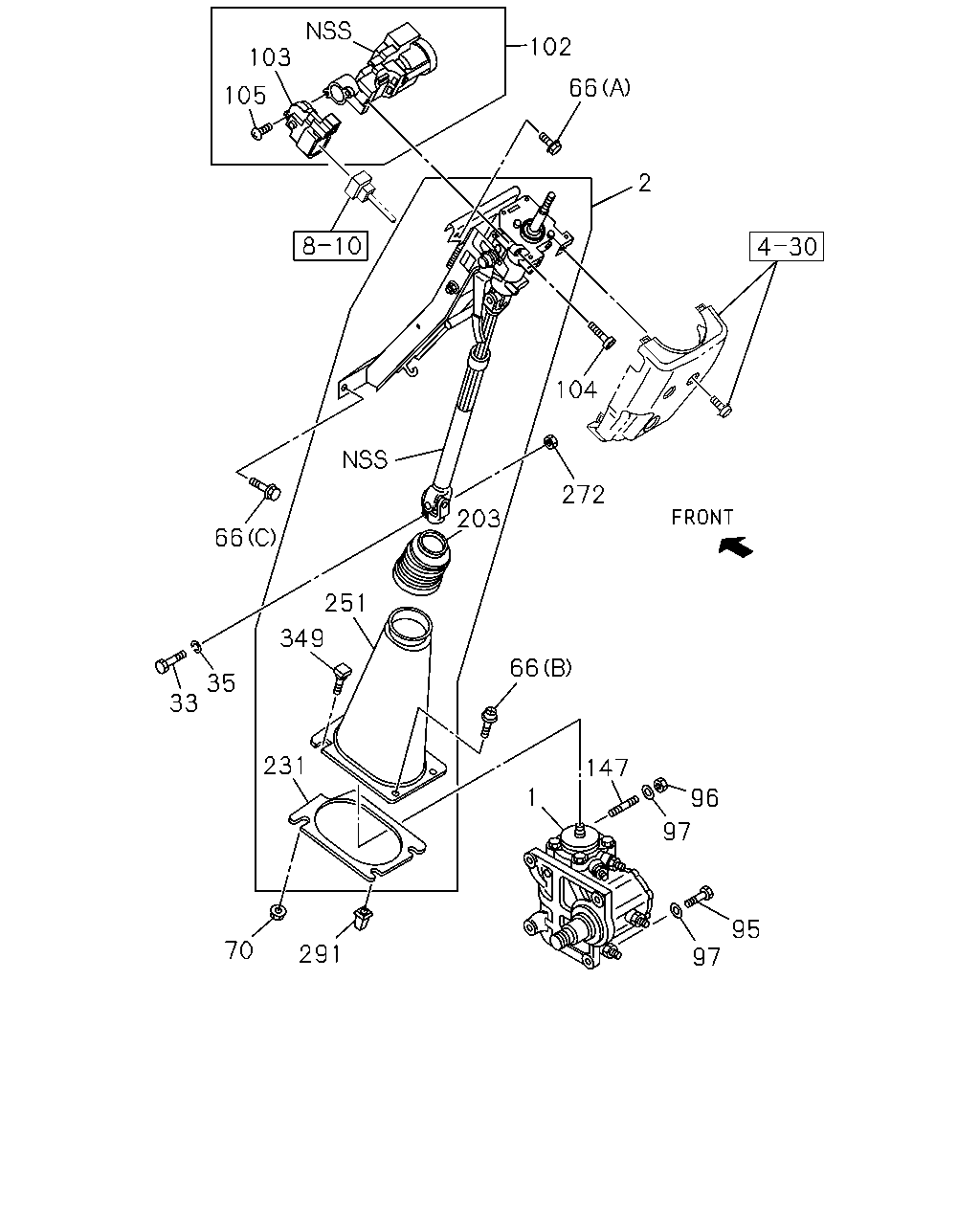

4-31 — STEERING COLUMN AND SHAFT
(#136426) — 22 parça
102
66
2
104
272
203
103
105
66
349
251
35
66
147
1
97
96
95
97
291
70
231
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT.
1-44000-922-2
01
1
1403-
2
SHAFT ASM; STRG
THA
8-97948-357-1
01
1
1403-
33
BOLT; STRG SHAFT TO UNIT
M10X50
1-09000-786-0
01
1
1403-
35
WASHER; LK,STRG SHAFT
ID=10.2
0-91510-810-0
01
1
1403-
66
BOLT; STRG COLUMN
(A) M8X20 FLANGE THA
0-28650-820-0
02
1
1403-
66
BOLT; STRG COLUMN
(B) M5X18 TAPPING
0-72180-518-0
02
1
1403-
66
BOLT; STRG COLUMN
(C) M8X25 W/LK&PL WASHER
8-98018-439-0
02
1
1403-
70
NUT; STRG COLUMN
M6 FLANGE W/RUBBER
1-09984-180-0
02
1
1403-
95
BOLT; STRG UNIT
M18X60
8-98036-497-0
03
1
1403-
96
NUT; STRG UNIT
M18 THA
0-91110-518-0
01
1
1403-
97
WASHER; PL,STRG UNIT
ID=18
9-09851-862-0
04
1
1403-
102
LOCK ASM; STRG
THA
8-97948-271-0
01
1
1403-
103
SWITCH; IGNITION
THA
8-98045-349-0
01
1
1403-
104
BOLT; STRG LOCK TO COLUMN
M8X20 TORQUE SHEAR BOLT
8-97321-385-0
02
1
1403-
105
SCREW; IGN SW
THA
8-98045-346-0
02
1
1403-
147
STUD; STRG UNIT
M18X49 L=76
1-09300-107-0
01
1
1403-
203
BOOT; STRG COLUMN LWR
THA
8-97948-998-0
01
1
1404-
231
SEAL; RUBBER,STRG COLUMN
THA
8-97949-003-0
01
1
1404-
251
COVER; LWR
THA
8-97949-001-0
01
1
1404-
272
NUT; SHAFT TO YOKE
M10 THA
0-91110-510-0
01
1
1403-
291
GROMMET; STRG SHAFT COVER
D=7.8X7.8 L=18 NATURAL
8-94279-043-0
02
1
1403-
349
BOLT; COVER
THA
8-97949-004-0
02
1
1404-
