Sayfa 4-25 - Isuzu EPC

4-25 — REAR FINAL DRIVE (#136424) — 280 parça

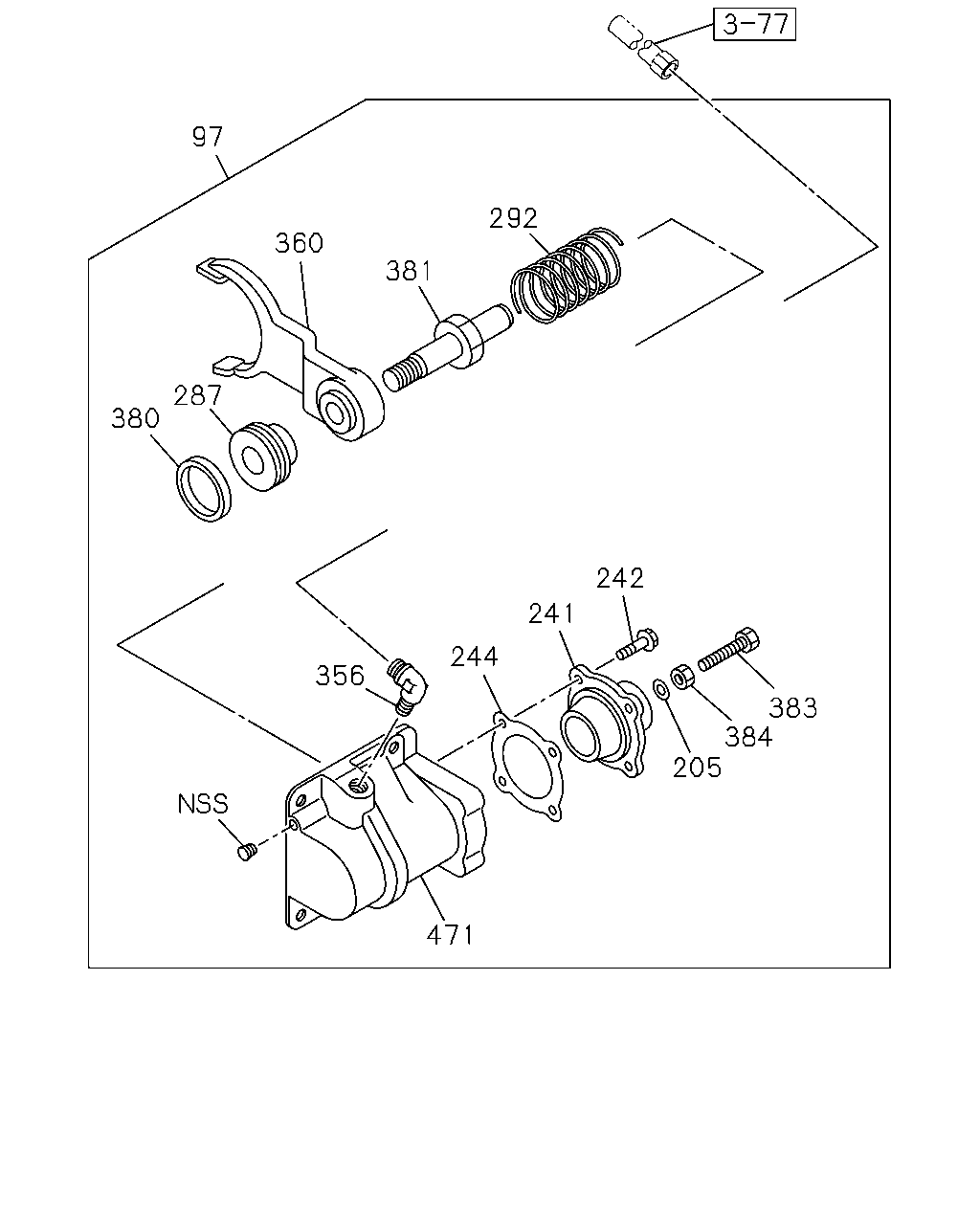

97 360 292 381 287 380 242 241 244 356 471 205 384 383

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
97	SHIFT UNIT; DIFF LOCK	1-48260-060-1	01	1	1403-	●	●	●
205	WASHER; PL ID=10.5 OD=18	9-09160-510-0	01	1	1403-	●	●	●
241	COVER; SHIFT HSG	1-48266-012-1	01	1	1403-	●	●	●
242	BOLT; COVER M8X20	0-20800-820-0	04	1	1403-	●	●	●
244	GASKET; COVER	1-48269-062-0	01	1	1403-	●	●	●
287	PISTON; SHIFT UNIT	1-48262-012-0	01	1	1403-	●	●	●
292	SPRING; PISTON	1-48265-007-0	01	1	1403-	●	●	●
356	NIPPLE; SHIFT UNIT M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1403-	●	●	●
360	FORK; SHIFT	1-48269-066-0	01	1	1403-	●	●	●
380	GASKET; PISTON	1-48269-064-0	01	1	1403-	●	●	●
381	ROD; SHIFT	1-48263-005-0	01	1	1403-	●	●	●
383	BOLT; SET,SHIFT UNIT M10X45	0-20801-045-0	01	1	1403-	●	●	●
384	NUT; LK,SHIFT UNIT M10	9-09111-410-0	01	1	1403-	●	●	●
471	CYLINDER ASM; SHIFT UNIT	1-48269-261-0	01	1	1403-	●	●	●

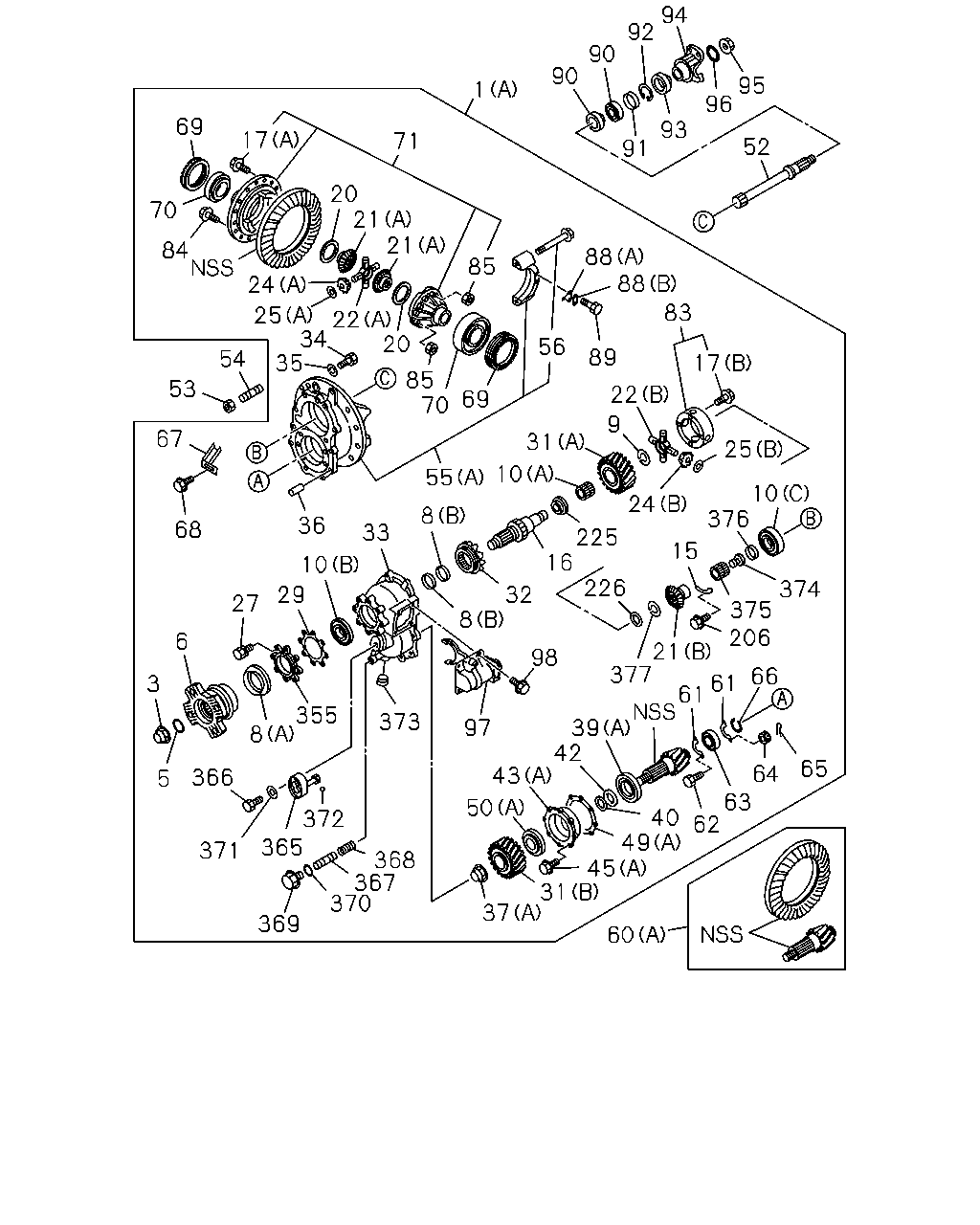

69 70 17 84 20 71 24 25 22 21 21 20 34 35 54 53 67 68 3 5 366 8 6 27 36 10 29 355 373 372 365 371 369 370 367 368 37 31 45 60 49 40 62 63 64 65 50 43 42 39 377 21 61 61 66 206 375 374 98 97 8 8 33 55 85 70 69 56 85 1 90 90 92 94 95 96 93 91 52 88 88 83 89 22 17 9 31 10 24 225 16 32 226 15 376 10 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRIVE ASM; FINAL,RR (B) 39/7	1-41001-393-0	01	1	1403-	●
1	DRIVE ASM; FINAL,RR (B) 41/8	1-41001-394-0	01	1	1403-		●
1	DRIVE ASM; FINAL,RR (B) 39/8	1-41001-395-0	01	1	1403-			●
1	DRIVE ASM; FINAL,RR (A) 39/8	1-41002-110-0	01	1	1403-			●
1	DRIVE ASM; FINAL,RR (A) 39/7	1-41002-443-0	01	1	1403-	●
1	DRIVE ASM; FINAL,RR (A) 41/8	1-41002-761-0	01	1	1403-		●
3	NUT; INPUT SHAFT M46 FLANGE	1-09449-071-0	01	1	1403-	●	●	●
5	GASKET; INPUT SHAFT ID=57	1-09623-386-0	01	1	1403-	●	●	●
6	FLANGE ASM; INPUT SHAFT	1-37245-343-0	01	1	1403-	●	●	●
8	SEAL; OIL,INPUT SHAFT (A)	1-09625-323-0	01	1	1403-	●	●	●
8	SEAL; OIL,INPUT SHAFT (B)	1-41349-145-0	02	1	1403-	●	●	●
9	RING; SNAP,BRG,INPUT	1-09588-192-0	01	1	1403-	●	●	●
10	BEARING; INPUT SHAFT (A) JTEKT	1-09811-346-0	01	1	1403-	●	●	●
10	BEARING; INPUT SHAFT (A) NSK	1-09811-347-0	01	1	1403-	●	●	●
10	BEARING; INPUT SHAFT (B) NSK	1-09812-094-0	01	1	1403-	●	●	●
10	BEARING; INPUT SHAFT (C) JTEKT	1-09812-182-0	01	1	1403-	●	●	●
10	BEARING; INPUT SHAFT (C) NSK	1-09812-183-0	01	1	1403-	●	●	●
10	BEARING; INPUT SHAFT (B) JTEKT	1-09812-198-0	01	1	1403-	●	●	●
15	CATCHER; OIL	1-41129-007-0	01	1	1403-	●	●	●
16	SHAFT ASM; INPUT	1-41341-025-0	01	1	1403-	●	●	●
17	BOLT; DIFF CAGE SETTING REAR AXLE RT210<C2A> (A) M16X125	1-09070-007-0	04	1	1403-	●	●	●
17	BOLT; DIFF CAGE SETTING REAR AXLE RT210<C2A> (A) M16X113	1-09070-018-0	08	1	1403-	●	●	●
17	BOLT; DIFF CAGE SETTING (B) M10X55	1-09070-108-0	08	1	1403-	●	●	●
20	WASHER; THRUST,SIDE GEAR REAR AXLE RT210<C2A> T=2.8	1-41562-112-0	AR	1	1403-	●	●	●
20	WASHER; THRUST,SIDE GEAR REAR AXLE RT210<C2A> T=2.9	1-41562-113-0	AR	1	1403-	●	●	●
20	WASHER; THRUST,SIDE GEAR REAR AXLE RT210<C2A> T=3.0	1-41562-114-0	AR	1	1403-	●	●	●
20	WASHER; THRUST,SIDE GEAR REAR AXLE RT210<C2A> T=3.1	1-41562-115-0	AR	1	1403-	●	●	●
20	WASHER; THRUST,SIDE GEAR REAR AXLE RT210<C2A> T=3.2	1-41562-116-0	AR	1	1403-	●	●	●
20	WASHER; THRUST,SIDE GEAR REAR AXLE RT210<C2A> T=3.3	1-41562-117-0	AR	1	1403-	●	●	●
20	WASHER; THRUST,SIDE GEAR REAR AXLE RT210<C2A> T=3.4	1-41562-118-0	AR	1	1403-	●	●	●
21	GEAR; SIDE,DIFF REAR AXLE RT210<C2A> (A) Z=16	1-41561-151-0	02	1	1403-	●	●	●
21	GEAR; SIDE,DIFF (B) Z=16	1-41561-169-0	01	1	1403-	●	●	●
22	SPIDER; DIFF PINION REAR AXLE RT210<C2A> (A) OD=35	1-41521-037-2	01	1	1403-	●	●	●
22	SPIDER; DIFF PINION (B)	1-41521-049-2	01	1	1403-	●	●	●
24	GEAR; PINION,DIFF REAR AXLE RT210<C2A> (A) Z=10	1-41551-053-0	04	1	1403-	●	●	●
24	GEAR; PINION,DIFF (B) Z=10	1-41551-055-0	04	1	1403-	●	●	●
25	WASHER; THRUST,PINION REAR AXLE RT210<C2A> (A) T=1.6	1-41552-017-0	04	1	1403-	●	●	●
25	WASHER; THRUST,PINION (B) T=1.6	1-41552-023-0	04	1	1403-	●	●	●
27	BOLT; BRG RET M12X35 W/LK WASHER	0-50551-235-0	08	1	1403-	●	●	●
29	SHIM; BRG RET T=0.30	1-41349-146-0	AR	1	1403-	●	●	●
29	SHIM; BRG RET T=0.40	1-41349-147-0	AR	1	1403-	●	●	●
29	SHIM; BRG RET T=0.50	1-41349-148-0	AR	1	1403-	●	●	●
29	SHIM; BRG RET T=1.000	1-41349-149-0	AR	1	1403-	●	●	●
31	GEAR; DRIVEN,HELICAL (A) Z=16	1-41351-044-0	01	1	1403-	●	●	●
31	GEAR; DRIVEN,HELICAL (B) Z=31	1-41352-029-0	01	1	1403-	●	●	●
32	SLEEVE; CLU,DIFF LK	1-41355-038-0	01	1	1403-	●	●	●
33	CASE; POWER DIVIDER	1-41321-024-1	01	1	1403-	●	●	●
34	BOLT; CASE TO CARRIER M14X40	0-23851-440-0	10	1	1403-	●	●	●
35	WASHER; CASE TO CARRIER ID=14.2	0-91510-814-0	10	1	1403-	●	●	●
36	PIN; STRAIGHT OD=14 L=28	9-08161-428-0	02	1	1403-	●	●	●
37	NUT; DRIVING PINION (A) M42	1-09449-061-0	01	1	1403-	●	●	●
37	NUT; DRIVING PINION REAR AXLE RT210<C2A> (B) M46 FLANGE	1-09449-071-0	01	1	1403-	●	●	●
39	BEARING; FINAL PINION (A) NSK	1-09812-073-1	01	1	1403-	●	●	●
39	BEARING; FINAL PINION (A) JTEKT	1-09812-074-3	01	1	1403-	●	●	●
39	BEARING; FINAL PINION REAR AXLE RT210<C2A> (B) NSK	1-09812-075-0	01	1	1403-	●	●	●
39	BEARING; FINAL PINION REAR AXLE RT210<C2A> (B) JTEKT	1-09812-076-1	01	1	1403-	●	●	●
40	SHIM; FINAL PINION REAR AXLE RT210<C2A> T=3.25	1-41229-245-0	AR	1	1403-	●	●	●
40	SHIM; FINAL PINION REAR AXLE RT210<C2A> T=3.26	1-41229-246-0	AR	1	1403-	●	●	●
40	SHIM; FINAL PINION REAR AXLE RT210<C2A> T=3.27	1-41229-247-0	AR	1	1403-	●	●	●
40	SHIM; FINAL PINION REAR AXLE RT210<C2A> T=3.28	1-41229-248-0	AR	1	1403-	●	●	●
40	SHIM; FINAL PINION REAR AXLE RT210<C2A> T=3.29	1-41229-249-0	AR	1	1403-	●	●	●
40	SHIM; FINAL PINION REAR AXLE RT210<C2A> T=3.30	1-41229-250-0	AR	1	1403-	●	●	●
40	SHIM; FINAL PINION REAR AXLE RT210<C2A> T=3.31	1-41229-251-0	AR	1	1403-	●	●	●
40	SHIM; FINAL PINION REAR AXLE RT210<C2A> T=3.32	1-41229-252-0	AR	1	1403-	●	●	●
40	SHIM; FINAL PINION REAR AXLE RT210<C2A> T=3.33	1-41229-253-0	AR	1	1403-	●	●	●
40	SHIM; FINAL PINION REAR AXLE RT210<C2A> T=3.34	1-41229-254-0	AR	1	1403-	●	●	●
40	SHIM; FINAL PINION REAR AXLE RT210<C2A> T=3.35	1-41229-255-0	AR	1	1403-	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-237-0	AR	1	1403-	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-238-0	AR	1	1403-	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-239-0	AR	1	1403-	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-240-0	AR	1	1403-	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.40	1-41229-241-0	AR	1	1403-	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.60	1-41229-242-0	AR	1	1403-	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.80	1-41229-243-0	AR	1	1403-	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=9.00	1-41229-244-0	AR	1	1403-	●	●	●
43	CAGE; FINAL PINION REAR AXLE RT210<C2A> (B) T=81	1-41151-030-0	01	1	1403-	●	●	●
43	CAGE; FINAL PINION (A) T=53	1-41151-053-0	01	1	1403-	●	●	●
45	BOLT; FINAL PINION CAGE REAR AXLE RT210<C2A> (B) M16X55	0-16806-655-0	08	1	1403-	●	●	●
45	BOLT; FINAL PINION CAGE (A) M16X40	1-09070-107-0	08	1	1403-	●	●	●
49	SHIM; FINAL PINION CAGE REAR AXLE RT210<C2A> (B) T=0.50	1-41154-024-0	AR	1	1403-	●	●	●
49	SHIM; FINAL PINION CAGE REAR AXLE RT210<C2A> (B) T=1.00	1-41154-025-0	AR	1	1403-	●	●	●
49	SHIM; FINAL PINION CAGE REAR AXLE RT210<C2A> (B) T=0.30	1-41154-057-0	AR	1	1403-	●	●	●
49	SHIM; FINAL PINION CAGE REAR AXLE RT210<C2A> (B) T=0.40	1-41154-058-0	AR	1	1403-	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.50	1-41154-071-0	AR	1	1403-	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=1.000	1-41154-072-0	AR	1	1403-	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.30	1-41154-073-0	AR	1	1403-	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.40	1-41154-074-0	AR	1	1403-	●	●	●
50	BEARING; FINAL PINION REAR AXLE RT210<C2A> (B) NSK	1-09812-073-1	01	1	1403-	●	●	●
50	BEARING; FINAL PINION REAR AXLE RT210<C2A> (B) JTEKT	1-09812-074-3	01	1	1403-	●	●	●
50	BEARING; FINAL PINION (A) NSK	1-09812-075-0	01	1	1403-	●	●	●
50	BEARING; FINAL PINION (A) JTEKT	1-09812-076-1	01	1	1403-	●	●	●
52	SHAFT; OUTPUT	1-41343-020-0	01	1	1403-	●	●	●
53	NUT; FINAL DRIVE SET M16 THA	0-91110-516-0	01	1	1403-	●	●	●
54	STUD; FINAL DRIVE SET M16X32 L=56	9-09830-243-0	01	1	1403-	●	●	●
55	CARRIER; DIFF REAR AXLE RT210<C2A> (B)	1-41110-109-0	01	1	1403-	●	●	●
55	CARRIER; DIFF (A)	1-41310-050-0	01	1	1403-	●	●	●
56	BOLT; BRG CAP REAR AXLE RT210<C2A> M20X112	1-09070-042-0	04	1	1403-	●	●	●
60	GEAR SET; FINAL DRIVE,RR (A) 39/7	1-41210-476-0	01	1	1403-	●
60	GEAR SET; FINAL DRIVE,RR (A) 41/8	1-41210-477-0	01	1	1403-		●
60	GEAR SET; FINAL DRIVE,RR (A) 39/8	1-41210-478-0	01	1	1403-			●
60	GEAR SET; FINAL DRIVE,RR (B) 39/7	1-41210-604-0	01	1	1403-	●
60	GEAR SET; FINAL DRIVE,RR (B) 41/8	1-41210-605-0	01	1	1403-		●
60	GEAR SET; FINAL DRIVE,RR (B) 39/8	1-41210-607-0	01	1	1403-			●
61	RETAINER; PILOT BRG,PINION REAR AXLE RT210<C2A> T=3.2	1-41227-012-0	02	1	1403-	●	●	●
62	BOLT; RET REAR AXLE RT210<C2A> M8X40 W/PIN HOLE	1-09042-038-1	02	1	1403-	●	●	●
63	BEARING; PINION PILOT REAR AXLE RT210<C2A> JTEKT	1-09810-182-0	01	1	1403-	●	●	●
63	BEARING; PINION PILOT REAR AXLE RT210<C2A> NSK	1-09810-183-0	01	1	1403-	●	●	●
64	NUT; RET REAR AXLE RT210<C2A> M8 SLOTTED	0-91117-508-0	02	1	1403-	●	●	●
65	PIN; SPLIT,RET REAR AXLE RT210<C2A>	0-81122-012-0	02	1	1403-	●	●	●
66	RING; SNAP,PILOT BRG REAR AXLE RT210<C2A> OD=37.2	1-09588-086-2	01	1	1403-	●	●	●
67	PICKUP; OIL,CARRIER	1-41129-008-0	01	1	1403-	●	●	●
68	BOLT; OIL PICKUP FIX M8X12 FLANGE	8-94479-696-1	02	1	1403-	●	●	●
69	NUT; ADJ,DIFF CAGE REAR AXLE RT210<C2A> M155 H=26	1-41121-001-0	01	1	1403-	●	●	●
69	NUT; ADJ,DIFF CAGE REAR AXLE RT210<C2A> M155 H=30	1-41121-002-0	01	1	1403-	●	●	●
70	BEARING; DIFF CAGE REAR AXLE RT210<C2A> JTEKT ID=92 OD=152 T=40	1-09812-225-0	02	1	1403-	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE REAR AXLE RT210<C2A>	1-41510-141-0	01	1	1403-	●	●	●
83	CAGE ASM; DIFF	1-41510-224-0	01	1	1403-	●	●	●
84	BOLT; FINAL DRIVE GEAR REAR AXLE RT210<C2A> M18X38 FLANGE	1-09009-049-1	16	1	1403-	●	●	●
85	NUT; DIFF CAGE SETTING REAR AXLE RT210<C2A> M16 THA	0-91110-516-0	12	1	1403-	●	●	●
88	PLATE; LK,ADJ NUT REAR AXLE RT210<C2A> (A) T=3.2	1-41124-006-0	02	1	1403-	●	●	●
88	PLATE; LK,ADJ NUT REAR AXLE RT210<C2A> (B) T=1.0	9-41124-005-0	02	1	1403-	●	●	●
89	BOLT; LK PLATE REAR AXLE RT210<C2A> M8X16	0-20850-816-0	04	1	1403-	●	●	●
90	BEARING; OUTPUT SHAFT NSK	1-09812-068-0	02	1	1403-	●	●	●
90	BEARING; OUTPUT SHAFT JTEKT	1-09812-069-0	02	1	1403-	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.60	1-41349-020-0	AR	1	1403-	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.70	1-41349-021-0	AR	1	1403-	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.80	1-41349-022-0	AR	1	1403-	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.90	1-41349-023-0	AR	1	1403-	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.00	1-41349-024-0	AR	1	1403-	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.10	1-41349-025-0	AR	1	1403-	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.20	1-41349-026-0	AR	1	1403-	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.30	1-41349-027-0	AR	1	1403-	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.50	1-41349-091-0	AR	1	1403-	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.40	1-41349-092-0	AR	1	1403-	●	●	●
92	RING; SNAP,BRG,OUTPUT SHAFT OD=90.5	9-09180-185-0	01	1	1403-	●	●	●
93	SEAL; OIL,OUTPUT SHAFT	1-09625-217-0	01	1	1403-	●	●	●
94	FLANGE ASM; OUTPUT SHAFT	1-37245-130-1	01	1	1403-	●	●	●
95	NUT; OUTPUT SHAFT M36 FLANGE	1-09449-067-0	01	1	1403-	●	●	●
96	GASKET; SHAFT,OUTPUT ID=42	1-09623-387-0	01	1	1403-	●	●	●
97	SHIFT UNIT; DIFF LOCK	1-48260-060-1	01	1	1403-	●	●	●
98	BOLT; SHIFT UNIT TO CARRIER M10X50 FLANGE THA	0-28151-050-0	01	1	1403-	●	●	●
98	BOLT; SHIFT UNIT TO CARRIER M10X25 FLANGE THA	0-28751-025-0	03	1	1403-	●	●	●
206	BOLT; OIL CATCHER M8X12 FLANGE	8-94479-696-1	02	1	1403-	●	●	●
225	WASHER; THRUST T=5.9	1-41552-024-2	AR	1	1403-	●	●	●
225	WASHER; THRUST T=6.0	1-41552-025-2	AR	1	1403-	●	●	●
225	WASHER; THRUST T=6.1	1-41552-026-2	AR	1	1403-	●	●	●
225	WASHER; THRUST T=6.2	1-41552-027-2	AR	1	1403-	●	●	●
225	WASHER; THRUST T=6.3	1-41552-028-2	AR	1	1403-	●	●	●
225	WASHER; THRUST T=6.4	1-41552-029-2	AR	1	1403-	●	●	●
225	WASHER; THRUST T=6.5	1-41552-030-2	AR	1	1403-	●	●	●
225	WASHER; THRUST T=6.6	1-41552-031-2	AR	1	1403-	●	●	●
225	WASHER; THRUST T=6.7	1-41552-032-2	AR	1	1403-	●	●	●
225	WASHER; THRUST T=6.8	1-41552-033-2	AR	1	1403-	●	●	●
225	WASHER; THRUST T=6.9	1-41552-034-2	AR	1	1403-	●	●	●
225	WASHER; THRUST T=7.0	1-41552-035-2	AR	1	1403-	●	●	●
225	WASHER; THRUST T=7.1	1-41552-036-2	AR	1	1403-	●	●	●
226	WASHER; THRUST	1-41562-267-0	01	1	1403-	●	●	●
355	RETAINER; BRG	1-41227-016-0	01	1	1403-	●	●	●
365	PUMP ASM; OIL	1-41381-008-1	01	1	1403-	●	●	●
366	BOLT; PUMP M8X40	0-10805-840-0	04	1	1403-	●	●	●
367	STRAINER; OIL PUMP	1-41383-003-0	01	1	1403-	●	●	●
368	SPRING; STRAINER	1-09580-504-0	01	1	1403-	●	●	●
369	PLUG; STRAINER M24X17 FLANGE	1-09604-023-0	01	1	1403-	●	●	●
370	GASKET; STRAINER ID=26.8	1-09623-058-0	01	1	1403-	●	●	●
371	WASHER; LK,PUMP ID=8.2 THA	0-91510-808-0	04	1	1403-	●	●	●
372	BALL; CASE	9-00097-517-0	01	1	1403-	●	●	●
373	PLUG; CASE PT1/4	1-09605-019-0	01	1	1403-	●	●	●
374	PLUG; INPUT SHAFT	1-09609-020-1	01	1	1403-	●	●	●
375	BEARING; SIDE GEAR JTEKT	1-09811-348-0	01	1	1403-	●	●	●
375	BEARING; SIDE GEAR NSK	1-09811-362-0	01	1	1403-	●	●	●
376	SPACER; BRG,SIDE GEAR	1-41349-150-0	01	1	1403-	●	●	●
377	RING; SNAP,BRG,SIDE GEAR	1-09587-091-0	01	1	1403-	●	●	●

69 70 85 85 24 25 20 21 71 22 21 20 17 1 56 89 88 88 69 70 84 17 55 66 61 61 65 64 63 62 50 49 43 60 48 45 41 40 39 100 126 4 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRIVE ASM; FINAL,RR (B) 39/7	1-41001-393-0	01	1	1403-	●
1	DRIVE ASM; FINAL,RR (B) 41/8	1-41001-394-0	01	1	1403-		●
1	DRIVE ASM; FINAL,RR (B) 39/8	1-41001-395-0	01	1	1403-			●
1	DRIVE ASM; FINAL,RR (A) 39/8	1-41002-110-0	01	1	1403-			●
1	DRIVE ASM; FINAL,RR (A) 39/7	1-41002-443-0	01	1	1403-	●
1	DRIVE ASM; FINAL,RR (A) 41/8	1-41002-761-0	01	1	1403-		●
4	GASKET; FLANGE,FINAL PINION REAR AXLE RT210<C2A> ID=57	1-09623-386-0	01	1	1403-	●	●	●
17	BOLT; DIFF CAGE SETTING REAR AXLE RT210<C2A> (A) M16X125	1-09070-007-0	04	1	1403-	●	●	●
17	BOLT; DIFF CAGE SETTING REAR AXLE RT210<C2A> (A) M16X113	1-09070-018-0	08	1	1403-	●	●	●
17	BOLT; DIFF CAGE SETTING (B) M10X55	1-09070-108-0	08	1	1403-	●	●	●
20	WASHER; THRUST,SIDE GEAR REAR AXLE RT210<C2A> T=2.8	1-41562-112-0	AR	1	1403-	●	●	●
20	WASHER; THRUST,SIDE GEAR REAR AXLE RT210<C2A> T=2.9	1-41562-113-0	AR	1	1403-	●	●	●
20	WASHER; THRUST,SIDE GEAR REAR AXLE RT210<C2A> T=3.0	1-41562-114-0	AR	1	1403-	●	●	●
20	WASHER; THRUST,SIDE GEAR REAR AXLE RT210<C2A> T=3.1	1-41562-115-0	AR	1	1403-	●	●	●
20	WASHER; THRUST,SIDE GEAR REAR AXLE RT210<C2A> T=3.2	1-41562-116-0	AR	1	1403-	●	●	●
20	WASHER; THRUST,SIDE GEAR REAR AXLE RT210<C2A> T=3.3	1-41562-117-0	AR	1	1403-	●	●	●
20	WASHER; THRUST,SIDE GEAR REAR AXLE RT210<C2A> T=3.4	1-41562-118-0	AR	1	1403-	●	●	●
21	GEAR; SIDE,DIFF REAR AXLE RT210<C2A> (A) Z=16	1-41561-151-0	02	1	1403-	●	●	●
21	GEAR; SIDE,DIFF (B) Z=16	1-41561-169-0	01	1	1403-	●	●	●
22	SPIDER; DIFF PINION REAR AXLE RT210<C2A> (A) OD=35	1-41521-037-2	01	1	1403-	●	●	●
22	SPIDER; DIFF PINION (B)	1-41521-049-2	01	1	1403-	●	●	●
24	GEAR; PINION,DIFF REAR AXLE RT210<C2A> (A) Z=10	1-41551-053-0	04	1	1403-	●	●	●
24	GEAR; PINION,DIFF (B) Z=10	1-41551-055-0	04	1	1403-	●	●	●
25	WASHER; THRUST,PINION REAR AXLE RT210<C2A> (A) T=1.6	1-41552-017-0	04	1	1403-	●	●	●
25	WASHER; THRUST,PINION (B) T=1.6	1-41552-023-0	04	1	1403-	●	●	●
37	NUT; DRIVING PINION (A) M42	1-09449-061-0	01	1	1403-	●	●	●
37	NUT; DRIVING PINION REAR AXLE RT210<C2A> (B) M46 FLANGE	1-09449-071-0	01	1	1403-	●	●	●
39	BEARING; FINAL PINION (A) NSK	1-09812-073-1	01	1	1403-	●	●	●
39	BEARING; FINAL PINION (A) JTEKT	1-09812-074-3	01	1	1403-	●	●	●
39	BEARING; FINAL PINION REAR AXLE RT210<C2A> (B) NSK	1-09812-075-0	01	1	1403-	●	●	●
39	BEARING; FINAL PINION REAR AXLE RT210<C2A> (B) JTEKT	1-09812-076-1	01	1	1403-	●	●	●
40	SHIM; FINAL PINION REAR AXLE RT210<C2A> T=3.25	1-41229-245-0	AR	1	1403-	●	●	●
40	SHIM; FINAL PINION REAR AXLE RT210<C2A> T=3.26	1-41229-246-0	AR	1	1403-	●	●	●
40	SHIM; FINAL PINION REAR AXLE RT210<C2A> T=3.27	1-41229-247-0	AR	1	1403-	●	●	●
40	SHIM; FINAL PINION REAR AXLE RT210<C2A> T=3.28	1-41229-248-0	AR	1	1403-	●	●	●
40	SHIM; FINAL PINION REAR AXLE RT210<C2A> T=3.29	1-41229-249-0	AR	1	1403-	●	●	●
40	SHIM; FINAL PINION REAR AXLE RT210<C2A> T=3.30	1-41229-250-0	AR	1	1403-	●	●	●
40	SHIM; FINAL PINION REAR AXLE RT210<C2A> T=3.31	1-41229-251-0	AR	1	1403-	●	●	●
40	SHIM; FINAL PINION REAR AXLE RT210<C2A> T=3.32	1-41229-252-0	AR	1	1403-	●	●	●
40	SHIM; FINAL PINION REAR AXLE RT210<C2A> T=3.33	1-41229-253-0	AR	1	1403-	●	●	●
40	SHIM; FINAL PINION REAR AXLE RT210<C2A> T=3.34	1-41229-254-0	AR	1	1403-	●	●	●
40	SHIM; FINAL PINION REAR AXLE RT210<C2A> T=3.35	1-41229-255-0	AR	1	1403-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG REAR AXLE RT210<C2A> T=7.60	1-41229-237-0	AR	1	1403-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG REAR AXLE RT210<C2A> T=7.80	1-41229-238-0	AR	1	1403-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG REAR AXLE RT210<C2A> T=8.00	1-41229-239-0	AR	1	1403-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG REAR AXLE RT210<C2A> T=8.20	1-41229-240-0	AR	1	1403-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG REAR AXLE RT210<C2A> T=8.40	1-41229-241-0	AR	1	1403-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG REAR AXLE RT210<C2A> T=8.60	1-41229-242-0	AR	1	1403-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG REAR AXLE RT210<C2A> T=8.80	1-41229-243-0	AR	1	1403-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG REAR AXLE RT210<C2A> T=9.00	1-41229-244-0	AR	1	1403-	●	●	●
43	CAGE; FINAL PINION REAR AXLE RT210<C2A> (B) T=81	1-41151-030-0	01	1	1403-	●	●	●
43	CAGE; FINAL PINION (A) T=53	1-41151-053-0	01	1	1403-	●	●	●
45	BOLT; FINAL PINION CAGE REAR AXLE RT210<C2A> (B) M16X55	0-16806-655-0	08	1	1403-	●	●	●
45	BOLT; FINAL PINION CAGE (A) M16X40	1-09070-107-0	08	1	1403-	●	●	●
48	WASHER; LK,FINAL PINION REAR AXLE RT210<C2A> ID=16.2	0-91510-516-0	08	1	1403-	●	●	●
49	SHIM; FINAL PINION CAGE REAR AXLE RT210<C2A> (B) T=0.50	1-41154-024-0	AR	1	1403-	●	●	●
49	SHIM; FINAL PINION CAGE REAR AXLE RT210<C2A> (B) T=1.00	1-41154-025-0	AR	1	1403-	●	●	●
49	SHIM; FINAL PINION CAGE REAR AXLE RT210<C2A> (B) T=0.30	1-41154-057-0	AR	1	1403-	●	●	●
49	SHIM; FINAL PINION CAGE REAR AXLE RT210<C2A> (B) T=0.40	1-41154-058-0	AR	1	1403-	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.50	1-41154-071-0	AR	1	1403-	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=1.000	1-41154-072-0	AR	1	1403-	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.30	1-41154-073-0	AR	1	1403-	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.40	1-41154-074-0	AR	1	1403-	●	●	●
50	BEARING; FINAL PINION REAR AXLE RT210<C2A> (B) NSK	1-09812-073-1	01	1	1403-	●	●	●
50	BEARING; FINAL PINION REAR AXLE RT210<C2A> (B) JTEKT	1-09812-074-3	01	1	1403-	●	●	●
50	BEARING; FINAL PINION (A) NSK	1-09812-075-0	01	1	1403-	●	●	●
50	BEARING; FINAL PINION (A) JTEKT	1-09812-076-1	01	1	1403-	●	●	●
55	CARRIER; DIFF REAR AXLE RT210<C2A> (B)	1-41110-109-0	01	1	1403-	●	●	●
55	CARRIER; DIFF (A)	1-41310-050-0	01	1	1403-	●	●	●
56	BOLT; BRG CAP REAR AXLE RT210<C2A> M20X112	1-09070-042-0	04	1	1403-	●	●	●
60	GEAR SET; FINAL DRIVE,RR (A) 39/7	1-41210-476-0	01	1	1403-	●
60	GEAR SET; FINAL DRIVE,RR (A) 41/8	1-41210-477-0	01	1	1403-		●
60	GEAR SET; FINAL DRIVE,RR (A) 39/8	1-41210-478-0	01	1	1403-			●
60	GEAR SET; FINAL DRIVE,RR (B) 39/7	1-41210-604-0	01	1	1403-	●
60	GEAR SET; FINAL DRIVE,RR (B) 41/8	1-41210-605-0	01	1	1403-		●
60	GEAR SET; FINAL DRIVE,RR (B) 39/8	1-41210-607-0	01	1	1403-			●
61	RETAINER; PILOT BRG,PINION REAR AXLE RT210<C2A> T=3.2	1-41227-012-0	02	1	1403-	●	●	●
62	BOLT; RET REAR AXLE RT210<C2A> M8X40 W/PIN HOLE	1-09042-038-1	02	1	1403-	●	●	●
63	BEARING; PINION PILOT REAR AXLE RT210<C2A> JTEKT	1-09810-182-0	01	1	1403-	●	●	●
63	BEARING; PINION PILOT REAR AXLE RT210<C2A> NSK	1-09810-183-0	01	1	1403-	●	●	●
64	NUT; RET REAR AXLE RT210<C2A> M8 SLOTTED	0-91117-508-0	02	1	1403-	●	●	●
65	PIN; SPLIT,RET REAR AXLE RT210<C2A>	0-81122-012-0	02	1	1403-	●	●	●
66	RING; SNAP,PILOT BRG REAR AXLE RT210<C2A> OD=37.2	1-09588-086-2	01	1	1403-	●	●	●
69	NUT; ADJ,DIFF CAGE REAR AXLE RT210<C2A> M155 H=26	1-41121-001-0	01	1	1403-	●	●	●
69	NUT; ADJ,DIFF CAGE REAR AXLE RT210<C2A> M155 H=30	1-41121-002-0	01	1	1403-	●	●	●
70	BEARING; DIFF CAGE REAR AXLE RT210<C2A> JTEKT ID=92 OD=152 T=40	1-09812-225-0	02	1	1403-	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE REAR AXLE RT210<C2A>	1-41510-141-0	01	1	1403-	●	●	●
84	BOLT; FINAL DRIVE GEAR REAR AXLE RT210<C2A> M18X38 FLANGE	1-09009-049-1	16	1	1403-	●	●	●
85	NUT; DIFF CAGE SETTING REAR AXLE RT210<C2A> M16 THA	0-91110-516-0	12	1	1403-	●	●	●
88	PLATE; LK,ADJ NUT REAR AXLE RT210<C2A> (A) T=3.2	1-41124-006-0	02	1	1403-	●	●	●
88	PLATE; LK,ADJ NUT REAR AXLE RT210<C2A> (B) T=1.0	9-41124-005-0	02	1	1403-	●	●	●
89	BOLT; LK PLATE REAR AXLE RT210<C2A> M8X16	0-20850-816-0	04	1	1403-	●	●	●
100	SEAL; OIL,FINAL PINION REAR AXLE RT210<C2A> NOK	1-09625-322-0	01	1	1403-	●	●	●
126	COUPLING; DRIVING PINION REAR AXLE RT210<C2A>	1-37245-336-0	01	1	1403-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
