4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#13642) — 37 parça

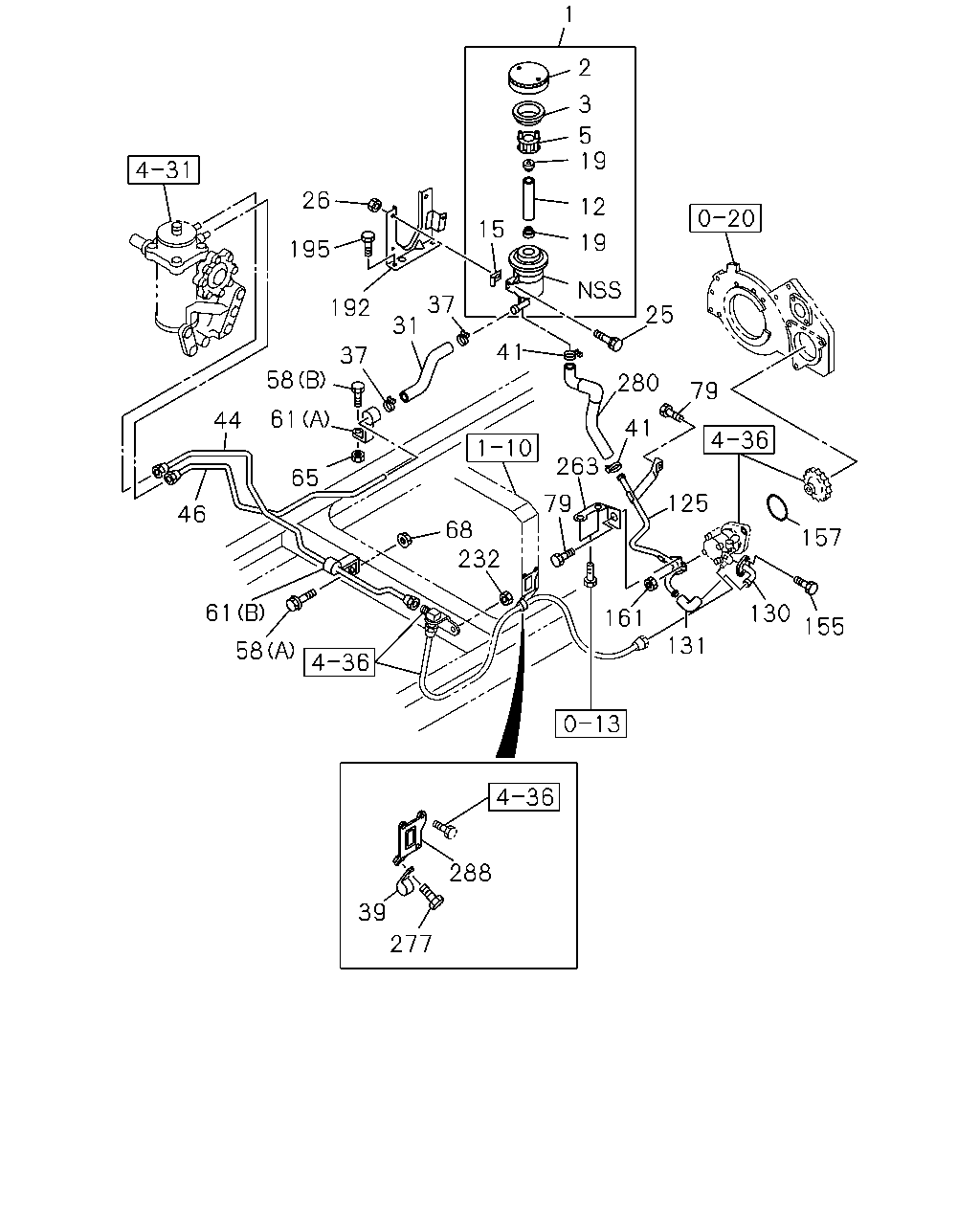

çizim 143451
1 2 3 5 19 26 12 15 19 195 37 192 25 31 41 37 58 280 79 61 44 41 263 65 125 79 46 68 232 157 61 130 161 155 131 58 288 39 277
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; OIL,P/S 1-21210-238-1 01 1 0711-1006
1 TANK ASM; OIL,P/S
IDN 		8-98166-928-0 01 1 1007-
2 CAP; OIL TANK,P/S 1-21241-004-4 01 1 0711-1006
2 CAP; OIL TANK,P/S
IDN 		8-98166-876-0 01 1 1007-
3 GASKET; OIL TANK,P/S
IDN 		1-21249-003-1 01 1 0711-
5 STRAINER; OIL TANK,P/S
IDN 		1-21235-007-1 01 1 0711-
12 FILTER; MICROBON,OIL TANK,P/S
IDN 		1-21235-011-0 01 1 0711-
15 PLATE; FILTER,OIL TANK
IDN 		1-21249-016-0 02 1 0711-
19 SEAT; OIL TANK
IDN 		1-21249-004-0 02 1 0711-
25 BOLT; OIL TANK BRKT
M8X25 FLANGE IDN 		0-28650-825-0 02 1 0711-
26 NUT; OIL TANK TO BRKT
M8 FLANGE 		0-91180-108-0 02 1 0711-
31 HOSE; P/S OIL TANK,INL 1-21113-590-0 01 1 0711-
37 CLIP; HOSE,P/S
ID=26 		1-09704-082-0 02 1 0711-
39 CLIP; FLEX HOSE
ID=40 		8-94226-553-0 01 1 0711-
41 CLIP; HOSE,P/S
ID=32 		1-09704-085-0 02 1 0711-
44 PIPE; OIL,P/S UNIT TO NIPPLE 1-21115-902-0 01 1 0711-
46 PIPE; OIL,P/S UNIT TO OIL TANK
L=786 		1-21115-336-0 01 1 0711-
58 BOLT; CLIP
(A) M8X20 FLANGE IDN 		0-28650-820-0 01 1 0711-
58 BOLT; CLIP
(B) M8X25 FLANGE IDN 		0-28650-825-0 01 1 0711-
61 CLIP; OIL PIPE
(B) ID=12 H=24 L=20 		1-09700-605-0 01 1 0711-
61 CLIP; OIL PIPE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 0711-
65 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0711-
68 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 01 1 0711-
79 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 0711-
125 CONNECTOR; P/S PUMP 8-94390-584-1 01 1 0711-
130 ADAPTER; P/S PUMP 8-94390-583-0 01 1 0711-
131 HOSE; RUBBER,P/S 8-94396-331-1 01 1 0711-
155 BOLT; CONNECTOR
M8X16 FLANGE 		0-28050-816-0 02 1 0711-
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4 		1-09623-178-0 01 1 0711-
161 NUT; P/S PIPE
M10 FLANGE 		0-91180-110-0 01 1 0711-
192 BRACKET; P/S OIL TANK 1-21119-142-1 01 1 0711-
195 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0711-
232 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0711-
263 BRACKET; P/S PIPE 8-97600-117-0 01 1 0711-
277 BOLT; HOSE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0711-
280 HOSE; P/S OIL PUMP,INL 1-21116-721-0 01 1 0711-
288 BRACKET; CLIP,P/S 1-82659-149-0 01 1 0711-
