Isuzu WW
▶
TRUCKS
▶
FYH
▶
11590 - FYH(THAILAND)EURO3
▶
2 - Clutch, Transmission, Trans Axle
▶
2-53 - TRANSMISSION OIL COOLER SYSTEM
▶
2-53 — TRANSMISSION OIL COOLER SYSTEM
(#136400) — 85 parça
◀

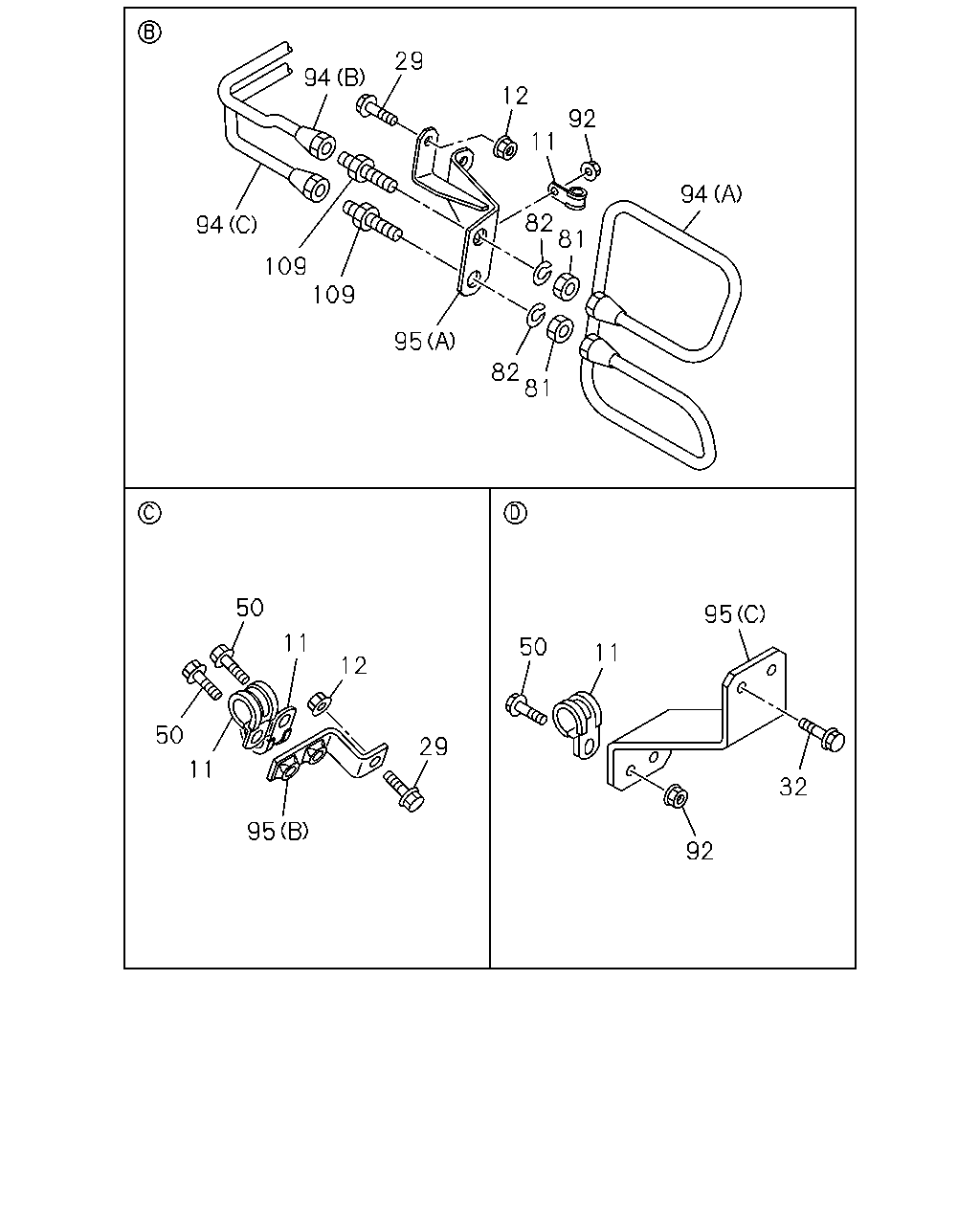

[253A] NO.2 (28 parça)

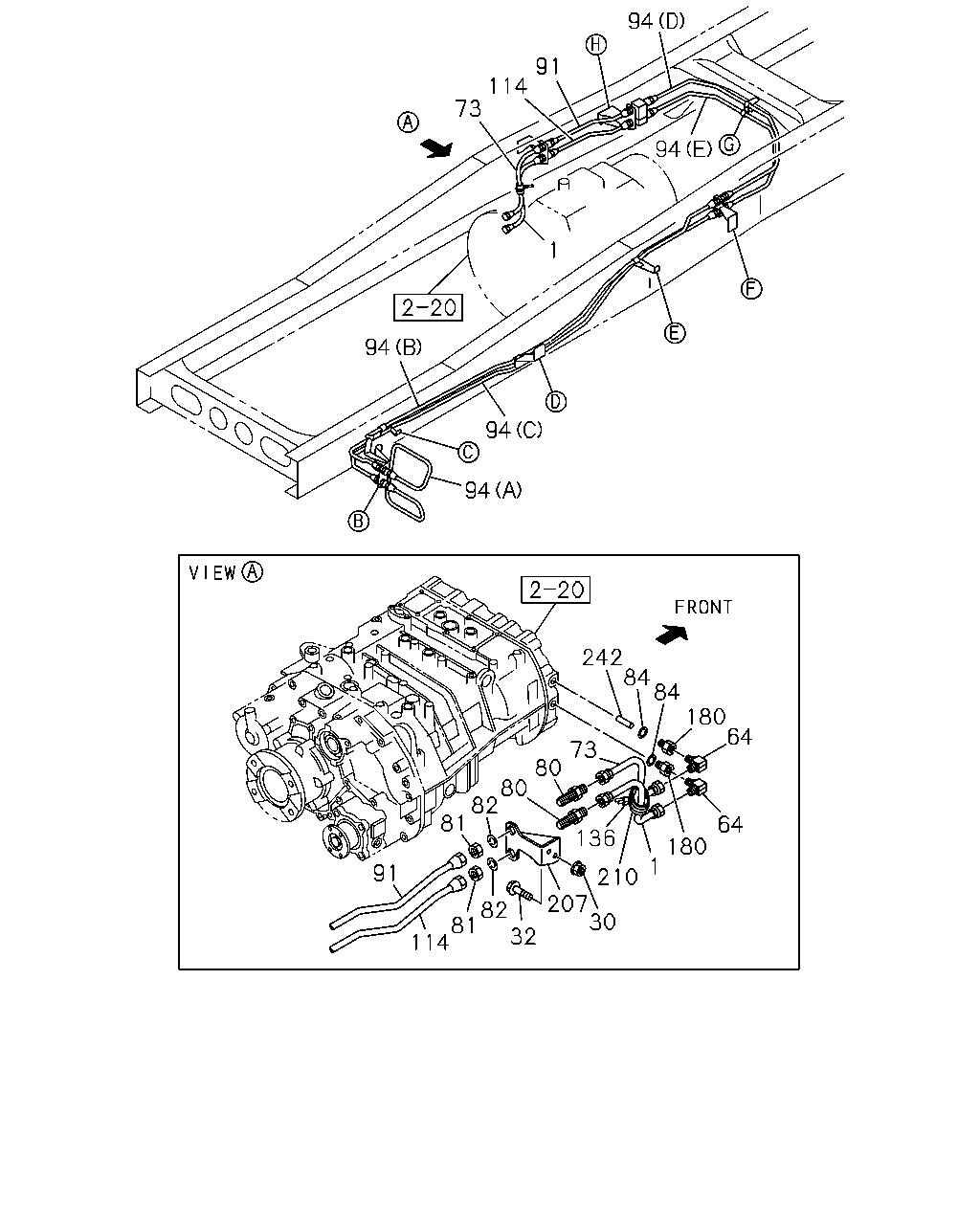

[253A] NO.1 (21 parça)

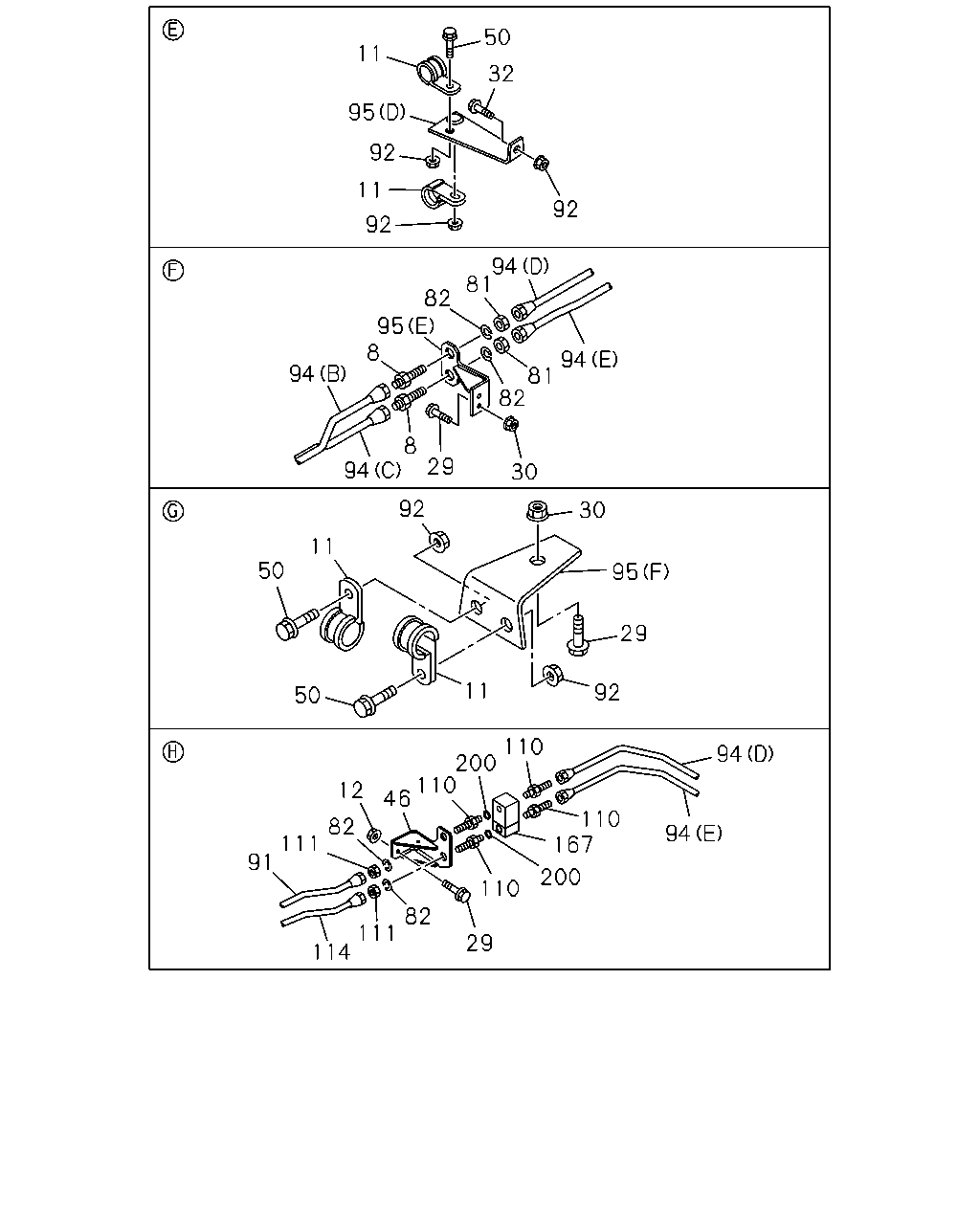

[253A] NO.3 (36 parça)
▶
94
92
12
29
94
11
82
81
82
81
95
109
109
94
50
11
12
50
11
95
32
92
29
11
50
95
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
CLIP; PIPE
ID=17 L=21
8-98082-035-0
04
1
1403-
11
CLIP; PIPE
ID=14 L=28
8-98135-163-0
05
1
1403-
12
NUT; BRKT
M8 FLANGE THA
0-91180-108-0
05
1
1403-
12
NUT; BRKT
M12 FLANGE THA
0-91180-112-0
02
1
1403-
12
NUT; BRKT
M10 FLANGE THA
0-91180-210-0
02
1
1403-
29
BOLT; FILTER TO BRKT
M10X30 FLANGE
0-28051-030-0
02
1
1403-
29
BOLT; FILTER TO BRKT
M12X30 FLANGE
0-28051-230-0
01
1
1403-
29
BOLT; FILTER TO BRKT
M8X20 FLANGE THA
0-28650-820-0
01
1
1403-
29
BOLT; FILTER TO BRKT
M8X25 FLANGE THA
0-28650-825-0
01
1
1403-
29
BOLT; FILTER TO BRKT
M8X35 FLANGE THA
0-28650-835-0
05
1
1403-
32
BOLT; BRKT
M8X35 FLANGE THA
0-28650-835-0
02
1
1403-
50
BOLT; CLIP
M8X20 FLANGE THA
0-28650-820-0
03
1
1403-
50
BOLT; CLIP
M8X20 FLANGE THA
0-28650-820-0
04
1
1403-
81
NUT; UNION
M22
0-91111-522-0
03
1
1403-
82
WASHER; LK,UNION
ID=22.5
0-91510-522-0
08
1
1403-
92
NUT; CLIP
M8 FLANGE THA
0-91180-108-0
07
1
1403-
94
PIPE; OIL,UNION TO UNION
(A) L=1254 THA
8-98185-400-0
01
1
1403-
94
PIPE; OIL,UNION TO UNION
(D) L=1217 THA
8-98191-639-0
01
1
1403-
94
PIPE; OIL,UNION TO UNION
(B) L=2645 THA
8-98191-640-0
01
1
1403-
94
PIPE; OIL,UNION TO UNION
(C) L=2663 THA
8-98191-641-0
01
1
1403-
94
PIPE; OIL,UNION TO UNION
(E) L=1219 THA
8-98191-644-0
01
1
1403-
95
BRACKET; CLIP
(F)
1-47475-688-0
01
1
1403-
95
BRACKET; CLIP
(B)
1-47479-482-0
01
1
1403-
95
BRACKET; CLIP
(D)
8-97609-096-0
01
1
1403-
95
BRACKET; CLIP
(C) THA
8-98185-407-0
01
1
1403-
95
BRACKET; CLIP
(A) THA
8-98185-408-0
01
1
1403-
95
BRACKET; CLIP
(E) THA
8-98191-635-0
01
1
1403-
109
UNION
M22
0-92123-315-0
02
1
1403-
94
91
114
94
1
73
94
94
94
242
84
84
180
64
64
180
1
136
73
80
80
82
81
210
91
207
30
32
81
82
114
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; ATF
8-98185-394-0
01
1
1403-
30
NUT; BRKT
M8 FLANGE THA
0-91180-108-0
02
1
1403-
32
BOLT; BRKT
M8X35 FLANGE THA
0-28650-835-0
02
1
1403-
64
CONNECTOR; OIL COOLER
R3/8 & M22 ELBOW
1-09660-612-1
02
1
1403-
73
HOSE; FLEX,TRANS
8-98185-394-0
01
1
1403-
80
UNION; FLEX HOSE
1-09654-261-1
02
1
1403-
81
NUT; UNION
M22
0-91111-522-0
03
1
1403-
82
WASHER; LK,UNION
ID=22.5
0-91510-522-0
08
1
1403-
84
GASKET; OIL PIPE
ID=16.2
1-09630-086-0
02
1
1403-
91
PIPE; OIL,FLEX HOSE TO UNION
L=412 THA
8-98185-396-0
01
1
1403-
94
PIPE; OIL,UNION TO UNION
(A) L=1254 THA
8-98185-400-0
01
1
1403-
94
PIPE; OIL,UNION TO UNION
(D) L=1217 THA
8-98191-639-0
01
1
1403-
94
PIPE; OIL,UNION TO UNION
(B) L=2645 THA
8-98191-640-0
01
1
1403-
94
PIPE; OIL,UNION TO UNION
(C) L=2663 THA
8-98191-641-0
01
1
1403-
94
PIPE; OIL,UNION TO UNION
(E) L=1219 THA
8-98191-644-0
01
1
1403-
114
PIPE; OIL,UNION TO FLEX HOSE
L=414 THA
8-98185-404-0
01
1
1403-
136
CLIP; FLEX HOSE
L=350
1-09707-183-0
01
1
1403-
180
ADAPTER; OIL COOLER
1-09661-044-0
02
1
1403-
207
BRACKET; UNION
THA
8-98185-395-0
01
1
1403-
210
BAND; FLEX HOSE
L=175
1-09707-178-0
01
1
1403-
242
PIPE; COOLER
1-32567-018-0
01
1
1403-
50
11
32
95
92
11
92
92
94
81
82
95
8
94
94
8
29
82
81
94
30
30
92
11
50
95
29
92
11
50
12
46
110
200
110
110
94
94
167
200
110
82
29
111
111
114
91
82
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
UNION
M22
0-92123-315-0
02
1
1403-
11
CLIP; PIPE
ID=17 L=21
8-98082-035-0
04
1
1403-
11
CLIP; PIPE
ID=14 L=28
8-98135-163-0
05
1
1403-
12
NUT; BRKT
M8 FLANGE THA
0-91180-108-0
05
1
1403-
12
NUT; BRKT
M12 FLANGE THA
0-91180-112-0
02
1
1403-
12
NUT; BRKT
M10 FLANGE THA
0-91180-210-0
02
1
1403-
29
BOLT; FILTER TO BRKT
M10X30 FLANGE
0-28051-030-0
02
1
1403-
29
BOLT; FILTER TO BRKT
M12X30 FLANGE
0-28051-230-0
01
1
1403-
29
BOLT; FILTER TO BRKT
M8X20 FLANGE THA
0-28650-820-0
01
1
1403-
29
BOLT; FILTER TO BRKT
M8X25 FLANGE THA
0-28650-825-0
01
1
1403-
29
BOLT; FILTER TO BRKT
M8X35 FLANGE THA
0-28650-835-0
05
1
1403-
30
NUT; BRKT
M8 FLANGE THA
0-91180-108-0
02
1
1403-
32
BOLT; BRKT
M8X35 FLANGE THA
0-28650-835-0
02
1
1403-
46
BRACKET; OIL PIPE
THA
8-98185-406-0
01
1
1403-
50
BOLT; CLIP
M8X20 FLANGE THA
0-28650-820-0
03
1
1403-
50
BOLT; CLIP
M8X20 FLANGE THA
0-28650-820-0
04
1
1403-
81
NUT; UNION
M22
0-91111-522-0
03
1
1403-
82
WASHER; LK,UNION
ID=22.5
0-91510-522-0
08
1
1403-
91
PIPE; OIL,FLEX HOSE TO UNION
L=412 THA
8-98185-396-0
01
1
1403-
92
NUT; CLIP
M8 FLANGE THA
0-91180-108-0
07
1
1403-
94
PIPE; OIL,UNION TO UNION
(A) L=1254 THA
8-98185-400-0
01
1
1403-
94
PIPE; OIL,UNION TO UNION
(D) L=1217 THA
8-98191-639-0
01
1
1403-
94
PIPE; OIL,UNION TO UNION
(B) L=2645 THA
8-98191-640-0
01
1
1403-
94
PIPE; OIL,UNION TO UNION
(C) L=2663 THA
8-98191-641-0
01
1
1403-
94
PIPE; OIL,UNION TO UNION
(E) L=1219 THA
8-98191-644-0
01
1
1403-
95
BRACKET; CLIP
(F)
1-47475-688-0
01
1
1403-
95
BRACKET; CLIP
(B)
1-47479-482-0
01
1
1403-
95
BRACKET; CLIP
(D)
8-97609-096-0
01
1
1403-
95
BRACKET; CLIP
(C) THA
8-98185-407-0
01
1
1403-
95
BRACKET; CLIP
(A) THA
8-98185-408-0
01
1
1403-
95
BRACKET; CLIP
(E) THA
8-98191-635-0
01
1
1403-
110
UNION; OIL PIPE
THA
1-09654-414-1
04
1
1403-
111
NUT; UNION
M22
0-91111-522-0
05
1
1403-
114
PIPE; OIL,UNION TO FLEX HOSE
L=414 THA
8-98185-404-0
01
1
1403-
167
VALVE; BYPASS
1-32569-088-0
01
1
1403-
200
GASKET; VALVE
ID=18.2 OD=24.4
1-09630-087-0
04
1
1403-
