4-31 — STEERING COLUMN AND SHAFT (#13640) — 32 parça

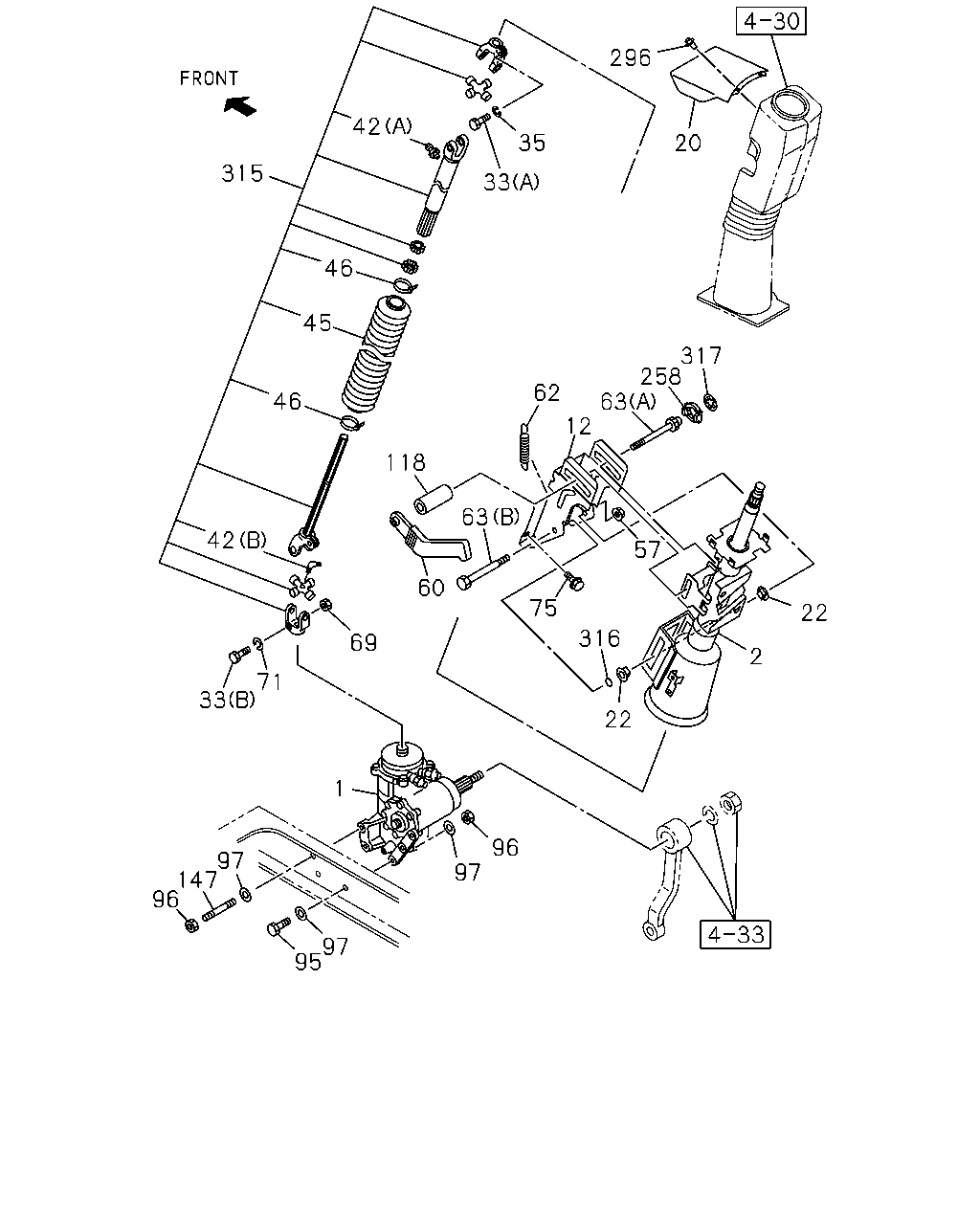

çizim 143463
296 42 35 20 315 33 46 45 317 258 63 12 62 46 118 63 42 57 60 75 22 316 69 2 71 33 22 1 96 97 147 96 97 97 95
BalonParca AdiParca NoAdetTipApplied Date
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-834-4 01 1 0711-
2 SHAFT ASM; STRG 1-44130-689-1 01 1 0711-
12 BRACKET; LWR,STRG COLUMN 1-44227-143-0 01 1 0711-0811
12 BRACKET; LWR,STRG COLUMN 1-44227-167-0 01 1 0812-
20 COVER; STRG SHAFT 1-72438-121-3 01 1 0711-
22 BUSHING; STRG COLUMN 1-44227-150-0 02 1 0711-
33 BOLT; STRG SHAFT TO UNIT
(B) M10X50 		1-09000-786-0 01 1 0711-
33 BOLT; STRG SHAFT TO UNIT
(A) 		1-44139-153-0 01 1 0711-
35 WASHER; LK,STRG SHAFT 1-44139-154-0 01 1 0711-
42 NIPPLE; GREASE,SLEEVE YOKE
(A) 		1-44135-375-0 01 1 0711-
42 NIPPLE; GREASE,SLEEVE YOKE
(B) 		1-44135-376-0 01 1 0711-
45 BOOT; STRG SHAFT 1-44139-155-0 01 1 0711-
46 CLIP; BOOT 1-44139-156-0 02 1 0711-
57 NUT; ADJ BOLT 1-44227-151-0 01 1 0711-
60 LEVER; ADJ,STRG COLUMN 1-44227-144-0 01 1 0711-
62 SPRING; LK,LEVER 1-44227-153-0 01 1 0711-
63 BOLT; ADJ LEVER,TILT STRG
(A) 		1-44227-145-0 01 1 0711-
63 BOLT; ADJ LEVER,TILT STRG
(B) 		1-44227-149-0 01 1 0711-
69 NUT; TILT CENTER
M10 		0-91110-510-0 01 1 0711-
71 WASHER; LK,SHAFT TO UNIT
ID=10.2 IDN 		0-91510-810-0 01 1 0711-
75 BOLT; STRG COLUMN
M8X20 FLANGE IDN 		0-28650-820-0 04 1 0711-
95 BOLT; STRG UNIT
M14X55 		9-92061-455-0 05 1 0711-
96 NUT; STRG UNIT
M14 		0-91110-514-0 06 1 0711-
97 WASHER; PL,STRG UNIT
ID=15 		9-09651-069-0 11 1 0711-1201
97 WASHER; PL,STRG UNIT
ID=15 		8-98010-627-1 11 1 1202-
118 NUT; LEVER,TILT BOLT 1-44227-163-0 01 1 0711-
147 STUD; STRG UNIT
M14X37 L=66 		1-09300-125-0 01 1 0711-
258 STOPPER; STRG COLUMN,TILT & TELESCOPIC 1-44227-147-0 01 1 0711-
296 CLIP; COVER
D6X12.5 		8-94146-425-0 02 1 0711-
315 JOINT; SPLINE 1-44135-377-0 01 1 0711-
316 RING 1-44227-152-0 01 1 0711-
317 NUT; PUSH 1-44227-148-0 01 1 0711-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
