2-26 — MANUAL TRANSMISSION GEAR (#136394) — 191 parça

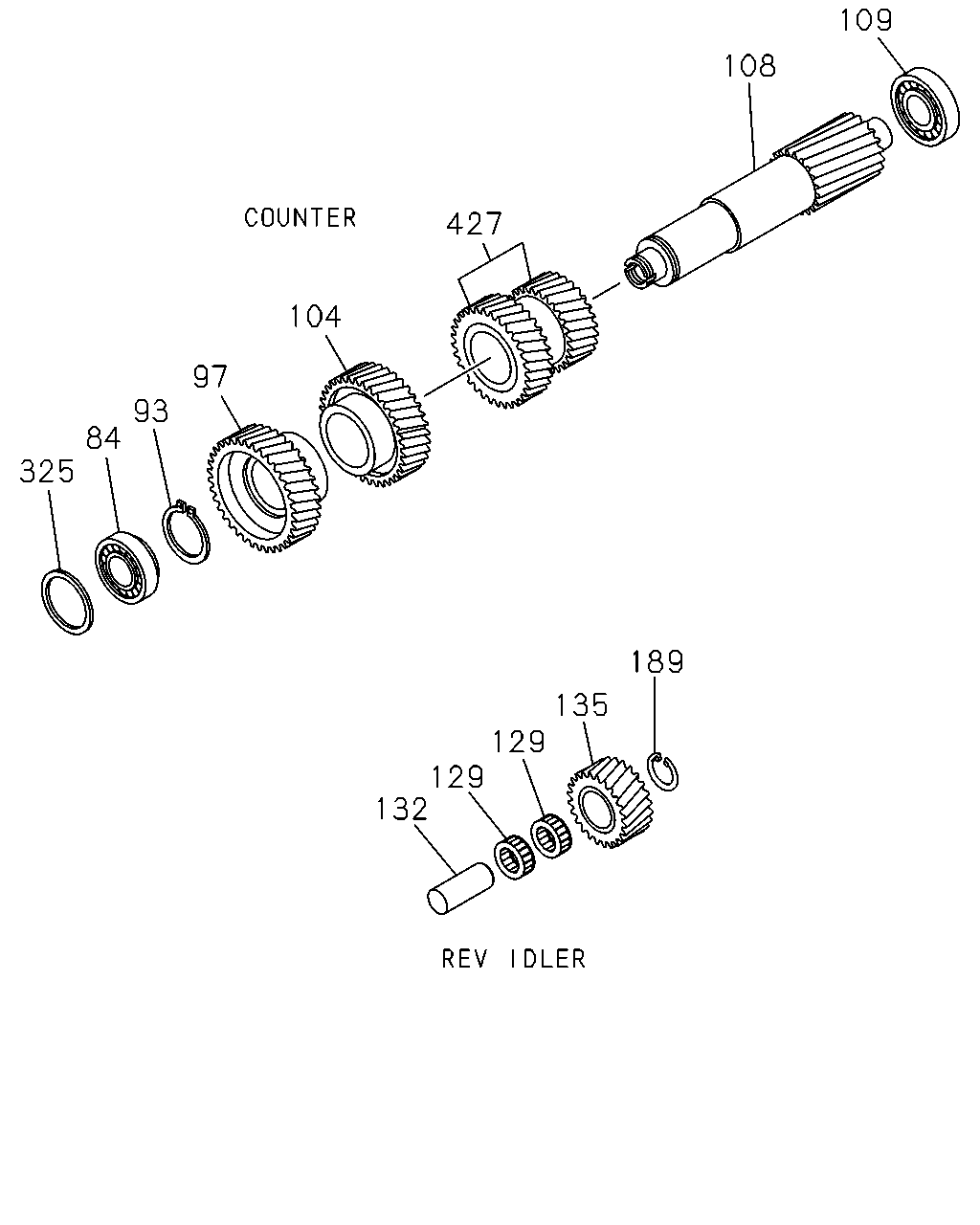

çizim 413235
325 84 93 97 104 427 108 109 189 135 129 129 132
BalonParca AdiParca NoAdetTipApplied Date
84 BEARING; COUNTER SHAFT,FRT
IMA 		1-33312-016-0 01 1 1403-
93 RING; SNAP,COUNTER FRT BRG
T=2.0 IMA 		1-33319-251-0 01 1 1403-
93 RING; SNAP,COUNTER FRT BRG
T=2.5 IMA 		1-33319-252-0 01 1 1403-
93 RING; SNAP,COUNTER FRT BRG
T=2.4 IMA 		1-33319-253-0 01 1 1403-
93 RING; SNAP,COUNTER FRT BRG
T=2.3 IMA 		1-33319-254-0 01 1 1403-
93 RING; SNAP,COUNTER FRT BRG
T=2.2 IMA 		1-33319-255-0 01 1 1403-
93 RING; SNAP,COUNTER FRT BRG
T=2.1 IMA 		1-33319-256-0 01 1 1403-
93 RING; SNAP,COUNTER FRT BRG
T=2.6 IMA 		1-33319-264-0 01 1 1403-
97 GEAR; 5TH,COUNTER
IMA 		1-33338-398-0 01 1 1403-
104 GEAR; 4TH,COUNTER
IMA 		1-33338-397-0 01 1 1403-
108 SHAFT; COUNTER
IMA 		1-33311-347-0 01 1 1403-
109 BEARING; COUNTER SHAFT,RR
IMA 		1-33312-006-0 01 1 1403-
129 BEARING; NEEDLE,IDLER
IMA 		1-33369-026-0 02 1 1403-
132 SHAFT; REV
IMA 		1-33351-024-0 01 1 1403-
135 GEAR; REV IDLER
IMA 		1-33361-096-0 01 1 1403-
189 RING; SNAP,REV,GEAR
IMA 		1-44519-224-0 01 1 1403-
325 SHIM; COUNTER SHAFT BRG
T=1.60 IMA 		1-33389-047-0 01 1 1403-
325 SHIM; COUNTER SHAFT BRG
T=1.55 IMA 		1-33389-048-0 01 1 1403-
325 SHIM; COUNTER SHAFT BRG
T=2.00 IMA 		1-33389-073-0 01 1 1403-
325 SHIM; COUNTER SHAFT BRG
T=1.90 IMA 		1-33389-074-0 01 1 1403-
325 SHIM; COUNTER SHAFT BRG
T=1.80 IMA 		1-33389-075-0 01 1 1403-
325 SHIM; COUNTER SHAFT BRG
T=1.70 IMA 		1-33389-076-0 01 1 1403-
325 SHIM; COUNTER SHAFT BRG
T=1.65 IMA 		1-33389-077-0 01 1 1403-
325 SHIM; COUNTER SHAFT BRG
T=1.75 IMA 		1-33389-078-0 01 1 1403-
325 SHIM; COUNTER SHAFT BRG
T=1.85 IMA 		1-33389-079-0 01 1 1403-
325 SHIM; COUNTER SHAFT BRG
T=1.95 IMA 		1-33389-080-0 01 1 1403-
325 SHIM; COUNTER SHAFT BRG
T=2.05 IMA 		1-33389-081-0 01 1 1403-
325 SHIM; COUNTER SHAFT BRG
T=2.10 IMA 		1-33389-082-0 01 1 1403-
325 SHIM; COUNTER SHAFT BRG
T=2.15 IMA 		1-33389-083-0 01 1 1403-
325 SHIM; COUNTER SHAFT BRG
T=2.20 IMA 		1-33389-084-0 01 1 1403-
325 SHIM; COUNTER SHAFT BRG
T=2.40 IMA 		1-33389-086-0 01 1 1403-
325 SHIM; COUNTER SHAFT BRG
T=2.35 IMA 		1-33389-087-0 01 1 1403-
325 SHIM; COUNTER SHAFT BRG
T=2.30 IMA 		1-33389-088-0 01 1 1403-
325 SHIM; COUNTER SHAFT BRG
T=2.25 IMA 		1-33389-089-0 01 1 1403-
325 SHIM; COUNTER SHAFT BRG
T=1.50 IMA 		8-98080-571-0 01 1 1403-
427 GEAR; 2ND & 3RD,COUNTER
IMA 		1-33332-132-0 01 1 1403-
çizim 413245
323 408 408 324 42 66 126 66 339 339
BalonParca AdiParca NoAdetTipApplied Date
42 SLEEVE
IMA 		1-33262-195-0 01 1 1403-
66 RING; BLOCK,SYN
IMA 		1-33339-069-0 02 1 1403-
126 RING; SNAP,CLU HUB
(A) T=2.8 IMA 		1-33259-050-0 01 1 1403-
126 RING; SNAP,CLU HUB
(A) T=2.7 IMA 		1-33259-051-0 01 1 1403-
126 RING; SNAP,CLU HUB
(A) T=2.6 IMA 		1-33259-052-0 01 1 1403-
126 RING; SNAP,CLU HUB
(A) T=2.5 IMA 		1-33259-053-0 01 1 1403-
126 RING; SNAP,CLU HUB
(A) T=2.4 IMA 		1-33259-054-0 01 1 1403-
126 RING; SNAP,CLU HUB
(B) T=4.0 IMA 		1-33269-047-0 01 1 1403-
126 RING; SNAP,CLU HUB
(B) T=3.9 IMA 		1-33269-048-0 01 1 1403-
126 RING; SNAP,CLU HUB
(B) T=3.8 IMA 		1-33269-049-0 01 1 1403-
126 RING; SNAP,CLU HUB
(B) T=3.7 IMA 		1-33269-050-0 01 1 1403-
323 INSERT
(B) IMA 		1-33263-027-0 09 1 1403-
323 INSERT
(A) IMA 		1-33263-030-0 06 1 1403-
324 HUB; CLU
IMA 		1-33261-230-0 01 1 1403-
339 CLUTCH; PLANETARY GEAR
(A) IMA 		1-33265-453-0 01 1 1403-
339 CLUTCH; PLANETARY GEAR
(B) IMA 		1-33265-632-0 01 1 1403-
408 SPRING
(B) IMA 		1-33269-038-0 09 1 1403-
408 SPRING
(C) IMA 		1-33269-039-0 09 1 1403-
408 SPRING
(A) IMA 		1-33269-042-0 06 1 1403-

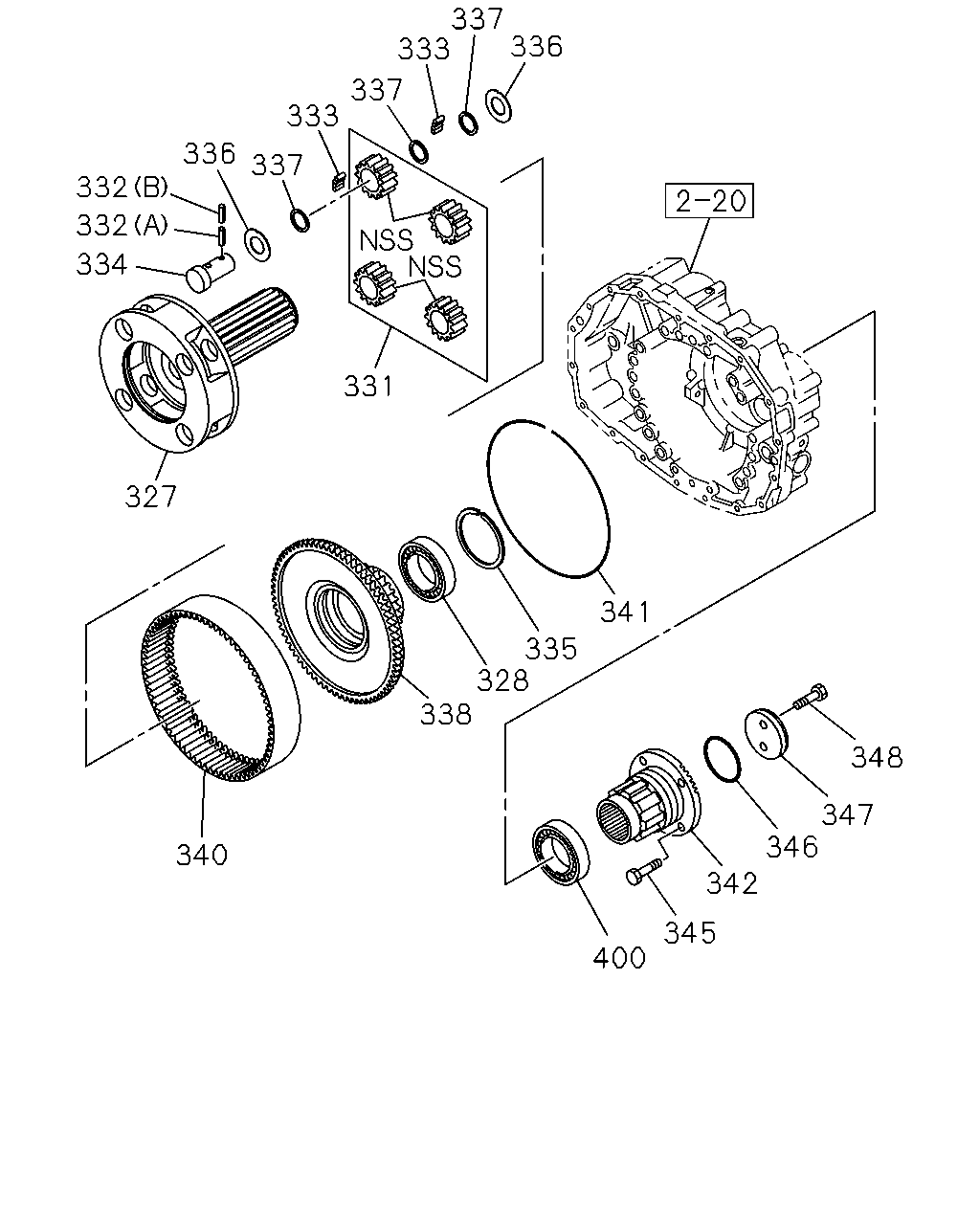

çizim 413247
336 337 333 337 333 337 336 332 332 334 327 331 338 335 328 341 340 400 342 345 346 348 347
BalonParca AdiParca NoAdetTipApplied Date
327 CARRIER; PLANETARY GEAR
IMA 		1-33231-338-0 01 1 1403-
328 BEARING; CARRIER
IMA 		1-33339-094-0 01 1 1403-
331 GEAR SET; PLANETARY
IMA 		1-33239-350-0 01 1 1403-
332 PIN; LOCK,SHAFT
(A) IMA 		1-33239-178-0 04 1 1403-
332 PIN; LOCK,SHAFT
(B) IMA 		1-33239-179-0 04 1 1403-
333 ROLLER; PLANETARY GEAR
IMA 		1-33239-232-0 AR 1 1403-
334 SHAFT; PLANETARY GEAR
IMA 		1-33239-359-0 04 1 1403-
335 RING; SNAP,BEARING
T=2.50 IMA 		1-33339-075-0 01 1 1403-
335 RING; SNAP,BEARING
T=2.40 IMA 		1-33339-076-0 01 1 1403-
335 RING; SNAP,BEARING
T=2.30 IMA 		1-33339-077-0 01 1 1403-
335 RING; SNAP,BEARING
T=2.20 IMA 		1-33339-078-0 01 1 1403-
335 RING; SNAP,BEARING
T=2.10 IMA 		1-33339-079-0 01 1 1403-
335 RING; SNAP,BEARING
T=2.00 IMA 		1-33339-080-0 01 1 1403-
336 WASHER; THRUST,PLANETARY GEAR
IMA 		1-33239-174-0 08 1 1403-
337 WASHER; PLANETARY GEAR,INNER
IMA 		1-33239-176-0 12 1 1403-
338 CARRIER; RING GEAR
IMA 		1-33331-275-0 01 1 1403-
340 GEAR; RING
IMA 		1-33339-099-0 01 1 1403-
341 WIRE; LOCK,CARRIER
IMA 		1-33339-096-0 01 1 1403-
342 FLANGE; OUTPUT
IMA 		1-37243-429-0 01 1 1403-
345 BOLT; FLANGE TO YOKE
IMA 		1-37249-147-0 04 1 1403-
346 GASKET; FLANGE
IMA 		1-37249-156-0 01 1 1403-
347 WASHER; FLANGE
IMA 		1-09509-060-0 01 1 1403-
348 BOLT; SHAFT
IMA 		1-37249-215-0 02 1 1403-
400 BEARING; OUTPUT SHAFT RR
IMA 		1-33139-212-0 01 1 1403-
çizim 413783
408 41 49 49 429 44 408 233 317 30 315 306 311 330 393 314 313 33 32 36 316 306 21 569 16 233 230 323 41 18 27 82 70 67 126 68 59 9 50
BalonParca AdiParca NoAdetTipApplied Date
9 CLUTCH; DOG,TOP GEAR
IMA 		1-33265-631-0 01 1 1403-
16 BEARING; PILOT,MAINSHAFT
IMA 		1-33239-212-0 01 1 1403-
18 RING; SNAP,CLU HUB
T=2.4 IMA 		1-33259-054-0 01 1 1403-
18 RING; SNAP,CLU HUB
T=2.3 IMA 		1-33259-060-0 01 1 1403-
18 RING; SNAP,CLU HUB
T=2.2 IMA 		1-33259-061-0 01 1 1403-
18 RING; SNAP,CLU HUB
T=2.1 IMA 		1-33259-062-0 01 1 1403-
18 RING; SNAP,CLU HUB
T=2.0 IMA 		1-33259-063-0 01 1 1403-
18 RING; SNAP,CLU HUB
T=1.9 IMA 		1-33259-064-0 01 1 1403-
21 HUB; CLU,4TH & 5TH
IMA 		1-33261-295-0 01 1 1403-
27 BEARING; 4TH GEAR
IMA 		1-33259-128-0 02 1 1403-
30 GEAR; 4TH,MAINSHAFT
IMA 		1-33251-436-0 01 1 1403-
32 COLLAR; 3RD GEAR
IMA 		1-33259-140-0 01 1 1403-
33 BEARING; NEEDLE,3RD GEAR
IMA 		1-33259-127-0 01 1 1403-
36 GEAR; 3RD,MAINSHAFT
IMA 		1-33252-478-0 01 1 1403-
41 RING; BLOCK,2ND & 3RD
IMA 		1-33265-498-0 02 1 1403-
44 HUB; CLU,2ND & 3RD,MAIN
IMA 		1-33261-303-0 01 1 1403-
49 BEARING; NEEDLE,2ND GEAR
IMA 		1-33259-126-0 02 1 1403-
50 GEAR; 2ND,MAINSHAFT
IMA 		1-33251-448-0 01 1 1403-
59 GEAR; REV MAINSHAFT
IMA 		1-33257-101-0 01 1 1403-
67 HUB; CLU,1ST TO REV
IMA 		1-33259-135-0 01 1 1403-
68 SLEEVE; 1ST TO REV
IMA 		1-33259-049-0 01 1 1403-
70 GEAR; 1ST,MAINSHAFT
IMA 		1-33251-434-0 01 1 1403-
82 SHAFT; MAIN,TRANS
IMA 		1-33231-337-0 01 1 1403-
126 RING; SNAP,CLU HUB
(A) T=2.8 IMA 		1-33259-050-0 01 1 1403-
126 RING; SNAP,CLU HUB
(A) T=2.7 IMA 		1-33259-051-0 01 1 1403-
126 RING; SNAP,CLU HUB
(A) T=2.6 IMA 		1-33259-052-0 01 1 1403-
126 RING; SNAP,CLU HUB
(A) T=2.5 IMA 		1-33259-053-0 01 1 1403-
126 RING; SNAP,CLU HUB
(A) T=2.4 IMA 		1-33259-054-0 01 1 1403-
126 RING; SNAP,CLU HUB
(B) T=4.0 IMA 		1-33269-047-0 01 1 1403-
126 RING; SNAP,CLU HUB
(B) T=3.9 IMA 		1-33269-048-0 01 1 1403-
126 RING; SNAP,CLU HUB
(B) T=3.8 IMA 		1-33269-049-0 01 1 1403-
126 RING; SNAP,CLU HUB
(B) T=3.7 IMA 		1-33269-050-0 01 1 1403-
230 SLEEVE; 4TH TO 5TH
IMA 		1-33262-239-0 01 1 1403-
233 RING; BLOCK 4TH TO 5TH
IMA 		1-33269-096-0 02 1 1403-
306 RING; SNAP,MAINSHAFT
(A) T=2.95 IMA 		1-33319-066-0 01 1 1403-
306 RING; SNAP,MAINSHAFT
(A) T=2.90 IMA 		1-33319-067-0 01 1 1403-
306 RING; SNAP,MAINSHAFT
(A) T=2.85 IMA 		1-33319-068-0 01 1 1403-
306 RING; SNAP,MAINSHAFT
(A) T=2.80 IMA 		1-33319-069-0 01 1 1403-
306 RING; SNAP,MAINSHAFT
(A) T=2.75 IMA 		1-33319-070-0 01 1 1403-
306 RING; SNAP,MAINSHAFT
(A) T=2.70 IMA 		1-33319-071-0 01 1 1403-
306 RING; SNAP,MAINSHAFT
(A) T=2.65 IMA 		1-33319-072-0 01 1 1403-
306 RING; SNAP,MAINSHAFT
(A) T=2.60 IMA 		1-33319-073-0 01 1 1403-
306 RING; SNAP,MAINSHAFT
(A) T=2.55 IMA 		1-33319-074-0 01 1 1403-
306 RING; SNAP,MAINSHAFT
(A) T=2.50 IMA 		1-33319-075-0 01 1 1403-
306 RING; SNAP,MAINSHAFT
(A) T=2.45 IMA 		1-33319-076-0 01 1 1403-
306 RING; SNAP,MAINSHAFT
(B) T=2.5 IMA 		1-43319-021-0 01 1 1403-
306 RING; SNAP,MAINSHAFT
(B) T=2.4 IMA 		1-43319-101-0 01 1 1403-
306 RING; SNAP,MAINSHAFT
(B) T=2.3 IMA 		1-43319-102-0 01 1 1403-
306 RING; SNAP,MAINSHAFT
(B) T=2.0 IMA 		1-43319-103-0 01 1 1403-
306 RING; SNAP,MAINSHAFT
(B) T=2.1 IMA 		1-43319-104-0 01 1 1403-
306 RING; SNAP,MAINSHAFT
(B) T=2.2 IMA 		1-43319-105-0 01 1 1403-
311 PIPE; MAINSHAFT
IMA 		1-33239-349-0 01 1 1403-
313 BEARING; NEEDLE,LOW GEAR
IMA 		1-33259-124-0 01 1 1403-
314 BEARING; NEEDLE,REV GEAR
IMA 		1-33259-125-0 01 1 1403-
315 CLUTCH; DOG,2ND GEAR
IMA 		1-33265-629-0 01 1 1403-
316 CLUTCH; DOG,3RD GEAR
IMA 		1-33265-629-0 01 1 1403-
317 CLUTCH; DOG,4TH GEAR
IMA 		1-33265-630-0 01 1 1403-
323 INSERT
(B) IMA 		1-33263-027-0 09 1 1403-
323 INSERT
(A) IMA 		1-33263-030-0 06 1 1403-
330 GEAR; SUN
IMA 		1-33259-134-0 01 1 1403-
393 BEARING; MAINSHAFT END
IMA 		1-33259-104-0 01 1 1403-
408 SPRING
(B) IMA 		1-33269-038-0 09 1 1403-
408 SPRING
(C) IMA 		1-33269-039-0 09 1 1403-
408 SPRING
(A) IMA 		1-33269-042-0 06 1 1403-
429 SLEEVE; 2ND & 3RD
IMA 		1-33262-244-0 01 1 1403-
569 DAM; OIL
IMA 		1-33269-097-0 01 1 1403-

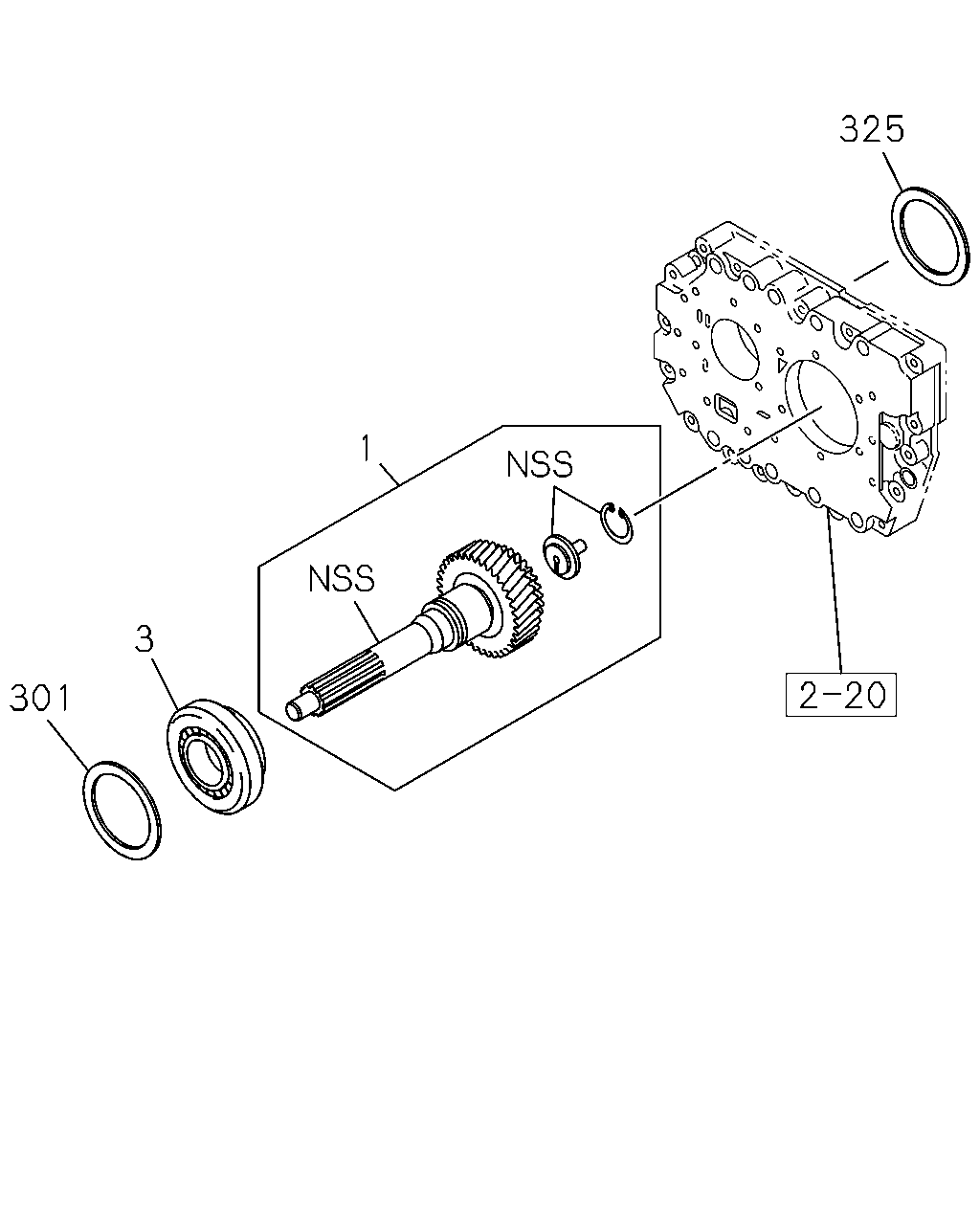

çizim 413823
325 1 3 301
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; TOP GEAR,TRANS
IMA 		1-33215-038-0 01 1 1403-
3 BEARING; TOP GEAR SHAFT
IMA 		1-33219-320-0 01 1 1403-
301 SHIM; TOP GEAR SHAFT
T=1.80 IMA 		1-33139-039-0 01 1 1403-
301 SHIM; TOP GEAR SHAFT
T=1.70 IMA 		1-33139-041-0 01 1 1403-
301 SHIM; TOP GEAR SHAFT
T=1.60 IMA 		1-33139-042-0 01 1 1403-
301 SHIM; TOP GEAR SHAFT
T=1.50 IMA 		1-33139-043-0 01 1 1403-
301 SHIM; TOP GEAR SHAFT
T=1.40 IMA 		1-33139-045-0 01 1 1403-
301 SHIM; TOP GEAR SHAFT
T=1.30 IMA 		1-33139-046-0 01 1 1403-
301 SHIM; TOP GEAR SHAFT
T=1.20 IMA 		1-33139-047-0 01 1 1403-
301 SHIM; TOP GEAR SHAFT
T=1.10 IMA 		1-33139-050-0 01 1 1403-
301 SHIM; TOP GEAR SHAFT
T=1.45 IMA 		1-33139-201-0 01 1 1403-
301 SHIM; TOP GEAR SHAFT
T=1.55 IMA 		1-33139-202-0 01 1 1403-
301 SHIM; TOP GEAR SHAFT
T=1.15 IMA 		1-33139-204-0 01 1 1403-
301 SHIM; TOP GEAR SHAFT
T=1.25 IMA 		1-33139-205-0 01 1 1403-
301 SHIM; TOP GEAR SHAFT
T=1.35 IMA 		1-33139-206-0 01 1 1403-
301 SHIM; TOP GEAR SHAFT
T=2.30 IMA 		1-33139-223-0 01 1 1403-
301 SHIM; TOP GEAR SHAFT
T=2.25 IMA 		1-33139-224-0 01 1 1403-
301 SHIM; TOP GEAR SHAFT
T=2.20 IMA 		1-33139-225-0 01 1 1403-
301 SHIM; TOP GEAR SHAFT
T=2.15 IMA 		1-33139-226-0 01 1 1403-
301 SHIM; TOP GEAR SHAFT
T=2.10 IMA 		1-33139-227-0 01 1 1403-
301 SHIM; TOP GEAR SHAFT
T=2.05 IMA 		1-33139-228-0 01 1 1403-
301 SHIM; TOP GEAR SHAFT
T=2.00 IMA 		1-33139-229-0 01 1 1403-
301 SHIM; TOP GEAR SHAFT
T=1.95 IMA 		1-33139-230-0 01 1 1403-
301 SHIM; TOP GEAR SHAFT
T=1.90 IMA 		1-33139-231-0 01 1 1403-
301 SHIM; TOP GEAR SHAFT
T=1.85 IMA 		1-33139-232-0 01 1 1403-
301 SHIM; TOP GEAR SHAFT
T=1.75 IMA 		1-33139-233-0 01 1 1403-
301 SHIM; TOP GEAR SHAFT
T=1.65 IMA 		1-33139-234-0 01 1 1403-
325 SHIM; COUNTER SHAFT BRG
T=1.60 IMA 		1-33389-047-0 01 1 1403-
325 SHIM; COUNTER SHAFT BRG
T=1.55 IMA 		1-33389-048-0 01 1 1403-
325 SHIM; COUNTER SHAFT BRG
T=2.00 IMA 		1-33389-073-0 01 1 1403-
325 SHIM; COUNTER SHAFT BRG
T=1.90 IMA 		1-33389-074-0 01 1 1403-
325 SHIM; COUNTER SHAFT BRG
T=1.80 IMA 		1-33389-075-0 01 1 1403-
325 SHIM; COUNTER SHAFT BRG
T=1.70 IMA 		1-33389-076-0 01 1 1403-
325 SHIM; COUNTER SHAFT BRG
T=1.65 IMA 		1-33389-077-0 01 1 1403-
325 SHIM; COUNTER SHAFT BRG
T=1.75 IMA 		1-33389-078-0 01 1 1403-
325 SHIM; COUNTER SHAFT BRG
T=1.85 IMA 		1-33389-079-0 01 1 1403-
325 SHIM; COUNTER SHAFT BRG
T=1.95 IMA 		1-33389-080-0 01 1 1403-
325 SHIM; COUNTER SHAFT BRG
T=2.05 IMA 		1-33389-081-0 01 1 1403-
325 SHIM; COUNTER SHAFT BRG
T=2.10 IMA 		1-33389-082-0 01 1 1403-
325 SHIM; COUNTER SHAFT BRG
T=2.15 IMA 		1-33389-083-0 01 1 1403-
325 SHIM; COUNTER SHAFT BRG
T=2.20 IMA 		1-33389-084-0 01 1 1403-
325 SHIM; COUNTER SHAFT BRG
T=2.40 IMA 		1-33389-086-0 01 1 1403-
325 SHIM; COUNTER SHAFT BRG
T=2.35 IMA 		1-33389-087-0 01 1 1403-
325 SHIM; COUNTER SHAFT BRG
T=2.30 IMA 		1-33389-088-0 01 1 1403-
325 SHIM; COUNTER SHAFT BRG
T=2.25 IMA 		1-33389-089-0 01 1 1403-
325 SHIM; COUNTER SHAFT BRG
T=1.50 IMA 		8-98080-571-0 01 1 1403-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
