◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11048 - EXZ LHD EURO4 WITH 2STEPS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-80 - WINDSHIELD WIPER AND WASHER ▶
8-80 — WINDSHIELD WIPER AND WASHER (#13636) — 51 parça

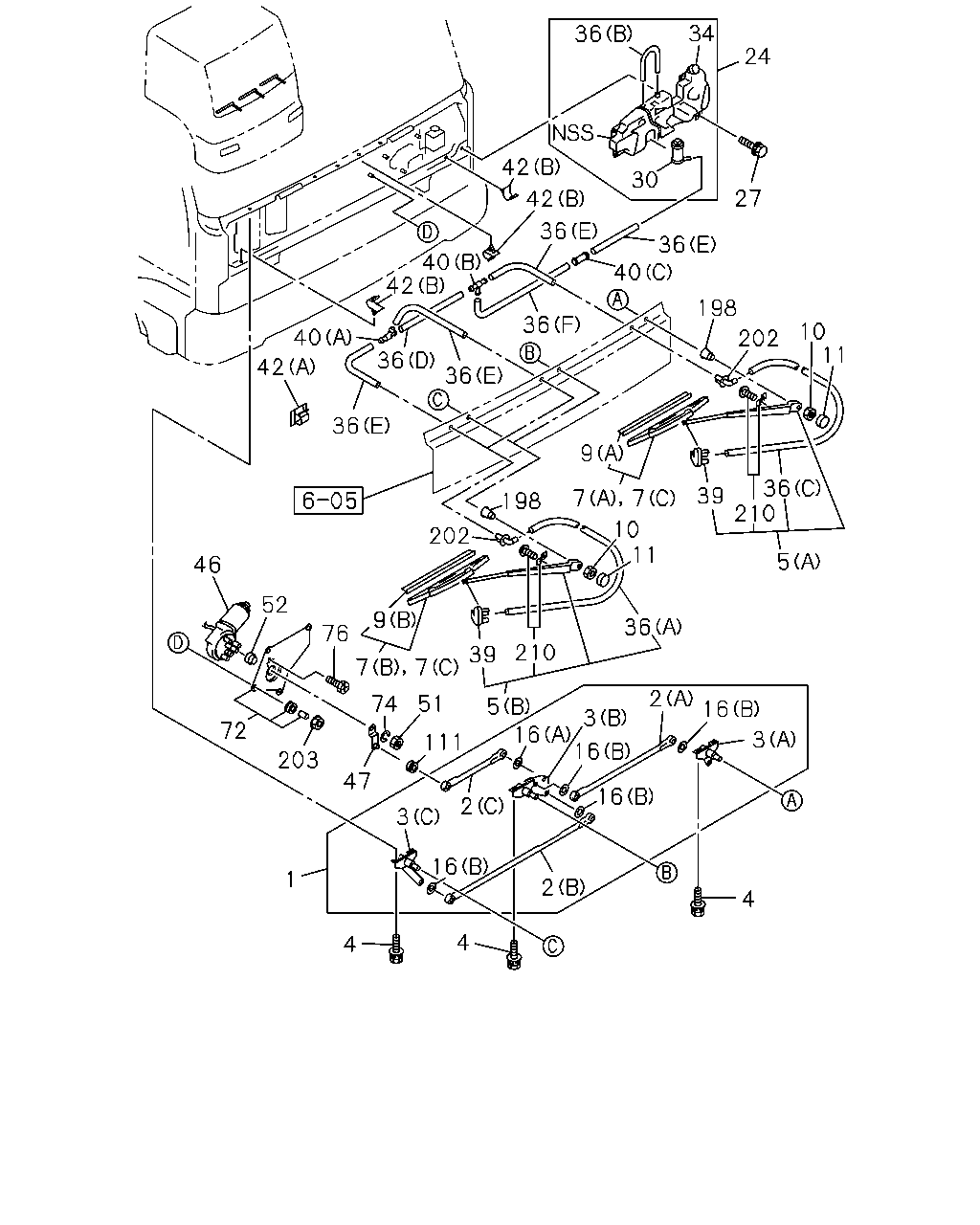

çizim 105469
24 36 34 30 27 36 42 36 42 40 198 11 10 202 40 42 40 42 36 36 36 36 9 7 7 39 210 5 36 198 9 202 52 46 72 203 47 1 4 4 2 3 16 16 16 2 3 111 74 51 2 7 7 76 39 210 36 11 10 4 3 16 16 5
BalonParca AdiParca NoAdetTipApplied Date
1 LINK ASM; FRT WIPER 1-83312-113-3 01 1 0611-
2 LINK; FRT WIPER
(B) 		1-83312-131-1 01 1 0611-0703
2 LINK; FRT WIPER
(B) 		1-83312-184-0 01 1 0704-
2 LINK; FRT WIPER
(A) 		1-83312-132-1 01 1 0611-
2 LINK; FRT WIPER
(C) 		1-83312-134-1 01 1 0611-
3 PIVOT ASM; FRT WIPER
(C) 		1-83313-104-1 01 1 0611-
3 PIVOT ASM; FRT WIPER
(B) 		1-83313-106-1 01 1 0611-
3 PIVOT ASM; FRT WIPER
(A) 		1-83313-107-1 01 1 0611-
4 BOLT; WIPER LINK TO BODY
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0611-0904
4 BOLT; WIPER LINK TO BODY
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0905-
5 ARM; WIPER
(A) 		1-83314-139-0 01 1 0611-
5 ARM; WIPER
(B) 		1-83314-140-0 02 1 0611-
7 BLADE; WIPER
(A) L=550 		1-86810-029-0 01 1 0611-
7 BLADE; WIPER
(B) L=500 		8-97134-561-1 02 1 0611-
7 BLADE; WIPER
(C) BEST VALUE PARTS 		5-87610-035-0 01 1 0611-
9 RUBBER; FRT WIPER BLADE
(B) 		1-83355-017-0 02 1 0611-
9 RUBBER; FRT WIPER BLADE
(A) L=550 		1-86810-051-0 01 1 0611-
10 NUT; WIPER ARM TO WIPER PIVOT
M10 		1-09984-120-0 03 1 0611-
11 COVER; WIPER ARM 1-86810-028-0 03 1 0611-
16 SEAL; BALL JOINT
(B) 		1-83318-115-0 04 1 0611-
16 SEAL; BALL JOINT
(A) 		1-83318-116-0 01 1 0611-
24 TANK ASM; WASHER 1-86815-023-3 01 1 0611-
27 BOLT; WASHER TANK
M6X16 W/LK&PL WASHER 		1-09980-492-0 04 1 0611-
30 MOTOR ASM; FRT WASHER TANK 1-86815-016-1 01 1 0611-
34 CAP; WASHER TANK 1-86815-018-0 01 1 0611-
36 HOSE; WASHER
(C) 		1-86810-053-0 01 1 0611-
36 HOSE; WASHER
(A) 		1-86810-054-0 02 1 0611-
36 HOSE; WASHER
(B) L=260 		1-86815-019-0 01 1 0611-
36 HOSE; WASHER
(D) SERVICED BY L=10000 		8-94153-780-0 01 1 0611-
36 HOSE; WASHER
(E) SERVICED BY L=10000 		8-94389-303-0 01 1 0611-
36 HOSE; WASHER
(F) SERVICED BY L=10000 		9-09914-906-0 01 1 0611-
39 NOZZLE; WINDSHIELD WASHER
3WAY 		1-83334-029-0 03 1 0611-
40 JOINT; WASHER HOSE
(A) 3WAY 		1-83338-005-0 01 1 0611-
40 JOINT; WASHER HOSE
(B) 3WAY 		5-83363-033-0 01 1 0611-
40 JOINT; WASHER HOSE
(C) 2WAY 		8-94239-402-0 01 1 0611-
42 CLIP; WASHER HOSE
(A) 1 SET=5 PIECE 		1-09987-214-0 01 1 0611-
42 CLIP; WASHER HOSE
(B) 		1-09987-247-0 06 1 0611-
46 MOTOR ASM; FRT WINDSHIELD WIPER 1-86810-121-0 01 1 0611-1301
46 MOTOR ASM; FRT WINDSHIELD WIPER 8-98232-330-0 01 1 1302-1405
46 MOTOR ASM; FRT WINDSHIELD WIPER 8-98281-677-0 01 1 1406-
47 ARM; CRANK,WIPER MOTOR 1-86810-124-0 01 1 0611-
51 NUT; WIPER MOTOR LINK
M8 		9-09111-408-0 01 1 0611-
52 BUSHING; BRKT,WIPER MOTOR 1-83318-020-0 01 1 0611-
72 BRACKET; WIPER MOTOR 1-86810-122-0 01 1 0611-
74 WASHER; ARM TO MOTOR
ID=8.2 		9-09150-508-0 01 1 0611-
76 SCREW; BRKT TO WIPER MOTOR 8-94232-910-0 03 1 0611-
111 SEAL; FRT WIPER MOTOR TO BRKT 8-94167-624-0 01 1 1302-
198 COVER; PIVOT,WIPER 1-86810-017-0 03 1 0611-
202 GROMMET; WIPER 1-86815-003-2 03 1 0611-
203 NUT; WIPER MOTOR
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 0611-
210 BRACKET KIT; HOSE 1-86810-046-0 03 1 0611-
