Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11588 - FXZ/GXZ CNG(THAI)EU3
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-80 - WINDSHIELD WIPER AND WASHER
▶

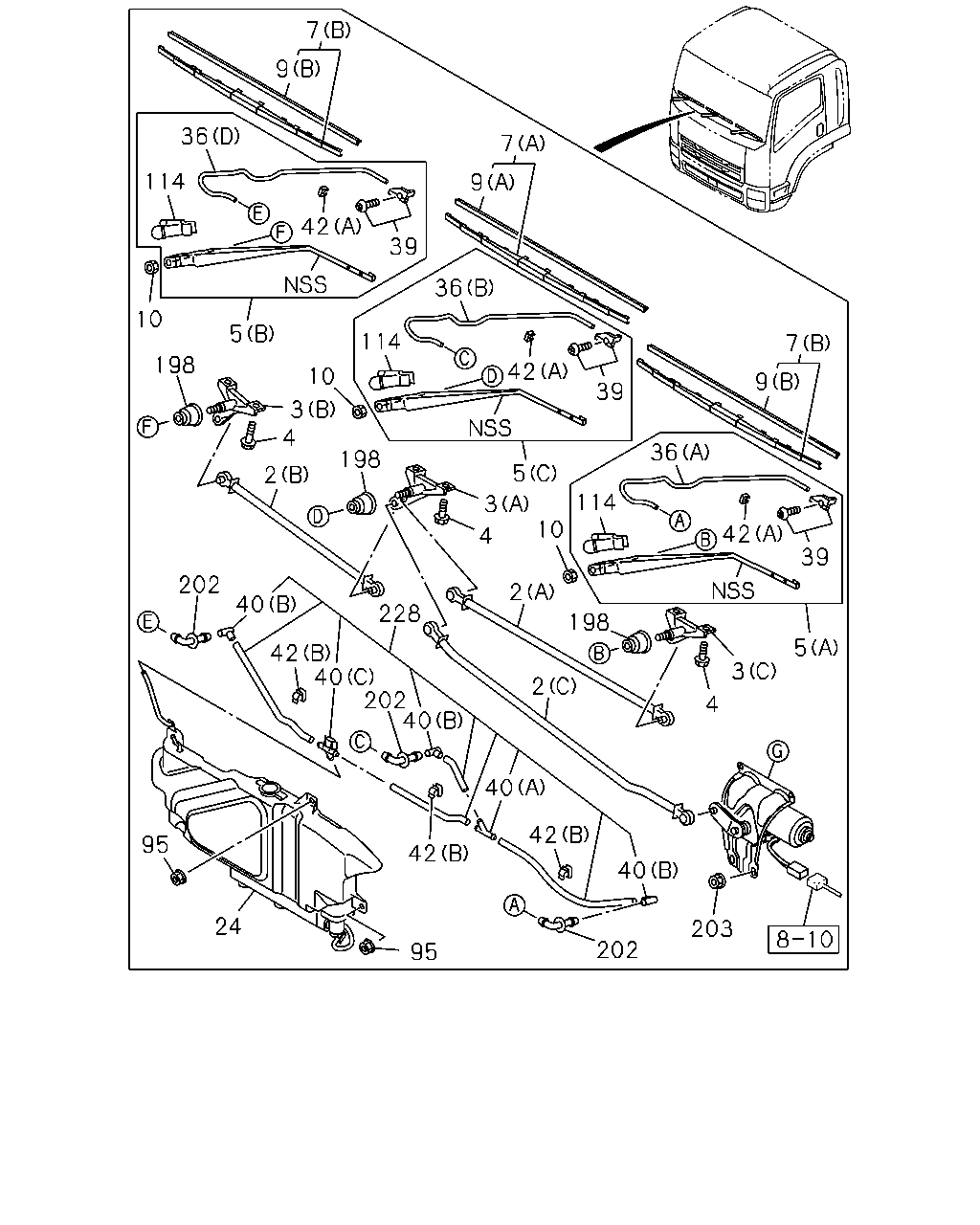

8-80 — WINDSHIELD WIPER AND WASHER
(#136341) — 46 parça
Tümü
A - FGZ5MX
B - GGZ5MX
◀
[880A] FIXING (33 parça)
[880A] COMPONENT (13 parça)
▶
7
9
36
7
9
114
42
39
36
42
39
7
9
36
42
39
5
3
4
198
2
2
10
114
5
3
4
114
5
10
198
10
3
4
2
198
202
40
42
40
202
40
40
42
40
203
228
42
202
95
24
95
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
LINK; FRT WIPER
(A)
8-98078-812-0
01
1
1403-
●
●
2
LINK; FRT WIPER
(B)
8-98078-813-0
01
1
1403-
●
●
2
LINK; FRT WIPER
(C)
8-98257-286-0
01
1
1403-
●
●
3
PIVOT ASM; FRT WIPER
(C)
8-98068-140-1
01
1
1403-
●
●
3
PIVOT ASM; FRT WIPER
(A)
8-98078-817-1
01
1
1403-
●
●
3
PIVOT ASM; FRT WIPER
(B)
8-98078-818-1
01
1
1403-
●
●
4
BOLT; WIPER LINK TO BODY
M8X20 FLANGE THA
0-28650-820-0
06
1
1403-
●
●
5
ARM; WIPER
(B)
8-98078-821-1
01
1
1403-
●
●
5
ARM; WIPER
(C)
8-98078-822-1
01
1
1403-
●
●
5
ARM; WIPER
(A)
8-98078-823-1
01
1
1403-
●
●
7
BLADE; WIPER
(B)
1-83315-047-2
02
1
1403-
●
●
7
BLADE; WIPER
(A)
1-83315-048-2
01
1
1403-
●
●
7
BLADE; WIPER
(B) BEST VALUE PARTS
5-87610-034-0
02
1
1403-
●
●
9
RUBBER; FRT WIPER BLADE
(B) L=500
1-83355-015-0
02
1
1403-
●
●
9
RUBBER; FRT WIPER BLADE
(A) L=475
1-83355-016-0
01
1
1403-
●
●
10
NUT; WIPER ARM TO WIPER PIVOT
M10
1-09984-120-0
03
1
1403-
●
●
24
TANK ASM; WASHER
THA
8-97927-039-0
01
1
1403-
●
●
36
HOSE; WASHER
(B)
1-86810-098-0
01
1
1403-
●
●
36
HOSE; WASHER
(C) THA
8-97927-045-0
01
1
1403-
●
●
36
HOSE; WASHER
(D)
8-98078-825-0
01
1
1403-
●
●
36
HOSE; WASHER
(A)
8-98078-826-0
01
1
1403-
●
●
39
NOZZLE; WINDSHIELD WASHER
1-83315-085-0
03
1
1403-
●
●
40
JOINT; WASHER HOSE
(C)
8-97167-258-0
01
1
1403-
●
●
40
JOINT; WASHER HOSE
(B)
8-97307-026-0
03
1
1403-
●
●
40
JOINT; WASHER HOSE
(A)
8-97855-163-0
01
1
1403-
●
●
42
CLIP; WASHER HOSE
(A)
1-86810-044-0
03
1
1403-
●
●
42
CLIP; WASHER HOSE
(B)
8-98039-708-0
03
1
1403-
●
●
95
NUT; WASHER TANK
M6 FLANGE THA
0-91180-106-0
04
1
1403-
●
●
114
COVER; FRT WIPER ARM
1-83318-126-0
03
1
1403-
●
●
198
COVER; PIVOT,WIPER
8-98038-892-1
03
1
1403-
●
●
202
GROMMET; WIPER
1-86815-003-2
03
1
1403-
●
●
203
NUT; WIPER MOTOR
M8 FLANGE THA
0-91180-208-0
04
1
1403-
●
●
228
HOSE ASM; WASHER
8-98039-703-1
01
1
1403-
●
●
24
34
30
36
46
72
76
74
51
47
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
24
TANK ASM; WASHER
THA
8-97927-039-0
01
1
1403-
●
●
30
MOTOR ASM; FRT WASHER TANK
THA
8-97927-042-0
01
1
1403-
●
●
34
CAP; WASHER TANK
THA
8-97927-044-0
01
1
1403-
●
●
36
HOSE; WASHER
(B)
1-86810-098-0
01
1
1403-
●
●
36
HOSE; WASHER
(C) THA
8-97927-045-0
01
1
1403-
●
●
36
HOSE; WASHER
(D)
8-98078-825-0
01
1
1403-
●
●
36
HOSE; WASHER
(A)
8-98078-826-0
01
1
1403-
●
●
46
MOTOR ASM; FRT WINDSHIELD WIPER
8-98078-808-1
01
1
1403-
●
●
47
ARM; CRANK,WIPER MOTOR
8-98078-805-0
01
1
1403-
●
●
51
NUT; WIPER MOTOR LINK
1-83319-012-0
01
1
1403-
●
●
72
BRACKET; WIPER MOTOR
8-98078-807-0
01
1
1403-
●
●
74
WASHER; ARM TO MOTOR
1-83319-011-0
01
1
1403-
●
●
76
SCREW; BRKT TO WIPER MOTOR
1-86810-062-0
03
1
1403-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
