◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11588 - FXZ/GXZ CNG(THAI)EU3 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-73 - BLOWER UNIT ▶
8-73 — BLOWER UNIT (#136339) — 19 parça

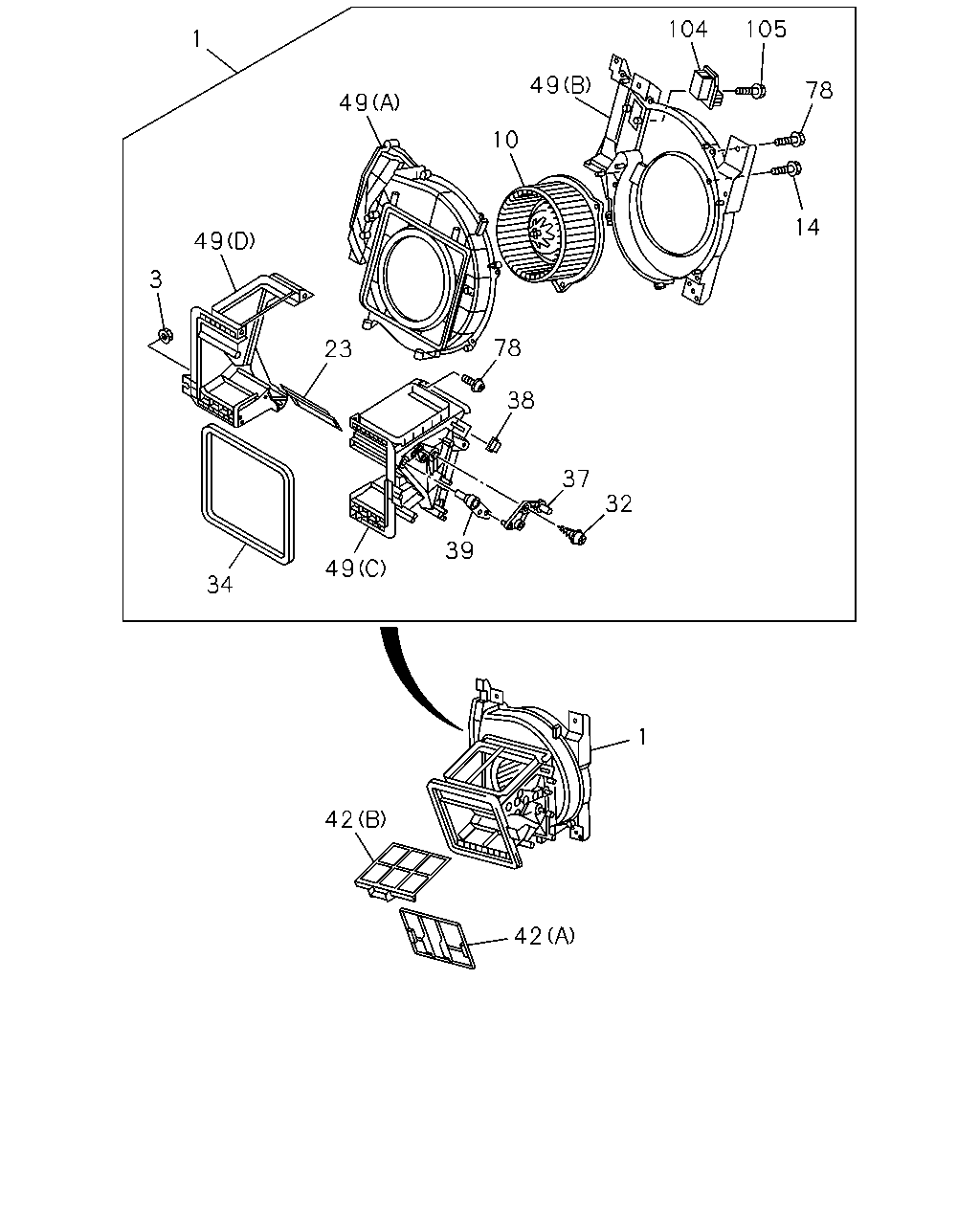

çizim 414114
1 49 10 49 104 105 78 14 49 3 23 78 38 37 32 39 49 34 1 42 42
BalonParca AdiParca NoAdetTipApplied Date A B
1 BLOWER ASM 8-98171-720-0 01 1 1403- ● ●
3 NUT; CASE
M6 THA 		1-83539-354-0 02 1 1403- ● ●
10 MOTOR ASM; FAN,BLOWER UNIT 8-98183-924-0 01 1 1403- ● ●
14 SCREW; COVER TO CASE
M5X16 		8-98047-448-0 03 1 1403- ● ●
23 SHUTTER; BLOWER UNIT 8-98171-863-0 01 1 1403- ● ●
32 SCREW; LEVER
M4X16 		8-98047-416-0 01 1 1403- ● ●
34 LINING; BLOWER UNIT 8-98096-453-0 01 1 1403- ● ●
37 LEVER; MODE LEVER 8-98047-436-0 01 1 1403- ● ●
38 CLIP; BLOWER UNIT 8-98047-417-0 01 1 1403- ● ●
39 LEVER; SHUTTER,BLOWER UNIT 8-98047-435-0 01 1 1403- ● ●
42 FILTER; BLOWER UNIT
(B) 		8-98025-006-1 01 1 1403- ● ●
42 FILTER; BLOWER UNIT
(A) 		8-98041-327-0 01 1 1403- ● ●
49 CASE; BLOWER UNIT
(B) 		8-98047-440-0 01 1 1403- ● ●
49 CASE; BLOWER UNIT
(A) 		8-98047-441-0 01 1 1403- ● ●
49 CASE; BLOWER UNIT
(D) 		8-98077-413-0 01 1 1403- ● ●
49 CASE; BLOWER UNIT
(C) 		8-98077-414-0 01 1 1403- ● ●
78 SCREW; CASE TO CASE
M4X16 TAPPING 		8-97957-708-0 15 1 1403- ● ●
104 RESISTOR; BLOWER UNIT 8-98074-113-0 01 1 1403- ● ●
105 SCREW; RESISTOR
M4X16 TAPPING 		8-97957-708-0 02 1 1403- ● ●
