◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11588 - FXZ/GXZ CNG(THAI)EU3 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-50 - AIR CONDITIONING SYSTEM; FRONT ▶
8-50 — AIR CONDITIONING SYSTEM; FRONT (#136334) — 23 parça

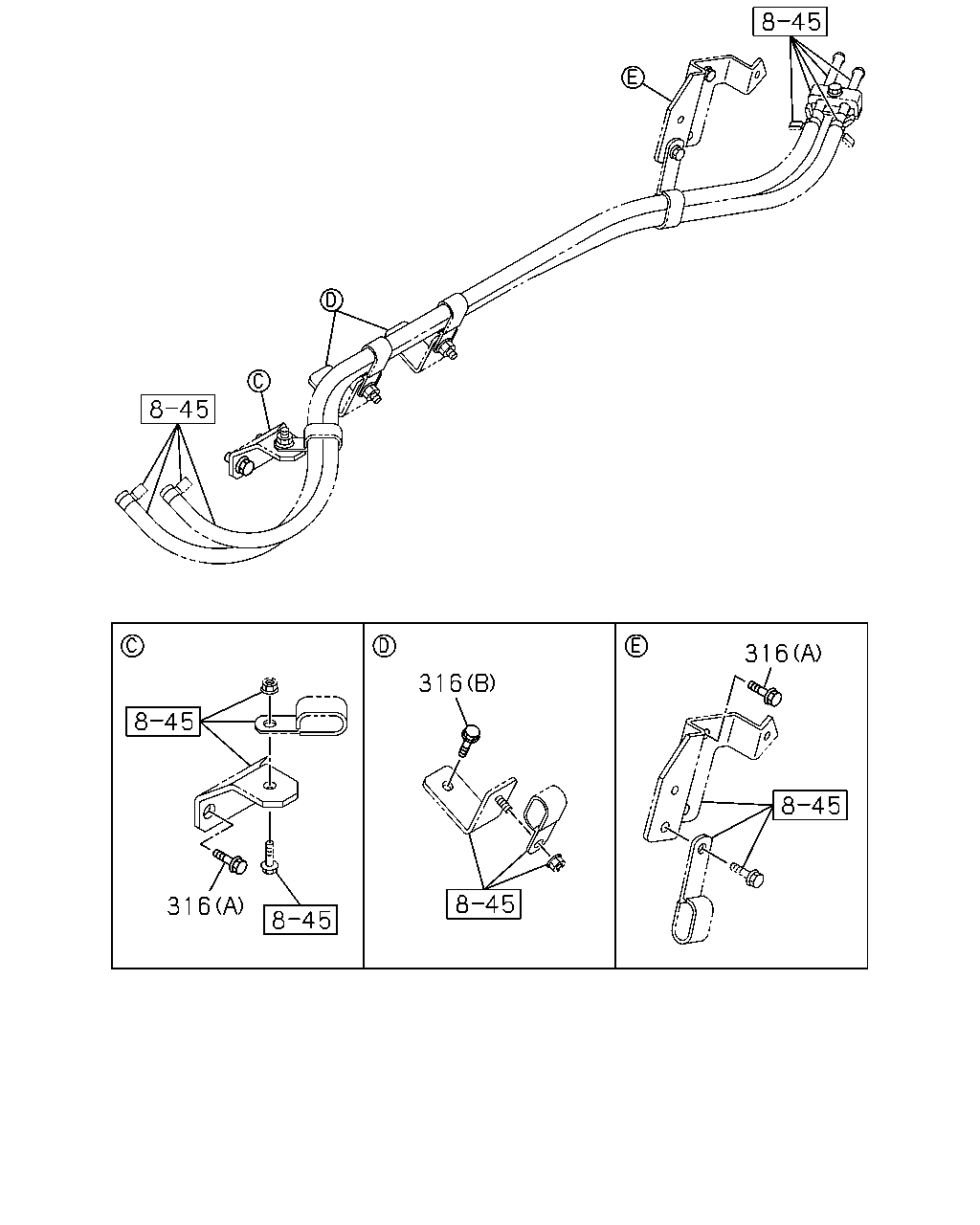

çizim 413672
316 316 316
BalonParca AdiParca NoAdetTipApplied Date A B
316 BOLT; BRKT FIX
(A) M10X20 FLANGE THA 		0-28151-020-0 04 1 1403- ● ●
316 BOLT; BRKT FIX
(B) M8X25 FLANGE THA 		0-28650-825-0 02 1 1403- ● ●
çizim 414051
378 378
BalonParca AdiParca NoAdetTipApplied Date A B
378 HOSE; DRAIN,EVAPORATOR
(A) 		8-98041-428-0 01 1 1403- ● ●
378 HOSE; DRAIN,EVAPORATOR
(B) 		8-98204-844-0 01 1 1403- ● ●

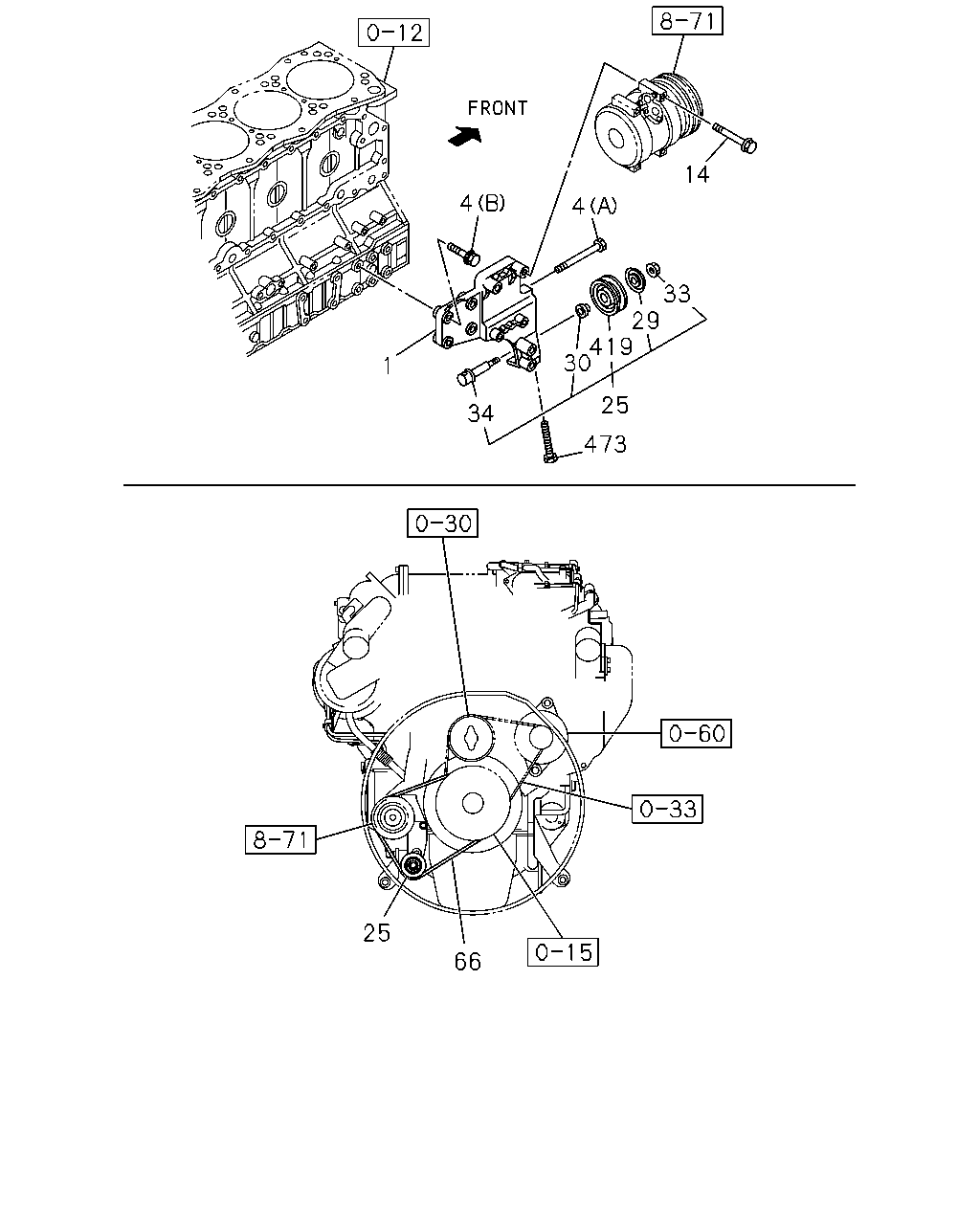

çizim 414138
1 4 4 14 33 29 419 30 34 25 473 25 66
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRACKET; A/C 8-97606-311-1 01 1 1403- ● ●
4 BOLT; A/C CMPR BRKT
(B) M10X45 FLANGE THA 		0-28151-045-0 04 1 1403- ● ●
4 BOLT; A/C CMPR BRKT
(A) M10X150 FLANGE 		0-28156-015-0 01 1 1403- ● ●
14 BOLT; CMPR
M8X80 FLANGE THA 		0-28050-880-0 04 1 1403- ● ●
25 PULLEY ASM; IDLER,CMPR 8-97603-949-0 01 1 1403- ● ●
29 COVER; DUST,IDLE PULLEY 1-83578-100-0 01 1 1403- ● ●
30 COLLAR; IDLE PULLEY 1-87540-319-0 01 1 1403- ● ●
33 NUT; IDLER PULLEY 1-83579-985-0 01 1 1403- ● ●
34 SHAFT; IDLE PULLEY 1-83579-982-0 01 1 1403- ● ●
66 BELT; A/C CMPR
L=1219 		8-97604-086-0 01 1 1403- ● ●
66 BELT; A/C CMPR
BEST VALUE PARTS 		1-87610-102-0 01 1 1403- ● ●
419 PULLEY; IDLE 1-87540-322-0 01 1 1403- ● ●
473 BOLT; TENSIONER
M8X80 FLANGE 		1-09044-091-0 01 1 1403- ● ●

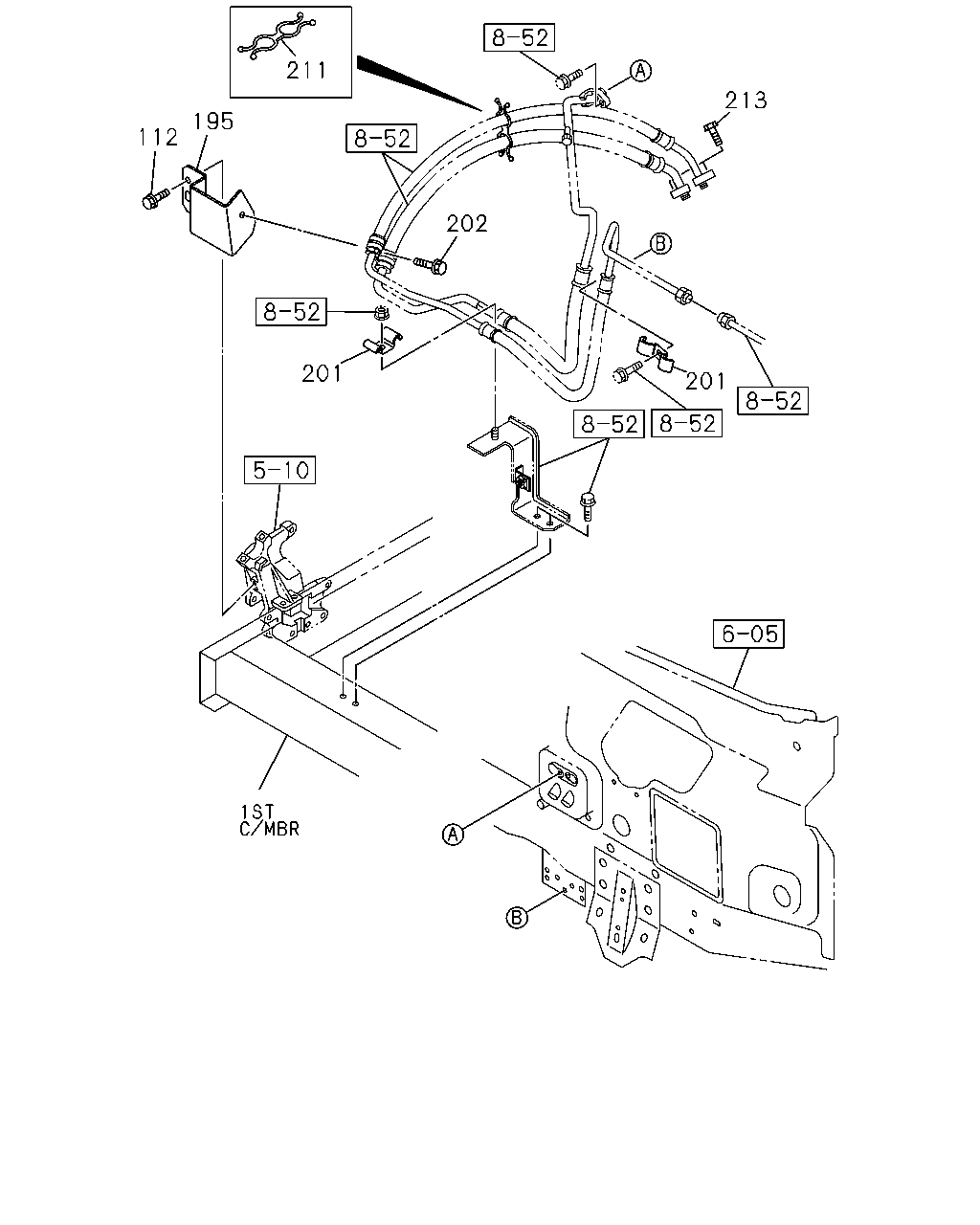

çizim 414169
201 213 202 211 195 112 201
BalonParca AdiParca NoAdetTipApplied Date A B
112 BOLT; STAY
M8X20 FLANGE THA 		0-28650-820-0 02 1 1403- ● ●
195 STAY; CLIP 8-98055-465-0 01 1 1403- ● ●
201 CLIP; HOSE,CMPR TO EVAP 8-98043-673-0 02 1 1403- ● ●
202 BOLT; CLIP,FLEX HOSE
M8X20 FLANGE THA 		0-28650-820-0 01 1 1403- ● ●
211 CLIP; HOSE 8-94423-042-0 02 1 1403- ● ●
213 BOLT; FLEX HOSE TO CMPR
M6X25 FLANGE THA 		0-28650-625-0 02 1 1403- ● ●
