◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11588 - FXZ/GXZ CNG(THAI)EU3 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#136303) — 62 parça

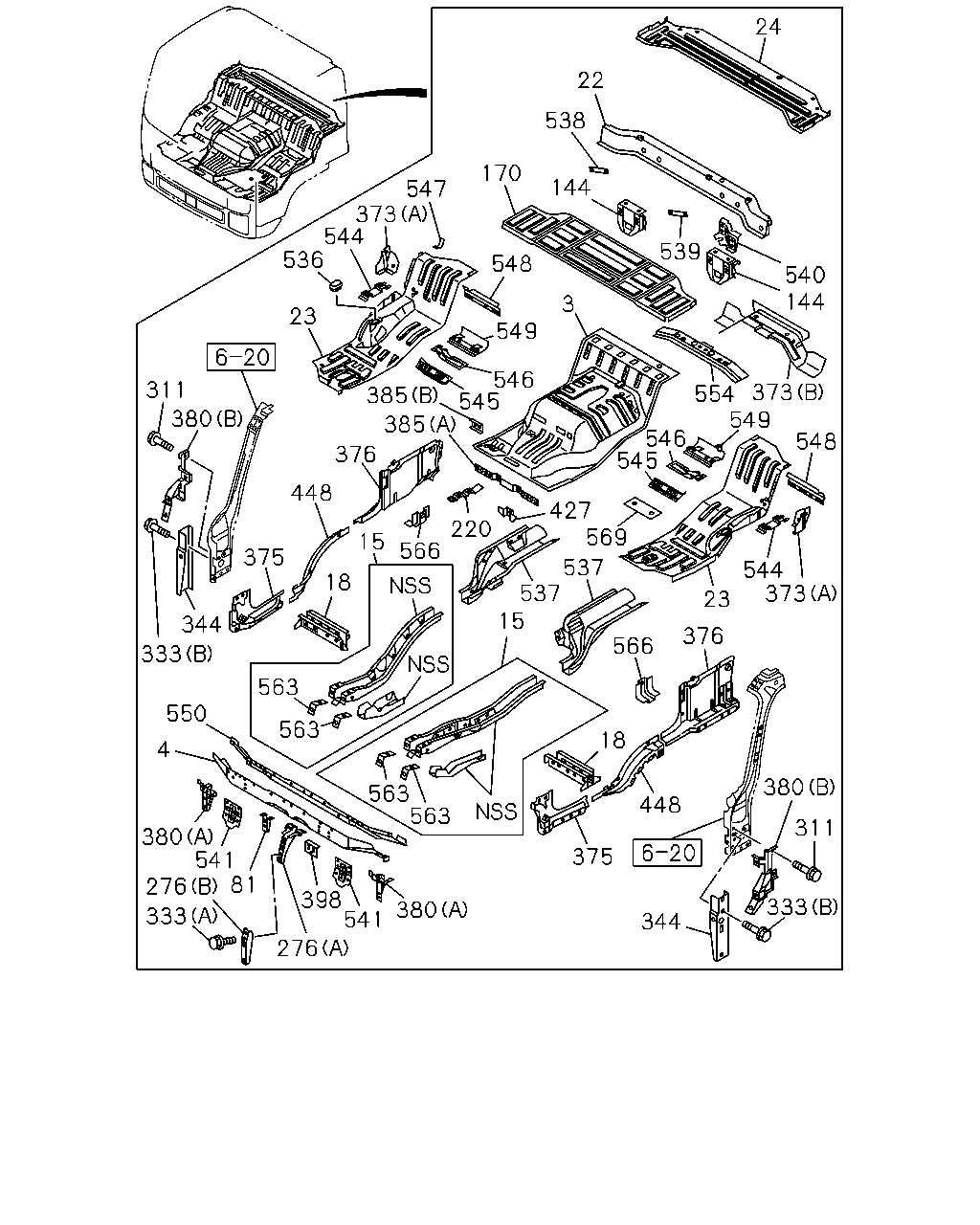

çizim 414064
24 22 538 170 144 539 540 144 3 548 547 373 544 536 23 311 380 448 376 385 385 545 546 549 427 220 566 15 18 375 344 333 550 4 380 541 81 276 333 276 380 541 398 563 563 563 563 15 537 569 537 545 546 554 373 549 548 544 373 23 376 566 18 448 375 380 311 333 344
BalonParca AdiParca NoAdetTipApplied Date A B
3 HOOD ASM; ENG 8-98046-585-7 01 1 1403- ● ●
4 FRAME; FLOOR,FRT 8-98079-820-1 01 1 1403- ● ●
15 FRAME; UNDER 8-98055-645-2 01 1 1403- ● ●
15 FRAME; UNDER 8-98055-646-2 01 1 1403- ● ●
18 FRAME; FLOOR,CENTER SIDE 8-98067-904-1 01 1 1403- ● ●
18 FRAME; FLOOR,CENTER SIDE 8-98072-101-2 01 1 1403- ● ●
22 FRAME; FLOOR REAR 8-97584-431-5 01 1 1403- ● ●
23 PANEL; FLOOR,SIDE 8-97584-371-7 01 1 1403- ● ●
23 PANEL; FLOOR,SIDE 8-98073-690-1 01 1 1403- ● ●
24 PANEL; BED PAN 8-97584-378-6 01 1 1403- ● ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1403- ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1403- ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1403- ● ●
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 1403- ● ●
220 PATCH 8-98053-088-0 01 1 1403- ● ●
276 BRACKET; RAD GRILLE
(B) 		8-98059-816-2 01 1 1403- ● ●
276 BRACKET; RAD GRILLE
(A) 		8-98076-126-0 01 1 1403- ● ●
311 BOLT; BRKT
M6X16 FLANGE THA 		0-28650-616-0 04 1 1403- ● ●
333 BOLT; BRKT
(B) M6X16 FLANGE THA 		0-28650-616-0 04 1 1403- ● ●
333 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1403- ● ●
344 BRACKET; FRT PNL SIDE,LWR 8-98059-821-1 01 1 1403- ● ●
344 BRACKET; FRT PNL SIDE,LWR 8-98059-819-1 01 1 1403- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1403- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1403- ● ●
373 REINFORCEMENT; SEAT BELT
(B) THA 		8-98046-586-2 01 1 1403- ● ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 1403- ● ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 1403- ● ●
376 CLOSING; PILLAR,LWR 8-97589-554-4 01 1 1403-1403 ● ●
376 CLOSING; PILLAR,LWR
THA 		8-98199-228-0 01 1 1404- ● ●
376 CLOSING; PILLAR,LWR
THA 		8-97589-556-5 01 1 1403- ● ●
380 BRACKET; HEAD LAMP
(A) THA 		8-97924-053-0 01 1 1403- ● ●
380 BRACKET; HEAD LAMP
(A) THA 		8-97924-054-0 01 1 1403- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98059-825-1 01 1 1403- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98059-824-1 01 1 1403- ● ●
385 BRACKET
(A) 		8-97588-840-4 01 1 1403- ● ●
385 BRACKET
(B) 		8-98053-825-1 01 1 1403- ● ●
398 BRACKET; PIPE SUPPORT
THA 		8-97948-272-0 01 1 1403- ● ●
427 BRACKET; CABLE 8-98053-090-2 01 1 1403- ● ●
448 CLOSING; ROCKER 8-97589-551-2 01 1 1403- ● ●
448 CLOSING; ROCKER 8-97589-552-2 01 1 1403- ● ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1403- ● ●
537 SUPPORT ASM; MTG RR 8-98046-599-2 01 1 1403- ● ●
537 SUPPORT ASM; MTG RR 8-98046-600-2 01 1 1403- ● ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-98098-707-1 01 1 1403- ● ●
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 1403- ● ●
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1403- ● ●
541 REINFORCEMENT; MTG,FRT 8-98076-127-0 02 1 1403- ● ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1403- ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1403- ● ●
545 BRACKET; SEAT FRT 8-97584-361-1 01 1 1403- ● ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1403- ● ●
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 02 1 1403- ● ●
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1403- ● ●
548 BRACKET; MUD GUARD 8-97588-964-1 01 1 1403- ● ●
548 BRACKET; MUD GUARD 8-97588-965-1 01 1 1403- ● ●
549 BRACKET; SEAT RR 8-97589-557-4 01 1 1403- ● ●
549 BRACKET; SEAT RR 8-98094-836-2 01 1 1403- ● ●
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 1403- ● ●
554 REINFORCEMENT; FLOOR CENTER 8-98046-589-0 01 1 1403- ● ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1403- ● ●
566 REINFORCEMENT; FENDER,RR 8-98076-133-0 02 1 1403- ● ●
569 REINFORCEMENT; FRT,ENG HOOD
THA 		8-98108-382-0 01 1 1403- ● ●
