8-52 — PIPING; AIR CONDITIONING (#13630) — 59 parça

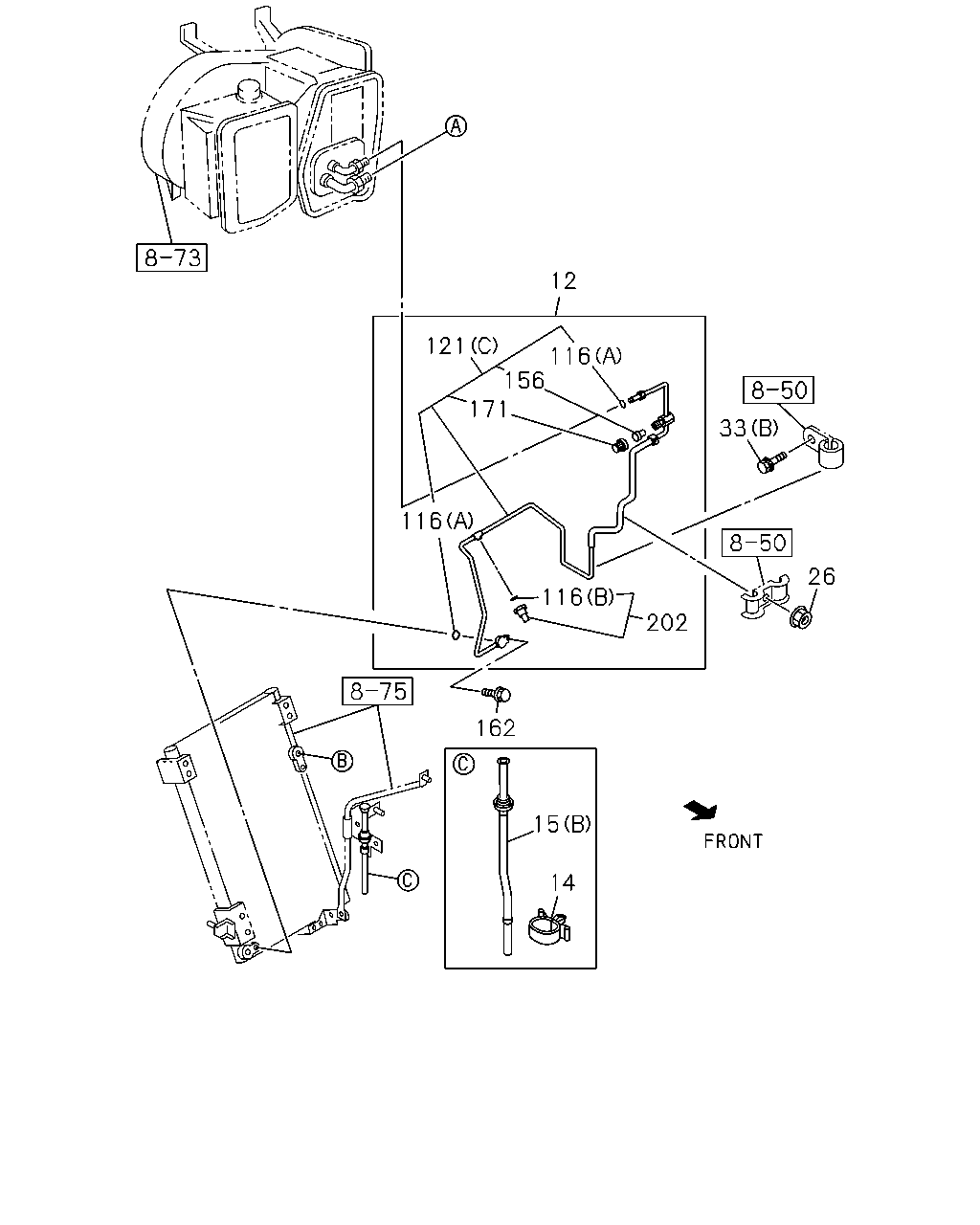

12 121 116 156 171 33 116 26 116 202 162 15 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-718-3	01	1	0611-
14	CLIP; BAND,EVAP DRAIN HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-94410-200-0	01	1	0611-
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-635-0	01	1	0611-
15	HOSE; DRAIN HEATER & DEFROSTER(C41) (A)	1-83572-412-0	01	1	0611-
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	0611-
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28650-825-0	02	1	1010-
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28650-820-0	01	1	0611-
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0611-0904
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4	8-97095-906-0	02	1	0611-
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97178-772-0	01	1	0611-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (E)	1-83577-135-0	01	1	0611-1307
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-98248-121-0	01	1	1308-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83577-136-0	01	1	0611-1307
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-98248-120-0	01	1	1308-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83567-795-0	01	1	0611-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83577-121-0	01	1	0611-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83577-122-0	01	1	0611-
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97095-909-0	01	1	0611-
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE	0-28050-625-0	02	1	0611-
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H	8-97095-911-0	01	1	0611-
202	SWITCH; PRESSURE AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-392-1	01	1	0611-

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-635-0	01	1	0611-
	15	HOSE; DRAIN HEATER & DEFROSTER(C41) (A)	1-83572-412-0	01	1	0611-

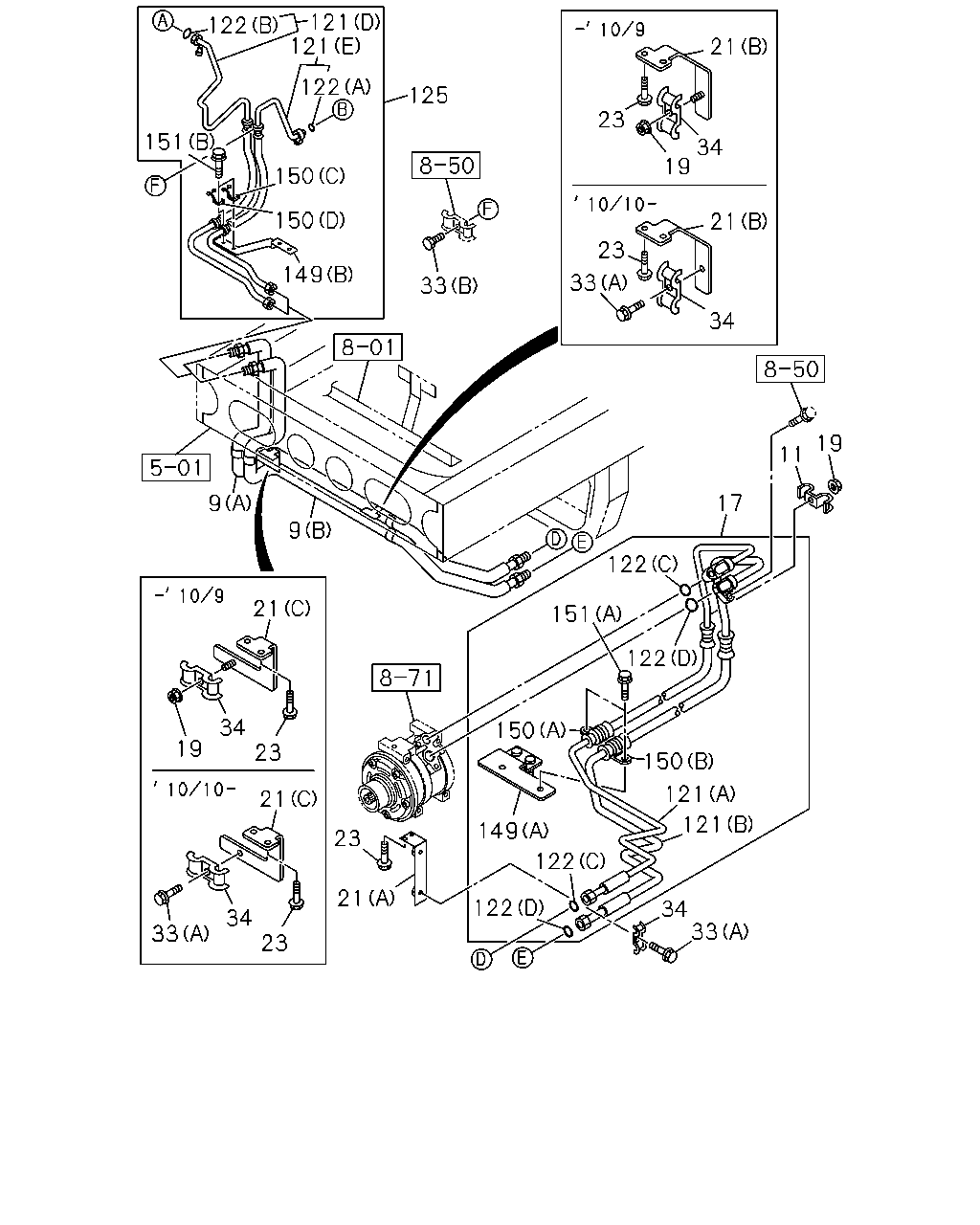

121 121 122 21 122 125 23 151 34 19 150 150 21 23 149 33 33 34 19 11 17 9 9 122 21 151 122 34 23 150 19 150 121 21 121 149 23 122 21 122 34 33 34 23 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97617-938-0	01	1	0611-
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97617-939-0	01	1	0611-
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=12 & 14.5	1-83574-257-0	01	1	0611-
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83577-106-0	01	1	0611-
19	NUT; CLIP FIX AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	0611-
19	NUT; CLIP FIX AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	03	1	0611-1009
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83573-249-0	01	1	0611-
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97615-591-1	01	1	0611-
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-97615-592-1	01	1	0611-
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28050-820-0	06	1	0611-
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28650-825-0	02	1	1010-
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28650-820-0	01	1	0611-
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0611-0904
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-
34	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20	1-83574-195-1	03	1	0611-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (E)	1-83577-135-0	01	1	0611-1307
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-98248-121-0	01	1	1308-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83577-136-0	01	1	0611-1307
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-98248-120-0	01	1	1308-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83567-795-0	01	1	0611-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83577-121-0	01	1	0611-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83577-122-0	01	1	0611-
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7	1-83539-317-0	02	1	0611-
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5	1-83539-324-0	02	1	0611-
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=11.7	8-97095-907-0	02	1	0611-
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=14.5	8-97095-908-0	02	1	0611-
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60)	8-98056-613-1	01	1	0611-
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83573-206-1	01	1	0611-
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83573-255-0	01	1	0611-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83574-249-0	01	1	0611-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83574-254-0	01	1	0611-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83574-255-0	01	1	0611-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83574-264-0	01	1	0611-
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-336-0	02	1	0611-
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83578-098-0	02	1	0611-
