Isuzu WW
▶
TRUCKS
▶
FVM
▶
10632 - FVM-RHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-50 - AIR CONDITIONING SYSTEM; FRONT
▶

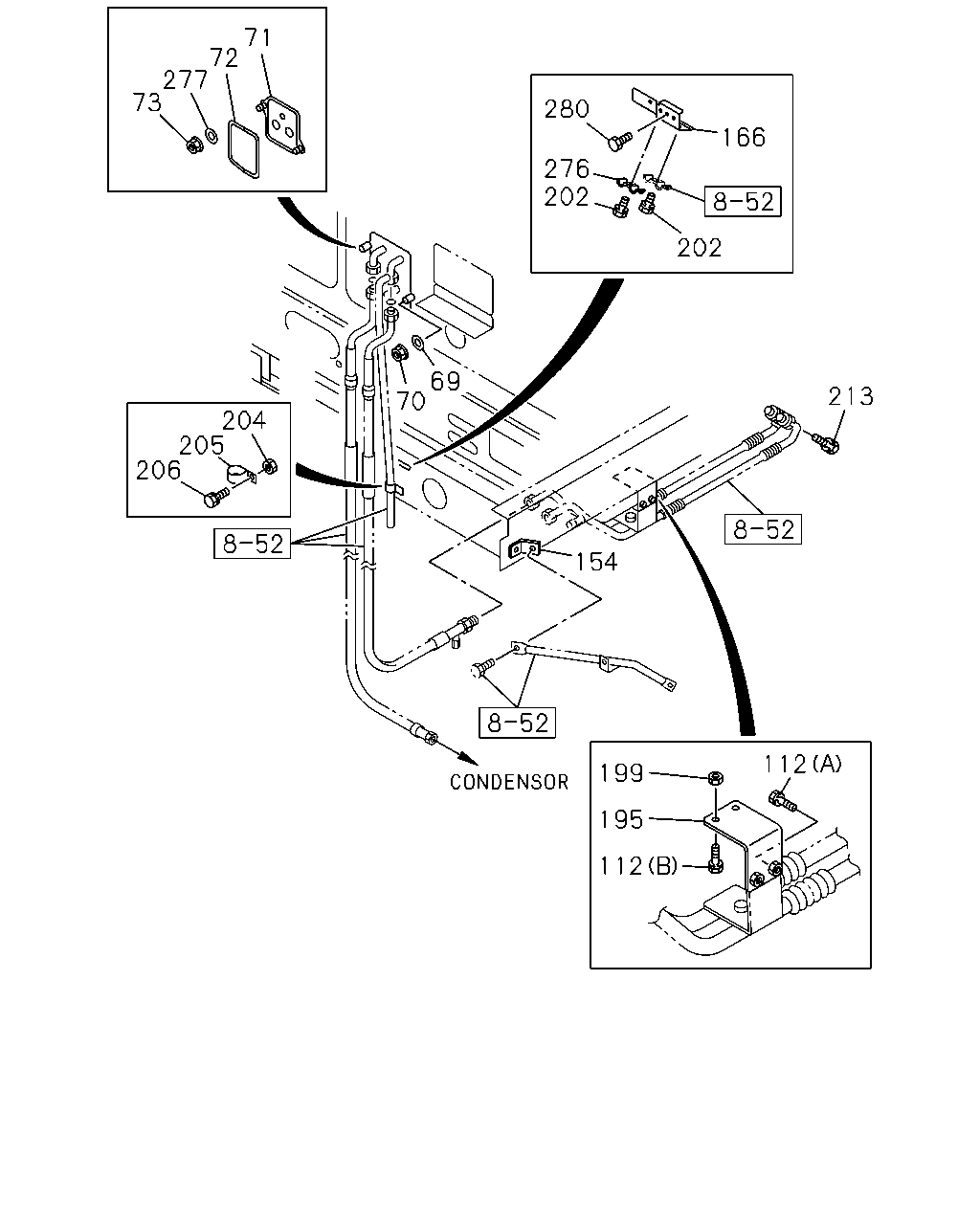

8-50 — AIR CONDITIONING SYSTEM; FRONT
(#1363) — 21 parça
73
277
72
71
280
166
276
202
202
213
154
69
70
204
205
206
199
195
112
112
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
69
WASHER; PL,EVAP
AIR CONDITIONER MANUAL CONTROL(C60) OD=20
1-09509-047-0
01
1
9204-
69
WASHER; PL,EVAP
AIR CONDITIONER MANUAL CONTROL(C60) OD=14
1-09509-048-0
02
1
9204-
70
NUT; EVAP,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE
1-09984-141-0
03
1
9204-
71
COVER; EVAP,A/C
EXC. AIR CONDITIONER MANUAL CONTROL(C60)
1-71997-460-1
01
1
9204-
72
SEAL; COVER,EVAP
EXC. AIR CONDITIONER MANUAL CONTROL(C60)
1-71998-221-0
01
1
9204-
73
NUT; COVER,A/C EVAP
EXC. AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE
1-09984-141-0
02
1
9204-
112
BOLT; STAY
AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE
0-28080-820-0
02
1
9204-
112
BOLT; STAY
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE
0-28080-825-0
02
1
9204-
154
BRACKET; STAY
AIR CONDITIONER MANUAL CONTROL(C60) BUMPER W/HEADLAMPS<SLB>
1-83571-773-0
01
1
9204-9301
166
BRACKET; FLEX HOSE
L=200
1-71118-359-3
01
1
9204-
195
STAY; CLIP
AIR CONDITIONER MANUAL CONTROL(C60)
1-83571-794-0
01
1
9204-
199
NUT
AIR CONDITIONER MANUAL CONTROL(C60) M8
9-09110-408-0
02
1
9204-
202
BOLT; CLIP,FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X20 W/LK&PL WASHER
1-09980-493-0
02
1
9204-
204
NUT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8
9-09110-408-0
01
1
9204-
205
CLIP; BAND,DRAIN HOSE
AIR CONDITIONER MANUAL CONTROL(C60) ID=35 L=35
1-09700-908-0
01
1
9204-
206
BOLT; CLIP BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE
0-28080-820-0
01
1
9204-
213
BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M10X40 W/LK&PL WASHER
9-01961-040-0
01
1
9204-9204
213
BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M10X40 W/LK&PL WASHER
0-50141-040-0
01
1
9205-
276
CLIP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60)
1-83574-116-0
01
1
9204-
277
WASHER; EVAP COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=14
1-09509-048-0
02
1
9204-
280
BOLT; BRKT,A/C FLEX HOSE
M6X20 W/LK&PL WASHER
1-09980-493-0
02
1
9204-
