6-32 — FRONT DOOR LOCK AND HANDLE (#136297) — 73 parça

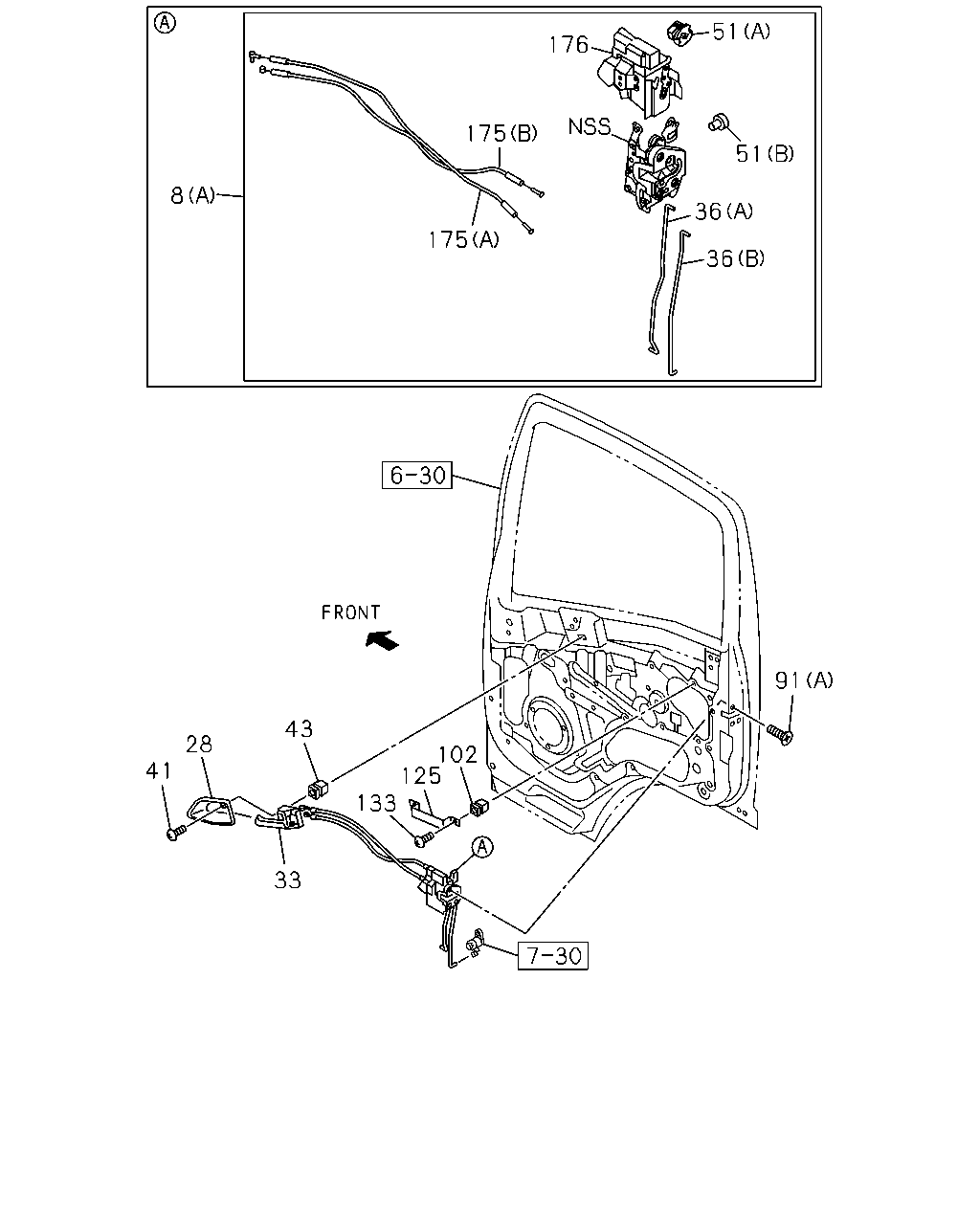

51 176 175 51 36 36 175 8 91 102 125 43 133 33 28 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	LOCK; DOOR,FRT DOOR (A) IMA	8-97520-628-0	01	1	1403-	●
8	LOCK; DOOR,FRT DOOR (A) IMA	8-97520-627-0	01	1	1403-	●
8	LOCK; DOOR,FRT DOOR (B) IMA	8-97520-626-0	01	1	1403-		●
8	LOCK; DOOR,FRT DOOR (B) IMA	8-97520-625-0	01	1	1403-		●
28	BEZEL; INSIDE LEVER,FRT DOOR DARK GRAY	8-97405-312-0	01	1	1403-	●	●
28	BEZEL; INSIDE LEVER,FRT DOOR DARK GRAY	8-97405-311-0	01	1	1403-	●	●
33	LEVER ASM; INSIDE,FRT DOOR DARK GRAY	8-97405-310-1	01	1	1403-	●	●
33	LEVER ASM; INSIDE,FRT DOOR DARK GRAY	8-97405-309-1	01	1	1403-	●	●
36	LINK; DOOR LOCK,OUTSIDE (A) THA	8-97520-805-0	01	1	1403-	●	●
36	LINK; DOOR LOCK,OUTSIDE (B) THA	8-97520-807-0	01	1	1403-	●	●
36	LINK; DOOR LOCK,OUTSIDE (A) THA	8-97520-804-0	01	1	1403-	●	●
36	LINK; DOOR LOCK,OUTSIDE (B) THA	8-97520-806-0	01	1	1403-	●	●
41	SCREW; INSIDE HANDLE T25 M5X16 TAPPING HEXALOBULAR	0-72380-516-0	02	1	1403-	●	●
43	GROMMET; SCREW,INSIDE LEVER,DOOR D=8.6X7.7 L=7.5	8-94279-078-0	02	1	1403-	●	●
51	SNAP; FRT DOOR LOCK CONT ROD (A) BLUE THA	8-98058-227-0	02	1	1403-	●
51	SNAP; FRT DOOR LOCK CONT ROD (A) NATURAL THA	8-98058-226-0	02	1	1403-	●
51	SNAP; FRT DOOR LOCK CONT ROD (B) RED THA	8-98058-229-0	01	1	1403-	●	●
51	SNAP; FRT DOOR LOCK CONT ROD (B) BLACK THA	8-98058-228-0	01	1	1403-	●	●
51	SNAP; FRT DOOR LOCK CONT ROD (A) BLUE THA	8-98058-227-0	01	1	1403-		●
51	SNAP; FRT DOOR LOCK CONT ROD (A) NATURAL THA	8-98058-226-0	01	1	1403-		●
91	BOLT; DOOR LOCK (A) M6X14.5 THA	8-98004-342-0	06	1	1403-	●	●
91	BOLT; DOOR LOCK (B) M6X10 FLANGE THA	0-28050-610-0	02	1	1403-		●
102	GROMMET; SCREW,ESCUTCHEON,DOOR PULL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1403-	●	●
125	BRACKET; DOOR PULL	8-97585-927-0	02	1	1403-	●	●
133	SCREW; DOOR PULL STAY T25 M5X16 TAPPING HEXALOBULAR	0-72380-516-0	06	1	1403-	●	●
175	CABLE ASM; LOCK CONTROL (B) THA	8-97520-810-0	02	1	1403-	●	●
175	CABLE ASM; LOCK CONTROL (A) THA	8-97520-809-0	01	1	1403-	●	●
175	CABLE ASM; LOCK CONTROL (A) THA	8-97520-808-0	01	1	1403-	●	●
176	COVER; DOOR LOCK THA	8-98058-239-0	01	1	1403-	●	●
176	COVER; DOOR LOCK THA	8-98058-238-0	01	1	1403-	●	●

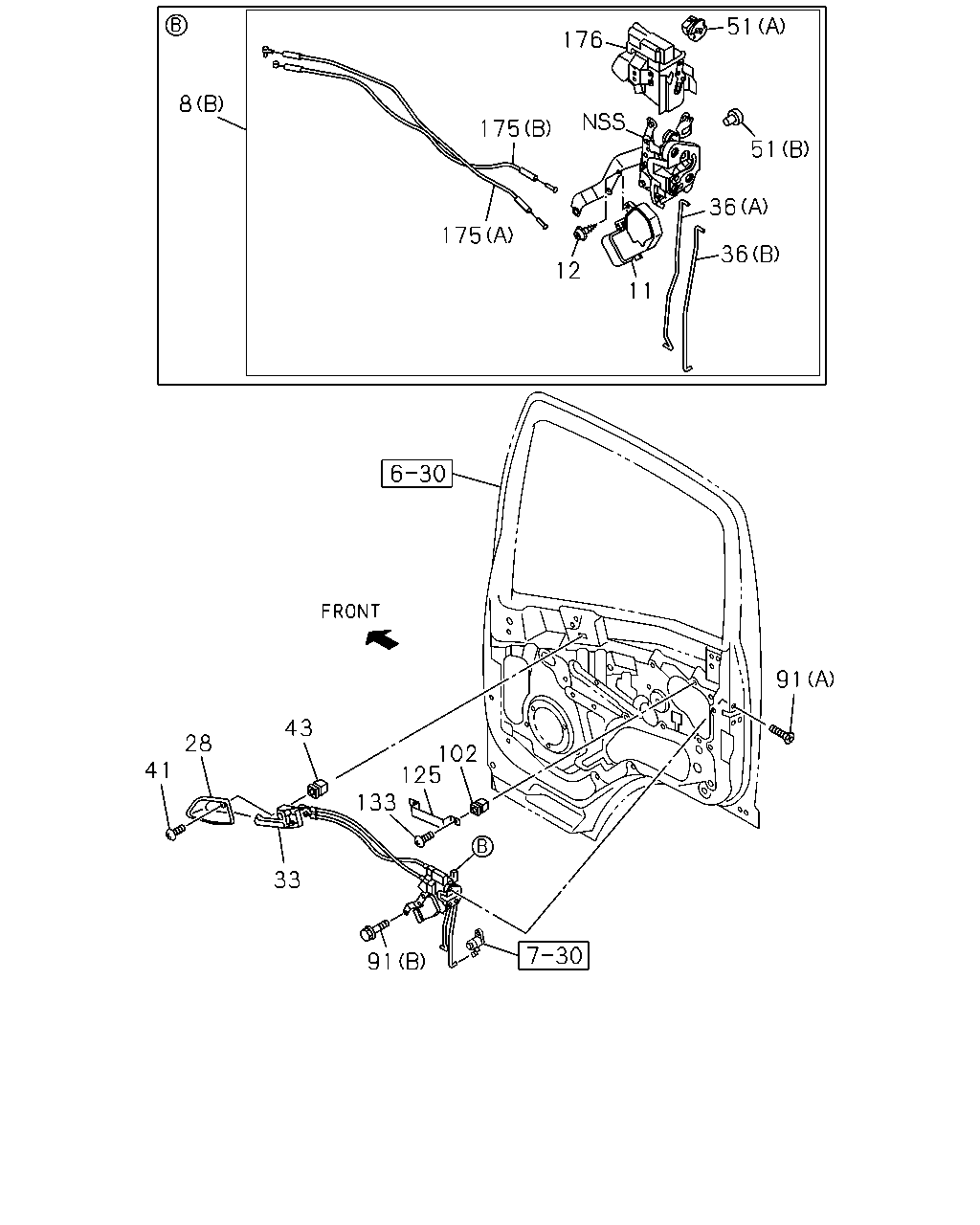

11 36 36 51 51 176 175 12 175 8 91 91 102 125 133 33 43 28 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	LOCK; DOOR,FRT DOOR (A) IMA	8-97520-628-0	01	1	1403-	●
8	LOCK; DOOR,FRT DOOR (A) IMA	8-97520-627-0	01	1	1403-	●
8	LOCK; DOOR,FRT DOOR (B) IMA	8-97520-626-0	01	1	1403-		●
8	LOCK; DOOR,FRT DOOR (B) IMA	8-97520-625-0	01	1	1403-		●
11	ACTUATOR; DOOR LK,FRT THA	8-97520-812-0	01	1	1403-		●
11	ACTUATOR; DOOR LK,FRT THA	8-97520-811-0	01	1	1403-		●
12	SCREW; DOOR LK THA	8-97310-549-0	04	1	1403-		●
28	BEZEL; INSIDE LEVER,FRT DOOR DARK GRAY	8-97405-312-0	01	1	1403-	●	●
28	BEZEL; INSIDE LEVER,FRT DOOR DARK GRAY	8-97405-311-0	01	1	1403-	●	●
33	LEVER ASM; INSIDE,FRT DOOR DARK GRAY	8-97405-310-1	01	1	1403-	●	●
33	LEVER ASM; INSIDE,FRT DOOR DARK GRAY	8-97405-309-1	01	1	1403-	●	●
36	LINK; DOOR LOCK,OUTSIDE (A) THA	8-97520-805-0	01	1	1403-	●	●
36	LINK; DOOR LOCK,OUTSIDE (B) THA	8-97520-807-0	01	1	1403-	●	●
36	LINK; DOOR LOCK,OUTSIDE (A) THA	8-97520-804-0	01	1	1403-	●	●
36	LINK; DOOR LOCK,OUTSIDE (B) THA	8-97520-806-0	01	1	1403-	●	●
41	SCREW; INSIDE HANDLE T25 M5X16 TAPPING HEXALOBULAR	0-72380-516-0	02	1	1403-	●	●
43	GROMMET; SCREW,INSIDE LEVER,DOOR D=8.6X7.7 L=7.5	8-94279-078-0	02	1	1403-	●	●
51	SNAP; FRT DOOR LOCK CONT ROD (A) BLUE THA	8-98058-227-0	02	1	1403-	●
51	SNAP; FRT DOOR LOCK CONT ROD (A) NATURAL THA	8-98058-226-0	02	1	1403-	●
51	SNAP; FRT DOOR LOCK CONT ROD (B) RED THA	8-98058-229-0	01	1	1403-	●	●
51	SNAP; FRT DOOR LOCK CONT ROD (B) BLACK THA	8-98058-228-0	01	1	1403-	●	●
51	SNAP; FRT DOOR LOCK CONT ROD (A) BLUE THA	8-98058-227-0	01	1	1403-		●
51	SNAP; FRT DOOR LOCK CONT ROD (A) NATURAL THA	8-98058-226-0	01	1	1403-		●
91	BOLT; DOOR LOCK (A) M6X14.5 THA	8-98004-342-0	06	1	1403-	●	●
91	BOLT; DOOR LOCK (B) M6X10 FLANGE THA	0-28050-610-0	02	1	1403-		●
102	GROMMET; SCREW,ESCUTCHEON,DOOR PULL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1403-	●	●
125	BRACKET; DOOR PULL	8-97585-927-0	02	1	1403-	●	●
133	SCREW; DOOR PULL STAY T25 M5X16 TAPPING HEXALOBULAR	0-72380-516-0	06	1	1403-	●	●
175	CABLE ASM; LOCK CONTROL (B) THA	8-97520-810-0	02	1	1403-	●	●
175	CABLE ASM; LOCK CONTROL (A) THA	8-97520-809-0	01	1	1403-	●	●
175	CABLE ASM; LOCK CONTROL (A) THA	8-97520-808-0	01	1	1403-	●	●
176	COVER; DOOR LOCK THA	8-98058-239-0	01	1	1403-	●	●
176	COVER; DOOR LOCK THA	8-98058-238-0	01	1	1403-	●	●

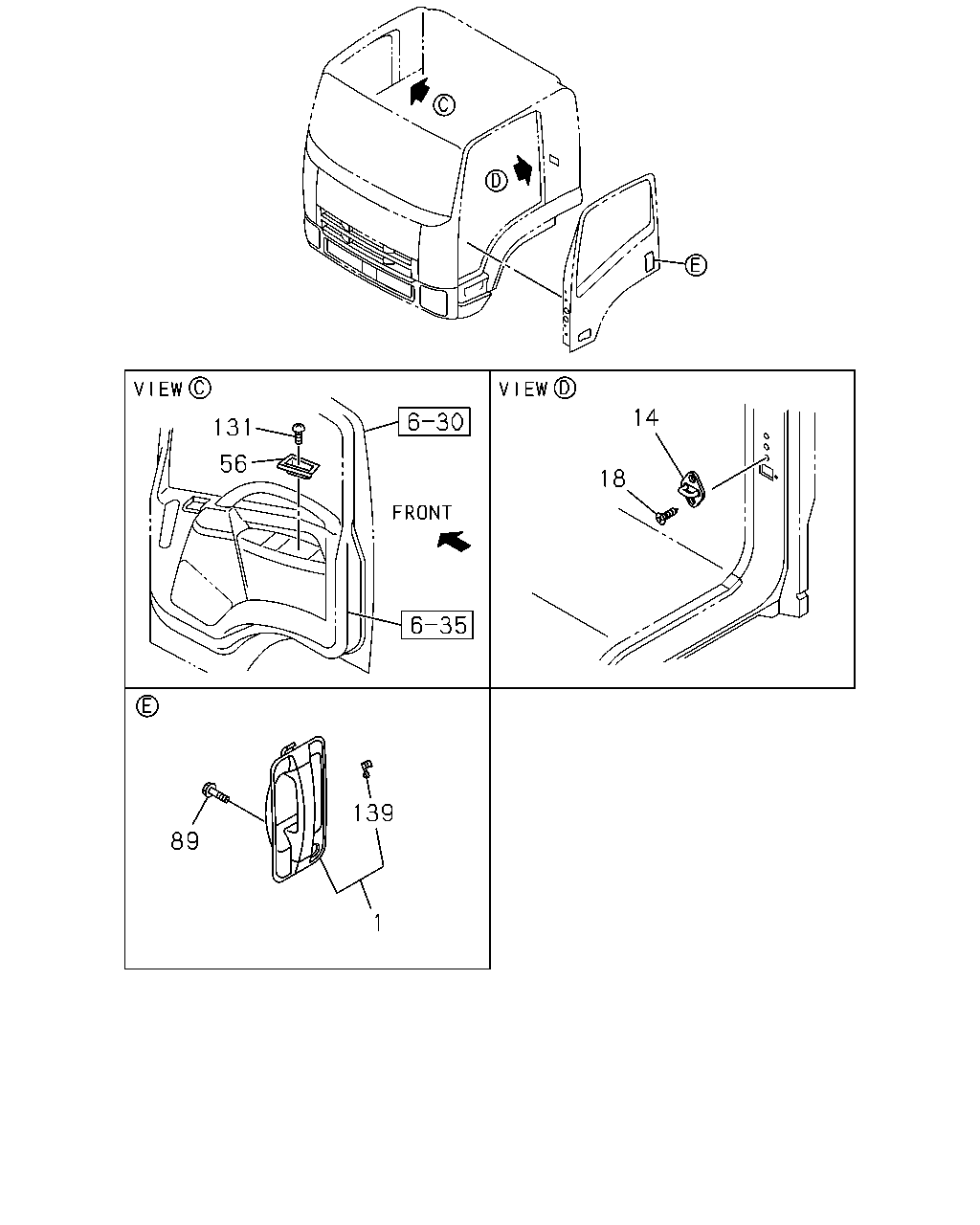

1 139 89 56 131 18 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HANDLE; OUTSIDE,FRT DOOR	8-98037-100-2	01	1	1403-	●	●
1	HANDLE; OUTSIDE,FRT DOOR	8-98037-101-2	01	1	1403-	●	●
14	STRIKER; FRT DOOR	8-98029-173-2	02	1	1403-	●	●
18	SCREW; DOOR STRIKER M8X20 CK-HEAD	8-98004-343-2	04	1	1403-	●	●
56	ESCUTCHEON; LOCK KNOB GRAY	8-97405-314-1	01	1	1403-	●	●
56	ESCUTCHEON; LOCK KNOB GRAY	8-97405-315-1	01	1	1403-	●	●
89	BOLT; DOOR OUTSIDE HANDLE M6X10 FLANGE THA	0-28050-610-0	04	1	1403-	●	●
131	SCREW; ESCUTCHEON,DOOR PULL T25 M5X16 TAPPING HEXALOBULAR	0-72380-516-0	02	1	1403-	●	●
139	HOLDER; ROD,DOOR HANDLE WHITE	8-97333-303-0	01	1	1403-	●	●
139	HOLDER; ROD,DOOR HANDLE BLACK	8-98095-813-0	01	1	1403-	●	●
