◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11588 - FXZ/GXZ CNG(THAI)EU3 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-30 - FRONT DOOR AND HINGE ▶
6-30 — FRONT DOOR AND HINGE (#136295) — 14 parça

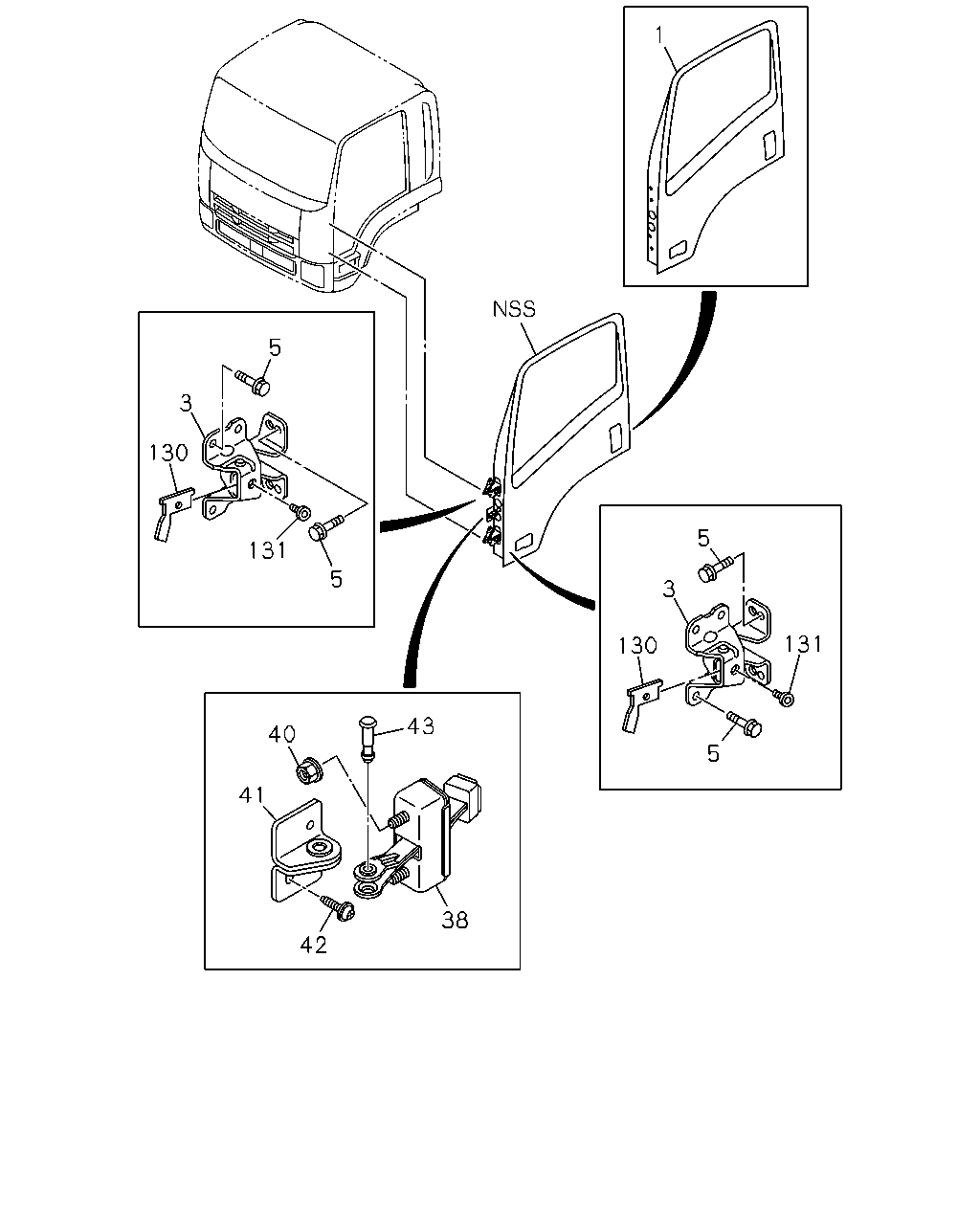

çizim 413573
1 5 3 130 131 5 43 40 41 42 38 5 130 3 5 131
BalonParca AdiParca NoAdetTipApplied Date A B
1 DOOR ASM; FRT,WO/TRIM
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-97948-582-0 01 1 1403- ● ●
1 DOOR ASM; FRT,WO/TRIM
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-97948-579-0 01 1 1403- ● ●
1 DOOR ASM; FRT,WO/TRIM
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-97948-581-0 01 1 1403- ● ●
1 DOOR ASM; FRT,WO/TRIM
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-97948-578-0 01 1 1403- ● ●
3 HINGE; DOOR FRT 8-98191-302-0 04 1 1403- ● ●
5 BOLT; HINGE
M8X20 FLANGE 		8-98049-756-0 20 1 1403- ● ●
38 CHECKER ASM; DOOR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98208-189-1 02 1 1403- ● ●
38 CHECKER ASM; DOOR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98031-730-6 02 1 1403- ● ●
40 NUT; CHECKER
M8 W/DISHED WASHER 		8-97329-625-0 04 1 1403- ● ●
41 BRACKET; CHECKER 8-98029-290-3 02 1 1403- ● ●
42 BOLT; BRKT
M6X20 W/PL WASHER 		8-98032-159-2 04 1 1403- ● ●
43 PIN 8-98037-152-2 02 1 1403- ● ●
130 STOPPER; HINGE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98038-299-1 04 1 1403- ● ●
131 BOLT; DOOR STOPPER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10X11 		8-98039-593-1 04 1 1403- ● ●
