◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11588 - FXZ/GXZ CNG(THAI)EU3 ▶ 5 - Frame, Cab Mounting ▶ 5-30 - SPARE TIRE CARRIER AND COVER ▶
5-30 — SPARE TIRE CARRIER AND COVER (#136289) — 21 parça

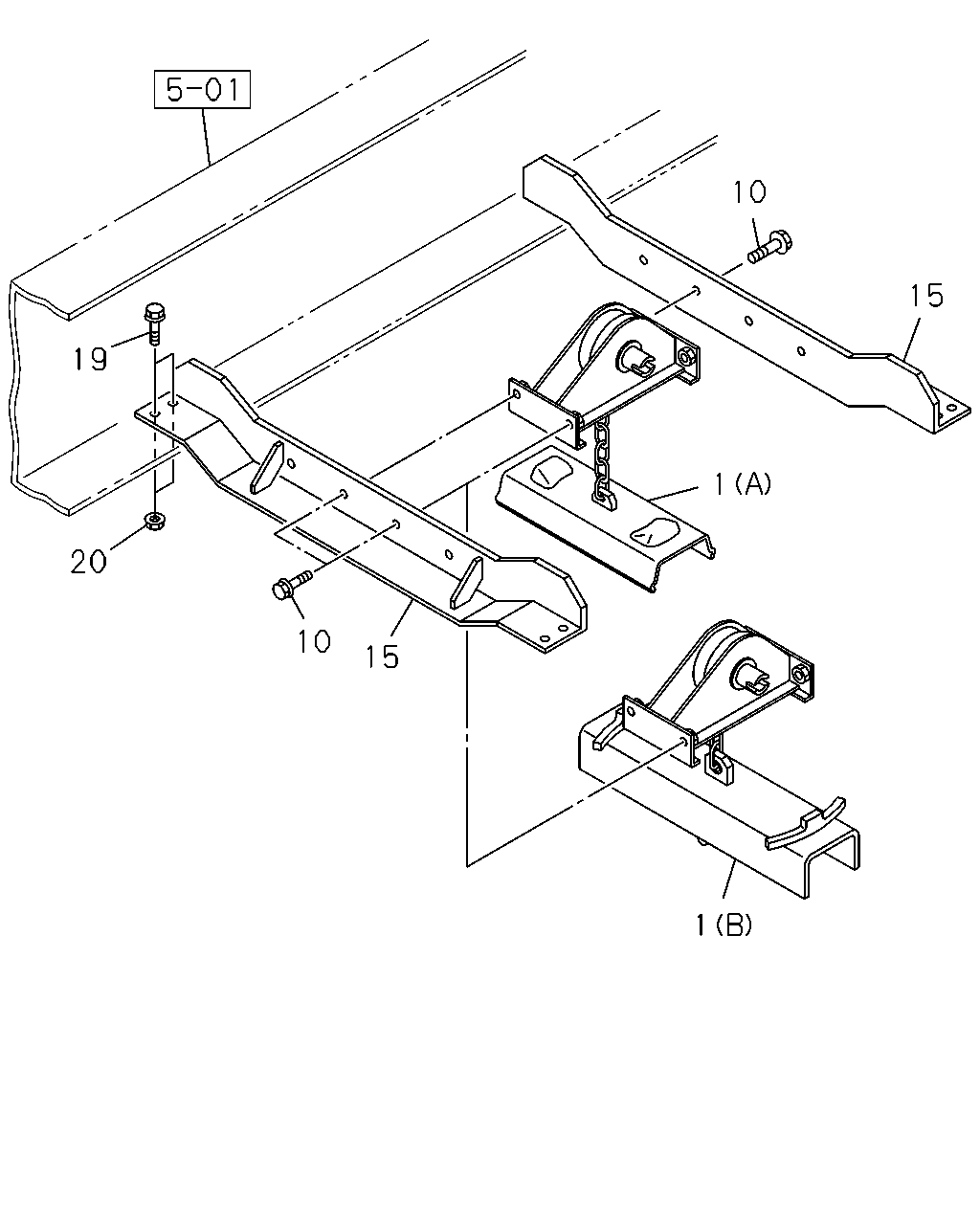

çizim 413427
1 1 15 10 15 10 20 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10> WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) THA 		8-97948-022-0 01 1 1403- ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> (A) THA 		8-97948-022-0 01 1 1403- ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) 		1-53630-210-4 01 1 1403- ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) 		1-53630-210-4 01 1 1403- ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> M12X30 FLANGE THA 		0-28651-230-0 04 1 1403- ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE THA 		0-28651-230-0 04 1 1403- ●
15 MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> THA 		8-97608-196-1 02 1 1403- ●
19 BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10X40 FLANGE THA 		0-28051-040-0 08 1 1403- ●
20 NUT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE THA 		0-91180-210-0 08 1 1403- ●
çizim 413908
1 3 3 5 9 10 21 24 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10> WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) THA 		8-97948-022-0 01 1 1403- ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> (A) THA 		8-97948-022-0 01 1 1403- ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) 		1-53630-210-4 01 1 1403- ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) 		1-53630-210-4 01 1 1403- ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (B) 		8-98115-404-0 01 1 1403- ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) 		8-98115-407-0 01 1 1403- ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X40 FLANGE 		0-28651-240-0 06 1 1403- ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		0-91110-512-0 06 1 1403- ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> M12X30 FLANGE THA 		0-28651-230-0 04 1 1403- ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE THA 		0-28651-230-0 04 1 1403- ●
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> THA 		1-53631-128-1 01 1 1403- ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE THA 		0-28651-230-0 02 1 1403- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
