5-10 — CAB MOUNTING; FRAME SIDE (#136284) — 81 parça

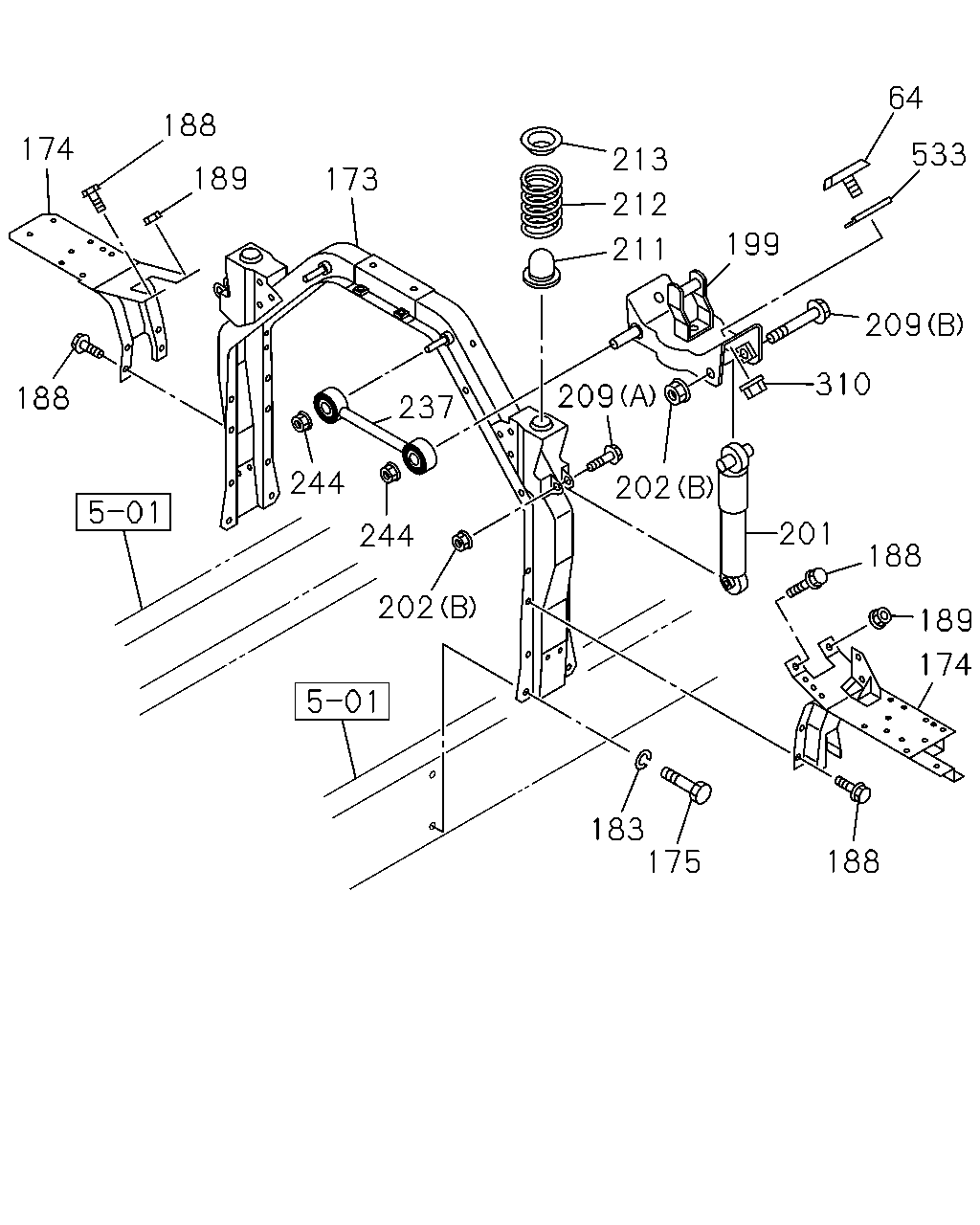

174 188 189 173 188 244 237 244 202 183 175 188 174 189 188 201 202 209 211 212 213 199 64 533 209 310

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
64	RUBBER; CUSHION	8-97113-340-0	04	1	1403-	●	●
173	MEMBER; CAB MTG RR	8-98054-836-3	01	1	1403-	●	●
174	OUTRIGGER	8-98054-839-2	01	1	1403-	●	●
174	OUTRIGGER	8-98054-838-1	01	1	1403-	●	●
175	BOLT; MEMBER TO FRAME M14X40	0-20951-440-0	08	1	1403-	●	●
183	WASHER; PL,MEMBER ID=15	8-98010-627-1	08	1	1403-	●	●
188	BOLT; OUTRIGGER M12X30 FLANGE THA	0-28661-230-0	10	1	1403-	●	●
189	NUT; OUTRIGGER M12 FLANGE THA	0-91180-212-0	02	1	1403-	●	●
199	BRACKET; CAB RR MTG	8-98025-488-4	01	1	1403-	●	●
199	BRACKET; CAB RR MTG	8-98025-489-4	01	1	1403-	●	●
201	ABSORBER ASM; SHOCK,RR MTG	8-98269-510-0	02	1	1403-	●	●
202	NUT; S/ABS (A) M10 FLANGE THA	0-91180-110-0	02	1	1403-	●	●
202	NUT; S/ABS (B) M12 FLANGE THA	0-91180-212-0	04	1	1403-	●	●
202	NUT; S/ABS (C) M10	9-09111-410-0	02	1	1403-	●	●
209	BOLT; S/ABS (A) M12X60 FLANGE THA	0-28051-260-0	02	1	1403-	●	●
209	BOLT; S/ABS (B) M12X100 FLANGE	0-28061-200-0	02	1	1403-	●	●
211	RUBBER; CUSHION,S/ABS THA	8-97926-572-0	02	1	1403-	●	●
212	SPRING; COIL	1-09580-398-1	02	1	1403-	●	●
213	SEAT; SPR,S/ABS	1-53366-062-2	02	1	1403-	●	●
237	ROD ASM; LATERAL	1-53459-585-2	02	1	1403-	●	●
244	NUT; LATERAL ROD M16 FLANGE	0-91180-216-0	04	1	1403-	●	●
310	NUT; CUSHION M8 FLANGE THA	0-91180-108-0	04	1	1403-	●	●
533	SPACER; MTG RUBBER	8-98100-388-0	04	1	1403-	●	●

65 202 203 202 204 204 205 203 112 27 48 51 535 191 191 535 51 48 27 536 51 191 535 535 535 535 535 535 191 51 536

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	BOLT; BUSHING M18X120	1-09000-442-1	02	1	1403-	●	●
48	WASHER; PL ID=19 OD=30	1-09503-279-0	02	1	1403-	●	●
51	BUSHING; RUBBER	1-53458-714-0	04	1	1403-	●	●
65	ABSORBER; SHOCK,CAB FRT SUSPENSION THA	8-97948-505-0	02	1	1403-	●	●
112	ARM ASM; LINK,CAB FRT SUSP	8-98100-381-0	01	1	1403-	●	●
191	BOLT; BRKT FIX M12X35 FLANGE THA	0-28051-235-0	08	1	1403-	●	●
202	NUT; S/ABS (A) M10 FLANGE THA	0-91180-110-0	02	1	1403-	●	●
202	NUT; S/ABS (B) M12 FLANGE THA	0-91180-212-0	04	1	1403-	●	●
202	NUT; S/ABS (C) M10	9-09111-410-0	02	1	1403-	●	●
203	WASHER; RUBBER,SHOCK (A) THA	1-51631-005-0	02	1	1403-	●	●
203	WASHER; RUBBER,SHOCK (B) THA	1-51631-104-0	02	1	1403-	●	●
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	04	1	1403-	●	●
205	WASHER; RUBBER,SHOCK THA	1-51631-079-0	02	1	1403-	●	●
535	BRACKET; LINK ARM (A)	8-98094-831-0	02	1	1403-	●	●
535	BRACKET; LINK ARM (B)	8-98094-832-0	02	1	1403-	●	●
535	BRACKET; LINK ARM (C)	8-98099-704-0	04	1	1403-	●	●
536	WASHER; SIDE ID=34.5	1-53458-281-1	02	1	1403-	●	●

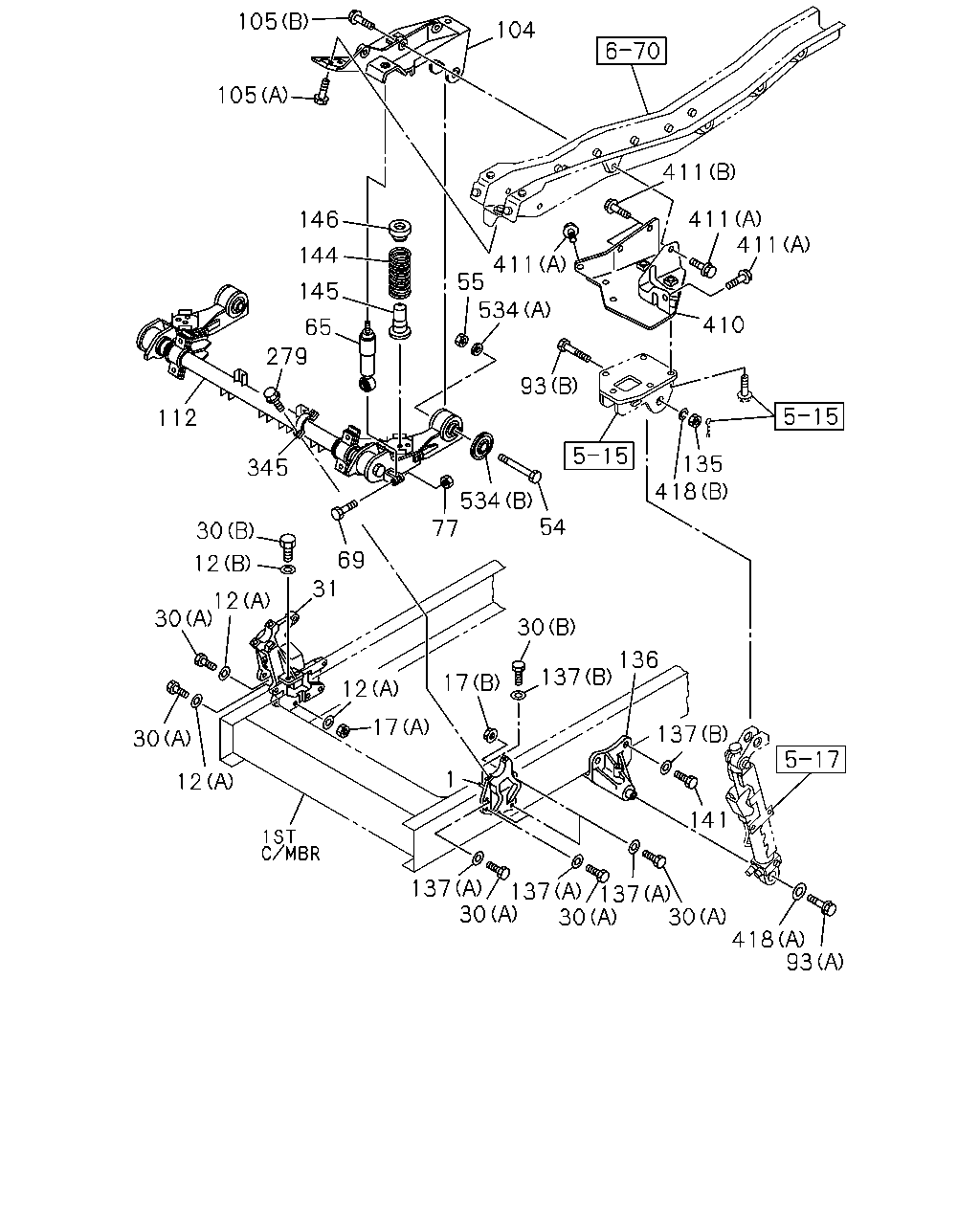

105 105 104 146 144 145 65 279 112 345 30 12 69 31 12 30 12 17 30 12 1 17 30 137 136 77 534 137 137 137 30 30 30 418 93 141 137 418 135 410 93 534 55 411 411 411 411 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; CAB MTG	8-98054-826-0	01	1	1403-	●	●
12	WASHER; LK,BRKT (A) ID=16.2	1-09503-316-0	12	1	1403-	●	●
12	WASHER; LK,BRKT (B) ID=15	8-98010-627-1	02	1	1403-	●	●
17	NUT; BRKT,CAB TILT (A) M16 THA	0-91110-516-0	06	1	1403-	●	●
17	NUT; BRKT,CAB TILT (B) M16 FLANGE	0-91180-216-0	05	1	1403-	●	●
30	BOLT; CAB FRT FOOT (B) M14X60	0-20951-460-0	04	1	1403-	●	●
30	BOLT; CAB FRT FOOT (A) M16X60	0-20951-660-0	11	1	1403-	●	●
31	BRACKET; CAB	1-44226-181-0	01	1	1403-	●	●
54	BOLT; RUBBER M18X90	0-10856-890-0	02	1	1403-	●	●
55	NUT; RUBBER M18 THA	0-91110-518-0	02	1	1403-	●	●
65	ABSORBER; SHOCK,CAB FRT SUSPENSION THA	8-97948-505-0	02	1	1403-	●	●
69	BOLT; S/ABS,CAB FRT SUSPENSION M12X60	0-20801-260-0	02	1	1403-	●	●
77	NUT M12 FLANGE THA	0-91180-212-0	02	1	1403-	●	●
93	BOLT; PIN (A) M10X30	1-09000-283-0	01	1	1403-	●	●
93	BOLT; PIN (B) M14X70	1-53458-633-0	01	1	1403-	●	●
104	BRACKET; CAB FRAME,CAB FRT MTG	8-98054-821-2	01	1	1403-	●	●
104	BRACKET; CAB FRAME,CAB FRT MTG	8-98054-822-2	01	1	1403-	●	●
105	BOLT; BRKT TO CAB FRAME (A) M12X35 FLANGE THA	0-28651-235-0	06	1	1403-	●	●
105	BOLT; BRKT TO CAB FRAME (B) M10X30 FLANGE THA	0-28661-030-0	08	1	1403-	●	●
112	ARM ASM; LINK,CAB FRT SUSP	8-98100-381-0	01	1	1403-	●	●
135	NUT; PIN M14 SLOTTED	0-91116-514-0	01	1	1403-	●	●
136	BRACKET; OIL CYL	8-98054-835-0	01	1	1403-	●
136	BRACKET; OIL CYL EXC. ANTILOCK BRAKE SYSTEM<BFA>	8-98054-835-0	01	1	1403-		●
137	WASHER; PL,BRKT (B) ID=15	8-98010-627-1	04	1	1403-	●
137	WASHER; PL,BRKT EXC. ANTILOCK BRAKE SYSTEM<BFA> (B) ID=15	8-98010-627-1	04	1	1403-		●
137	WASHER; PL,BRKT (A) ID=16.2	1-09503-316-0	05	1	1403-	●	●
137	WASHER; PL,BRKT (B) ID=15	8-98010-627-1	02	1	1403-	●	●
141	BOLT; BRKT M14X50	0-20951-450-0	04	1	1403-	●
141	BOLT; BRKT EXC. ANTILOCK BRAKE SYSTEM<BFA> M14X50	0-20951-450-0	04	1	1403-		●
144	SPRING; COIL,CAB FRT SUSPENSION	1-09580-537-0	02	1	1403-	●	●
145	RUBBER; CUSHION,CAB FRT SUSPENSION THA	8-97948-023-0	02	1	1403-	●	●
146	SEAT; SPRING,CAB FRT SUSPENSION THA	1-53366-138-0	02	1	1403-	●	●
279	BOLT M12X40 FLANGE THA	0-28061-240-0	04	1	1403-	●	●
345	CAP; CAB	1-53458-336-3	02	1	1403-	●	●
410	REINFORCEMENT; CAB TILT	8-98054-960-3	01	1	1403-	●	●
411	BOLT; REINFORCEMENT (A) M8X20 FLANGE THA	0-28650-820-0	03	1	1403-	●	●
411	BOLT; REINFORCEMENT (B) M10X30 FLANGE THA	0-28661-030-0	02	1	1403-	●	●
418	WASHER; PL,PIN (B) ID=14.2	0-91510-814-0	01	1	1403-	●	●
418	WASHER; PL,PIN (A) ID=10.5 OD=32	0-91614-810-0	01	1	1403-	●	●
534	WASHER; RUBBER (A) ID=19 OD=30	1-09503-279-0	02	1	1403-	●	●
534	WASHER; RUBBER (B) ID=34.5	1-53458-281-1	02	1	1403-	●	●
