4-80 — ROAD WHEEL (#136282) — 53 parça

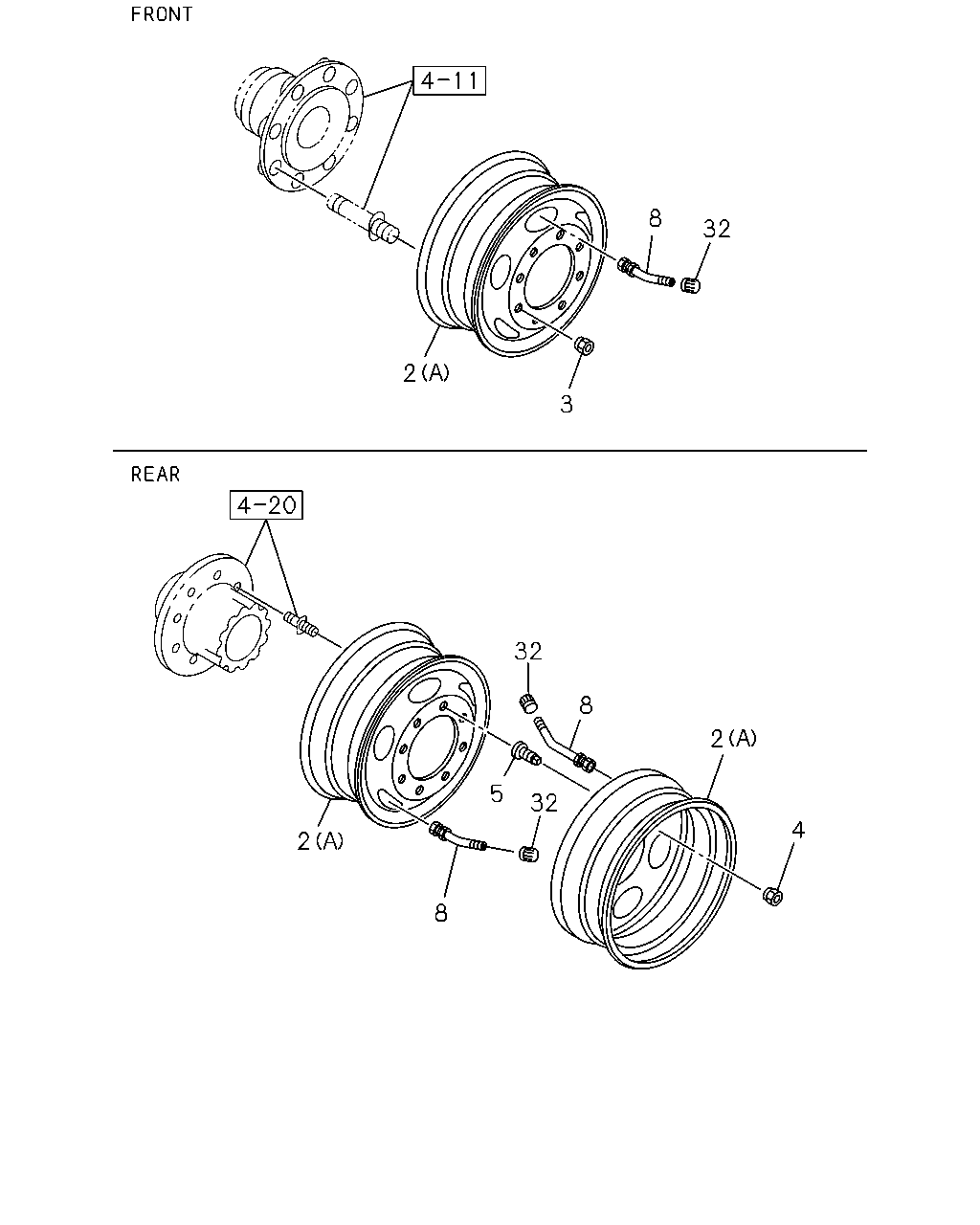

8 3 32 2 2 8 5 32 8 32 2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> (B) FRONT IMA	8-97520-631-0	02	1	1403-	●
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> (B) REAR IMA	8-97520-631-0	08	1	1403-	●
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE IMA	8-97520-631-0	01	1	1403-	●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) SPARE THA	8-98257-428-0	01	1	1403-1407	●	●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) SPARE THA	8-97520-623-0	01	1	1408-	●	●
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) FRONT THA	8-98257-428-0	02	1	1403-1407	●	●
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) FRONT THA	8-97520-623-0	02	1	1408-	●	●
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) REAR THA	8-98257-428-0	08	1	1403-1407	●	●
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) REAR THA	8-97520-623-0	08	1	1408-	●	●
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (A) FRONT THA	8-98257-427-0	02	1	1403-1407		●
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (A) FRONT THA	8-97520-624-0	02	1	1408-		●
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (A) REAR THA	8-98257-427-0	08	1	1403-1407		●
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (A) REAR THA	8-97520-624-0	08	1	1408-		●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (A) SPARE THA	8-98257-427-0	01	1	1403-1407		●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (A) SPARE THA	8-97520-624-0	01	1	1408-		●
3	NUT; WHEEL,FRT AXLE M24 LH THREAD	1-42334-022-3	08	1	1403-	●	●
3	NUT; WHEEL,FRT AXLE M24	1-42333-022-3	08	1	1403-	●	●
4	NUT; WHEEL,RR AXLE M30 LH THREAD	8-97359-810-0	16	1	1403-	●	●
4	NUT; WHEEL,RR AXLE M30 RH THREAD	8-97359-809-0	16	1	1403-	●	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	8-97359-806-0	16	1	1403-	●	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	8-97359-805-0	16	1	1403-	●	●
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> SPARE	1-42370-020-3	01	1	1403-	●
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> SPARE	1-42370-020-3	01	1	1403-		●
8	VALVE; TIRE WHEEL 8STUD 8.25X22.5 165-13TC<SKV> FRONT	1-42370-020-3	02	1	1403-	●
8	VALVE; TIRE DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> FRONT	1-42370-020-3	02	1	1403-		●
8	VALVE; TIRE WHEEL 8STUD 8.25X22.5 165-13TC<SKV> REAR	1-42370-020-3	08	1	1403-	●
8	VALVE; TIRE DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD8.25X22.5 165-13TC<SKV> REAR	1-42370-020-3	08	1	1403-		●
32	CAP; VALVE	1-42374-001-0	11	1	1403-	●	●

2 31 3 32 2 31 31 2 32 4 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> (B) FRONT IMA	8-97520-631-0	02	1	1403-	●
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> (B) REAR IMA	8-97520-631-0	08	1	1403-	●
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE IMA	8-97520-631-0	01	1	1403-	●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) SPARE THA	8-98257-428-0	01	1	1403-1407	●	●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) SPARE THA	8-97520-623-0	01	1	1408-	●	●
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) FRONT THA	8-98257-428-0	02	1	1403-1407	●	●
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) FRONT THA	8-97520-623-0	02	1	1408-	●	●
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) REAR THA	8-98257-428-0	08	1	1403-1407	●	●
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) REAR THA	8-97520-623-0	08	1	1408-	●	●
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (A) FRONT THA	8-98257-427-0	02	1	1403-1407		●
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (A) FRONT THA	8-97520-624-0	02	1	1408-		●
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (A) REAR THA	8-98257-427-0	08	1	1403-1407		●
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (A) REAR THA	8-97520-624-0	08	1	1408-		●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (A) SPARE THA	8-98257-427-0	01	1	1403-1407		●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (A) SPARE THA	8-97520-624-0	01	1	1408-		●
3	NUT; WHEEL,FRT AXLE M24 LH THREAD	1-42334-022-3	08	1	1403-	●	●
3	NUT; WHEEL,FRT AXLE M24	1-42333-022-3	08	1	1403-	●	●
4	NUT; WHEEL,RR AXLE M30 LH THREAD	8-97359-810-0	16	1	1403-	●	●
4	NUT; WHEEL,RR AXLE M30 RH THREAD	8-97359-809-0	16	1	1403-	●	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	8-97359-806-0	16	1	1403-	●	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	8-97359-805-0	16	1	1403-	●	●
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13<Q62> FRONT THA	8-97520-654-0	02	1	1403-	●
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13<Q62> REAR THA	8-97520-654-0	08	1	1403-	●
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE THA	8-97520-654-0	01	1	1403-	●
32	CAP; VALVE	1-42374-001-0	11	1	1403-	●	●
