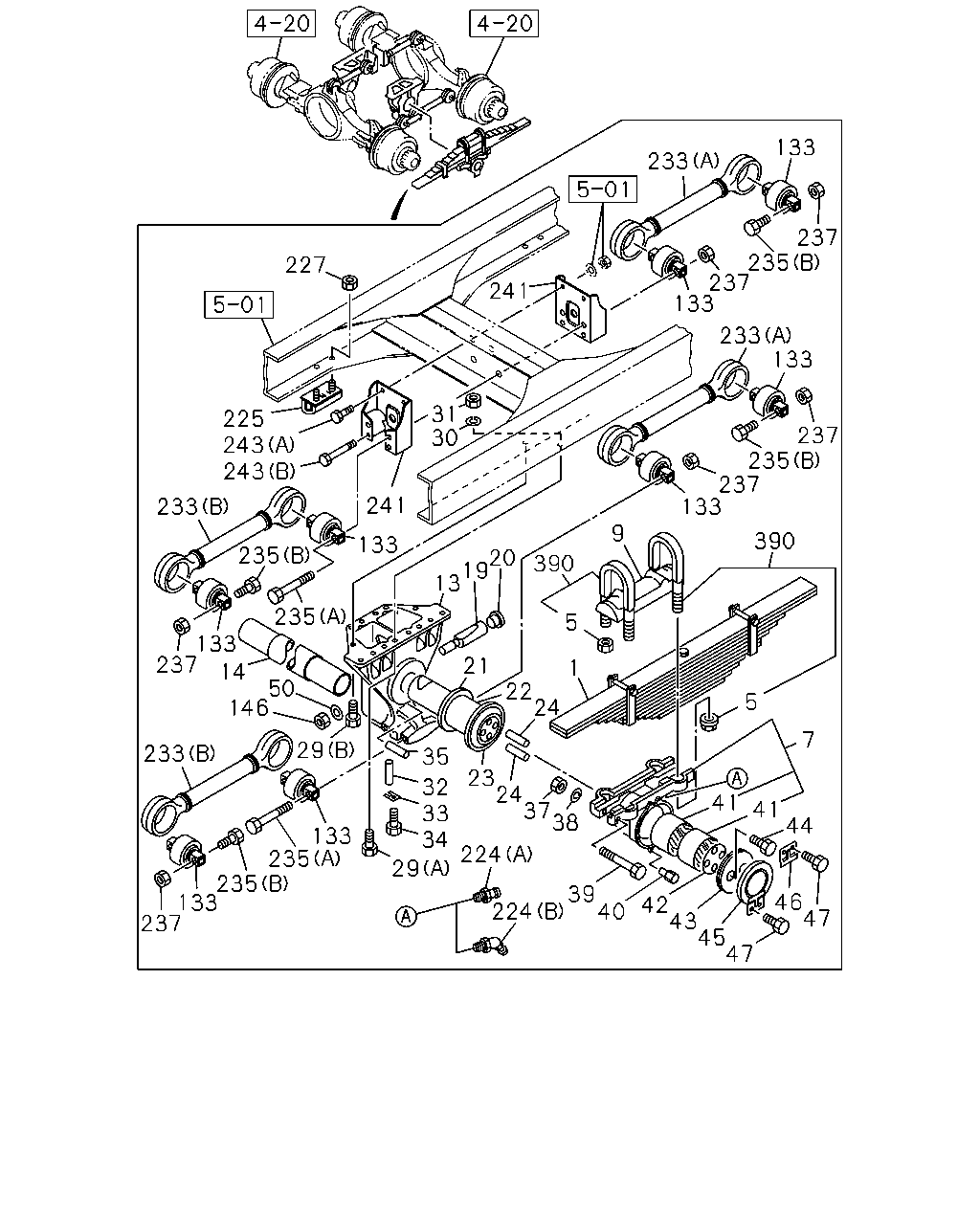

4-60 — REAR SUSPENSION (#136280) — 53 parça

47 43 42 44 41 41 46 47 39 40 38 37 24 23 34 33 32 35 133 235 235 133 237 233 146 14 133 237 235 235 233 133 241 13 19 20 21 22 24 1 5 390 9 133 237 390 5 7 133 237 235 233 133 237 235 237 241 227 225 243 243 31 30 133 233 224 224 29 45 29 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. THA	1-51410-269-1	02	1	1403-	●	●
5	NUT; U-BOLT,RR SPR THA	8-97948-151-0	08	1	1403-	●	●
7	SEAT; SPR,LWR THA	8-97916-703-2	02	1	1403-	●	●
9	PAD; U BOLT,RR SPR	8-98177-265-0	02	1	1403-1412	●	●
9	PAD; U BOLT,RR SPR THA	8-98296-723-0	02	1	1501-	●	●
13	BRACKET; TRUNNION SHAFT THA	8-97915-942-3	02	1	1403-	●	●
14	PIPE; TRUNNION BRKT	1-51389-060-0	01	1	1403-	●	●
19	BOLT; KEY,SHAFT THA	8-97948-508-0	02	1	1403-	●	●
20	GROMMET; KEY BOLT	1-09333-057-0	02	1	1403-	●	●
21	WASHER; THRUST,TRUNNION SHAFT	1-51389-058-0	02	1	1403-	●	●
22	SHAFT; TRUNNION,RR SUSP THA	8-97916-554-0	02	1	1403-	●	●
23	SEAL; OIL,TRUNNION SHAFT	1-51389-005-0	02	1	1403-	●	●
24	PIN; SIDE PLATE TO SHAFT	1-09740-009-0	04	1	1403-	●	●
29	BOLT; BRKT TO FRAME (A) M18X75	8-98012-872-0	24	1	1403-	●	●
29	BOLT; BRKT TO FRAME (B) M18X55	9-92061-855-0	04	1	1403-	●	●
30	WASHER; PL,TRUNNION BRKT ID=19	1-09503-162-0	28	1	1403-	●	●
31	NUT; TRUNNION BRKT M18 THA	0-91110-518-0	28	1	1403-	●	●
32	PIN; STRAIGHT	1-09740-027-0	04	1	1403-	●	●
33	PLATE; LK KNOCK PIN	1-53369-032-1	02	1	1403-	●	●
34	BOLT; LOCK PLATE M10X16 FLANGE THA	0-28051-016-0	02	1	1403-	●	●
35	PIN; TRUNNION SHAFT	1-09749-030-1	04	1	1403-	●	●
37	NUT; SPR SETTING M22	0-91110-522-0	04	1	1403-	●	●
38	WASHER; LK,SPR SETTING ID=22.5	0-91510-622-0	04	1	1403-	●	●
39	BOLT; SPR SETTING M22X155	9-09801-290-1	04	1	1403-	●	●
40	VALVE; GREASE ESCAPE	9-51389-010-0	02	1	1403-	●	●
41	BUSHING; TRUNNION SHAFT	8-98081-832-0	04	1	1403-	●	●
42	SHIM; SIDE PLATE TO SHAFT	1-51389-033-1	12	1	1403-	●	●
43	PLATE; SIDE,TRUNNION SHAFT THA	8-97948-142-0	02	1	1403-	●	●
44	BOLT; SIDE PLATE TO SHAFT M18X48.5 FLANGE	1-09044-038-2	04	1	1403-	●	●
45	COVER; SPR SEAT	1-51387-013-2	02	1	1403-	●	●
46	BRACKET; COVER	1-51387-015-2	02	1	1403-	●	●
47	BOLT; COVER TO SEAT M8X12 FLANGE THA	0-28050-812-0	08	1	1403-	●	●
50	WASHER; PL,TRUNNION SHAFT ID=25	8-98012-871-0	02	1	1403-	●	●
133	BUSHING; RUBBER,TORQUE ROD THA	8-98218-958-0	06	1	1403-	●	●
133	BUSHING; RUBBER,TORQUE ROD THA	8-98218-958-0	06	1	1403-	●	●
146	NUT; KEY BOLT M24	0-91110-524-0	02	1	1403-	●	●
224	NIPPLE; GREASE,SPR SEAT (A) PT1/8 STRAIGHT	0-90301-410-0	02	1	1403-	●
224	NIPPLE; GREASE,SPR SEAT (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1403-		●
225	RUBBER; CUSHION,RR SPR FORWARD RH,REARWARD LH THA	8-97916-009-0	02	1	1403-	●	●
225	RUBBER; CUSHION,RR SPR FORWARD LH,REARWARD RH THA	8-97916-011-0	02	1	1403-	●	●
227	NUT; CUSHION RUBBER M12 FLANGE THA	0-91180-212-0	08	1	1403-	●	●
233	ROD ASM; TORQUE,RR SUSP (B) L=525 THA	8-98218-994-0	03	1	1403-	●	●
233	ROD ASM; TORQUE,RR SUSP (A) L=550 THA	8-98218-998-0	03	1	1403-	●	●
235	BOLT; TORQUE ROD (A) M18X265	8-98012-875-0	06	1	1403-	●	●
235	BOLT; TORQUE ROD (B) M18X102	8-98012-877-0	12	1	1403-	●	●
237	NUT; TORQUE ROD M18	1-09464-011-0	18	1	1403-	●	●
241	BRACKET; TORQUE ROD	1-53363-031-2	02	1	1403-	●
241	BRACKET; TORQUE ROD EXC. ANTILOCK BRAKE SYSTEM<BFA>	1-53363-031-2	02	1	1403-		●
243	BOLT; BRKT,TORQUE ROD (A) M14X50	0-20951-450-0	02	1	1403-	●
243	BOLT; BRKT,TORQUE ROD EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) M14X50	0-20951-450-0	02	1	1403-		●
243	BOLT; BRKT,TORQUE ROD (B) M14X205	1-09000-147-0	02	1	1403-	●
243	BOLT; BRKT,TORQUE ROD EXC. ANTILOCK BRAKE SYSTEM<BFA> (B) M14X205	1-09000-147-0	02	1	1403-		●
390	U-BOLT SET; RR SPRING L=370	1-87870-217-3	04	1	1403-	●	●
