4-55 — FRONT LEAF SPRING (#136279) — 85 parça

19 19 19 19 19 19 19 19 18 18 18 16 15 8 7 6 5 4 3 2 1 17 17 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT (A), THA ASM PART: A = 1-51130-961-0	1-51131-961-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (A), THA ASM PART: B = 8-98137-207-0	8-98140-014-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (B), THA ASM PART: C = 8-98231-369-0	8-98242-009-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (B), THA ASM PART: D = 8-98231-370-0	8-98242-017-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A), THA ASM PART: A = 1-51130-961-0	1-51132-961-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A), THA ASM PART: B = 8-98137-207-0	8-98140-015-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B), THA ASM PART: C = 8-98231-369-0	8-98242-010-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B), THA ASM PART: D = 8-98231-370-0	8-98242-018-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A), THA ASM PART: A = 1-51130-961-0	1-51133-961-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A), THA ASM PART: B = 8-98137-207-0	8-98140-016-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B), THA ASM PART: C = 8-98231-369-0	8-98242-011-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B), THA ASM PART: D = 8-98231-370-0	8-98242-019-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A), THA ASM PART: A = 1-51130-961-0	1-51134-961-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A), THA ASM PART: B = 8-98137-207-0	8-98140-017-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (B), THA ASM PART: C = 8-98231-369-0	8-98242-012-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (B), THA ASM PART: D = 8-98231-370-0	8-98242-020-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (A), THA ASM PART: A = 1-51130-961-0	1-51135-961-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (A), THA ASM PART: B = 8-98137-207-0	8-98140-018-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (B), THA ASM PART: C = 8-98231-369-0	8-98242-013-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (B), THA ASM PART: D = 8-98231-370-0	8-98242-021-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (A), THA ASM PART: A = 1-51130-961-0	1-51136-961-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (A), THA ASM PART: B = 8-98137-207-0	8-98140-019-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (B), THA ASM PART: C = 8-98231-369-0	8-98242-014-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (B), THA ASM PART: D = 8-98231-370-0	8-98242-022-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (A), THA ASM PART: A = 1-51130-961-0	1-51137-961-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (A), THA ASM PART: B = 8-98137-207-0	8-98140-020-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (B), THA ASM PART: C = 8-98231-369-0	8-98242-015-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (B), THA ASM PART: D = 8-98231-370-0	8-98242-023-0	01	1	-
8	SPRING; LEAF,NO 8,FRT THA ASM PART: C = 8-98231-369-0	8-98242-016-0	01	1	-
8	SPRING; LEAF,NO 8,FRT THA ASM PART: D = 8-98231-370-0	8-98242-024-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (B), L=145 ASM PART: C = 8-98231-369-0, D = 8-98231-370-0	1-51156-298-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=165 ASM PART: A = 1-51130-961-0, B = 8-98137-207-0	1-51156-366-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16, THA ASM PART: A = 1-51130-961-0, B = 8-98137-207-0, C = 8-98231-369-0, D = 8-98231-370-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT (B), OD=38 ASM PART: C = 8-98231-369-0, D = 8-98231-370-0	1-51351-009-0	02	1	-
17	BUSHING; LEAF SPR,FRT (A), OD=42 ASM PART: A = 1-51130-961-0, B = 8-98137-207-0	1-51351-044-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X99 ASM PART: A = 1-51130-961-0, B = 8-98137-207-0, C = 8-98231-369-0, D = 8-98231-370-0	1-09000-328-0	01	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X103 ASM PART: A = 1-51130-961-0, B = 8-98137-207-0, C = 8-98231-369-0, D = 8-98231-370-0	1-09000-536-0	02	1	-
19	SPACER; LEAF SPRING,FRT (A), T=1 ASM PART: A = 1-51130-961-0, B = 8-98137-207-0	1-51177-071-0	06	1	-
19	SPACER; LEAF SPRING,FRT (A), T=1 ASM PART: C = 8-98231-369-0, D = 8-98231-370-0	1-51177-071-0	07	1	-
19	SPACER; LEAF SPRING,FRT (B), THA ASM PART: C = 8-98231-369-0, D = 8-98231-370-0	8-98242-026-0	01	1	-
20	SEAT; LEAF SPR,FRT (A), T=14 ASM PART: A = 1-51130-961-0, B = 8-98137-207-0	1-51177-097-0	01	1	-
20	SEAT; LEAF SPR,FRT (C), T=8 ASM PART: C = 8-98231-369-0, D = 8-98231-370-0	1-51177-178-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=15 ASM PART: A = 1-51130-961-0, B = 8-98137-207-0	1-51177-352-0	01	1	-

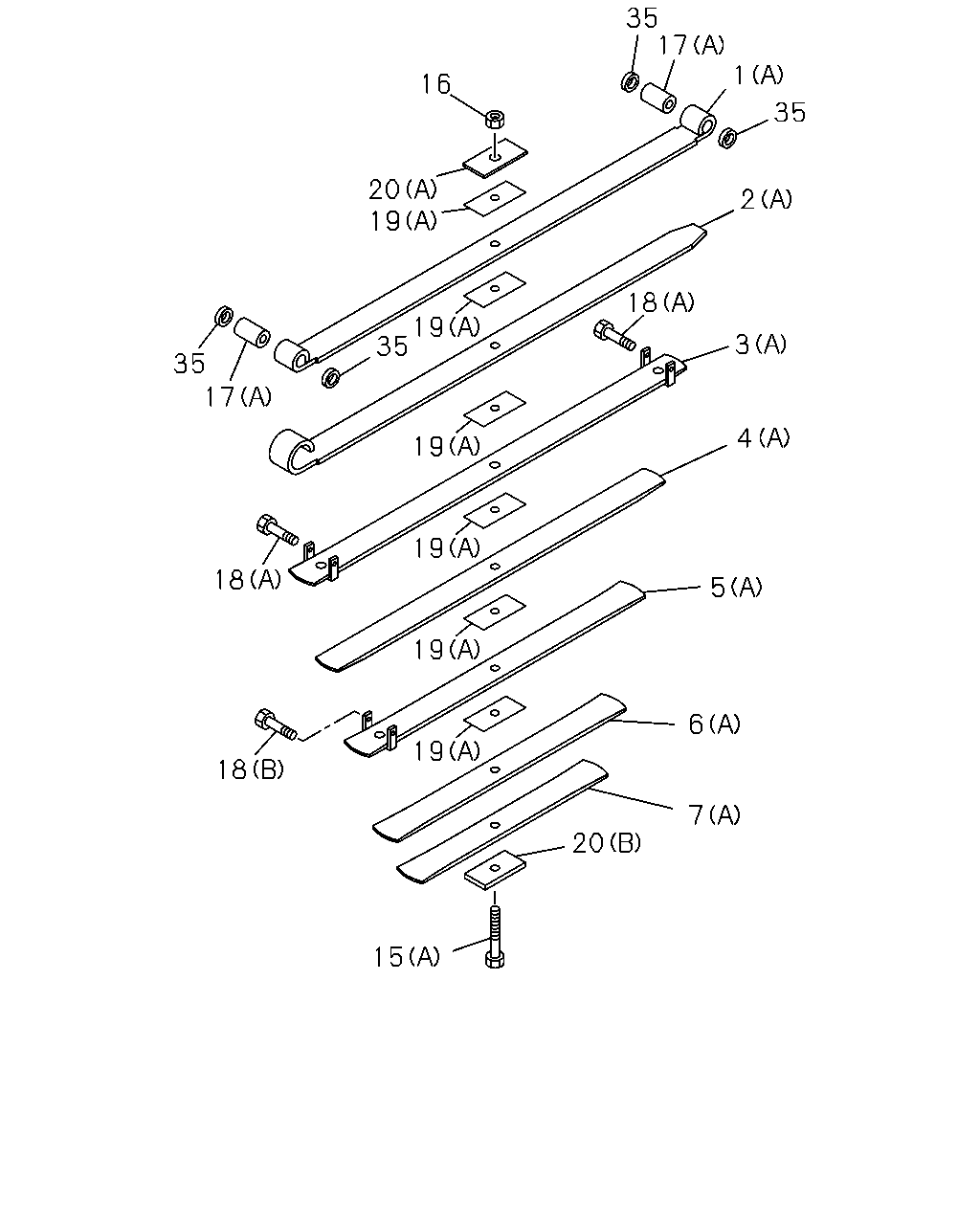

19 19 19 19 19 19 17 17 18 18 18 16 20 35 35 3 4 2 1 35 5 6 7 20 15 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT (A), THA ASM PART: A = 1-51130-961-0	1-51131-961-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (A), THA ASM PART: B = 8-98137-207-0	8-98140-014-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (B), THA ASM PART: C = 8-98231-369-0	8-98242-009-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (B), THA ASM PART: D = 8-98231-370-0	8-98242-017-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A), THA ASM PART: A = 1-51130-961-0	1-51132-961-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A), THA ASM PART: B = 8-98137-207-0	8-98140-015-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B), THA ASM PART: C = 8-98231-369-0	8-98242-010-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B), THA ASM PART: D = 8-98231-370-0	8-98242-018-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A), THA ASM PART: A = 1-51130-961-0	1-51133-961-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A), THA ASM PART: B = 8-98137-207-0	8-98140-016-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B), THA ASM PART: C = 8-98231-369-0	8-98242-011-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B), THA ASM PART: D = 8-98231-370-0	8-98242-019-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A), THA ASM PART: A = 1-51130-961-0	1-51134-961-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A), THA ASM PART: B = 8-98137-207-0	8-98140-017-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (B), THA ASM PART: C = 8-98231-369-0	8-98242-012-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (B), THA ASM PART: D = 8-98231-370-0	8-98242-020-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (A), THA ASM PART: A = 1-51130-961-0	1-51135-961-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (A), THA ASM PART: B = 8-98137-207-0	8-98140-018-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (B), THA ASM PART: C = 8-98231-369-0	8-98242-013-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (B), THA ASM PART: D = 8-98231-370-0	8-98242-021-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (A), THA ASM PART: A = 1-51130-961-0	1-51136-961-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (A), THA ASM PART: B = 8-98137-207-0	8-98140-019-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (B), THA ASM PART: C = 8-98231-369-0	8-98242-014-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (B), THA ASM PART: D = 8-98231-370-0	8-98242-022-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (A), THA ASM PART: A = 1-51130-961-0	1-51137-961-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (A), THA ASM PART: B = 8-98137-207-0	8-98140-020-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (B), THA ASM PART: C = 8-98231-369-0	8-98242-015-0	01	1	-
7	SPRING; LEAF,NO 7,FRT (B), THA ASM PART: D = 8-98231-370-0	8-98242-023-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (B), L=145 ASM PART: C = 8-98231-369-0, D = 8-98231-370-0	1-51156-298-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=165 ASM PART: A = 1-51130-961-0, B = 8-98137-207-0	1-51156-366-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16, THA ASM PART: A = 1-51130-961-0, B = 8-98137-207-0, C = 8-98231-369-0, D = 8-98231-370-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT (B), OD=38 ASM PART: C = 8-98231-369-0, D = 8-98231-370-0	1-51351-009-0	02	1	-
17	BUSHING; LEAF SPR,FRT (A), OD=42 ASM PART: A = 1-51130-961-0, B = 8-98137-207-0	1-51351-044-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X99 ASM PART: A = 1-51130-961-0, B = 8-98137-207-0, C = 8-98231-369-0, D = 8-98231-370-0	1-09000-328-0	01	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X103 ASM PART: A = 1-51130-961-0, B = 8-98137-207-0, C = 8-98231-369-0, D = 8-98231-370-0	1-09000-536-0	02	1	-
19	SPACER; LEAF SPRING,FRT (A), T=1 ASM PART: A = 1-51130-961-0, B = 8-98137-207-0	1-51177-071-0	06	1	-
19	SPACER; LEAF SPRING,FRT (A), T=1 ASM PART: C = 8-98231-369-0, D = 8-98231-370-0	1-51177-071-0	07	1	-
19	SPACER; LEAF SPRING,FRT (B), THA ASM PART: C = 8-98231-369-0, D = 8-98231-370-0	8-98242-026-0	01	1	-
20	SEAT; LEAF SPR,FRT (A), T=14 ASM PART: A = 1-51130-961-0, B = 8-98137-207-0	1-51177-097-0	01	1	-
20	SEAT; LEAF SPR,FRT (C), T=8 ASM PART: C = 8-98231-369-0, D = 8-98231-370-0	1-51177-178-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=15 ASM PART: A = 1-51130-961-0, B = 8-98137-207-0	1-51177-352-0	01	1	-
35	SEAL; DUST THA ASM PART: A = 1-51130-961-0, B = 8-98137-207-0	1-51177-321-0	04	1	-
