◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11588 - FXZ/GXZ CNG(THAI)EU3 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#136278) — 35 parça

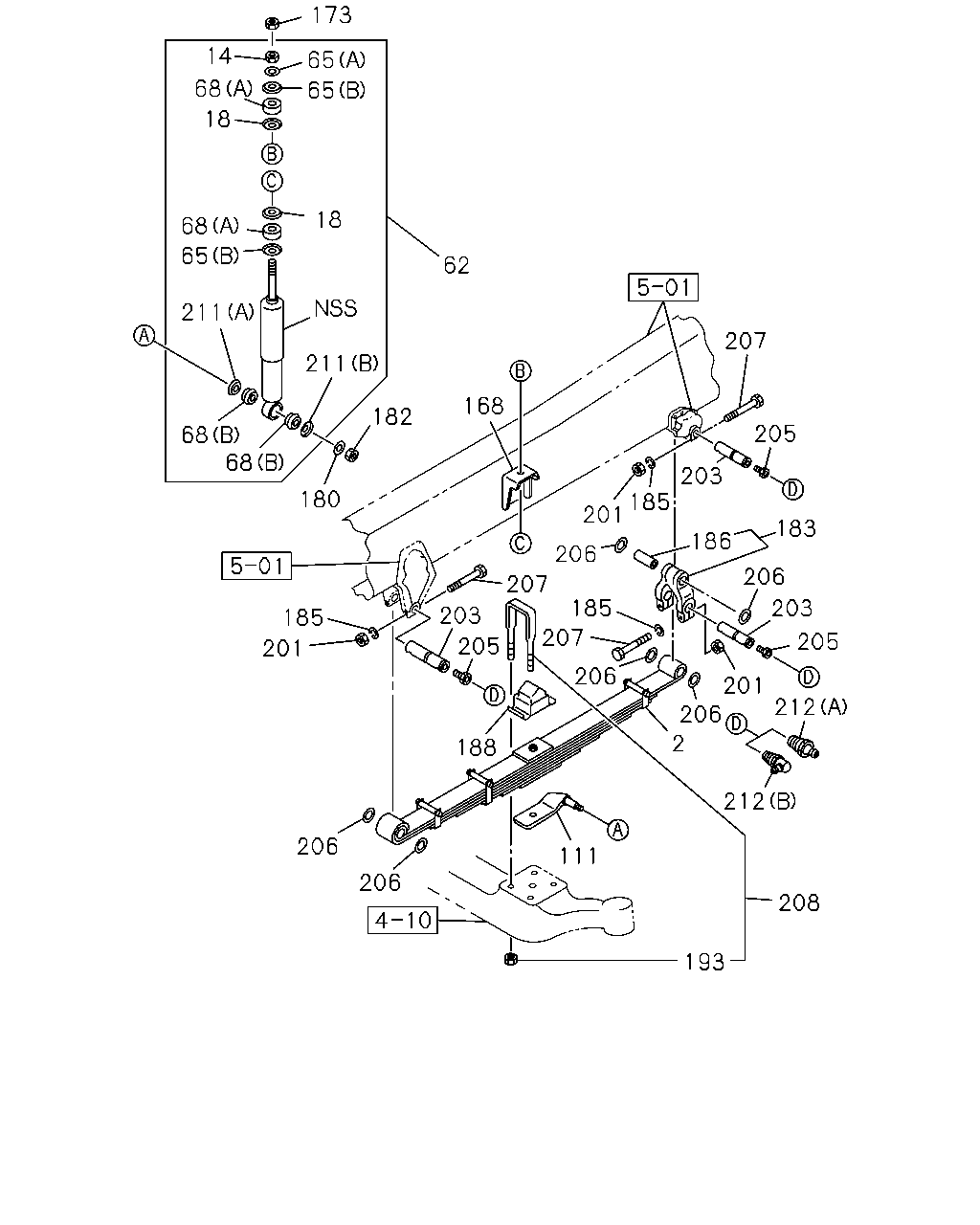

çizim 413827
173 14 68 18 18 62 211 182 180 68 68 211 65 68 168 201 206 185 207 207 206 203 205 188 111 185 201 206 206 193 208 212 212 201 206 2 206 203 205 183 186 185 203 205 207 65 65
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 7-LEAF THA 		1-51130-961-0 01 1 1403- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 7-LEAF THA 		8-98137-207-0 01 1 1403- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 8-LEAF THA 		8-98231-369-0 01 1 1403- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 8-LEAF THA 		8-98231-370-0 01 1 1403- ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 1403- ● ●
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 1403- ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-417-0 02 1 1403- ● ●
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 1403- ● ●
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 1403- ● ●
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 1403- ● ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 1403- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
THA 		8-97948-498-0 01 1 1403- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
THA 		8-97948-497-0 01 1 1403- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 1403- ●
168 BRACKET; S/ABS,FRT SUSP
EXC. ANTILOCK BRAKE SYSTEM<BFA> 		1-51681-616-0 02 1 1403- ●
173 NUT; S/ABS
M14 		0-91111-514-0 02 1 1403- ● ●
180 WASHER; PL,PIN
ID=21 		0-91610-520-0 02 1 1403- ● ●
182 NUT; S/ABS LWR
M20 		0-91110-520-0 02 1 1403- ● ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 1403- ● ●
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 12 1 1403- ● ●
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 1403- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
THA 		1-51172-085-2 02 1 1403- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
THA 		1-51172-081-1 02 1 1403- ●
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1403- ● ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 1403- ● ●
203 PIN; SPR TO SHACKLE
THA 		8-97948-141-0 06 1 1403- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 1403- ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 1403- ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 1403- ● ●
208 U-BOLT SET; FRT SPRING
L=240 		1-87870-376-2 04 1 1403- ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-498-0 04 1 1403- ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 1403- ● ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 1403- ● ●
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1403- ● ●
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		0-90301-610-0 04 1 1403- ● ●
