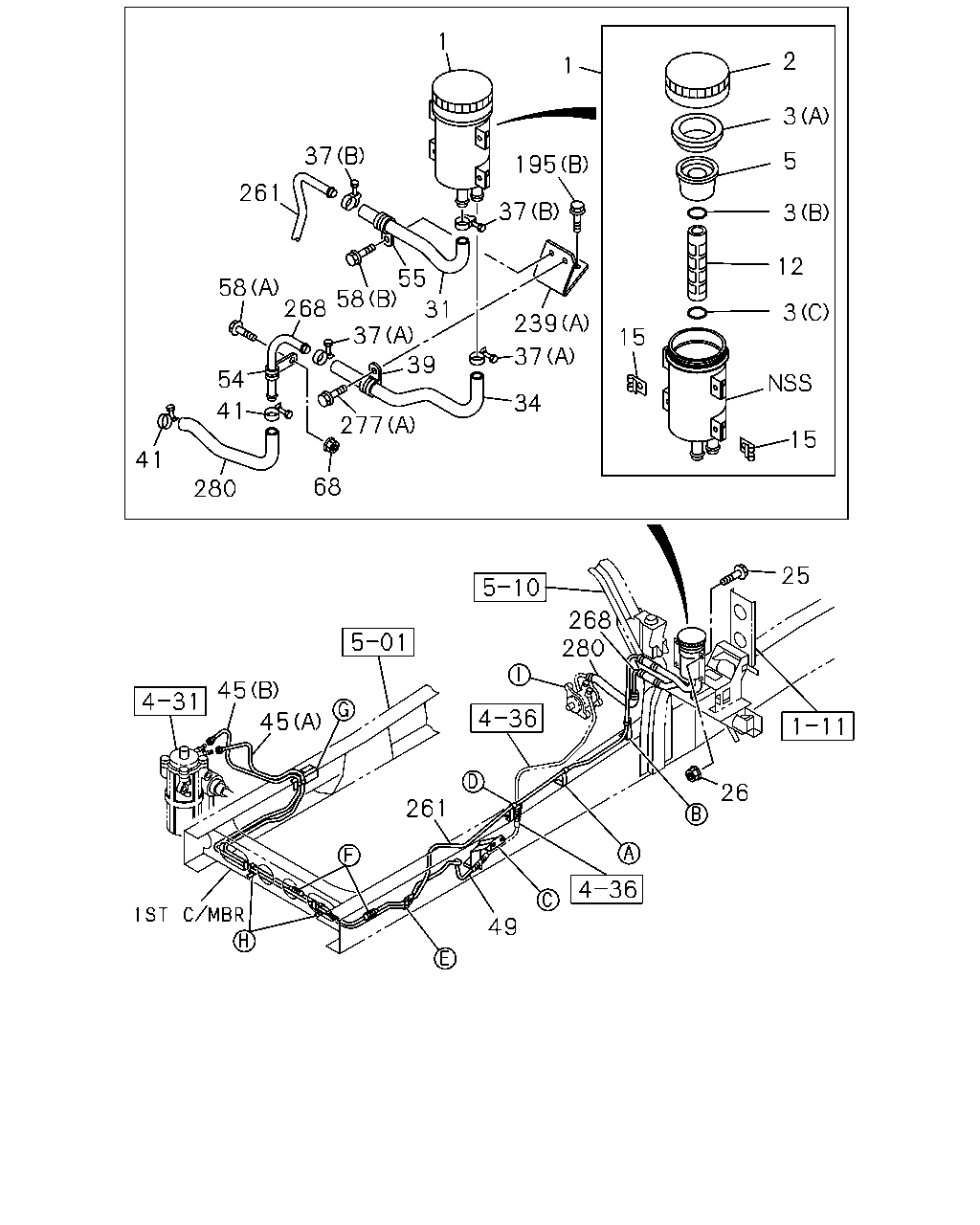

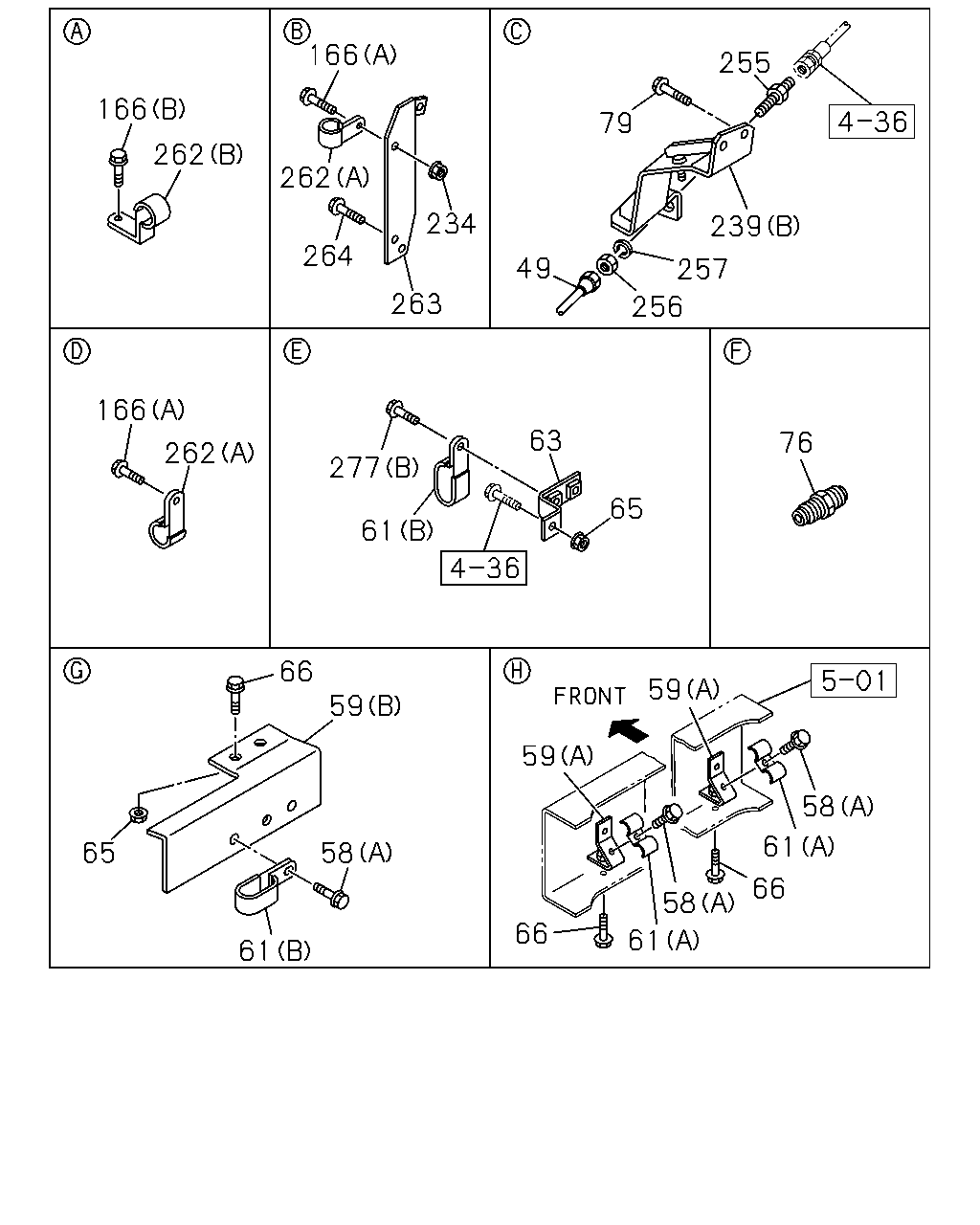

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#136274) — 73 parça

166 262 262 166 264 234 263 79 255 239 257 256 49 76 63 65 61 277 262 166 66 58 61 65 66 61 59 59 58 61 66 58 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
49	PIPE; OIL,FLEX HOSE TO UNION	8-98123-063-0	01	1	1403-	●	●
58	BOLT; CLIP (B) M8X20 FLANGE THA	0-28650-820-0	01	1	1403-	●	●
58	BOLT; CLIP (A) M8X25 FLANGE THA	0-28650-825-0	04	1	1403-	●	●
59	BRACKET; CLIP,OIL PIPE (A)	1-47479-521-0	02	1	1403-	●	●
59	BRACKET; CLIP,OIL PIPE (B)	8-97618-675-0	01	1	1403-	●	●
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	02	1	1403-	●	●
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	02	1	1403-	●	●
63	BRACKET; CLIP,P/S	1-47479-482-0	01	1	1403-	●	●
65	NUT; BRKT M8 FLANGE THA	0-91180-108-0	03	1	1403-	●	●
66	BOLT; BRKT,OIL PIPE M8X20 FLANGE THA	0-28650-820-0	02	1	1403-	●	●
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE THA	0-28650-825-0	02	1	1403-	●	●
76	UNION; OIL PIPE M22	0-92123-015-0	02	1	1403-	●	●
79	BOLT; BRKT M8X25 FLANGE THA	0-28650-825-0	02	1	1403-	●	●
166	BOLT; CLIP (A) M8X20 FLANGE THA	0-28650-820-0	02	1	1403-	●	●
166	BOLT; CLIP (B) M8X25 FLANGE THA	0-28650-825-0	01	1	1403-	●	●
234	NUT; PIPE CLIP,P/S M8 FLANGE THA	0-91180-108-0	01	1	1403-	●	●
239	BRACKET; FLEX HOSE (B)	8-97618-673-0	01	1	1403-	●	●
239	BRACKET; FLEX HOSE (A)	8-97621-113-0	01	1	1403-	●	●
255	UNION; FLEX HOSE M22 & M22 STRAIGHT	1-09654-204-2	01	1	1403-	●	●
256	NUT; UNION M22	0-91111-522-0	01	1	1403-	●	●
256	NUT; UNION M22	0-91111-522-0	01	1	1403-	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1403-	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1403-	●	●
262	CLIP; P/S PIPE (A) ID=16 L=20	0-95235-535-0	02	1	1403-	●	●
262	CLIP; P/S PIPE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	1403-	●	●
263	BRACKET; P/S PIPE	8-98090-366-0	01	1	1403-	●	●
264	BOLT; PIPE BRKT M8X35 FLANGE THA	0-28650-835-0	02	1	1403-	●	●
277	BOLT; HOSE CLIP (A) M8X20 FLANGE THA	0-28650-820-0	01	1	1403-	●	●
277	BOLT; HOSE CLIP (B) M8X25 FLANGE THA	0-28650-825-0	01	1	1403-	●	●

41 280 41 157 266 195 111 257 256

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1403-	●	●
111	BRACKET; OIL PIPE	8-98086-991-0	01	1	1403-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=77	1-09623-143-0	01	1	1403-	●	●
195	BOLT; BRKT (B) M10X20 FLANGE THA	0-28651-020-0	02	1	1403-	●	●
195	BOLT; BRKT (A) M8X35 W/LK&PL WASHER	0-50640-835-0	03	1	1403-	●	●
256	NUT; UNION M22	0-91111-522-0	01	1	1403-	●	●
256	NUT; UNION M22	0-91111-522-0	01	1	1403-	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1403-	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1403-	●	●
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	1403-	●	●
280	HOSE; P/S OIL PUMP,INL	1-21437-995-0	01	1	1403-	●	●

1 1 2 3 3 5 12 15 3 15 239 34 39 37 31 268 58 261 37 58 55 37 195 37 277 41 54 280 41 68 268 25 280 26 261 45 45 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S THA	8-97948-303-2	01	1	1403-	●	●
2	CAP; OIL TANK,P/S THA	8-97948-291-0	01	1	1403-	●	●
3	GASKET; OIL TANK,P/S (A) THA	8-97948-295-0	01	1	1403-	●	●
3	GASKET; OIL TANK,P/S (B) THA	8-97948-298-0	01	1	1403-	●	●
3	GASKET; OIL TANK,P/S (C) THA	8-97948-307-0	01	1	1403-	●	●
5	STRAINER; OIL TANK,P/S THA	8-97948-979-0	01	1	1403-	●	●
12	FILTER; MICROBON,OIL TANK,P/S THA	8-97948-978-0	01	1	1403-	●	●
15	PLATE; FILTER,OIL TANK THA	8-97948-297-0	04	1	1403-	●	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE THA	0-28650-825-0	04	1	1403-	●	●
26	NUT; OIL TANK TO BRKT M8 FLANGE THA	0-91180-108-0	04	1	1403-	●	●
31	HOSE; P/S OIL TANK,INL	8-97618-666-1	01	1	1403-	●	●
34	HOSE; P/S OIL TANK,OUTLET	8-97618-665-1	01	1	1403-	●	●
37	CLIP; HOSE,P/S (A) ID=32	1-09704-085-0	02	1	1403-	●	●
37	CLIP; HOSE,P/S (B) ID=28	9-09915-672-1	02	1	1403-	●	●
39	CLIP; FLEX HOSE ID=31 L=35	1-09700-329-1	01	1	1403-	●	●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1403-	●	●
45	PIPE; OIL,P/S UNIT TO UNION (B)	8-98123-061-0	01	1	1403-	●	●
45	PIPE; OIL,P/S UNIT TO UNION (A)	8-98123-062-0	01	1	1403-	●	●
49	PIPE; OIL,FLEX HOSE TO UNION	8-98123-063-0	01	1	1403-	●	●
54	CLIP; OIL PIPE ID=19 L=60	0-95235-896-0	01	1	1403-	●	●
55	CLIP; P/S RUBBER HOSE ID=28 L=32	1-09701-107-1	01	1	1403-	●	●
58	BOLT; CLIP (B) M8X20 FLANGE THA	0-28650-820-0	01	1	1403-	●	●
58	BOLT; CLIP (A) M8X25 FLANGE THA	0-28650-825-0	04	1	1403-	●	●
68	NUT; CLIP,OIL PIPE M8 FLANGE THA	0-91180-108-0	01	1	1403-	●	●
195	BOLT; BRKT (B) M10X20 FLANGE THA	0-28651-020-0	02	1	1403-	●	●
195	BOLT; BRKT (A) M8X35 W/LK&PL WASHER	0-50640-835-0	03	1	1403-	●	●
239	BRACKET; FLEX HOSE (B)	8-97618-673-0	01	1	1403-	●	●
239	BRACKET; FLEX HOSE (A)	8-97621-113-0	01	1	1403-	●	●
261	PIPE; OIL,UNION TO HOSE THA	8-98124-680-0	01	1	1403-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE THA	8-97618-672-0	01	1	1403-	●	●
277	BOLT; HOSE CLIP (A) M8X20 FLANGE THA	0-28650-820-0	01	1	1403-	●	●
277	BOLT; HOSE CLIP (B) M8X25 FLANGE THA	0-28650-825-0	01	1	1403-	●	●
280	HOSE; P/S OIL PUMP,INL	1-21437-995-0	01	1	1403-	●	●
