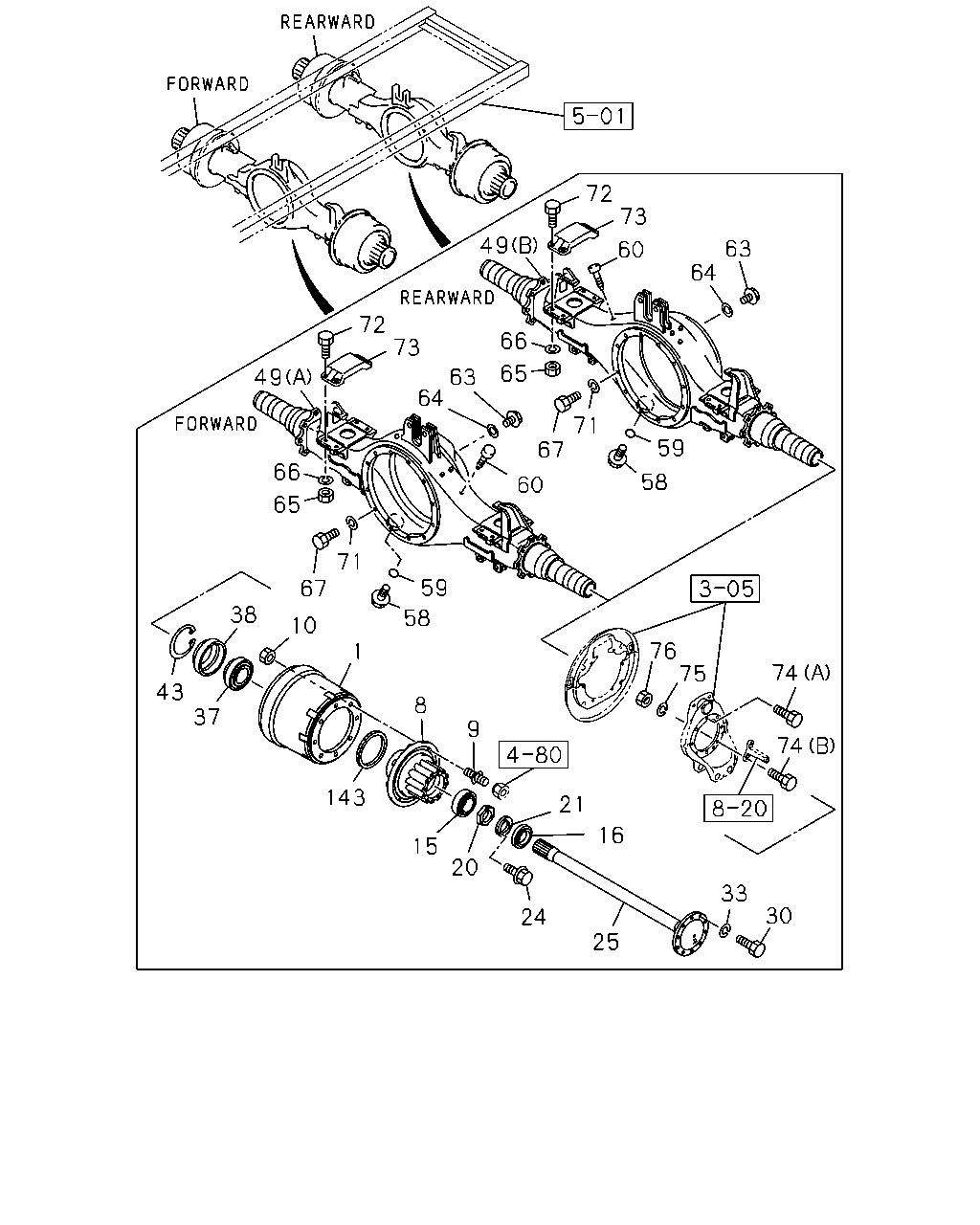

4-20 — REAR AXLE CASE AND SHAFT (#136269) — 99 parça

72 73 49 60 63 64 66 72 49 66 65 71 67 10 38 43 37 143 15 20 24 25 30 33 16 21 9 8 1 58 59 73 64 63 65 67 60 71 59 58 76 75 74 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRUM; BRK,RR THA	1-42315-358-0	02	1	1403-1408	●	●
1	DRUM; BRK,RR THA	1-42315-358-0	02	1	1403-1408	●	●
1	DRUM; BRK,RR THA	8-98293-399-0	02	1	1409-	●	●
1	DRUM; BRK,RR THA	8-98293-399-0	02	1	1409-	●	●
8	HUB; RR AXLE FORWARD IMA	8-97520-618-0	02	1	1403-	●	●
8	HUB; RR AXLE REARWARD IMA	8-97520-618-0	02	1	1403-	●
8	HUB; RR AXLE EXC. ANTILOCK BRAKE SYSTEM<BFA> REARWARD IMA	8-97520-618-0	02	1	1403-		●
8	HUB; RR AXLE ANTILOCK BRAKE SYSTEM<BFA> REARWARD IMA	8-97520-619-0	02	1	1403-		●
9	PIN; WHEEL,RR AXLE M20X34.0,M22X51.5 RH THREAD THA	8-97916-071-0	08	1	1403-	●	●
9	PIN; WHEEL,RR AXLE M20X34.0,M22X51.5 RH THREAD THA	8-97916-071-0	08	1	1403-	●	●
9	PIN; WHEEL,RR AXLE M20X34.0 LH THREAD,M22X51.5 RH THREAD THA	8-97916-073-0	08	1	1403-	●	●
9	PIN; WHEEL,RR AXLE M20X34.0 LH THREAD,M22X51.5 RH THREAD THA	8-97916-073-0	08	1	1403-	●	●
10	NUT; WHEEL PIN,RR AXLE M22 FLANGE THA	8-97914-195-0	16	1	1403-	●	●
10	NUT; WHEEL PIN,RR AXLE M22 FLANGE THA	8-97914-195-0	16	1	1403-	●	●
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-232-0	02	1	1403-	●	●
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-232-0	02	1	1403-	●	●
15	BEARING; HUB OUTER,RR AXLE SKF	1-09812-256-0	02	1	1403-	●	●
15	BEARING; HUB OUTER,RR AXLE SKF	1-09812-256-0	02	1	1403-	●	●
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	1-87610-136-0	02	1	1403-	●	●
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	1-87610-136-0	02	1	1403-	●	●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	02	1	1403-	●	●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	02	1	1403-	●	●
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	1403-	●	●
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	1403-	●	●
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	1403-	●	●
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	1403-	●	●
24	BOLT; LK WASHER M6X16 FLANGE THA	0-28650-616-0	06	1	1403-	●	●
24	BOLT; LK WASHER M6X16 FLANGE THA	0-28650-616-0	06	1	1403-	●	●
25	SHAFT; AXLE,RR FORWARD RH,REARWARD LH L=990	8-98146-166-0	01	1	1403-	●	●
25	SHAFT; AXLE,RR FORWARD RH,REARWARD LH L=990	8-98146-166-0	01	1	1403-	●	●
25	SHAFT; AXLE,RR FORWARD LH,REARWARD RH L=1110	8-98146-167-0	01	1	1403-	●	●
25	SHAFT; AXLE,RR FORWARD LH,REARWARD RH L=1110	8-98146-167-0	01	1	1403-	●	●
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	1403-	●	●
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	1403-	●	●
33	WASHER; AXLE SHAFT ID=14.2	0-91510-814-0	20	1	1403-	●	●
33	WASHER; AXLE SHAFT ID=14.2	0-91510-814-0	20	1	1403-	●	●
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-233-0	02	1	1403-	●	●
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-233-0	02	1	1403-	●	●
37	BEARING; HUB INNER,RR AXLE SKF	1-09812-257-0	02	1	1403-	●	●
37	BEARING; HUB INNER,RR AXLE SKF	1-09812-257-0	02	1	1403-	●	●
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	1-87610-138-0	02	1	1403-	●	●
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	1-87610-138-0	02	1	1403-	●	●
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	02	1	1403-	●	●
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	02	1	1403-	●	●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	02	1	1403-	●	●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	02	1	1403-	●	●
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	1403-	●	●
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	1403-	●	●
49	CASE; RR AXLE (A) FORWARD	8-98207-304-1	01	1	1403-1502	●
49	CASE; RR AXLE (B) REARWARD	8-98207-306-1	01	1	1403-1502	●
49	CASE; RR AXLE ANTILOCK BRAKE SYSTEM<BFA> REAR AXLE RT210<C2A> (B) REARWARD	8-98077-913-2	01	1	1403-		●
49	CASE; RR AXLE ANTILOCK BRAKE SYSTEM<BFA> REAR AXLE RT260<C2B> (B) REARWARD	8-98127-990-2	01	1	1403-		●
49	CASE; RR AXLE REAR AXLE RT210<C2A> (A) FORWARD	8-98077-912-2	01	1	1403-		●
49	CASE; RR AXLE REAR AXLE RT210<C2A> EXC. ANTILOCK BRAKE SYSTEM<BFA> (B) REARWARD	8-98077-914-2	01	1	1403-		●
49	CASE; RR AXLE REAR AXLE RT260<C2B> (A) FORWARD	8-98106-811-2	01	1	1403-		●
49	CASE; RR AXLE REAR AXLE RT260<C2B> EXC. ANTILOCK BRAKE SYSTEM<BFA> (B) REARWARD	8-98106-812-2	01	1	1403-		●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	1403-	●	●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	1403-	●	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	1403-	●	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	1403-	●	●
60	BREATHER; RR AXLE CASE	9-36122-015-1	02	1	1403-	●	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	1403-	●	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	1403-	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	1403-	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	1403-	●	●
65	NUT M14 THA	0-91110-514-0	08	1	1403-	●	●
65	NUT M14 THA	0-91110-514-0	08	1	1403-	●	●
66	WASHER; LK ID=14.2	0-91510-814-0	08	1	1403-	●	●
66	WASHER; LK ID=14.2	0-91510-814-0	08	1	1403-	●	●
67	BOLT; FINAL DRIVE SETTING M16X70	0-10956-670-0	04	1	1403-	●	●
67	BOLT; FINAL DRIVE SETTING M16X70	0-10956-670-0	04	1	1403-	●	●
67	BOLT; FINAL DRIVE SETTING M16X40	0-20951-640-0	08	1	1403-	●	●
67	BOLT; FINAL DRIVE SETTING M16X40	0-20951-640-0	07	1	1403-	●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	0-91510-816-0	12	1	1403-	●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	0-91510-816-0	12	1	1403-	●	●
72	BOLT; PAD FIX M14X40	0-20951-440-0	08	1	1403-	●	●
72	BOLT; PAD FIX M14X40	0-20951-440-0	08	1	1403-	●	●
73	PAD; RR SPR CONTACT	1-42124-101-0	02	1	1403-	●	●
73	PAD; RR SPR CONTACT	1-42124-101-0	02	1	1403-	●	●
74	BOLT; RR BRK ASM SETTING (A) FORWARD M14X50 THA	1-09040-066-0	16	1	1403-1404	●	●
74	BOLT; RR BRK ASM SETTING (A) FORWARD THA	8-98281-531-0	16	1	1405-1410	●	●
74	BOLT; RR BRK ASM SETTING (A) FORWARD M14X50 THA	1-09040-066-0	16	1	1411-	●	●
74	BOLT; RR BRK ASM SETTING (A) REARWARD M14X50 THA	1-09040-066-0	16	1	1403-1404	●
74	BOLT; RR BRK ASM SETTING EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) REARWARD M14X50 THA	1-09040-066-0	16	1	1403-1404		●
74	BOLT; RR BRK ASM SETTING (A) REARWARD THA	8-98281-531-0	16	1	1405-1410	●
74	BOLT; RR BRK ASM SETTING EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) REARWARD THA	8-98281-531-0	16	1	1405-1410		●
74	BOLT; RR BRK ASM SETTING (A) REARWARD M14X50 THA	1-09040-066-0	16	1	1411-	●
74	BOLT; RR BRK ASM SETTING EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) REARWARD M14X50 THA	1-09040-066-0	16	1	1411-		●
74	BOLT; RR BRK ASM SETTING ANTILOCK BRAKE SYSTEM<BFA> (A) REARWARD M14X50 THA	1-09040-066-0	12	1	1403-1404		●
74	BOLT; RR BRK ASM SETTING ANTILOCK BRAKE SYSTEM<BFA> (A) REARWARD THA	8-98281-531-0	12	1	1405-1410		●
74	BOLT; RR BRK ASM SETTING ANTILOCK BRAKE SYSTEM<BFA> (A) REARWARD M14X50 THA	1-09040-066-0	12	1	1411-		●
74	BOLT; RR BRK ASM SETTING ANTILOCK BRAKE SYSTEM<BFA> (B) REARWARD M14X80	9-92621-480-0	04	1	1403-1404		●
74	BOLT; RR BRK ASM SETTING ANTILOCK BRAKE SYSTEM<BFA> (B) REARWARD	8-98281-532-0	04	1	1405-1410		●
74	BOLT; RR BRK ASM SETTING ANTILOCK BRAKE SYSTEM<BFA> (B) REARWARD M14X80	9-92621-480-0	04	1	1411-		●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	16	1	1403-	●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	16	1	1403-	●	●
76	NUT; RR BRK ASM SETTING M14 THA	0-91110-514-0	16	1	1403-	●	●
76	NUT; RR BRK ASM SETTING M14 THA	0-91110-514-0	16	1	1403-	●	●
143	RING; EXCITER ANTILOCK BRAKE SYSTEM<BFA>	1-42319-173-0	02	1	1403-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
