◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11588 - FXZ/GXZ CNG(THAI)EU3 ▶ 3 - Brakes, Brake System ▶ 3-77 - BRAKE PIPING; AIR,REAR ▶
3-77 — BRAKE PIPING; AIR,REAR (#136261) — 106 parça

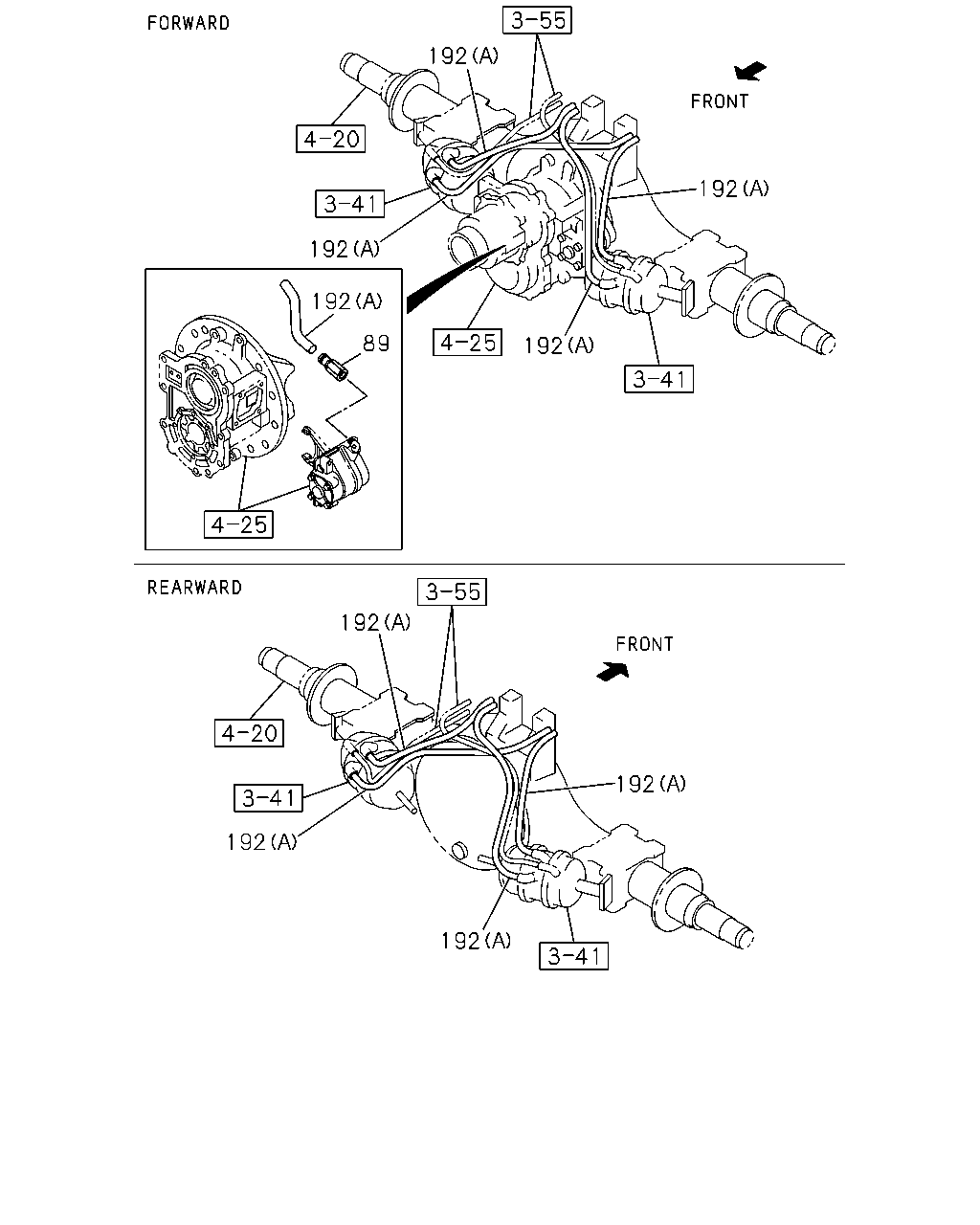

çizim 413337
192 192 192 192 89 192 192 192 192 192
BalonParca AdiParca NoAdetTipApplied Date A B
89 CONNECTOR; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1403- ● ●
192 TUBE; NYLON
(B) THA 		8-98017-537-0 01 1 1403- ●
192 TUBE; NYLON
ANTILOCK BRAKE SYSTEM<BFA> (C) THA 		8-98109-852-0 01 1 1403- ●
192 TUBE; NYLON
ANTILOCK BRAKE SYSTEM<BFA> (D) THA 		8-98122-535-0 01 1 1403- ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 1403- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 AR 1 1403- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 THA 		1-87411-007-0 AR 1 1403- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 THA 		1-87411-008-0 AR 1 1403- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=8000 OD=8 THA 		1-87411-009-0 AR 1 1403- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 THA 		1-87411-010-0 AR 1 1403- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 1403- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 THA 		1-87411-012-0 AR 1 1403- ● ●

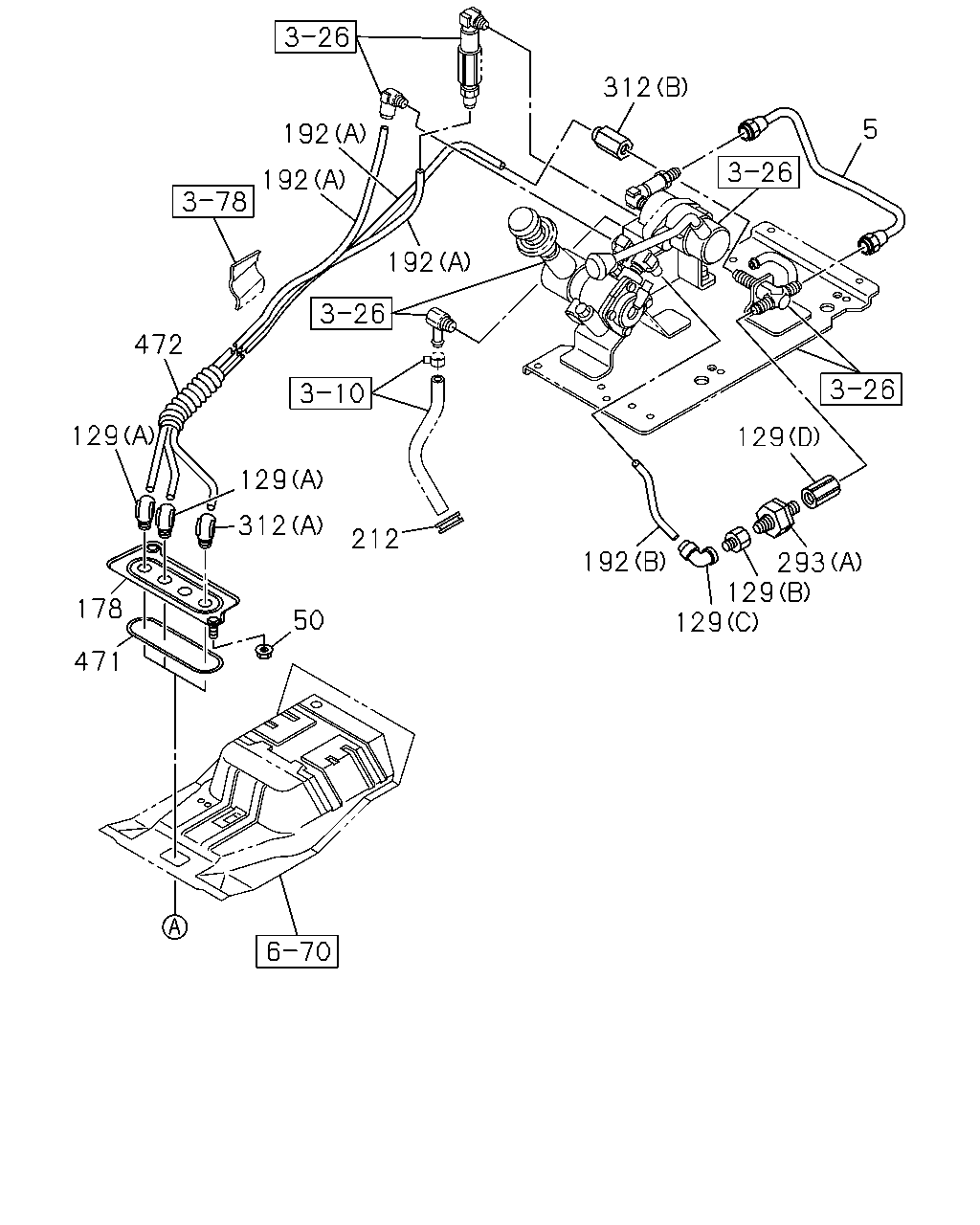

çizim 413348
312 5 129 293 129 129 192 192 192 192 472 129 129 312 212 50 178 471
BalonParca AdiParca NoAdetTipApplied Date A B
5 PIPE; AIR,UNION TO PARKING VLV
THA 		8-97610-775-1 01 1 1403- ●
50 NUT; UNION BRKT
M8 FLANGE THA 		0-91180-108-0 02 1 1403- ● ●
129 CONNECTOR; NYLON TUBE
(A) 		8-97611-963-1 02 1 1403- ● ●
129 CONNECTOR; NYLON TUBE
(D) M16 & RC3/8 STRAIGHT 		1-09660-882-0 01 1 1403- ●
129 CONNECTOR; NYLON TUBE
(C) 		8-97633-756-0 01 1 1403- ●
129 CONNECTOR; NYLON TUBE
(B) 		8-97633-768-0 01 1 1403- ●
178 BRACKET; UNION 8-98017-054-1 01 1 1403- ●
178 BRACKET; UNION 8-98017-056-1 01 1 1403- ●
192 TUBE; NYLON
(B) THA 		8-98017-537-0 01 1 1403- ●
192 TUBE; NYLON
ANTILOCK BRAKE SYSTEM<BFA> (C) THA 		8-98109-852-0 01 1 1403- ●
192 TUBE; NYLON
ANTILOCK BRAKE SYSTEM<BFA> (D) THA 		8-98122-535-0 01 1 1403- ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 1403- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 AR 1 1403- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 THA 		1-87411-007-0 AR 1 1403- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 THA 		1-87411-008-0 AR 1 1403- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=8000 OD=8 THA 		1-87411-009-0 AR 1 1403- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 THA 		1-87411-010-0 AR 1 1403- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 1403- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 THA 		1-87411-012-0 AR 1 1403- ● ●
212 GROMMET; AIR PIPE
OD=24 		9-61166-007-0 01 1 1403- ●
293 VALVE; CHECK
(B) 		1-48320-013-2 01 1 1403- ●
293 VALVE; CHECK
(A) 		1-48410-479-1 01 1 1403- ●
312 CONNECTOR; SUPPLY
(B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 1403- ●
312 CONNECTOR; SUPPLY
(A) 		8-97611-963-1 01 1 1403- ●
471 SEAL; BRKT 1-79738-832-0 01 1 1403- ● ●
472 TUBE; SPUTTER
THA 		8-98108-051-0 01 1 1403- ●
472 TUBE; SPUTTER
THA 		8-98108-051-0 02 1 1403- ●

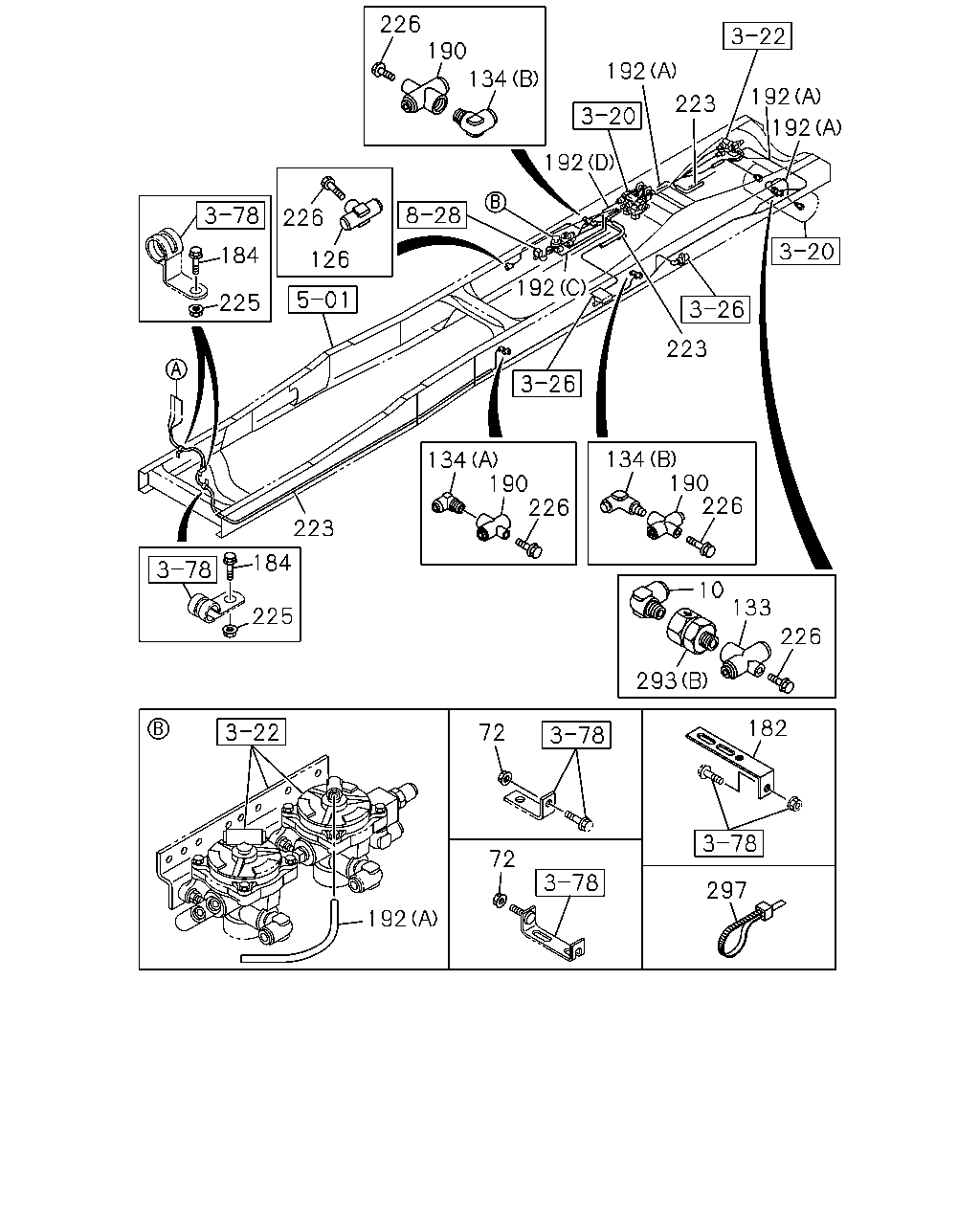

çizim 413354
226 190 134 226 126 184 225 223 184 225 72 72 192 297 182 226 133 293 10 226 190 134 190 226 134 223 192 192 223 192 192 192
BalonParca AdiParca NoAdetTipApplied Date A B
10 CONNECTOR; FLEX HOSE
DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1403- ●
72 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 02 1 1403- ● ●
72 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 02 1 1403- ●
72 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 07 1 1403- ●
126 UNION; NYLON TUBE 1-09661-128-0 01 1 1403- ●
133 UNION; NIPPLE
DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 1403- ●
134 CONNECTOR
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 1403- ●
134 CONNECTOR
AIR SUSP DRIVER SEAT<A56> (A) DIN6 & R3/8 ELBOW 		1-09661-234-0 01 1 1403- ●
182 BRACKET; TUBE CLIP
L=100 H=30 		1-47477-645-2 01 1 1403- ●
184 BOLT; TUBE CLIP
M8X25 FLANGE THA 		0-28650-825-0 03 1 1403- ● ●
190 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 02 1 1403- ●
190 UNION; 3 WAY
AIR SUSP DRIVER SEAT<A56> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1403- ●
192 TUBE; NYLON
(B) THA 		8-98017-537-0 01 1 1403- ●
192 TUBE; NYLON
ANTILOCK BRAKE SYSTEM<BFA> (C) THA 		8-98109-852-0 01 1 1403- ●
192 TUBE; NYLON
ANTILOCK BRAKE SYSTEM<BFA> (D) THA 		8-98122-535-0 01 1 1403- ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 1403- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 AR 1 1403- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 THA 		1-87411-007-0 AR 1 1403- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 THA 		1-87411-008-0 AR 1 1403- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=8000 OD=8 THA 		1-87411-009-0 AR 1 1403- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 THA 		1-87411-010-0 AR 1 1403- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 1403- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 THA 		1-87411-012-0 AR 1 1403- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 THA 		1-87411-019-0 AR 1 1403- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 THA 		1-87411-022-0 AR 1 1403- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=4000 ID=15 THA 		1-87411-026-0 AR 1 1403- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=4000 ID=19 THA 		1-87411-028-0 AR 1 1403- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 THA 		1-87411-031-0 AR 1 1403- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 THA 		1-87411-033-0 AR 1 1403- ● ●
225 NUT; TUBE CLIP
M8 FLANGE THA 		0-91180-108-0 03 1 1403- ● ●
226 BOLT; UNION
M8X20 FLANGE THA 		0-28650-820-0 02 1 1403- ●
226 BOLT; UNION
AIR SUSP DRIVER SEAT<A56> M8X20 FLANGE THA 		0-28650-820-0 02 1 1403- ●
226 BOLT; UNION
M8X20 FLANGE THA 		0-28650-820-0 01 1 1403- ●
226 BOLT; UNION
EXC. AIR SUSP DRIVER SEAT<A56> M8X20 FLANGE THA 		0-28650-820-0 01 1 1403- ●
293 VALVE; CHECK
(B) 		1-48320-013-2 01 1 1403- ●
293 VALVE; CHECK
(A) 		1-48410-479-1 01 1 1403- ●
297 CLIP; BAND
L=350 		1-09707-183-0 01 1 1403- ●

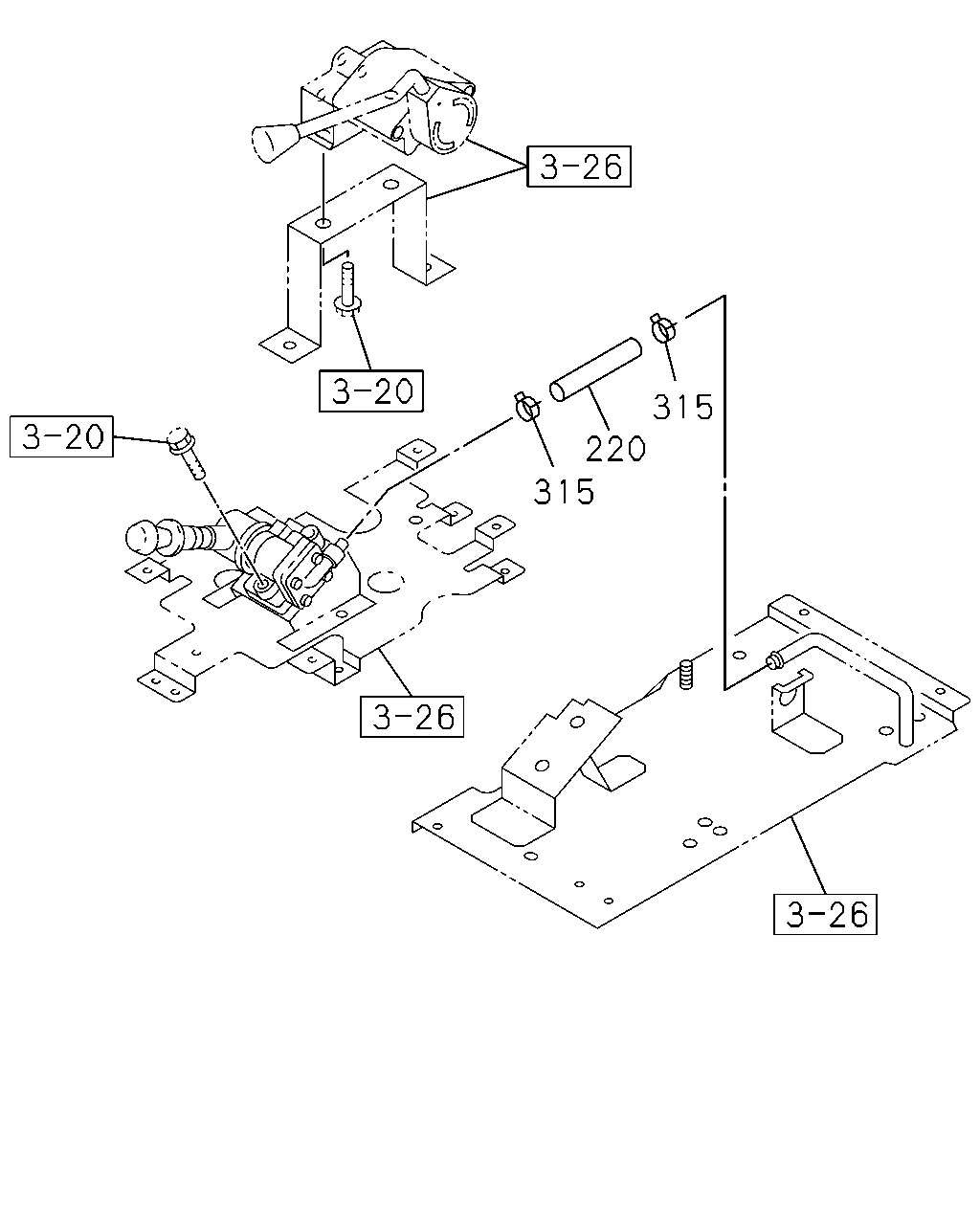

çizim 413362
315 220 315
BalonParca AdiParca NoAdetTipApplied Date A B
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 1403- ●
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=220 SERVICED BY L=10000 		9-09914-701-0 01 1 1403- ●
315 CLIP
ID=14 		8-94238-572-0 01 1 1403- ●
315 CLIP
ID=14 		8-94238-572-0 02 1 1403- ●

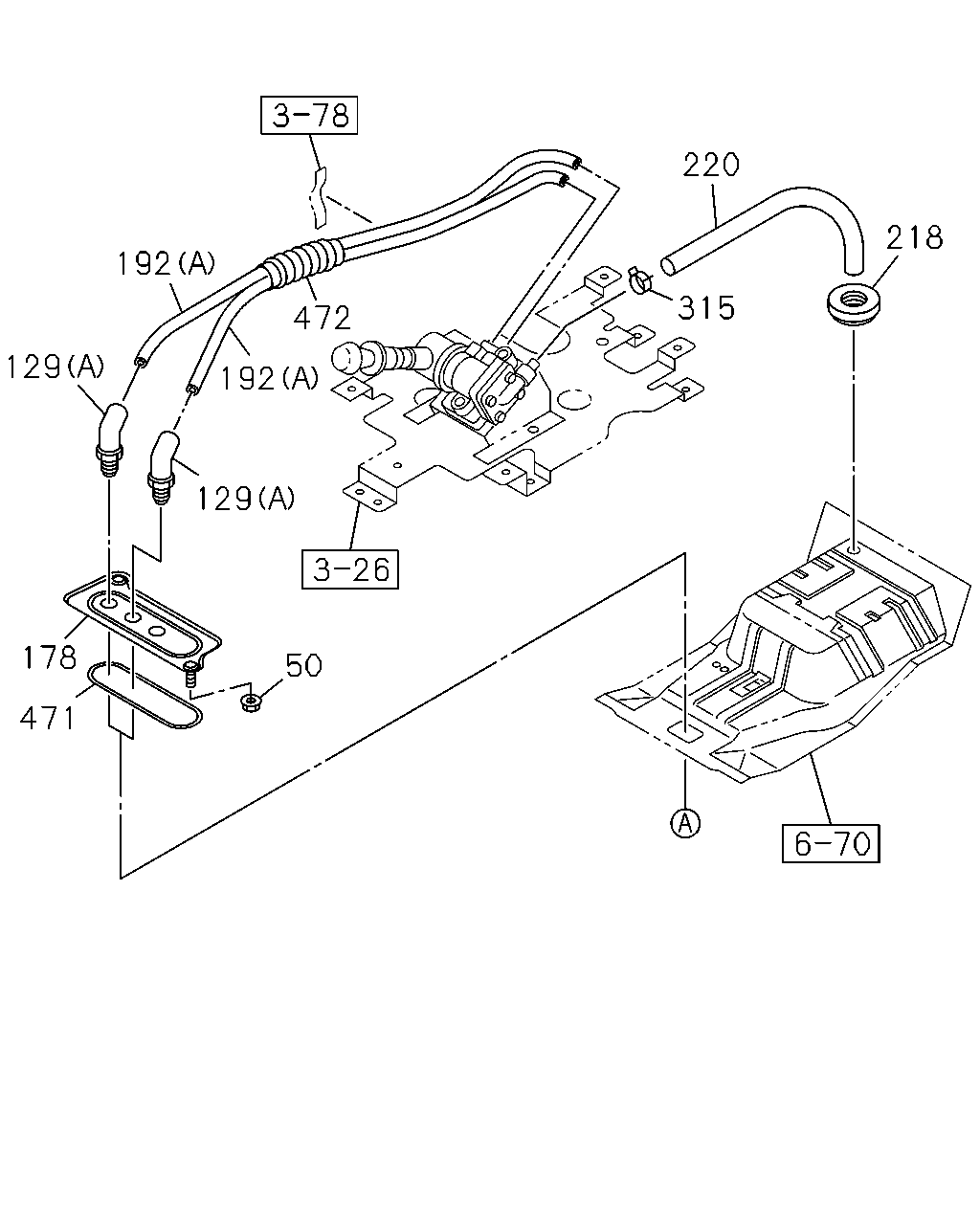

çizim 413398
192 472 129 192 129 178 471 50 315 220 218
BalonParca AdiParca NoAdetTipApplied Date A B
50 NUT; UNION BRKT
M8 FLANGE THA 		0-91180-108-0 02 1 1403- ● ●
129 CONNECTOR; NYLON TUBE
(A) 		8-97611-963-1 02 1 1403- ● ●
129 CONNECTOR; NYLON TUBE
(D) M16 & RC3/8 STRAIGHT 		1-09660-882-0 01 1 1403- ●
129 CONNECTOR; NYLON TUBE
(C) 		8-97633-756-0 01 1 1403- ●
129 CONNECTOR; NYLON TUBE
(B) 		8-97633-768-0 01 1 1403- ●
178 BRACKET; UNION 8-98017-054-1 01 1 1403- ●
178 BRACKET; UNION 8-98017-056-1 01 1 1403- ●
192 TUBE; NYLON
(B) THA 		8-98017-537-0 01 1 1403- ●
192 TUBE; NYLON
ANTILOCK BRAKE SYSTEM<BFA> (C) THA 		8-98109-852-0 01 1 1403- ●
192 TUBE; NYLON
ANTILOCK BRAKE SYSTEM<BFA> (D) THA 		8-98122-535-0 01 1 1403- ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 1403- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 AR 1 1403- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 THA 		1-87411-007-0 AR 1 1403- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 THA 		1-87411-008-0 AR 1 1403- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=8000 OD=8 THA 		1-87411-009-0 AR 1 1403- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 THA 		1-87411-010-0 AR 1 1403- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 1403- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 THA 		1-87411-012-0 AR 1 1403- ● ●
218 GROMMET; VINYL HOSE
OD=24 		9-61166-007-0 01 1 1403- ●
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 1403- ●
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=220 SERVICED BY L=10000 		9-09914-701-0 01 1 1403- ●
315 CLIP
ID=14 		8-94238-572-0 01 1 1403- ●
315 CLIP
ID=14 		8-94238-572-0 02 1 1403- ●
471 SEAL; BRKT 1-79738-832-0 01 1 1403- ● ●
472 TUBE; SPUTTER
THA 		8-98108-051-0 01 1 1403- ●
472 TUBE; SPUTTER
THA 		8-98108-051-0 02 1 1403- ●
