3-20 — AIR TANK (#136250) — 175 parça
çizim 413382
6 7 37 6 46 46 37 30 46 46 30 27 39 39 2 30
BalonParca AdiParca NoAdetTipApplied Date A B
2 TANK; AIR
(C) 		8-98207-596-0 01 1 1403-1404 ●
2 TANK; AIR
(C) THA 		8-97948-591-0 01 1 1405- ●
2 TANK; AIR
(B) 		8-98207-597-0 01 1 1403-1404 ● ●
2 TANK; AIR
(B) THA 		8-97948-592-0 01 1 1405- ● ●
2 TANK; AIR
(A) 		8-98207-594-0 01 1 1403-1404 ●
2 TANK; AIR
(A) THA 		8-97948-589-0 01 1 1405- ●
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 01 1 1403- ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1403- ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1403- ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 04 1 1403- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1403- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1403- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1403- ● ●
27 UNION; ELBOW,AIR TANK
(B) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1403- ●
27 UNION; ELBOW,AIR TANK
(C) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1403- ●
27 UNION; ELBOW,AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1403- ● ●
27 UNION; ELBOW,AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1403- ●
30 BRACKET; AIR TANK,SUB
(E) THA 		8-98099-710-0 01 1 1403- ●
30 BRACKET; AIR TANK,SUB
(F) THA 		8-98099-711-0 01 1 1403- ●
30 BRACKET; AIR TANK,SUB
(D) 		8-97618-394-0 02 1 1403- ● ●
30 BRACKET; AIR TANK,SUB
(C) THA 		8-97948-476-0 01 1 1403- ● ●
30 BRACKET; AIR TANK,SUB
(A) THA 		8-97619-246-2 01 1 1403- ●
30 BRACKET; AIR TANK,SUB
(B) THA 		8-97619-247-2 01 1 1403- ●
37 BOLT; AIR TANK
(C) M12X40 FLANGE 		0-28651-240-0 04 1 1403- ●
37 BOLT; AIR TANK
(A) M10X20 FLANGE THA 		0-28651-020-0 08 1 1403- ● ●
37 BOLT; AIR TANK
(B) M10X40 FLANGE THA 		0-28651-040-0 04 1 1403- ● ●
39 U-BOLT; AIR TANK
(B) 		1-48317-289-0 02 1 1403- ●
39 U-BOLT; AIR TANK
(A) L=253 THA 		8-97948-475-0 02 1 1403- ● ●
39 U-BOLT; AIR TANK
(A) L=253 THA 		8-97948-475-0 02 1 1403- ● ●
39 U-BOLT; AIR TANK
(A) L=253 THA 		8-97948-475-0 02 1 1403- ●
39 U-BOLT; AIR TANK
(A) L=253 THA 		8-97948-475-0 04 1 1403- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 1403- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 1403- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1403- ● ●
çizim 413396

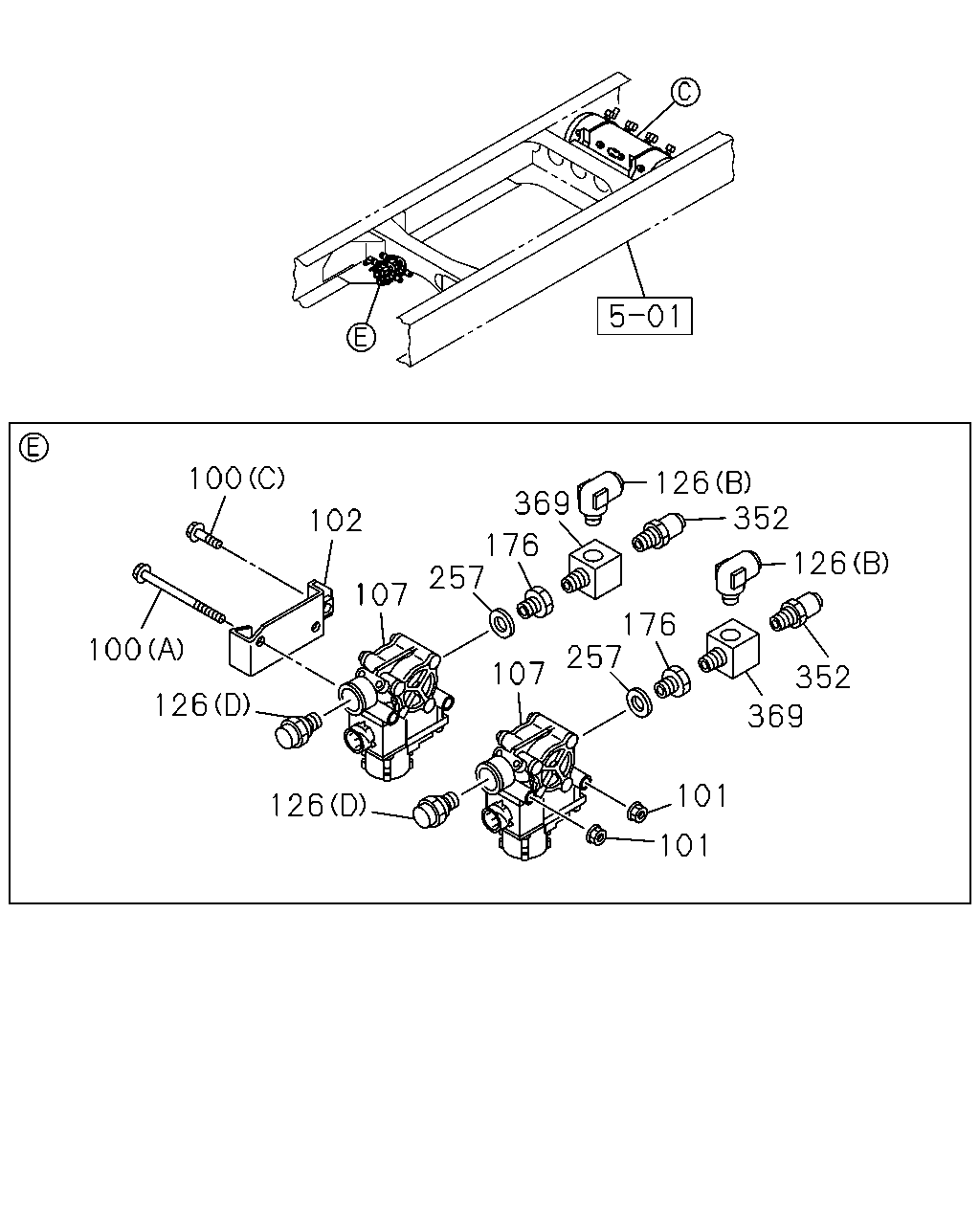

100 100 126 102 107 257 176 369 126 352 126 352 176 257 107 126 101 101 369
BalonParca AdiParca NoAdetTipApplied Date A B
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM<BFA> (B) M8X80 FLANGE THA 		0-28050-880-0 04 1 1403- ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM<BFA> (A) M8X140 FLANGE 		0-28055-814-0 02 1 1403- ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM<BFA> (C) M8X30 FLANGE THA 		0-28650-830-0 02 1 1403- ●
101 NUT; MODULATOR
ANTILOCK BRAKE SYSTEM<BFA> M8 FLANGE THA 		0-91180-108-0 02 1 1403- ●
102 BRACKET; MODULATOR
ANTILOCK BRAKE SYSTEM<BFA> THA 		8-98131-043-0 01 1 1403- ●
107 MODULATOR; RR
ANTILOCK BRAKE SYSTEM<BFA> 		1-48240-115-0 02 1 1403- ●
126 CONNECTOR; ELBOW
(A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1403- ● ●
126 CONNECTOR; ELBOW
(A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1403- ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM<BFA> (C) PT3/8 ELBOW 		1-09660-696-0 02 1 1403- ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM<BFA> (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 06 1 1403- ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM<BFA> (D) DIN12 & M22 STRAIGHT 		1-09661-050-0 02 1 1403- ●
176 ADAPTER
ANTILOCK BRAKE SYSTEM<BFA> INNER PT3/8,OUTER M22 		1-09650-494-1 06 1 1403- ●
257 GASKET; PLUG
ANTILOCK BRAKE SYSTEM<BFA> ID=22.5 		9-09571-422-0 02 1 1403- ●
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM<BFA> DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 1403- ●
369 CONNECTOR; 3WAY
ANTILOCK BRAKE SYSTEM<BFA> PT3/8 3WAY 		1-09661-300-0 02 1 1403- ●
çizim 413874

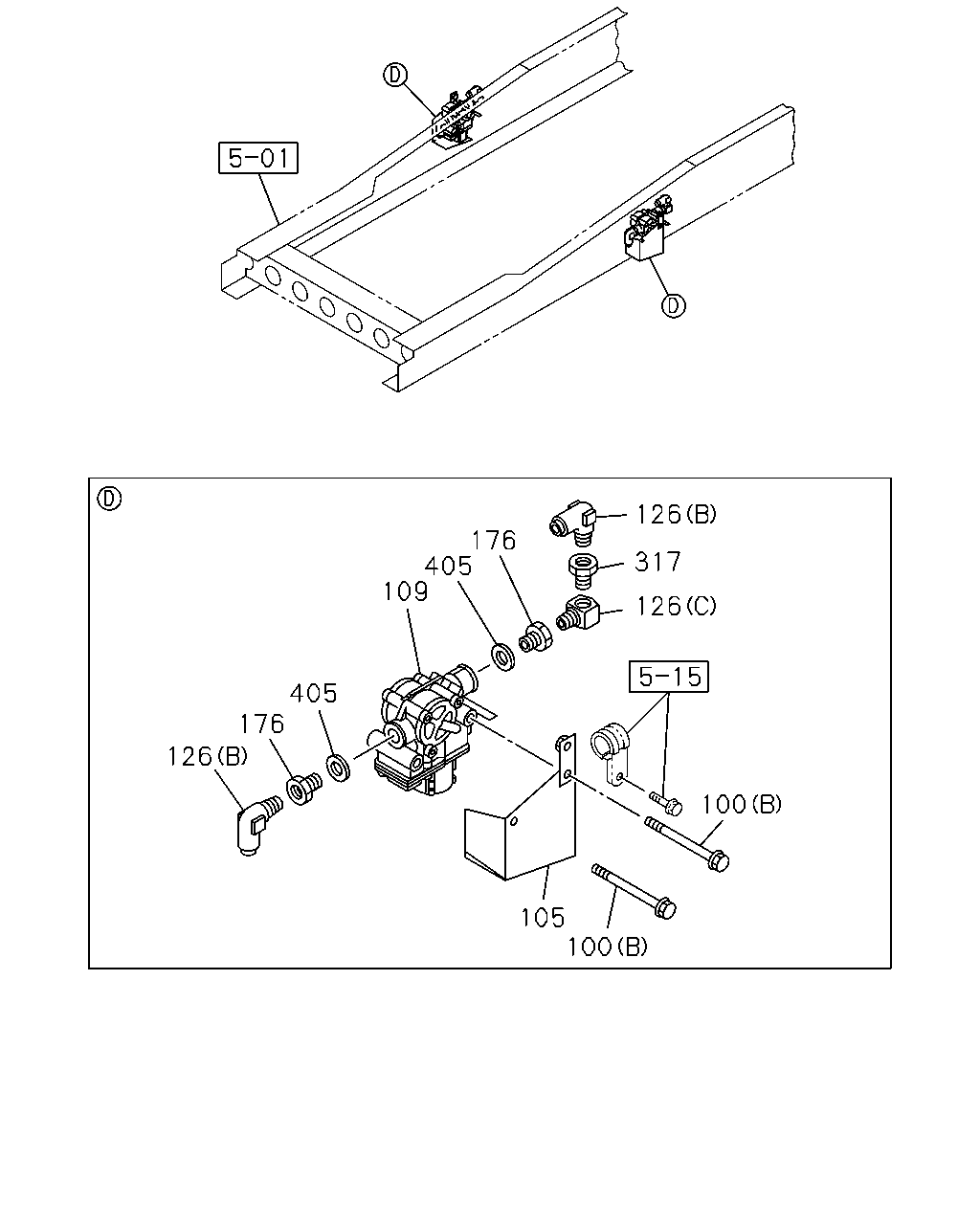

126 317 126 100 105 100 126 405 176 109 405 176
BalonParca AdiParca NoAdetTipApplied Date A B
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM<BFA> (B) M8X80 FLANGE THA 		0-28050-880-0 04 1 1403- ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM<BFA> (A) M8X140 FLANGE 		0-28055-814-0 02 1 1403- ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM<BFA> (C) M8X30 FLANGE THA 		0-28650-830-0 02 1 1403- ●
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM<BFA> 		8-98061-815-0 01 1 1403- ●
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM<BFA> 		8-98081-578-0 01 1 1403- ●
109 MODULATOR; FRT
ANTILOCK BRAKE SYSTEM<BFA> 		1-48240-115-0 02 1 1403- ●
126 CONNECTOR; ELBOW
(A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1403- ● ●
126 CONNECTOR; ELBOW
(A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1403- ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM<BFA> (C) PT3/8 ELBOW 		1-09660-696-0 02 1 1403- ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM<BFA> (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 06 1 1403- ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM<BFA> (D) DIN12 & M22 STRAIGHT 		1-09661-050-0 02 1 1403- ●
176 ADAPTER
ANTILOCK BRAKE SYSTEM<BFA> INNER PT3/8,OUTER M22 		1-09650-494-1 06 1 1403- ●
317 CONNECTOR; MODULATOR
ANTILOCK BRAKE SYSTEM<BFA> PT3/8 		1-09664-210-0 01 1 1403- ●
405 GASKET
ANTILOCK BRAKE SYSTEM<BFA> ID=22.5 		9-09571-422-0 04 1 1403- ●
çizim 413891

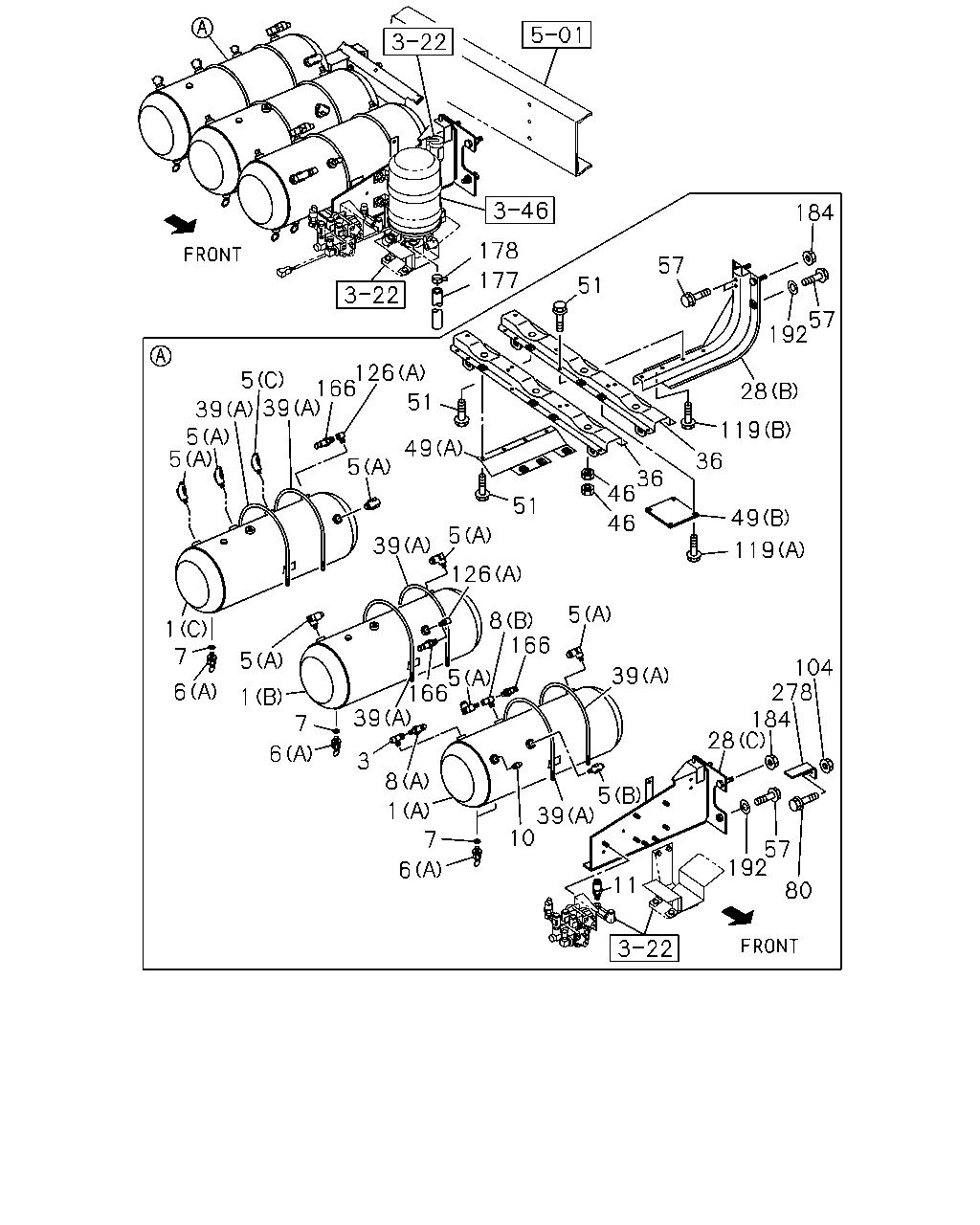

178 177 57 51 184 57 192 28 119 36 36 46 46 49 119 39 5 8 166 5 166 39 7 6 1 5 6 1 7 5 5 5 5 5 39 126 166 39 49 51 39 126 39 7 1 3 8 10 11 57 192 80 28 184 278 104 5 6 51
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; AIR
(A) THA 		8-97948-586-0 01 1 1403- ● ●
1 TANK ASM; AIR
(C) THA 		8-97948-589-0 01 1 1403- ● ●
1 TANK ASM; AIR
(B) THA 		8-97948-886-0 01 1 1403- ● ●
3 VALVE; CHECK,AIR TANK 1-48320-031-1 01 1 1403- ● ●
3 VALVE; CHECK,AIR TANK 1-48320-031-1 01 1 1403- ●
5 UNION; AIR TANK
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1403- ● ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 07 1 1403- ● ●
5 UNION; AIR TANK
(B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1403- ● ●
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 01 1 1403- ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1403- ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1403- ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 04 1 1403- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1403- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1403- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1403- ● ●
8 CONNECTOR; AIR TANK
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1403- ● ●
8 CONNECTOR; AIR TANK
(B) 		8-98166-127-0 01 1 1403- ● ●
10 PLUG; AIR TANK
PT3/8 		9-09204-517-0 01 1 1403- ● ●
11 VALVE; SAFETY,AIR TANK 1-48320-012-2 01 1 1403- ● ●
28 BRACKET; AIR TANK
(B) THA 		8-97618-088-1 01 1 1403- ● ●
28 BRACKET; AIR TANK
(C) THA 		8-98093-562-1 01 1 1403- ● ●
28 BRACKET; AIR TANK
(A) THA 		8-98085-710-0 01 1 1403- ●
36 STAY; MAIN TANK
THA 		8-97618-091-1 02 1 1403- ● ●
39 U-BOLT; AIR TANK
(B) 		1-48317-289-0 02 1 1403- ●
39 U-BOLT; AIR TANK
(A) L=253 THA 		8-97948-475-0 02 1 1403- ● ●
39 U-BOLT; AIR TANK
(A) L=253 THA 		8-97948-475-0 02 1 1403- ● ●
39 U-BOLT; AIR TANK
(A) L=253 THA 		8-97948-475-0 02 1 1403- ●
39 U-BOLT; AIR TANK
(A) L=253 THA 		8-97948-475-0 04 1 1403- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 1403- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 1403- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1403- ● ●
49 BRACKET; AIR TANK
(B) 		8-97620-997-0 01 1 1403- ● ●
49 BRACKET; AIR TANK
(A) THA 		8-98110-683-0 01 1 1403- ● ●
51 BOLT; STAY TO BRKT
M8X20 FLANGE THA 		0-28650-820-0 08 1 1403- ● ●
57 BOLT; BRKT,AIR TANK TO FRAME
M8X20 FLANGE THA 		0-28650-820-0 04 1 1403- ● ●
57 BOLT; BRKT,AIR TANK TO FRAME
M14X45 		1-09000-764-0 04 1 1403- ● ●
80 BOLT; BRKT
M8X25 FLANGE THA 		0-28650-825-0 02 1 1403- ●
80 BOLT; BRKT
M8X30 FLANGE THA 		0-28650-830-0 01 1 1403- ● ●
80 BOLT; BRKT
M8X20 FLANGE THA 		0-28650-820-0 02 1 1403- ●
104 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 01 1 1403- ● ●
119 BOLT; STAY
(A) M8X20 FLANGE THA 		0-28650-820-0 04 1 1403- ● ●
119 BOLT; STAY
(B) M8X25 FLANGE THA 		0-28650-825-0 03 1 1403- ● ●
126 CONNECTOR; ELBOW
(A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1403- ● ●
126 CONNECTOR; ELBOW
(A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1403- ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM<BFA> (C) PT3/8 ELBOW 		1-09660-696-0 02 1 1403- ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM<BFA> (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 06 1 1403- ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM<BFA> (D) DIN12 & M22 STRAIGHT 		1-09661-050-0 02 1 1403- ●
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 		8-97609-249-0 03 1 1403- ● ●
177 HOSE; RUBBER,DRAIN
L=55 SERVICED BY L=3000 		0-03566-300-0 01 1 1403- ● ●
178 CLIP; HOSE
ID=21 		8-94242-034-0 01 1 1403- ● ●
184 NUT; BRKT
M14 		1-09440-072-0 04 1 1403- ● ●
192 WASHER; LK,BRKT
ID=14.2 		0-91510-514-0 08 1 1403- ● ●
278 BRACKET; CONNECTOR
L=75 		1-47478-323-0 01 1 1403- ● ●
çizim 413942

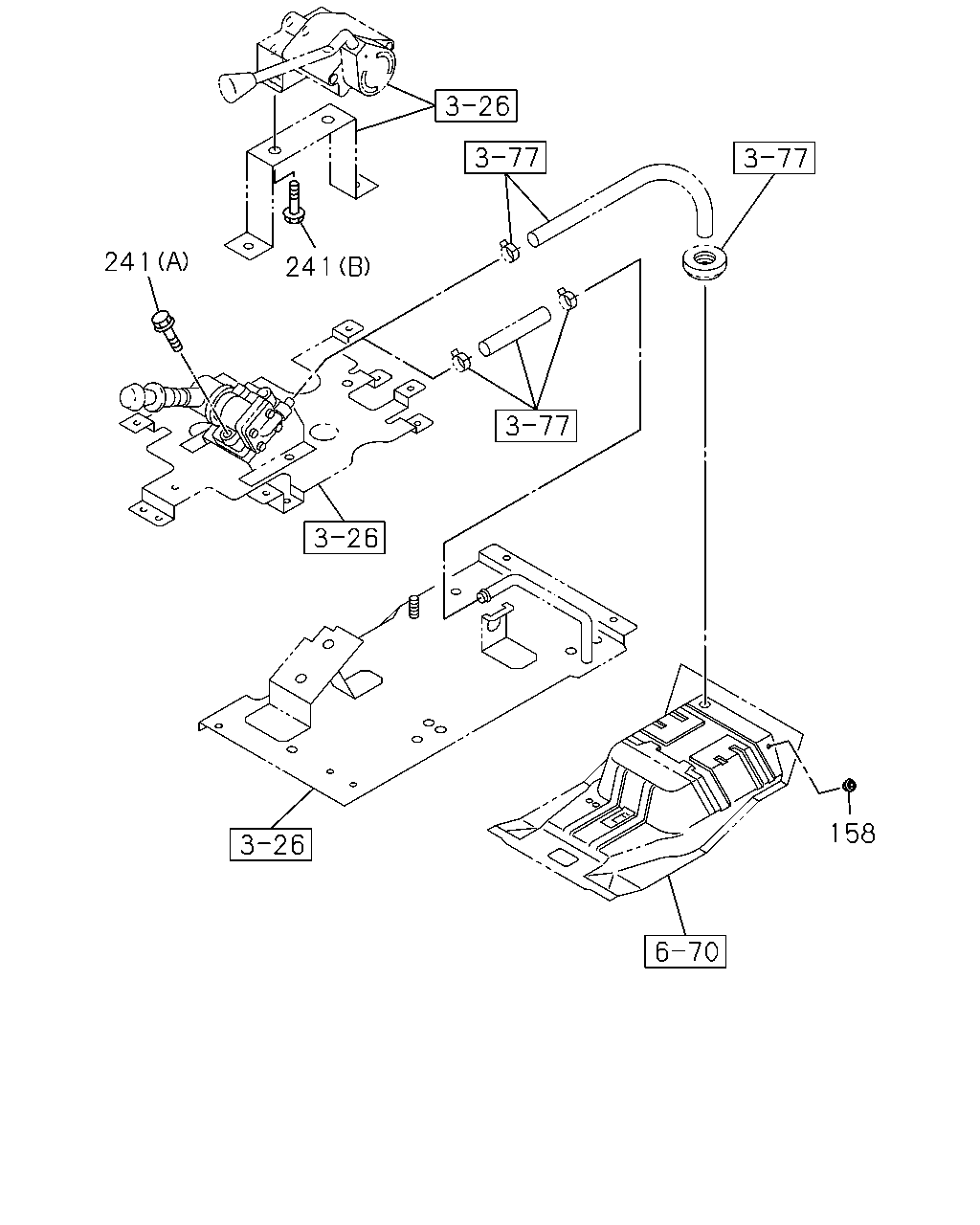

241 241 158
BalonParca AdiParca NoAdetTipApplied Date A B
158 GROMMET; PIPE
OD=35 		8-94122-971-0 01 1 1403- ●
241 BOLT; SET,CONT VLV
(A) M8X70 FLANGE THA 		0-28050-870-0 02 1 1403- ● ●
241 BOLT; SET,CONT VLV
(B) M10X20 FLANGE THA 		0-28051-020-0 02 1 1403- ●
çizim 414069

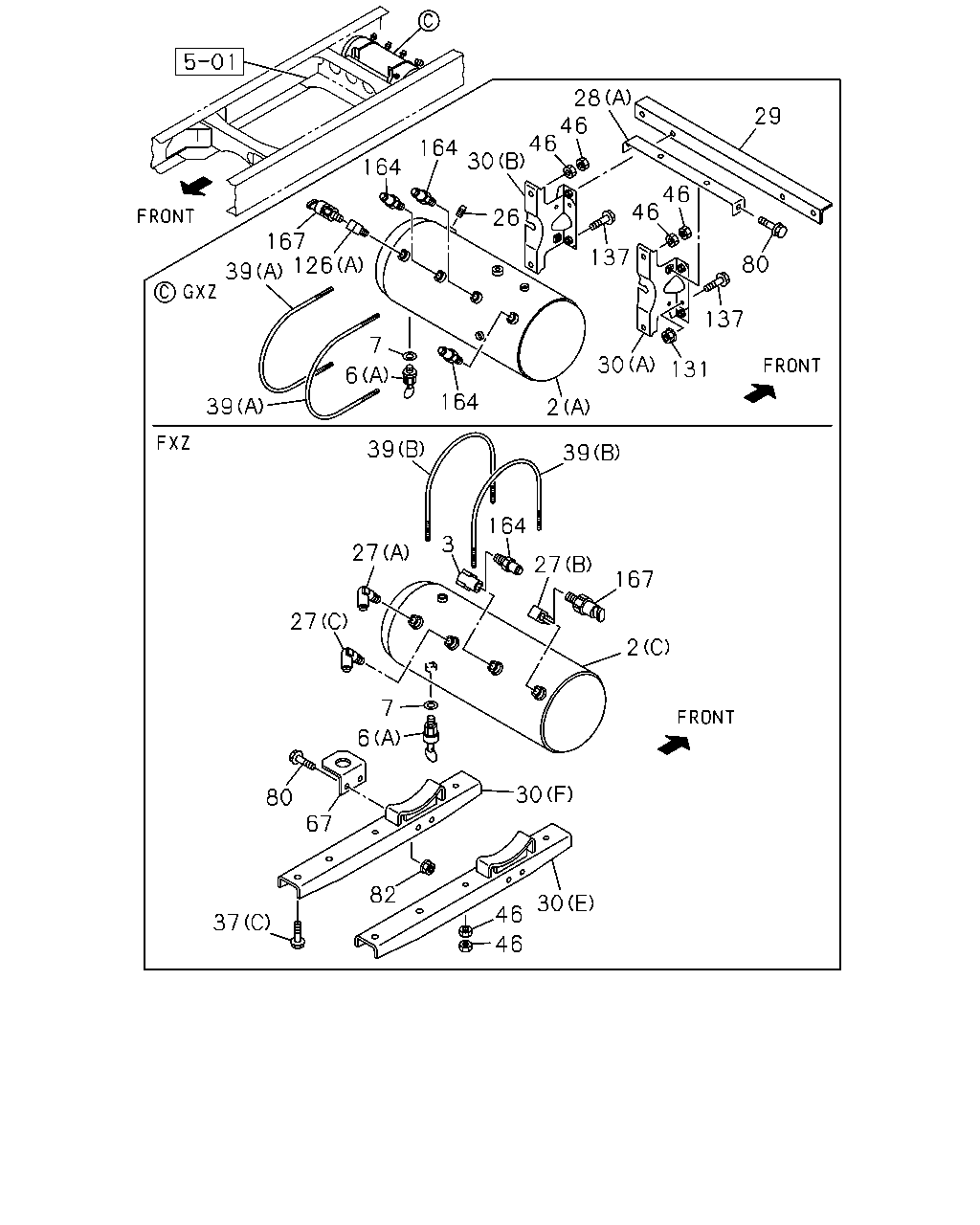

29 46 46 137 30 131 137 80 2 164 6 7 39 39 167 164 164 26 30 46 46 28 39 39 27 27 7 6 80 67 37 82 30 30 46 46 167 2 27 164 3 126
BalonParca AdiParca NoAdetTipApplied Date A B
2 TANK; AIR
(C) 		8-98207-596-0 01 1 1403-1404 ●
2 TANK; AIR
(C) THA 		8-97948-591-0 01 1 1405- ●
2 TANK; AIR
(B) 		8-98207-597-0 01 1 1403-1404 ● ●
2 TANK; AIR
(B) THA 		8-97948-592-0 01 1 1405- ● ●
2 TANK; AIR
(A) 		8-98207-594-0 01 1 1403-1404 ●
2 TANK; AIR
(A) THA 		8-97948-589-0 01 1 1405- ●
3 VALVE; CHECK,AIR TANK 1-48320-031-1 01 1 1403- ● ●
3 VALVE; CHECK,AIR TANK 1-48320-031-1 01 1 1403- ●
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 01 1 1403- ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1403- ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1403- ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 04 1 1403- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1403- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1403- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1403- ● ●
26 PLUG; SUB AIR TANK
PT3/8 		9-09204-517-0 01 1 1403- ●
27 UNION; ELBOW,AIR TANK
(B) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1403- ●
27 UNION; ELBOW,AIR TANK
(C) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1403- ●
27 UNION; ELBOW,AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1403- ● ●
27 UNION; ELBOW,AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1403- ●
28 BRACKET; AIR TANK
(B) THA 		8-97618-088-1 01 1 1403- ● ●
28 BRACKET; AIR TANK
(C) THA 		8-98093-562-1 01 1 1403- ● ●
28 BRACKET; AIR TANK
(A) THA 		8-98085-710-0 01 1 1403- ●
29 BRACKET; AIR TANK
THA 		8-97619-245-1 01 1 1403- ●
30 BRACKET; AIR TANK,SUB
(E) THA 		8-98099-710-0 01 1 1403- ●
30 BRACKET; AIR TANK,SUB
(F) THA 		8-98099-711-0 01 1 1403- ●
30 BRACKET; AIR TANK,SUB
(D) 		8-97618-394-0 02 1 1403- ● ●
30 BRACKET; AIR TANK,SUB
(C) THA 		8-97948-476-0 01 1 1403- ● ●
30 BRACKET; AIR TANK,SUB
(A) THA 		8-97619-246-2 01 1 1403- ●
30 BRACKET; AIR TANK,SUB
(B) THA 		8-97619-247-2 01 1 1403- ●
37 BOLT; AIR TANK
(C) M12X40 FLANGE 		0-28651-240-0 04 1 1403- ●
37 BOLT; AIR TANK
(A) M10X20 FLANGE THA 		0-28651-020-0 08 1 1403- ● ●
37 BOLT; AIR TANK
(B) M10X40 FLANGE THA 		0-28651-040-0 04 1 1403- ● ●
39 U-BOLT; AIR TANK
(B) 		1-48317-289-0 02 1 1403- ●
39 U-BOLT; AIR TANK
(A) L=253 THA 		8-97948-475-0 02 1 1403- ● ●
39 U-BOLT; AIR TANK
(A) L=253 THA 		8-97948-475-0 02 1 1403- ● ●
39 U-BOLT; AIR TANK
(A) L=253 THA 		8-97948-475-0 02 1 1403- ●
39 U-BOLT; AIR TANK
(A) L=253 THA 		8-97948-475-0 04 1 1403- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 1403- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 1403- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1403- ● ●
67 STAY; SUB TANK 8-98099-781-0 01 1 1403- ●
80 BOLT; BRKT
M8X25 FLANGE THA 		0-28650-825-0 02 1 1403- ●
80 BOLT; BRKT
M8X30 FLANGE THA 		0-28650-830-0 01 1 1403- ● ●
80 BOLT; BRKT
M8X20 FLANGE THA 		0-28650-820-0 02 1 1403- ●
82 NUT; STAY,AIR MASTER BRKT
M8 FLANGE THA 		0-91180-108-0 02 1 1403- ●
126 CONNECTOR; ELBOW
(A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1403- ● ●
126 CONNECTOR; ELBOW
(A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1403- ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM<BFA> (C) PT3/8 ELBOW 		1-09660-696-0 02 1 1403- ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM<BFA> (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 06 1 1403- ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM<BFA> (D) DIN12 & M22 STRAIGHT 		1-09661-050-0 02 1 1403- ●
131 NUT; BRKT FIX
M12 FLANGE THA 		0-91180-212-0 01 1 1403- ●
137 BOLT; BRKT
M12X35 FLANGE THA 		0-28651-235-0 06 1 1403- ●
164 CONNECTOR; SUB AIR TANK
DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1403- ●
164 CONNECTOR; SUB AIR TANK
DIN12 & R3/8 STRAIGHT 		1-09660-965-0 03 1 1403- ●
167 SWITCH; LOW PRESS GAUGE,AIR TANK,SUB
STAMP 5.5 		8-97609-249-0 01 1 1403- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
