3-05 — REAR WHEEL BRAKE (#136248) — 113 parça
çizim 413304
301 301 347 301 328 327 319 329 329 348 311 335 297 334 297 346 301 328 327 319
BalonParca AdiParca NoAdetTipApplied Date A B
297 RING; SNAP
(A) THA 		1-47649-031-0 02 1 1403- ● ●
297 RING; SNAP
(A) THA 		1-47649-031-0 02 1 1403- ● ●
297 RING; SNAP
(B) THA 		1-47649-034-1 02 1 1403- ● ●
297 RING; SNAP
(B) THA 		1-47649-034-1 02 1 1403- ● ●
301 CLIP; ANTI LOTATION
THA 		1-47621-017-0 04 1 1403- ● ●
301 CLIP; ANTI LOTATION
THA 		1-47621-017-0 04 1 1403- ● ●
311 BOOT; WEDGE
THA 		1-47649-042-0 02 1 1403- ● ●
311 BOOT; WEDGE
THA 		1-47649-042-0 02 1 1403- ● ●
319 RING; DRIVE
THA 		1-47629-200-0 04 1 1403- ● ●
319 RING; DRIVE
THA 		1-47629-200-0 04 1 1403- ● ●
327 SPRING; ADJ
THA 		1-47629-196-0 04 1 1403- ● ●
327 SPRING; ADJ
THA 		1-47629-196-0 04 1 1403- ● ●
328 CAGE; SPRING
THA 		1-47629-192-0 04 1 1403- ● ●
328 CAGE; SPRING
THA 		1-47629-192-0 04 1 1403- ● ●
329 SCREW; LOCATING
THA 		1-47619-149-1 04 1 1403- ● ●
329 SCREW; LOCATING
THA 		1-47619-149-1 04 1 1403- ● ●
334 SPRING; ROD
THA 		1-47649-041-0 02 1 1403- ● ●
334 SPRING; ROD
THA 		1-47649-041-0 02 1 1403- ● ●
335 RETAINER; SPRING
THA 		1-47649-020-0 02 1 1403- ● ●
335 RETAINER; SPRING
THA 		1-47649-020-0 02 1 1403- ● ●
346 REPAIR KIT; EXPANDER
THA 		1-85576-403-0 02 1 1403- ● ●
346 REPAIR KIT; EXPANDER
THA 		1-85576-403-0 02 1 1403- ● ●
347 REPAIR KIT; BOOT,EXPANDER
THA 		1-85576-404-0 02 1 1403- ● ●
347 REPAIR KIT; BOOT,EXPANDER
THA 		1-85576-404-0 02 1 1403- ● ●
348 CAP; EXPANDER
THA 		1-47649-044-0 02 1 1403- ● ●
348 CAP; EXPANDER
THA 		1-47649-044-0 02 1 1403- ● ●

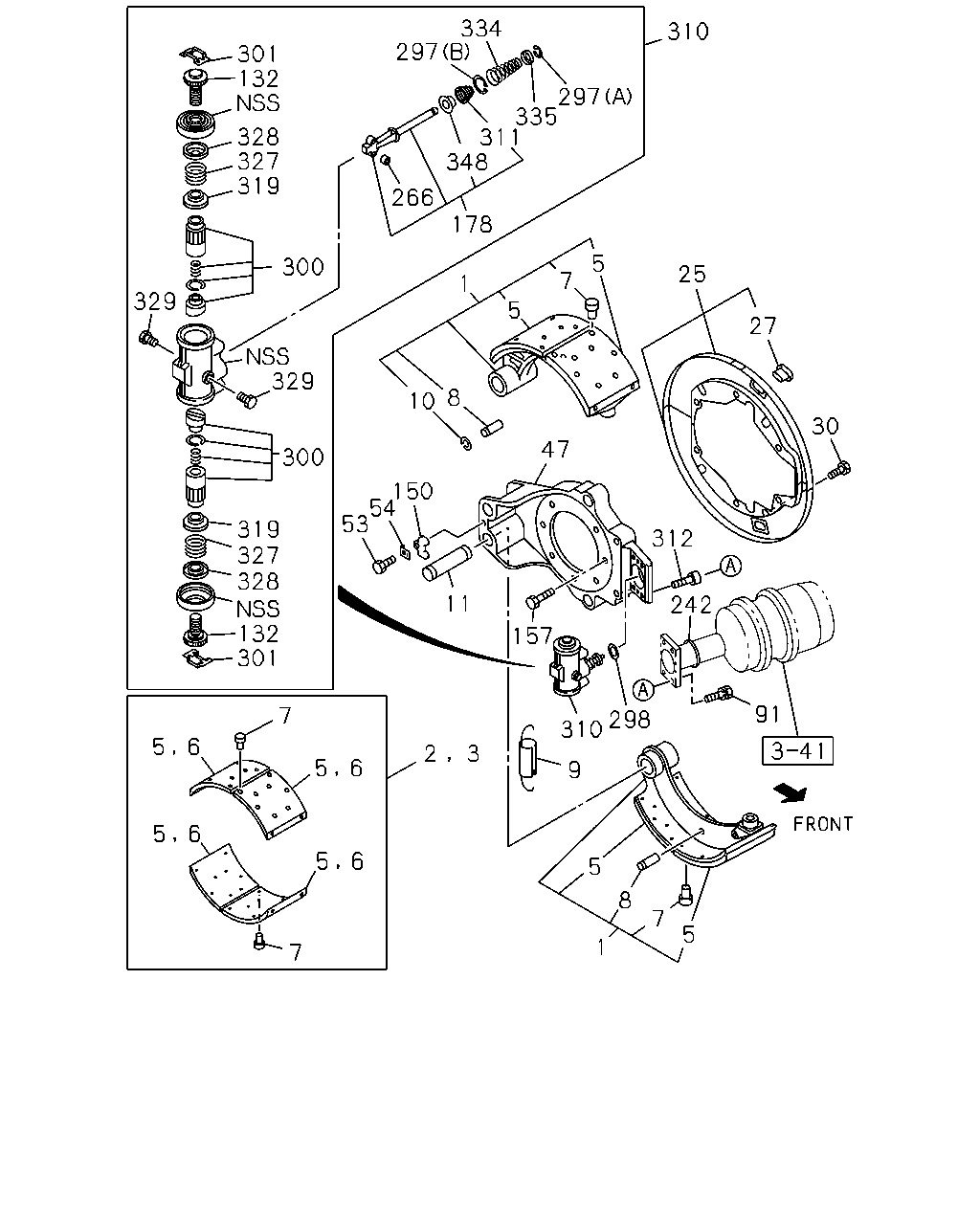

çizim 413674
1 1 5 7 8 5 9 2 3 310 298 157 11 53 54 150 91 242 312 47 10 8 5 7 30 27 25 5 310 297 335 311 348 178 266 334 297 301 132 328 327 319 300 329 329 300 319 327 328 132 301 7 5 6 5 6 5 6 5 6 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,RR
LEADING THA 		1-47170-254-0 01 1 1403- ● ●
1 SHOE; BRK,RR
LEADING THA 		1-47170-254-0 01 1 1403- ● ●
1 SHOE; BRK,RR
LEADING THA 		1-47170-256-0 01 1 1403- ● ●
1 SHOE; BRK,RR
LEADING THA 		1-47170-256-0 01 1 1403- ● ●
1 SHOE; BRK,RR
TRAILING THA 		8-98221-155-0 01 1 1403- ● ●
1 SHOE; BRK,RR
TRAILING THA 		8-98221-155-0 01 1 1403- ● ●
1 SHOE; BRK,RR
TRAILING THA 		8-98221-156-0 01 1 1403- ● ●
1 SHOE; BRK,RR
TRAILING THA 		8-98221-156-0 01 1 1403- ● ●
2 LINING SET; RR BRK,STANDARD 1-88311-256-0 02 1 1403- ● ●
2 LINING SET; RR BRK,STANDARD 1-88311-256-0 02 1 1403- ● ●
3 LINING SET; RR BRK,OVER SIZE 1-88311-259-0 02 1 1403- ● ●
3 LINING SET; RR BRK,OVER SIZE 1-88311-259-0 02 1 1403- ● ●
5 LINING; RR BRK SHOE,STANDARD
THA 		1-47126-669-0 08 1 1403- ● ●
5 LINING; RR BRK SHOE,STANDARD
THA 		1-47126-669-0 08 1 1403- ● ●
6 LINING; RR BRK SHOE,OVER SIZE
THA 		1-47126-671-0 08 1 1403- ● ●
6 LINING; RR BRK SHOE,OVER SIZE
THA 		1-47126-671-0 08 1 1403- ● ●
7 RIVET; LINING,RR BRK
L=15.5 THA 		1-09732-053-0 AR 1 1403- ● ●
7 RIVET; LINING,RR BRK
L=15.5 THA 		1-09732-053-0 AR 1 1403- ● ●
8 PIN; RETURN SPRING,RR BRK SHOE
THA 		1-47119-172-0 04 1 1403- ● ●
8 PIN; RETURN SPRING,RR BRK SHOE
THA 		1-47119-172-0 04 1 1403- ● ●
9 SPRING; RETURN,BRK SHOE
THA 		1-09583-365-1 02 1 1403- ● ●
9 SPRING; RETURN,BRK SHOE
THA 		1-09583-365-1 02 1 1403- ● ●
10 RING; SNAP,SPR PIN
ID=10 		0-91805-510-0 04 1 1403- ● ●
10 RING; SNAP,SPR PIN
ID=10 		0-91805-510-0 04 1 1403- ● ●
11 PIN; ANCHOR,RR WHEEL BRK
L=138.5 THA 		1-47131-045-0 04 1 1403- ● ●
11 PIN; ANCHOR,RR WHEEL BRK
L=138.5 THA 		1-47131-045-0 04 1 1403- ● ●
25 COVER SET; RR BRK DRUM
FORWARD RH,REARWARD LH 		1-47151-808-0 01 1 1403- ● ●
25 COVER SET; RR BRK DRUM
FORWARD RH,REARWARD LH 		1-47151-808-0 01 1 1403- ● ●
25 COVER SET; RR BRK DRUM
FORWARD LH,REARWARD RH 		1-47151-809-0 01 1 1403- ● ●
25 COVER SET; RR BRK DRUM
FORWARD LH,REARWARD RH 		1-47151-809-0 01 1 1403- ● ●
27 COVER; CHECK HOLE,DRUM COVER
THA 		1-09333-151-0 04 1 1403- ● ●
27 COVER; CHECK HOLE,DRUM COVER
THA 		1-09333-151-0 04 1 1403- ● ●
30 BOLT; DRUM COVER
M10X12 THA 		1-47159-187-0 12 1 1403- ● ●
30 BOLT; DRUM COVER
M10X12 THA 		1-47159-187-0 12 1 1403- ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
ANTILOCK BRAKE SYSTEM<BFA> REARWARD THA 		8-98091-254-1 01 1 1403- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
ANTILOCK BRAKE SYSTEM<BFA> REARWARD THA 		8-98091-255-1 01 1 1403- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FORWARD THA 		8-98091-253-1 02 1 1403- ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
REARWARD THA 		8-98091-253-1 02 1 1403- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
EXC. ANTILOCK BRAKE SYSTEM<BFA> REARWARD THA 		8-98091-253-1 02 1 1403- ●
53 BOLT; LOCK PLATE
M10X16 THA 		1-47139-173-0 02 1 1403- ● ●
53 BOLT; LOCK PLATE
M10X16 THA 		1-47139-173-0 02 1 1403- ● ●
54 WASHER; LK,ANCHOR PIN,RR BRK
THA 		1-47133-011-0 02 1 1403- ● ●
54 WASHER; LK,ANCHOR PIN,RR BRK
THA 		1-47133-011-0 02 1 1403- ● ●
91 BOLT; CHAMBER
M10X45 THA 		1-47139-174-0 08 1 1403- ● ●
91 BOLT; CHAMBER
M10X45 THA 		1-47139-174-0 08 1 1403- ● ●
132 SCREW; ADJ,RR BRK
THA 		1-47623-035-2 04 1 1403- ● ●
132 SCREW; ADJ,RR BRK
THA 		1-47623-035-2 04 1 1403- ● ●
150 PLATE; LK,ANCHOR PIN
THA 		1-47133-010-0 02 1 1403- ● ●
150 PLATE; LK,ANCHOR PIN
THA 		1-47133-010-0 02 1 1403- ● ●
157 BOLT; RR BRK SET
M14X50 THA 		1-09040-066-0 02 1 1403- ● ●
157 BOLT; RR BRK SET
M14X50 THA 		1-09040-066-0 02 1 1403- ● ●
178 WEDGE; RR WHEEL CYL
THA 		1-47640-012-0 02 1 1403- ● ●
178 WEDGE; RR WHEEL CYL
THA 		1-47640-012-0 02 1 1403- ● ●
242 SEAL
THA 		1-47159-186-0 04 1 1403- ● ●
242 SEAL
THA 		1-47159-186-0 04 1 1403- ● ●
266 ROLLER; WEDGE
THA 		1-47643-007-0 04 1 1403- ● ●
266 ROLLER; WEDGE
THA 		1-47643-007-0 04 1 1403- ● ●
297 RING; SNAP
(A) THA 		1-47649-031-0 02 1 1403- ● ●
297 RING; SNAP
(A) THA 		1-47649-031-0 02 1 1403- ● ●
297 RING; SNAP
(B) THA 		1-47649-034-1 02 1 1403- ● ●
297 RING; SNAP
(B) THA 		1-47649-034-1 02 1 1403- ● ●
298 GASKET
THA 		1-48259-231-0 02 1 1403- ● ●
298 GASKET
THA 		1-48259-231-0 02 1 1403- ● ●
300 SLEEVE
THA 		1-47629-247-1 04 1 1403- ● ●
300 SLEEVE
THA 		1-47629-247-1 04 1 1403- ● ●
301 CLIP; ANTI LOTATION
THA 		1-47621-017-0 04 1 1403- ● ●
301 CLIP; ANTI LOTATION
THA 		1-47621-017-0 04 1 1403- ● ●
310 EXPANDER
THA 		1-47601-087-0 02 1 1403- ● ●
310 EXPANDER
THA 		1-47601-087-0 02 1 1403- ● ●
311 BOOT; WEDGE
THA 		1-47649-042-0 02 1 1403- ● ●
311 BOOT; WEDGE
THA 		1-47649-042-0 02 1 1403- ● ●
312 BOLT; EXPANDER
THA 		1-47634-008-0 04 1 1403- ● ●
312 BOLT; EXPANDER
THA 		1-47634-008-0 04 1 1403- ● ●
319 RING; DRIVE
THA 		1-47629-200-0 04 1 1403- ● ●
319 RING; DRIVE
THA 		1-47629-200-0 04 1 1403- ● ●
327 SPRING; ADJ
THA 		1-47629-196-0 04 1 1403- ● ●
327 SPRING; ADJ
THA 		1-47629-196-0 04 1 1403- ● ●
328 CAGE; SPRING
THA 		1-47629-192-0 04 1 1403- ● ●
328 CAGE; SPRING
THA 		1-47629-192-0 04 1 1403- ● ●
329 SCREW; LOCATING
THA 		1-47619-149-1 04 1 1403- ● ●
329 SCREW; LOCATING
THA 		1-47619-149-1 04 1 1403- ● ●
334 SPRING; ROD
THA 		1-47649-041-0 02 1 1403- ● ●
334 SPRING; ROD
THA 		1-47649-041-0 02 1 1403- ● ●
335 RETAINER; SPRING
THA 		1-47649-020-0 02 1 1403- ● ●
335 RETAINER; SPRING
THA 		1-47649-020-0 02 1 1403- ● ●
348 CAP; EXPANDER
THA 		1-47649-044-0 02 1 1403- ● ●
348 CAP; EXPANDER
THA 		1-47649-044-0 02 1 1403- ● ●
