3-01 — FRONT WHEEL BRAKE
(#136247) — 52 parça
Tümü
A - FGZ5MX
B - GGZ5MX
◀
[301A] NO.2 (14 parça)

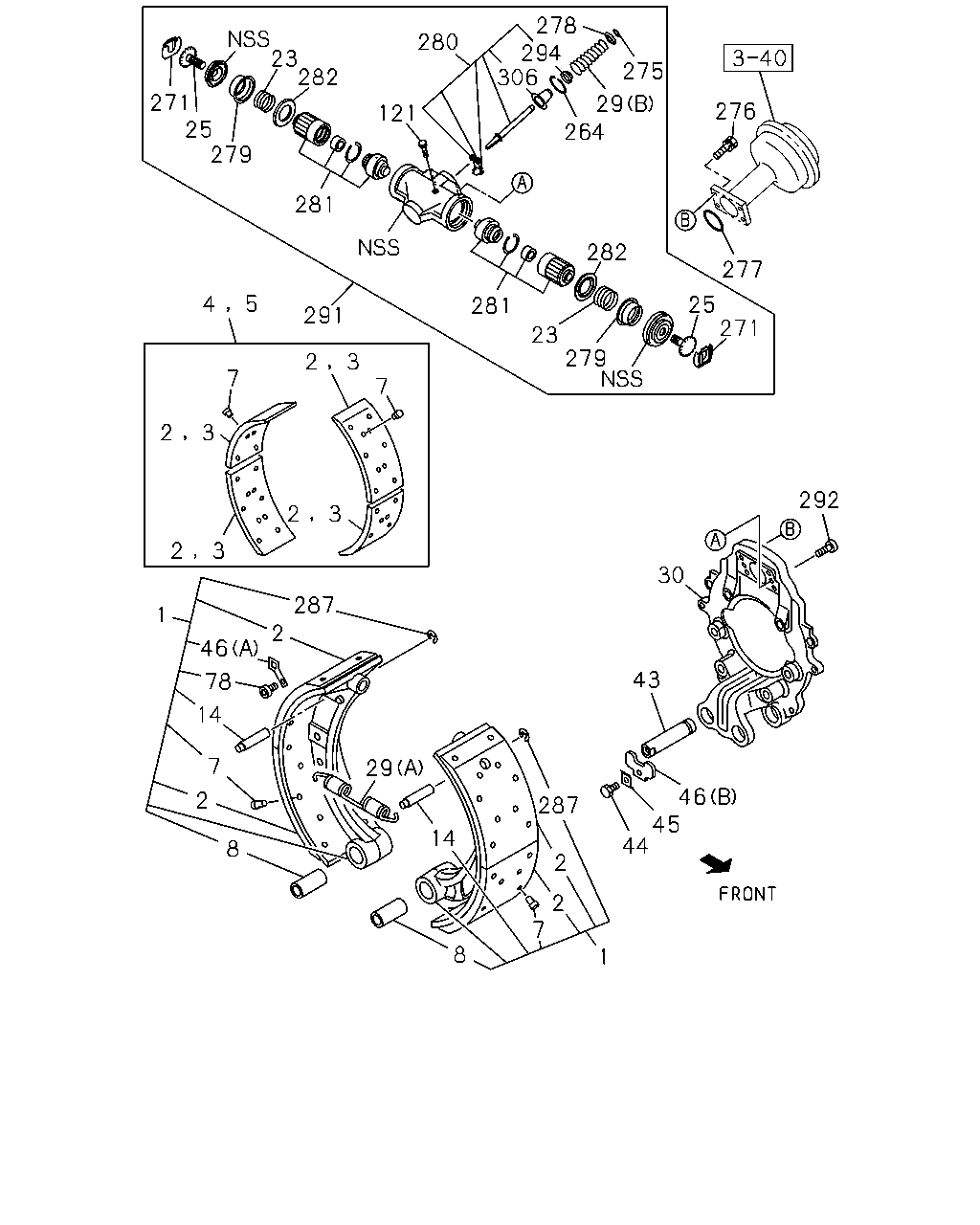

[301A] NO.1 (38 parça)
▶
271
279
23
282
121
304
305
271
271
271
279
23
282
264
29
275
278
294
306
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
23
SPRING; COIL
THA
1-47629-196-0
04
1
1403-
●
●
29
SPRING; RETURN,FRT BRK SHOE
(A) THA
1-09583-365-1
04
1
1403-
●
●
29
SPRING; RETURN,FRT BRK SHOE
(B) THA
1-47649-041-0
02
1
1403-
●
●
121
SCREW; LK SPR FRT WHEEL CYL
THA
1-47619-149-1
04
1
1403-
●
●
264
RING; SNAP,SPR PIN
THA
1-47649-034-1
02
1
1403-
●
●
271
CLIP; ADJ
THA
1-47621-017-0
04
1
1403-
●
●
275
RING; RETAINER
THA
1-47649-031-0
02
1
1403-
●
●
278
RETAINER; SPRING
THA
1-47649-020-0
02
1
1403-
●
●
279
CAGE; SPRING
THA
1-47629-192-0
04
1
1403-
●
●
282
RING; DRIVE
THA
1-47629-200-0
04
1
1403-
●
●
294
BOOT; WEDGE
THA
1-47649-042-0
02
1
1403-
●
●
304
REPAIR KIT; EXPANDER
THA
1-85576-403-0
02
1
1403-
●
●
305
REPAIR KIT; BOOT,EXPANDER
THA
1-85576-404-0
02
1
1403-
●
●
306
CAP; EXPANDER
THA
1-47649-044-0
02
1
1403-
●
●
1
287
2
46
78
14
7
2
8
29
14
8
7
1
2
2
287
44
45
46
43
30
292
2
3
2
3
2
3
7
4
5
2
3
7
291
271
25
279
281
281
23
279
23
282
121
280
306
294
278
264
29
275
276
277
271
25
282
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
SHOE; BRK,FRT
LEADING THA
1-47170-322-0
01
1
1403-
●
●
1
SHOE; BRK,FRT
TRAILING THA
1-47170-323-0
01
1
1403-
●
●
1
SHOE; BRK,FRT
LEADING THA
1-47170-320-0
01
1
1403-
●
●
1
SHOE; BRK,FRT
TRAILING THA
1-47170-321-0
01
1
1403-
●
●
2
LINING; FRT BRK SHOE,STANDARD
THA
1-47126-700-0
08
1
1403-
●
●
3
LINING; FRT BRK SHOE,OVER SIZE
THA
1-47126-701-0
08
1
1403-
●
●
4
LINING SET; FRT BRK,STANDARD
1-88311-316-0
02
1
1403-
●
●
5
LINING SET; FRT BRK,OVER SIZE
1-88311-317-0
02
1
1403-
●
●
7
RIVET; LINING,FRT BRK
L=15.5 THA
1-09732-053-0
80
1
1403-
●
●
8
BUSHING; BRK SHOE
THA
1-47112-020-0
04
1
1403-
●
●
14
PIN; SHOE RETURN SPR
THA
1-47119-177-1
04
1
1403-
●
●
23
SPRING; COIL
THA
1-47629-196-0
04
1
1403-
●
●
25
SCREW; ADJ,FRT WHEEL CYL
THA
1-47623-035-2
04
1
1403-
●
●
29
SPRING; RETURN,FRT BRK SHOE
(A) THA
1-09583-365-1
04
1
1403-
●
●
29
SPRING; RETURN,FRT BRK SHOE
(B) THA
1-47649-041-0
02
1
1403-
●
●
30
BRACKET; ANCHOR,FRT
THA
8-98091-252-0
02
1
1403-
●
●
43
PIN; ANCHOR
L=115.5 THA
1-47131-044-0
04
1
1403-
●
●
44
BOLT; LOCK,ANCHOR PIN
M10X16 THA
1-47139-173-0
02
1
1403-
●
●
45
WASHER; LK
THA
1-47133-011-0
02
1
1403-
●
●
46
PLATE; LOCK
(A) THA
1-47119-152-0
04
1
1403-
●
●
46
PLATE; LOCK
(B) THA
1-47133-010-0
02
1
1403-
●
●
78
BOLT; LK,PLATE
THA
1-47119-153-0
04
1
1403-
●
●
121
SCREW; LK SPR FRT WHEEL CYL
THA
1-47619-149-1
04
1
1403-
●
●
264
RING; SNAP,SPR PIN
THA
1-47649-034-1
02
1
1403-
●
●
271
CLIP; ADJ
THA
1-47621-017-0
04
1
1403-
●
●
275
RING; RETAINER
THA
1-47649-031-0
02
1
1403-
●
●
276
BOLT; CHAMBER
M10X42.5 THA
1-47139-163-0
08
1
1403-
●
●
277
RING; CHAMBER
THA
1-48259-231-0
02
1
1403-
●
●
278
RETAINER; SPRING
THA
1-47649-020-0
02
1
1403-
●
●
279
CAGE; SPRING
THA
1-47629-192-0
04
1
1403-
●
●
280
WEDGE; FRT WHEEL CYL
THA
1-47640-012-0
02
1
1403-
●
●
281
SLEEVE
THA
1-47629-247-1
04
1
1403-
●
●
282
RING; DRIVE
THA
1-47629-200-0
04
1
1403-
●
●
287
RING; SNAP
ID=10
0-91805-510-0
08
1
1403-
●
●
291
EXPANDER
THA
1-47601-087-0
02
1
1403-
●
●
292
BOLT; EXPANDER
THA
1-47634-008-0
04
1
1403-
●
●
294
BOOT; WEDGE
THA
1-47649-042-0
02
1
1403-
●
●
306
CAP; EXPANDER
THA
1-47649-044-0
02
1
1403-
●
●
