◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11588 - FXZ/GXZ CNG(THAI)EU3 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#136242) — 23 parça
çizim 413268
221 225 199 3 1 296 474 316 3 1 474 6 49 474 296 296 3 1 316 474 300 6 493
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
L=3205 THA 		8-98246-040-0 01 1 1403-1505 ● ●
1 CABLE; SHIFT,TRANS CONT
L=3205 		8-98054-888-2 01 1 1506- ● ●
3 CABLE; SELECT,TRANS CONT
L=3105 THA 		8-98054-894-3 01 1 1403- ● ●
6 CLIP; CABLE
(A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1403- ● ●
6 CLIP; CABLE
(B) ID=10 & 10 M8 		1-09701-220-0 01 1 1403- ● ●
49 WASHER; LK
ID=14.2 		0-91510-614-0 01 1 1403- ● ●
199 WASHER; PL,SELECT
ID=8.4 OD=16 		0-91614-508-0 01 1 1403- ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1403- ● ●
225 PIN; SELECT CABLE
L=27.7 		8-94111-137-0 01 1 1403- ● ●
296 BOLT; CLIP,SHIFT & SELECT
M8X20 FLANGE THA 		0-28050-820-0 03 1 1403- ● ●
300 BOLT; CLIP
M8X20 FLANGE THA 		0-28050-820-0 01 1 1403- ● ●
316 BRACKET; CLIP
(A) 		8-98055-446-1 01 1 1403- ● ●
316 BRACKET; CLIP
(B) 		8-98056-946-0 01 1 1403-1412 ● ●
316 BRACKET; CLIP
(B) 		8-98294-156-0 01 1 1501- ● ●
474 BOLT; BRKT
(A) M14X45 		0-20801-445-0 01 1 1403- ● ●
474 BOLT; BRKT
(B) M8X20 FLANGE THA 		0-28050-820-0 02 1 1403- ● ●
474 BOLT; BRKT
(C) M8X30 FLANGE THA 		0-28050-830-0 01 1 1403- ● ●
474 BOLT; BRKT
(D) M8X25 W/WASHER 		0-51640-825-0 01 1 1403- ● ●
493 SEAL; CABLE
OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 1403- ● ●

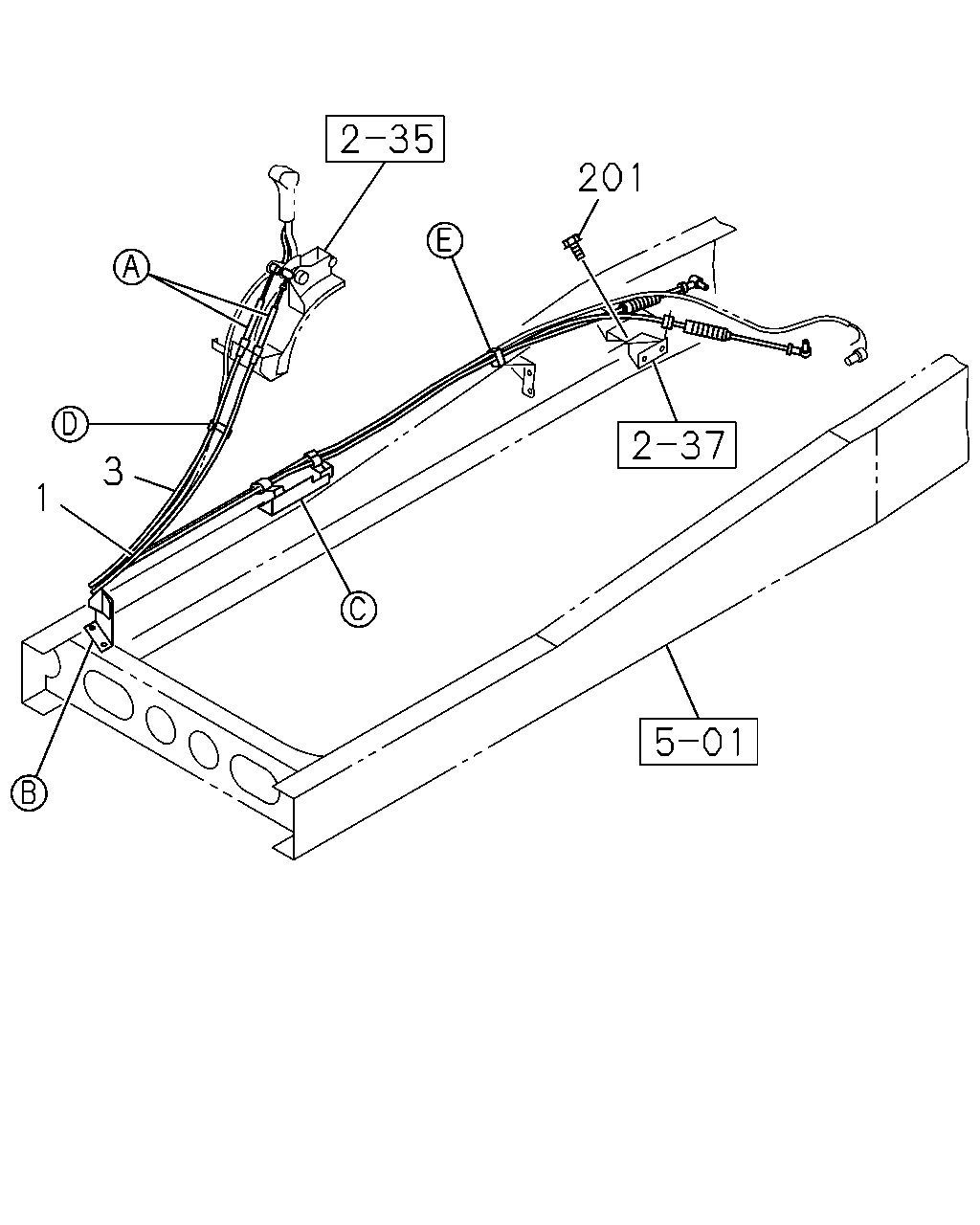

çizim 413797
3 1 201
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
L=3205 THA 		8-98246-040-0 01 1 1403-1505 ● ●
1 CABLE; SHIFT,TRANS CONT
L=3205 		8-98054-888-2 01 1 1506- ● ●
3 CABLE; SELECT,TRANS CONT
L=3105 THA 		8-98054-894-3 01 1 1403- ● ●
201 BOLT; BRKT
M8X16 FLANGE THA 		0-28050-816-0 01 1 1403- ● ●
