2-30 — GEAR SHIFTER AND QUADRANT BOX (#136240) — 138 parça
çizim 413226
321 320 433 317 315 317 433 505 292 505 319 323 296 292 292 296 295 292
BalonParca AdiParca NoAdetTipApplied Date
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 1403-
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 1403-
295 ROD; LINK,RELAY LEVER
M8 L=50 		9-08400-805-0 01 1 1403-
296 ROD END
L=45.5 		1-09760-118-1 02 1 1403-
315 LEVER; SELECT 8-98061-898-0 01 1 1403-
317 BUSHING; LEVER 1-09330-119-0 02 1 1403-
319 BRACKET; SELECT LEVER 8-98065-843-0 01 1 1403-
320 SHAFT; LEVER 8-98065-840-0 01 1 1403-
321 BOLT; BRKT,RELAY LEVER
M8X110 FLANGE THA 		0-28055-811-0 02 1 1403-
323 NUT; LK,SELECT LEVER
M10 FLANGE THA 		0-91180-110-0 01 1 1403-
433 GASKET; BUSHING 1-09623-594-0 02 1 1403-
505 SPACER; BRKT
(B) ID=9 OD=18 T=5 		9-14149-173-0 01 1 1403-
505 SPACER; BRKT
(A) L=28 		9-83625-376-0 01 1 1403-

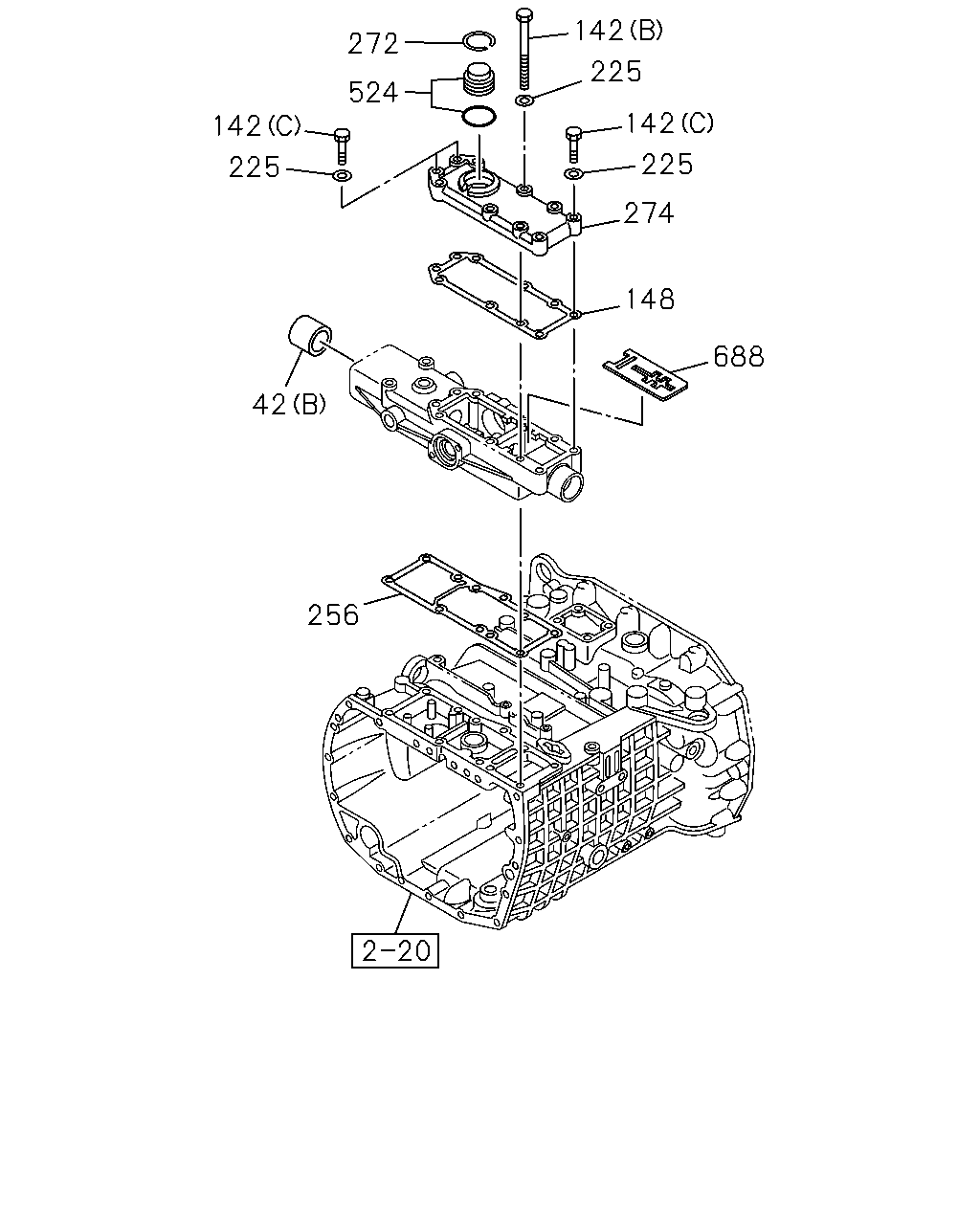

çizim 413232
272 524 142 225 42 256 688 148 274 225 142 225 142
BalonParca AdiParca NoAdetTipApplied Date
42 CAP; QUAD BOX
(B) IMA 		1-33549-538-0 01 1 1403-
42 CAP; QUAD BOX
(A) IMA 		1-33549-589-0 01 1 1403-
142 BOLT; QUAD BOX
(A) M8X100 IMA 		1-33549-582-0 06 1 1403-
142 BOLT; QUAD BOX
(B) M8X75 IMA 		1-33549-584-0 02 1 1403-
142 BOLT; QUAD BOX
(C) M8X40 IMA 		1-33549-587-0 04 1 1403-
148 GASKET; QUAD BOX
IMA 		1-33542-064-0 01 1 1403-
225 WASHER; LK,QUAD BOX
IMA 		1-33549-583-0 14 1 1403-
256 GASKET; QUAD BOX TO TRANS CASE
IMA 		1-33542-065-0 01 1 1403-
272 RING; SNAP,QUAD BOX
IMA 		1-44519-217-0 01 1 1403-
274 COVER; SHAFT,QUAD BOX
IMA 		1-33549-579-0 01 1 1403-
524 DETENT; QUAD BOX
IMA 		1-33549-501-0 01 1 1403-
688 SHIFT; INTERLOCK
IMA 		1-33549-572-0 01 1 1403-
çizim 413241
303 277 19 303 19 19 277 19 19
BalonParca AdiParca NoAdetTipApplied Date
19 SPRING; COIL COMP
(A) IMA 		1-33539-028-0 01 1 1403-
19 SPRING; COIL COMP
(B) IMA 		1-33539-030-0 02 1 1403-
19 SPRING; COIL COMP
(C) IMA 		1-33539-092-0 01 1 1403-
19 SPRING; COIL COMP
(D) IMA 		1-33549-221-0 01 1 1403-
277 PLATE; SPRING SEAT
IMA 		1-33539-107-0 02 1 1403-
303 RING; SNAP,SHAFT
IMA 		1-33539-040-0 02 1 1403-

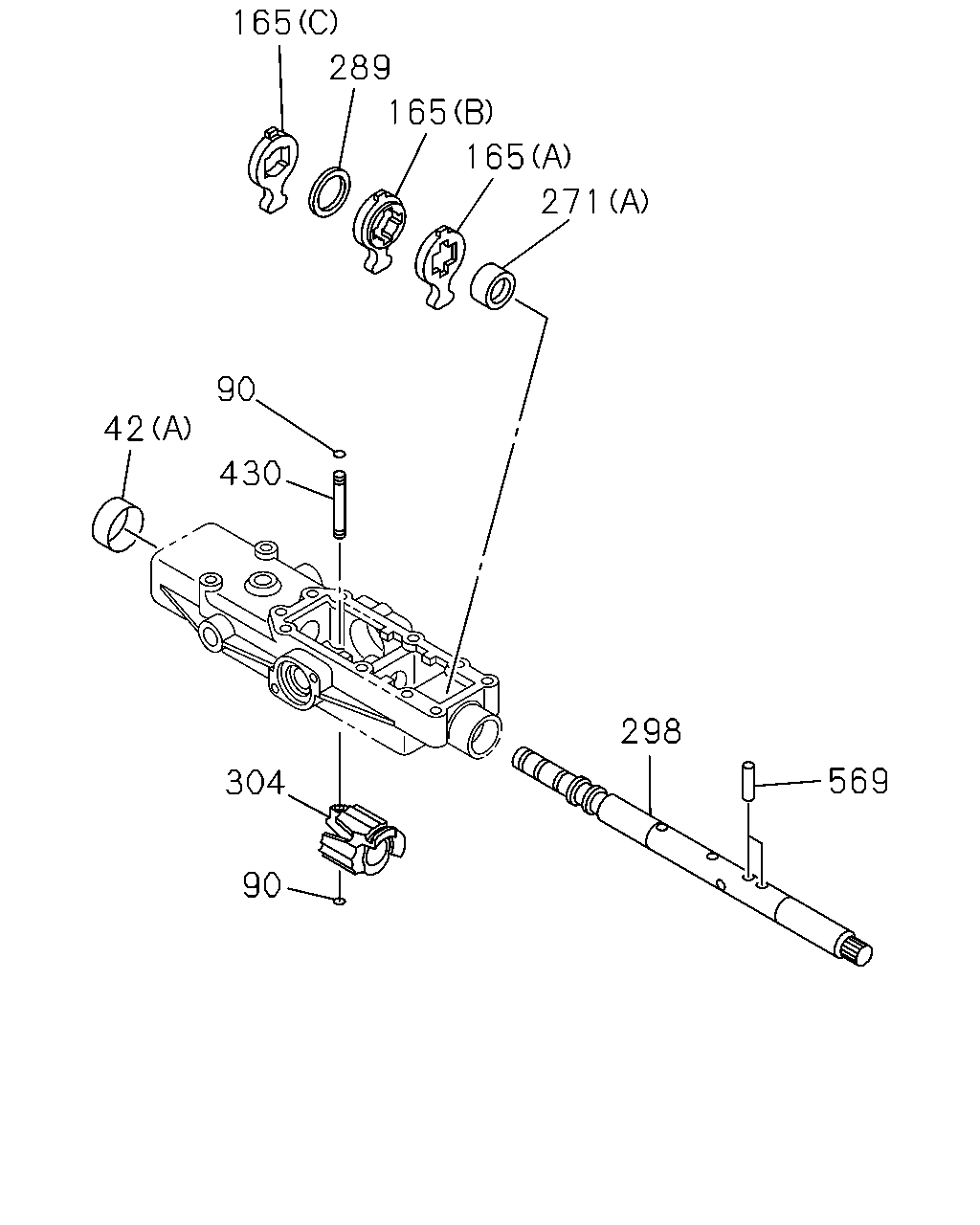

çizim 413250
165 289 165 165 271 90 42 430 304 90 298 569
BalonParca AdiParca NoAdetTipApplied Date
42 CAP; QUAD BOX
(B) IMA 		1-33549-538-0 01 1 1403-
42 CAP; QUAD BOX
(A) IMA 		1-33549-589-0 01 1 1403-
90 RING; SNAP,SHIFT ROD
IMA 		1-33549-494-0 02 1 1403-
165 LEVER; SHIFT
(A) IMA 		1-33549-488-0 01 1 1403-
165 LEVER; SHIFT
(B) IMA 		1-33549-489-0 01 1 1403-
165 LEVER; SHIFT
(C) IMA 		1-33549-603-0 01 1 1403-
271 BUSHING; QUAD BOX
(A) IMA 		1-33549-124-0 01 1 1403-
271 BUSHING; QUAD BOX
(B) IMA 		1-33549-537-0 01 1 1403-
289 SEAL; OIL,CONT SHAFT,QUAD BOX
IMA 		1-33549-491-0 01 1 1403-
298 SHAFT; SHIFT LEVER
IMA 		1-33522-211-0 01 1 1403-
304 BLOCK; SHIFT SHAFT
IMA 		1-33549-492-0 01 1 1403-
430 PIN; SPR,SHIFT ROD
IMA 		1-33549-493-0 01 1 1403-
569 PIN; QUADRANT BOX
IMA 		1-33529-128-0 02 1 1403-

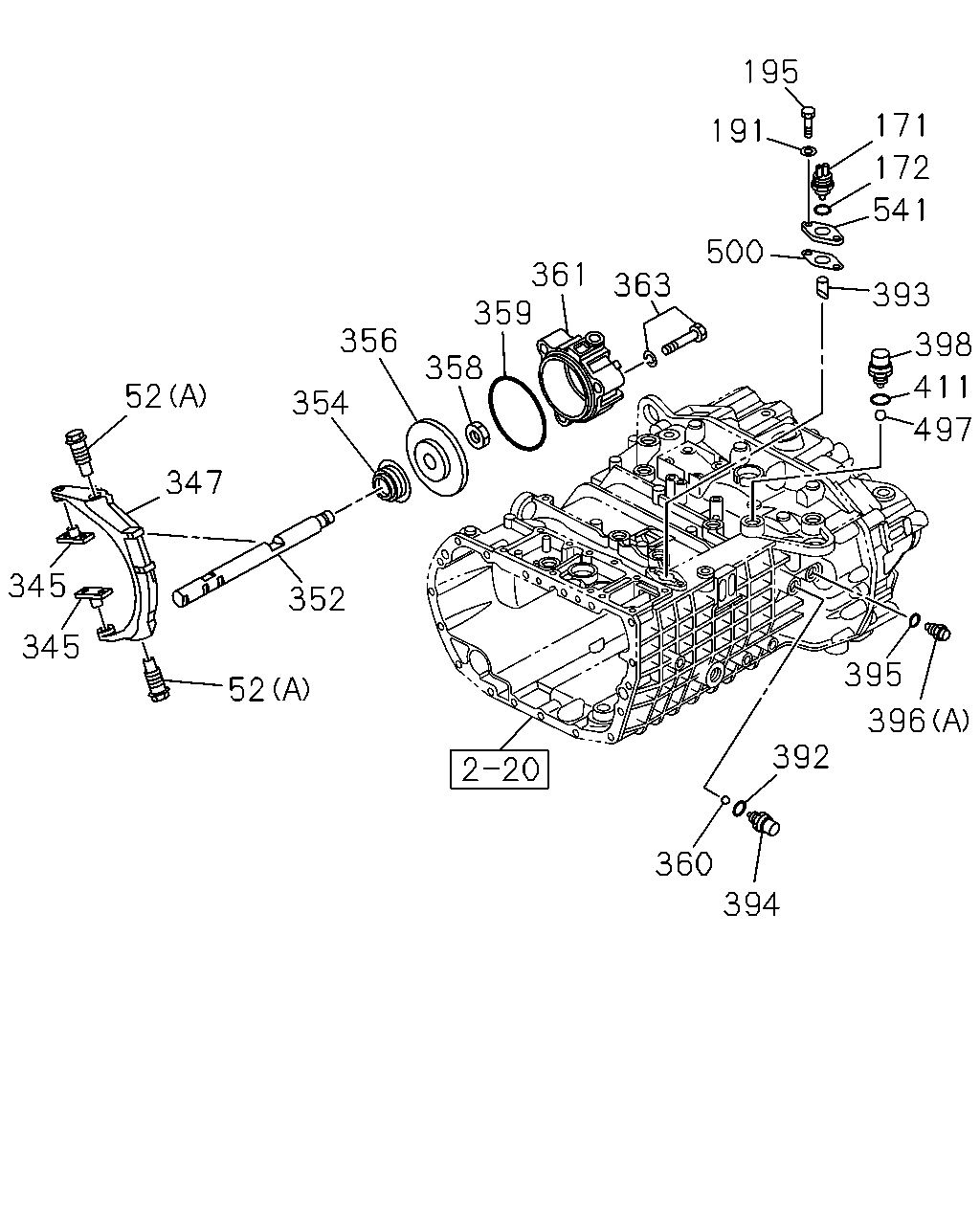

çizim 413252
195 191 171 172 541 500 393 398 411 497 395 396 392 394 360 363 361 359 358 356 354 52 347 352 52 345 345
BalonParca AdiParca NoAdetTipApplied Date
52 BOLT; SHIFT ARM
(B) IMA 		1-33519-190-0 07 1 1403-
52 BOLT; SHIFT ARM
(A) IMA 		1-33519-196-0 02 1 1403-
171 SWITCH; NEUTRAL
IMA 		1-33119-627-0 01 1 1403-
172 GASKET; NEUTRAL SW
IMA 		1-33119-249-0 01 1 1403-
191 WASHER; LK
IMA 		1-33549-583-0 02 1 1403-
195 BOLT
IMA 		1-33119-593-0 02 1 1403-
345 BLOCK; SHIFT,RANGE CHANGE
IMA 		1-33519-095-0 02 1 1403-
347 ARM; SHIFT,RANGE CHANGE
IMA 		1-33511-529-0 01 1 1403-
352 ROD; SHIFT,RANGE CHANGE
IMA 		1-33531-497-0 01 1 1403-
354 SEAL; AIR CYL
IMA 		1-33519-045-0 01 1 1403-
356 PISTON; AIR CYL
IMA 		1-33519-197-0 01 1 1403-
358 NUT; SHIFT ROD
IMA 		1-33519-188-0 01 1 1403-
359 GASKET; AIR CYL
IMA 		1-33519-093-0 01 1 1403-
360 BALL; AIR CYL
IMA 		1-33119-252-0 01 1 1403-
361 CYLINDER; AIR,SHIFT
IMA 		1-33519-092-0 01 1 1403-
363 BOLT; AIR CYL
M10X70 IMA 		1-33119-616-0 03 1 1403-
392 GASKET; PLUG & SW
IMA 		1-33119-249-0 01 1 1403-
393 PIN; SW
IMA 		1-33119-298-0 01 1 1403-
394 SWITCH; RANGE CHANGE
IMA 		1-33119-627-0 01 1 1403-
395 GASKET; PLUNGER
IMA 		1-33549-497-0 01 1 1403-
396 PLUNGER; SHIFT ROD
(A) IMA 		1-33519-189-0 01 1 1403-
396 PLUNGER; SHIFT ROD
(B) IMA 		1-33529-085-0 02 1 1403-
398 SWITCH; REV LAMP
IMA 		1-38119-062-0 01 1 1403-
411 GASKET; REV LAMP SW
IMA 		1-33119-249-0 01 1 1403-
497 BALL; SWITCH
IMA 		1-33119-252-0 01 1 1403-
500 GASKET; SW
IMA 		1-33119-299-0 01 1 1403-
541 PLATE; SWITCH
IMA 		1-33119-300-0 01 1 1403-

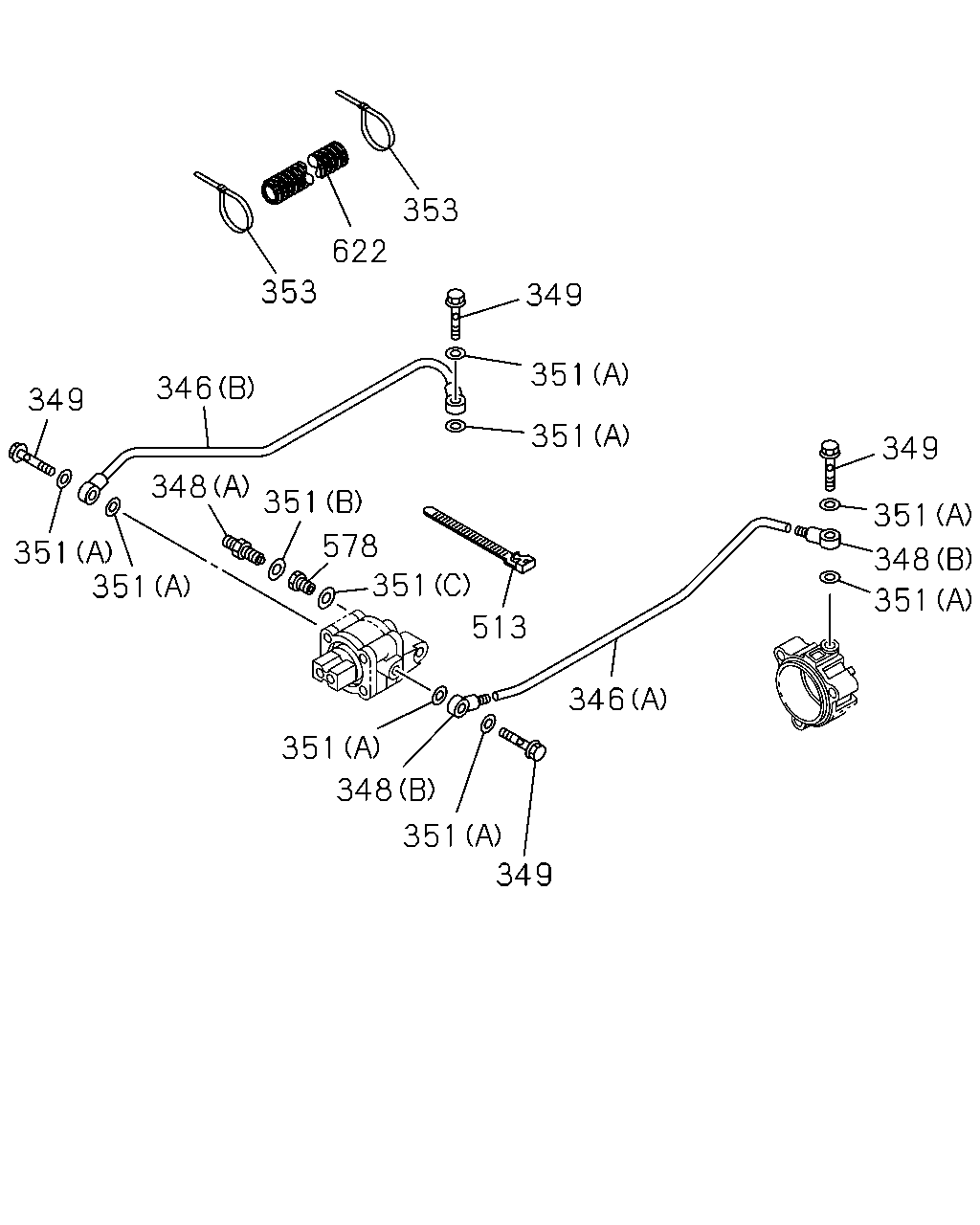

çizim 413256
353 622 353 346 349 351 348 351 351 578 351 513 349 351 351 351 348 351 349 346 349 351 348 351
BalonParca AdiParca NoAdetTipApplied Date
346 HOSE; AIR
(B) IMA 		1-33549-598-0 01 1 1403-
346 HOSE; AIR
(A) IMA 		1-33549-618-0 01 1 1403-
348 CONNECTOR; AIR HOSE
(A) M12 STRAIGHT 		1-09654-246-0 01 1 1403-
348 CONNECTOR; AIR HOSE
(B) IMA 		1-33549-593-0 02 1 1403-
349 BOLT; EYE,AIR HOSE
M14 IMA 		1-33549-592-0 04 1 1403-
351 GASKET; CONNECTOR
(C) IMA 		1-33549-554-0 01 1 1403-
351 GASKET; CONNECTOR
(A) IMA 		1-33549-578-0 08 1 1403-
351 GASKET; CONNECTOR
(B) ID=12.2 		8-98251-344-0 01 1 1403-
353 CLIP; AIR HOSE
IMA 		1-33549-530-0 02 1 1403-
513 CLIP; BAND
L=250 		5-09707-030-1 05 1 1403-
578 CONNECTOR
IMA 		1-33549-553-0 01 1 1403-
622 TUBE; CORRUGATE
L=100 ID=22 L=350 		1-83129-017-0 01 1 1403-

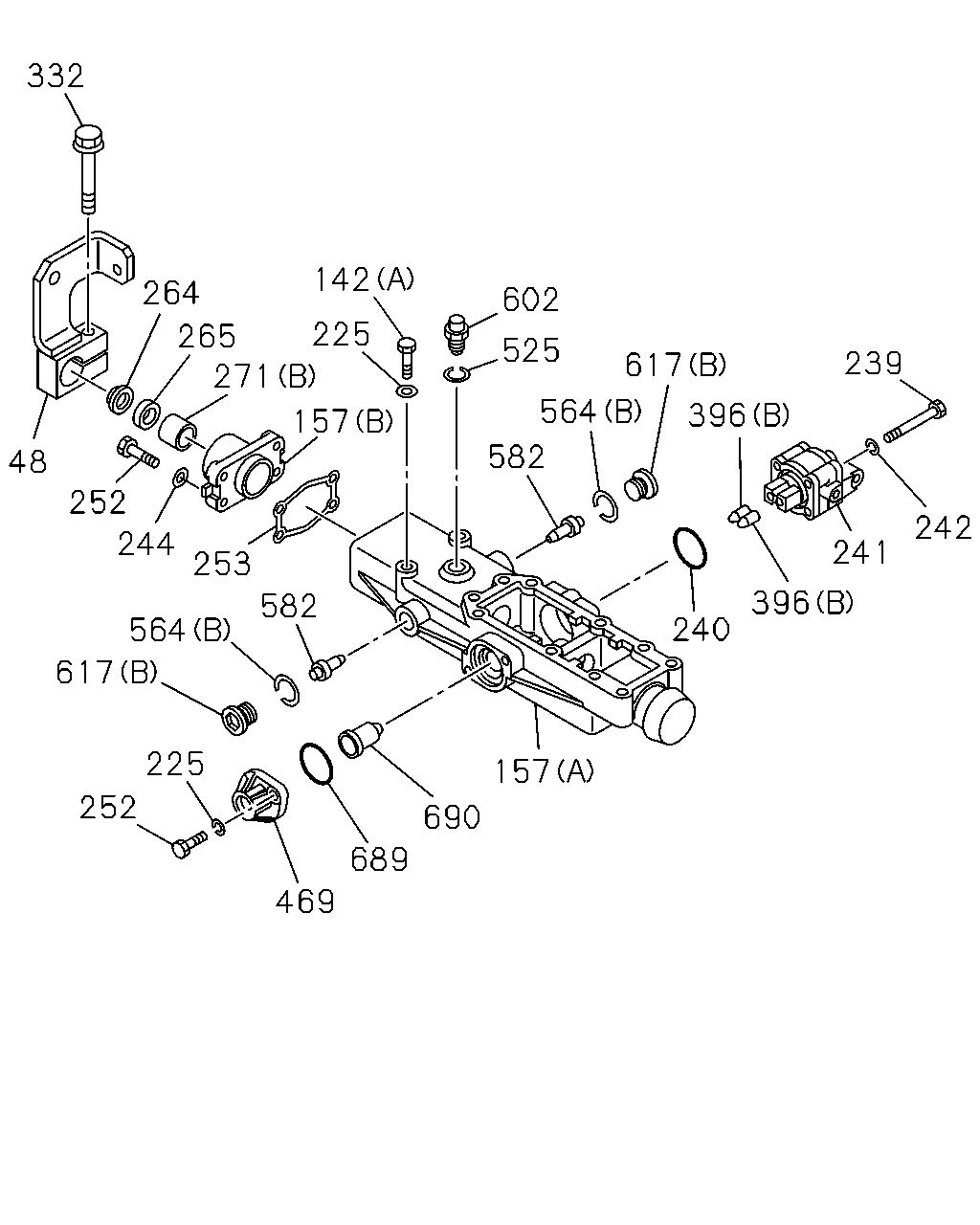

çizim 413260
332 264 265 48 252 244 253 582 564 617 252 225 469 689 690 157 240 582 157 271 225 142 602 525 564 617 396 396 241 239 242
BalonParca AdiParca NoAdetTipApplied Date
48 LEVER; 4TH,SHIFT 1-33651-661-1 01 1 1403-
142 BOLT; QUAD BOX
(A) M8X100 IMA 		1-33549-582-0 06 1 1403-
142 BOLT; QUAD BOX
(B) M8X75 IMA 		1-33549-584-0 02 1 1403-
142 BOLT; QUAD BOX
(C) M8X40 IMA 		1-33549-587-0 04 1 1403-
157 BOX; QUAD,TRANS
(A) IMA 		1-33549-570-0 01 1 1403-
157 BOX; QUAD,TRANS
(B) IMA 		1-33549-604-0 01 1 1403-
225 WASHER; LK,QUAD BOX
IMA 		1-33549-583-0 14 1 1403-
239 BOLT; CUT OFF VALVE
IMA 		1-33549-585-0 04 1 1403-
240 GASKET; CUT OFF VALVE
IMA 		1-33549-198-0 01 1 1403-
241 VALVE; CUT OFF
IMA 		1-33549-495-0 01 1 1403-
242 WASHER; CUT OFF VALVE
IMA 		1-33549-583-0 04 1 1403-
244 WASHER; LK,COVER
IMA 		1-33549-583-0 04 1 1403-
252 BOLT; SIDE COVER
M8X30 IMA 		1-33549-581-0 02 1 1403-
252 BOLT; SIDE COVER
M8X35 IMA 		1-33549-586-0 04 1 1403-
253 GASKET; SIDE COVER
IMA 		1-33544-054-0 01 1 1403-
264 SEAL; DUST,SHAFT
IMA 		1-33549-327-0 01 1 1403-
265 SEAL; OIL,SHIFT
IMA 		1-33549-328-0 01 1 1403-
271 BUSHING; QUAD BOX
(A) IMA 		1-33549-124-0 01 1 1403-
271 BUSHING; QUAD BOX
(B) IMA 		1-33549-537-0 01 1 1403-
332 BOLT; 4TH,SHIFT LEVER
M8X40 FLANGE THA 		0-28650-840-0 01 1 1403-
396 PLUNGER; SHIFT ROD
(A) IMA 		1-33519-189-0 01 1 1403-
396 PLUNGER; SHIFT ROD
(B) IMA 		1-33529-085-0 02 1 1403-
469 COVER; SPRING,QUAD BOX
IMA 		1-33549-216-0 01 1 1403-
525 RING; DETENT
IMA 		1-33119-286-0 01 1 1403-
564 SEAL; RING
(B) IMA 		1-33119-249-0 02 1 1403-
564 SEAL; RING
(A) IMA 		1-33549-578-0 01 1 1403-
582 BOLT; SPRING GUIDE
IMA 		1-33549-487-0 02 1 1403-
602 PLUNGER; DETENT
IMA 		1-33119-618-0 01 1 1403-
617 PLUG
(B) IMA 		1-33119-619-0 02 1 1403-
617 PLUG
(A) IMA 		1-33539-109-0 01 1 1403-
689 GASKET; COVER
IMA 		1-33542-063-0 01 1 1403-
690 PIN; STOP
IMA 		1-33549-496-0 01 1 1403-

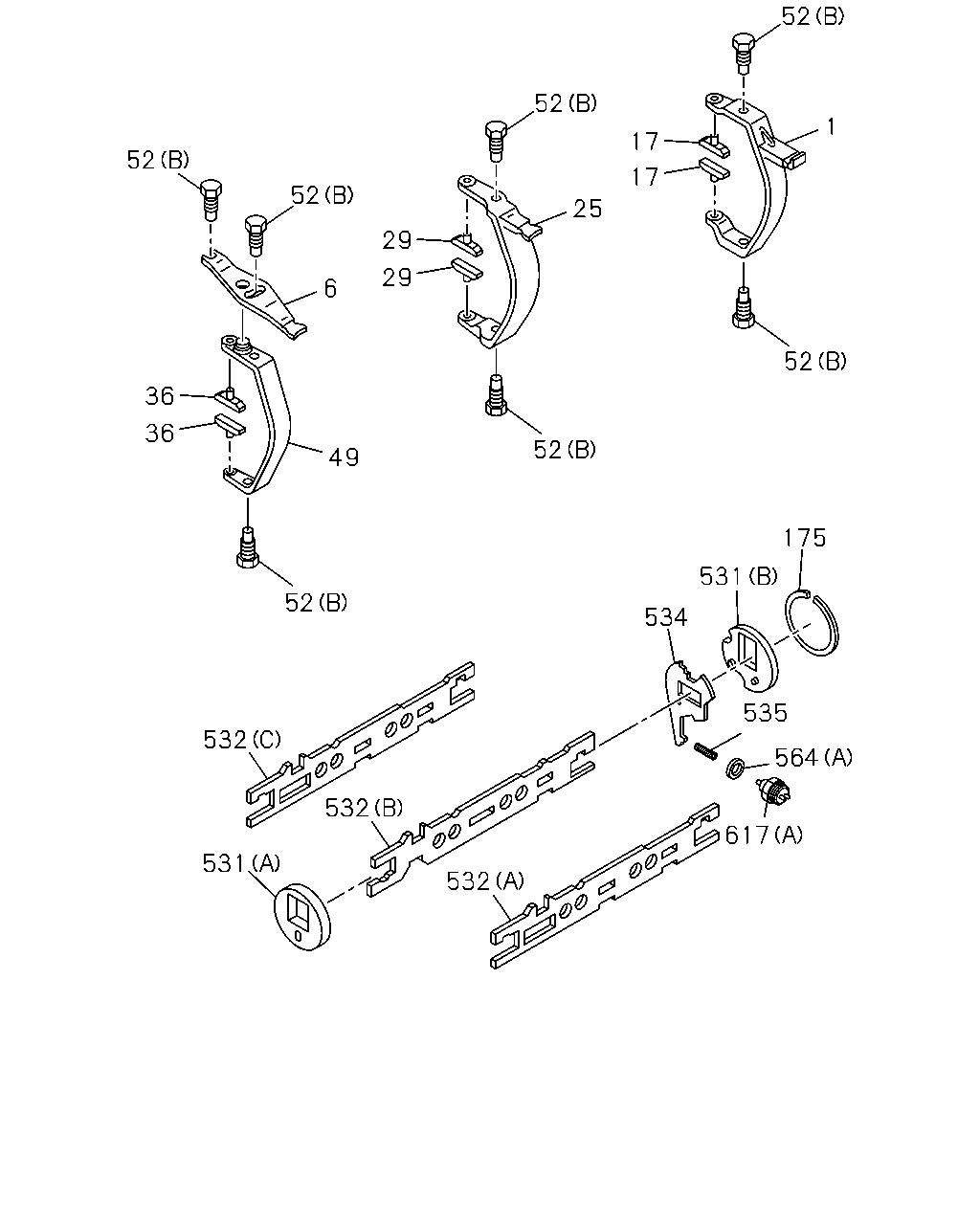

çizim 413261
52 52 6 36 36 49 52 532 531 532 532 52 29 29 52 25 17 17 1 52 52 175 531 534 535 564 617
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; SHIFT,1ST & REV
IMA 		1-33511-657-0 01 1 1403-
6 LEVER; RELAY
IMA 		1-33511-658-0 01 1 1403-
17 BLOCK; SHIFT,1ST & REV
IMA 		1-33519-172-0 02 1 1403-
25 ARM; SHIFT,2ND & 3RD
IMA 		1-33511-642-0 01 1 1403-
29 BLOCK; SHIFT,2ND & 3RD
IMA 		1-33519-081-0 02 1 1403-
36 BLOCK; SHIFT,4TH & 5TH
IMA 		1-33519-170-0 02 1 1403-
49 ARM; SHIFT,4TH & 5TH
IMA 		1-33511-640-0 01 1 1403-
52 BOLT; SHIFT ARM
(B) IMA 		1-33519-190-0 07 1 1403-
52 BOLT; SHIFT ARM
(A) IMA 		1-33519-196-0 02 1 1403-
175 RING; STOPPER,SHIFT LEVER
IMA 		1-33539-103-0 01 1 1403-
531 PLATE; BEARING
(A) IMA 		1-33539-044-0 01 1 1403-
531 PLATE; BEARING
(B) IMA 		1-33539-047-0 01 1 1403-
532 PLATE; SHIFT FORK
(A) IMA 		1-33531-492-0 01 1 1403-
532 PLATE; SHIFT FORK
(B) IMA 		1-33531-493-0 01 1 1403-
532 PLATE; SHIFT FORK
(C) IMA 		1-33531-494-0 01 1 1403-
534 LEVER; LOCK,SHIFT PLATE
IMA 		1-33539-087-0 01 1 1403-
535 SPRING; LEVER
IMA 		1-33539-049-0 01 1 1403-
564 SEAL; RING
(B) IMA 		1-33119-249-0 02 1 1403-
564 SEAL; RING
(A) IMA 		1-33549-578-0 01 1 1403-
617 PLUG
(B) IMA 		1-33119-619-0 02 1 1403-
617 PLUG
(A) IMA 		1-33539-109-0 01 1 1403-

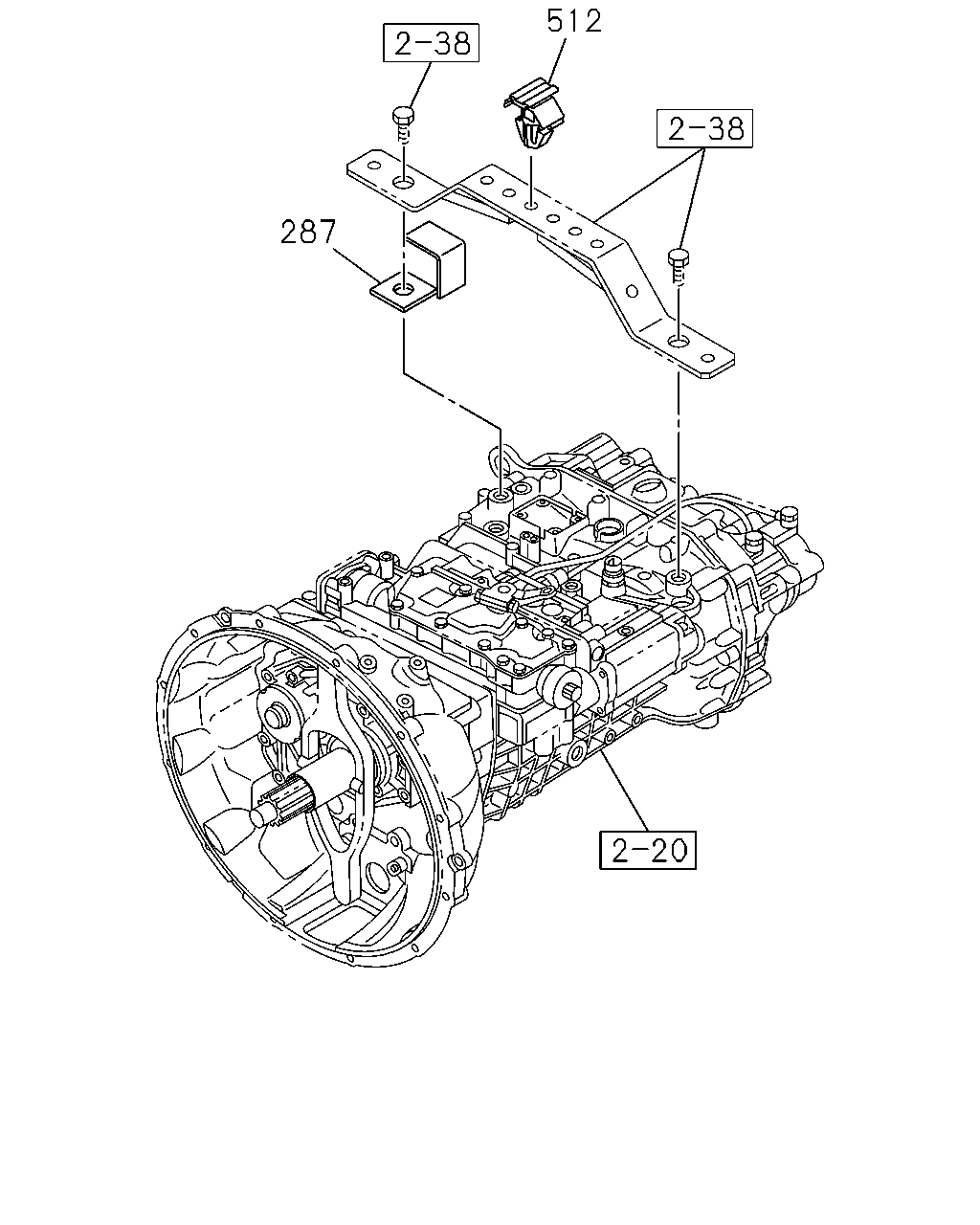

çizim 413821
512 287
BalonParca AdiParca NoAdetTipApplied Date
287 COVER; AIR BREATHER 1-34141-026-0 01 1 1403-
512 CLIP; PIPE
OD=9 H=6 		1-09709-178-0 04 1 1403-
