8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#13624) — 46 parça
◀

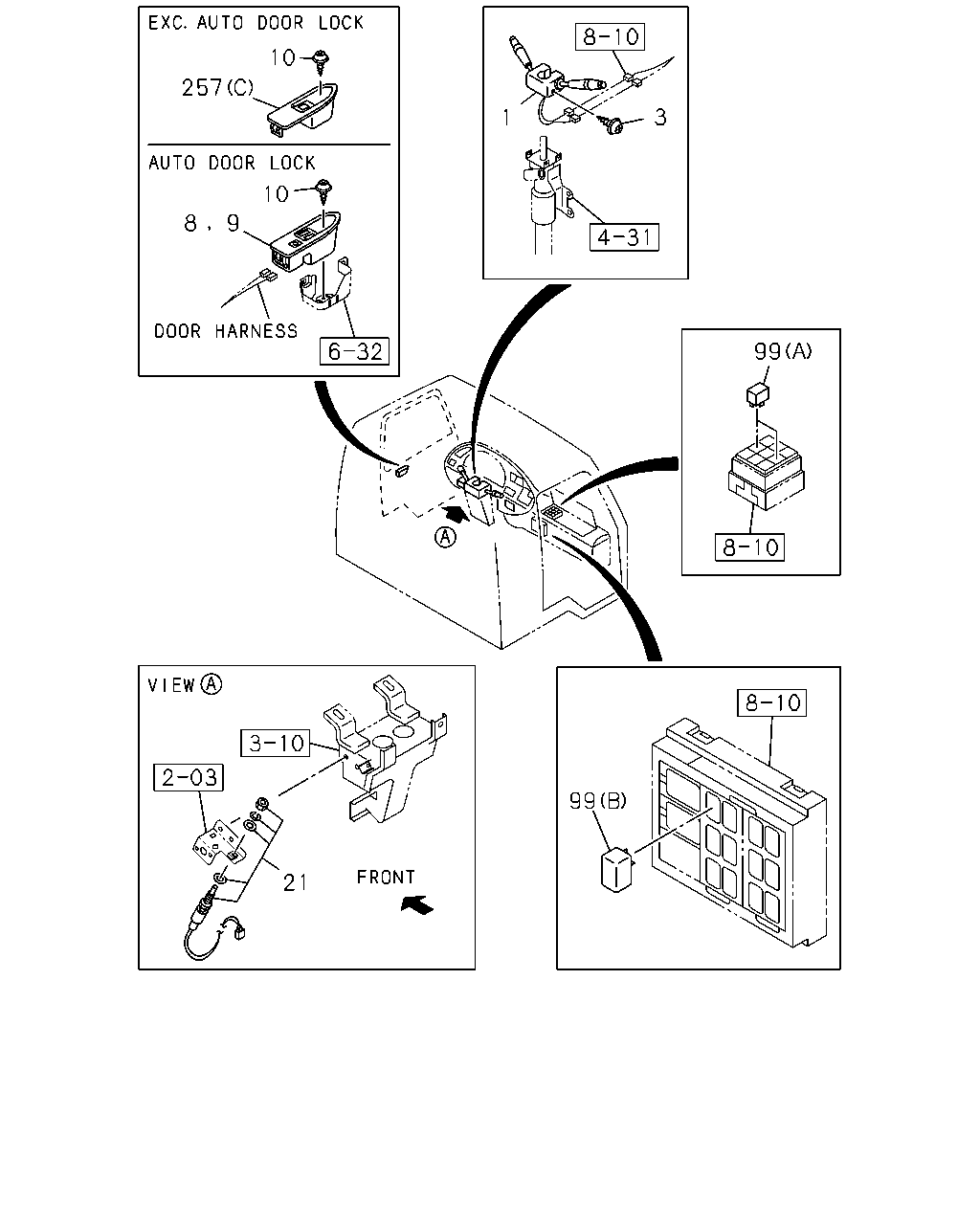

[825A] CAB SIDE NO.1 (14 parça)

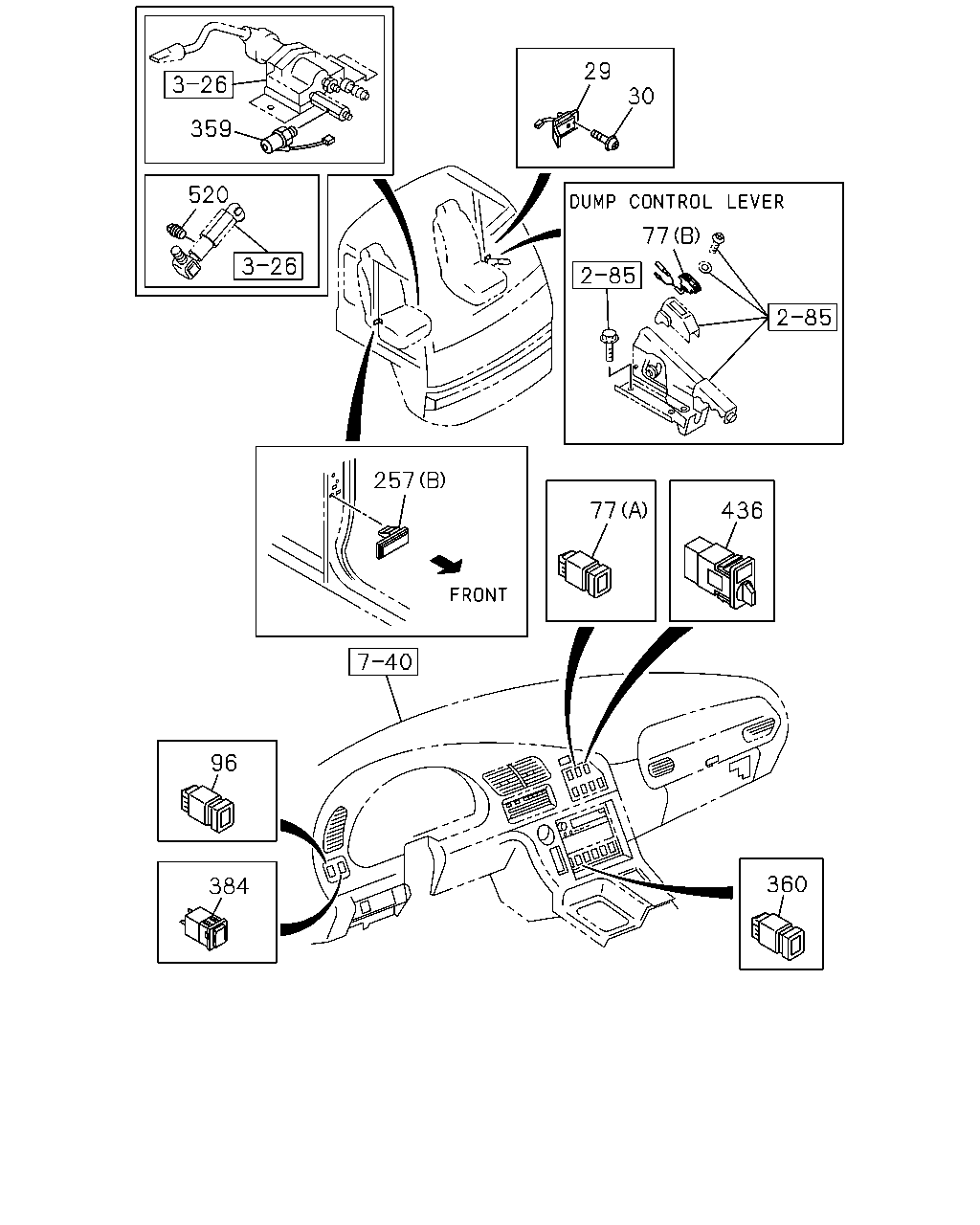

[825A] CAB SIDE NO.2 (14 parça)

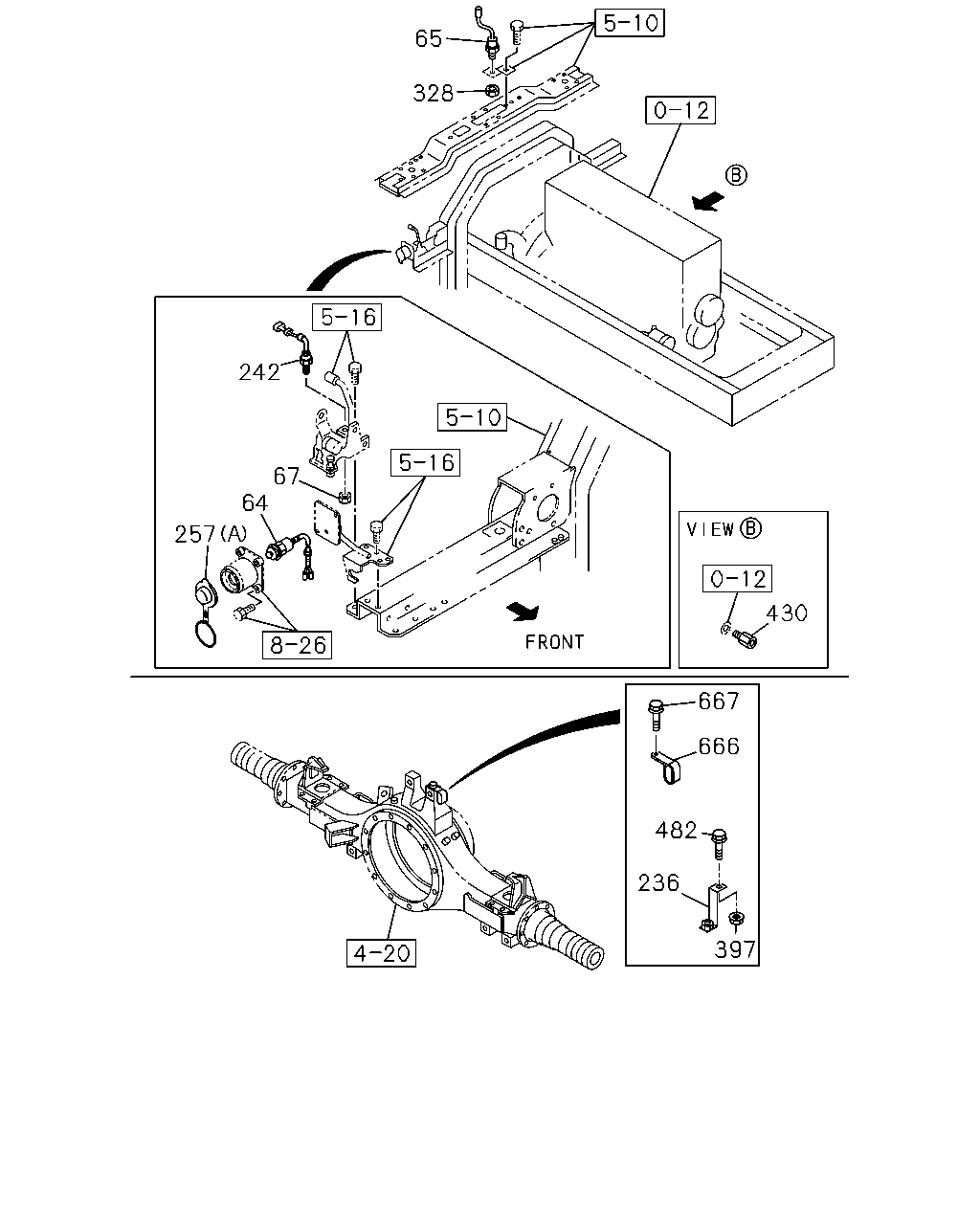

[825A] FRAME SIDE NO.1 (15 parça)
[825A] FRAME SIDE NO.2 (3 parça)
▶
10
257
3
1
10
8
9
99
99
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SWITCH; COMB
FOG LAMP REAR<NHD>
1-82360-704-1
01
1
0611-
1
SWITCH; COMB
1-82360-704-1
01
1
0611-
3
SCREW; COMB SW
M5X12 TAPPING W/PL WASHER
0-74165-512-0
04
1
0611-
8
SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> DRIVER
1-82380-157-4
01
1
0611-
9
SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> PASSENGER
1-82380-158-3
01
1
0611-
10
SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER
0-74360-516-0
02
1
0611-
21
SWITCH; CLU
1-82380-114-3
01
1
0611-
99
RELAY; FOG LAMP
(A) 24V 12.5A PANASONIC
8-97262-933-0
01
1
0611-
99
RELAY; FOG LAMP
FOG LAMP REAR<NHD> (A) 24V 12.5A PANASONIC
8-97262-933-0
01
1
0611-
99
RELAY; FOG LAMP
FOG LAMP REAR<NHD> (B) 24V 10A PANASONIC
8-97173-035-1
02
1
0611-
257
COVER; HOLE,SW
(A)
1-82389-008-0
01
1
0611-
257
COVER; HOLE,SW
(B)
8-94229-914-1
01
1
0611-
257
COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> (C)
1-82389-011-2
01
1
0611-
257
COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> (C)
1-82389-012-2
01
1
0611-
29
30
359
520
77
257
77
436
96
360
384
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
SWITCH; DOOR
8-97855-032-3
01
1
0611-
30
SCREW; DOOR SW
M5X11
1-09981-536-1
01
1
0611-
77
SWITCH; PTO
DUMP CONTROL LEVER<RC4> (B)
1-82380-112-0
01
1
0611-
77
SWITCH; PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A)
1-82340-413-0
01
1
0611-
96
SWITCH; FOG LAMP
1-82340-628-0
01
1
0611-
257
COVER; HOLE,SW
(A)
1-82389-008-0
01
1
0611-
257
COVER; HOLE,SW
(B)
8-94229-914-1
01
1
0611-
257
COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> (C)
1-82389-011-2
01
1
0611-
257
COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> (C)
1-82389-012-2
01
1
0611-
359
SWITCH; TRAILER BRAKE
GREEN
1-82410-176-1
01
1
0611-
360
SWITCH ASM; DIFF LK
1-82340-677-0
01
1
0611-
384
SWITCH; IDLING CONT,ELEC
1-82350-213-1
01
1
0611-
436
SWITCH; HEADLAMP LEVELING
1-82330-043-0
01
1
0611-
520
PLUG; CONNECTOR
PT1/4
9-99204-513-0
01
1
0611-
65
328
242
67
64
257
430
667
666
482
236
397
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
64
SWITCH; CAB TILT MAIN
1-82380-108-0
01
1
0611-
65
SWITCH; CAB TILT LK
STAMP NC
1-82380-125-1
01
1
0611-
67
NUT; SW,CAB TILT
M16 H=18.5
1-09409-013-0
01
1
0611-
236
BRACKET; AXLE HARNESS,RR
1-47476-200-0
01
1
0611-
242
SWITCH
STAMP NO
1-82380-126-0
01
1
0611-
257
COVER; HOLE,SW
(A)
1-82389-008-0
01
1
0611-
257
COVER; HOLE,SW
(B)
8-94229-914-1
01
1
0611-
257
COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> (C)
1-82389-011-2
01
1
0611-
257
COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> (C)
1-82389-012-2
01
1
0611-
328
NUT; SW
M16
0-91110-516-0
01
1
0611-
397
NUT; BRKT FIX
M8 FLANGE
0-91180-108-0
01
1
0611-
430
ADAPTER; SW
M14 & PT1/4 STRAIGHT
1-09669-130-0
01
1
0611-
482
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
01
1
0611-
666
CLIP; AXLE HARNESS
ID=11X2 L=20
1-09700-871-0
04
1
0611-
667
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
04
1
0611-
255
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
255
SWITCH; SEARCH LIGHT
INSPECTION LAMP<T95>
1-82340-360-1
01
1
0611-0706
255
SWITCH; SEARCH LIGHT
INSPECTION LAMP<T95>
8-97621-403-0
01
1
0707-0711
255
SWITCH; SEARCH LIGHT
INSPECTION LAMP<T95>
8-98106-483-0
01
1
0712-
