Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11588 - FXZ/GXZ CNG(THAI)EU3
▶
2 - Clutch, Transmission, Trans Axle
▶
2-20 - MANUAL TRANSMISSION ASM AND CASE
▶
2-20 — MANUAL TRANSMISSION ASM AND CASE
(#136237) — 73 parça
◀

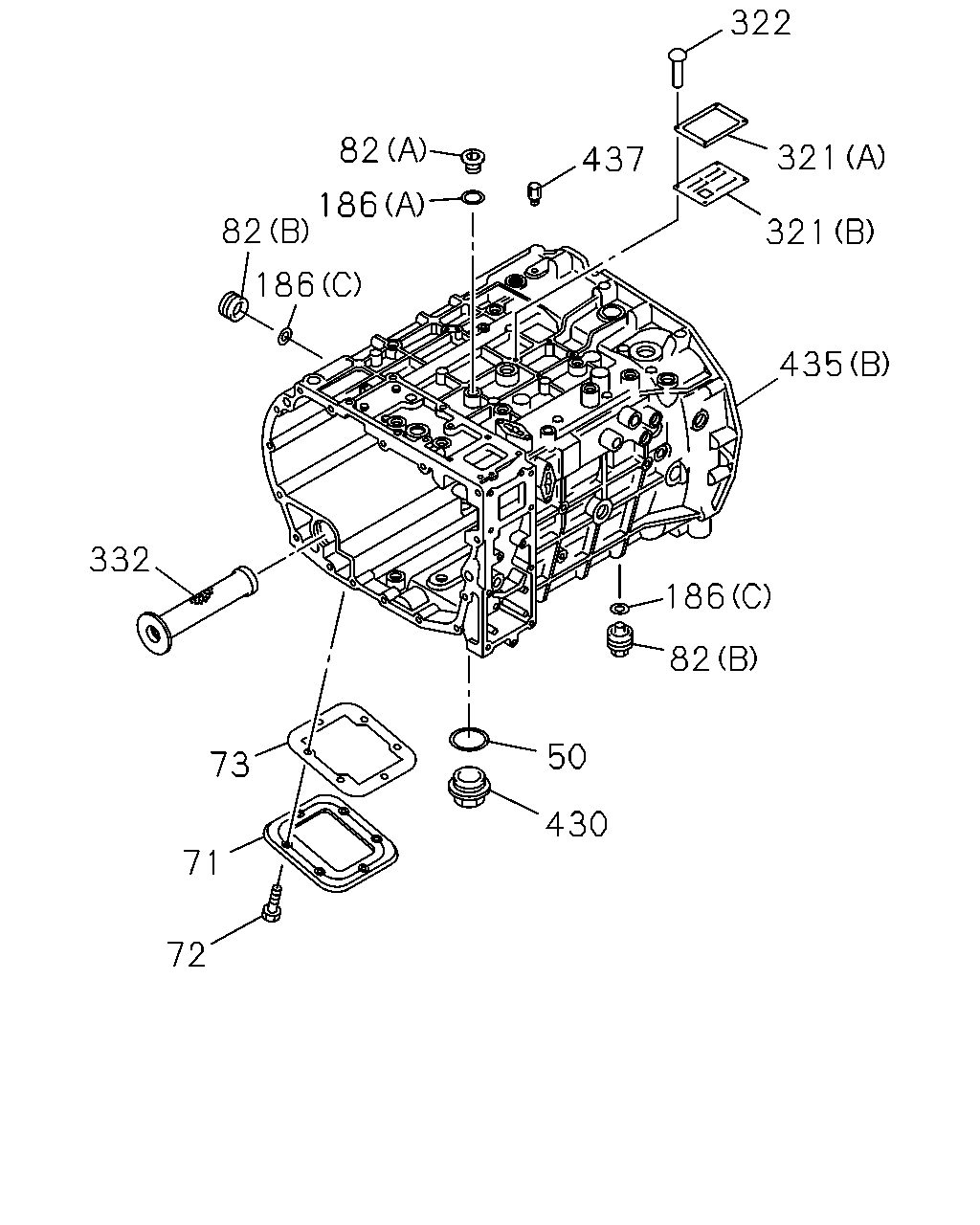

[220A] CASE AND OTHER PARTS (18 parça)

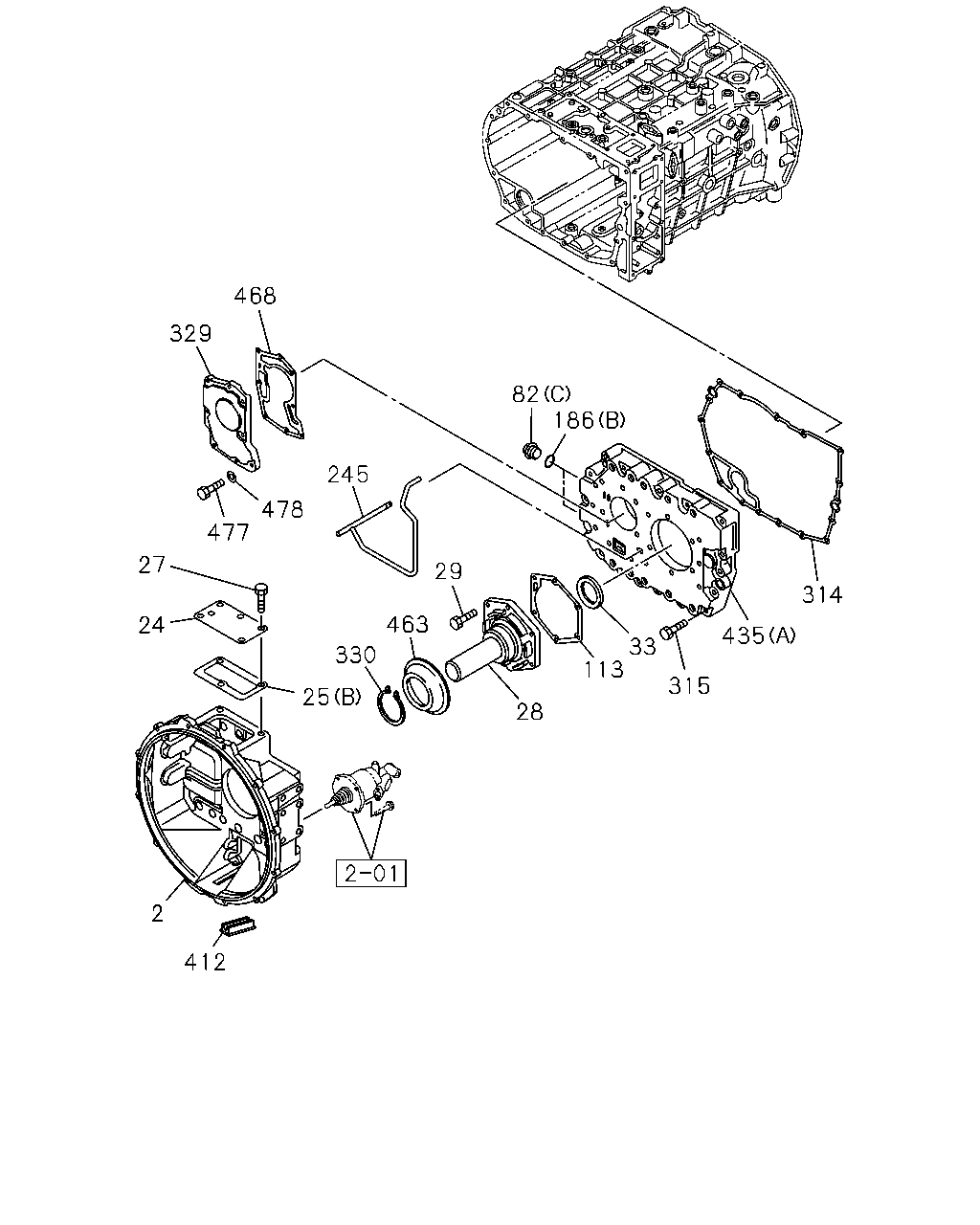

[220A] HOUSING (27 parça)

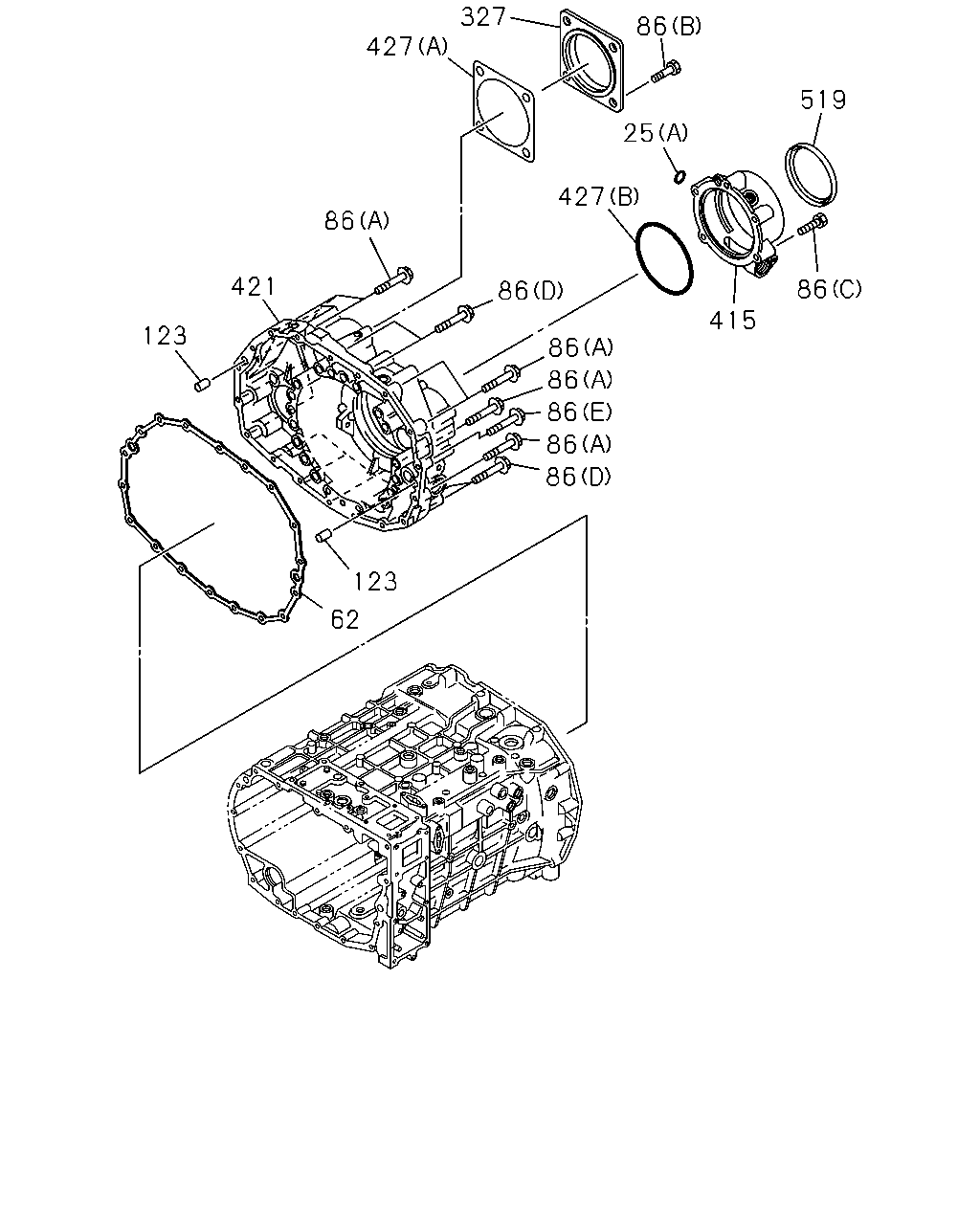

[220A] COVER (15 parça)

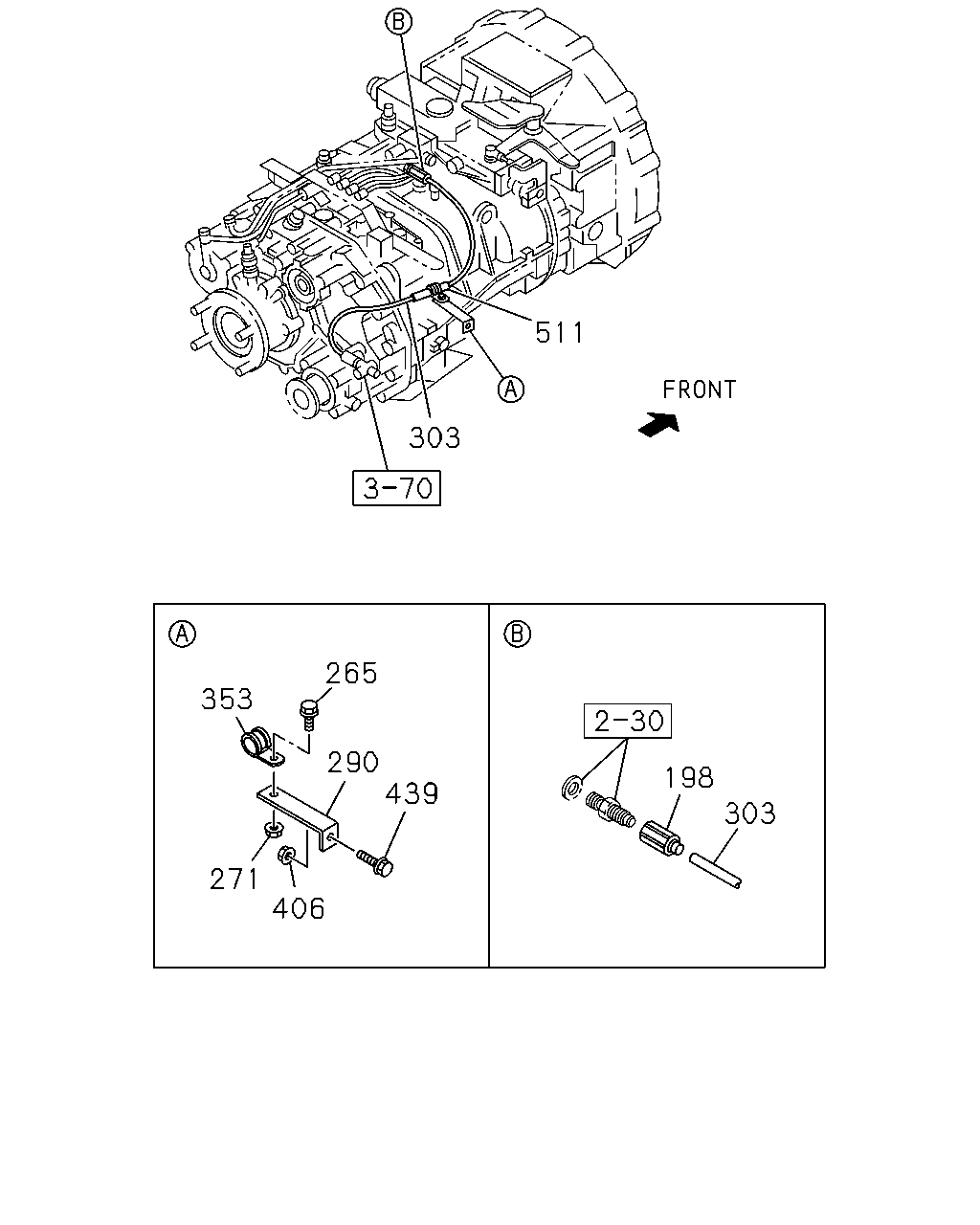

[220A] NYLON TUBE AND CLIP (11 parça)

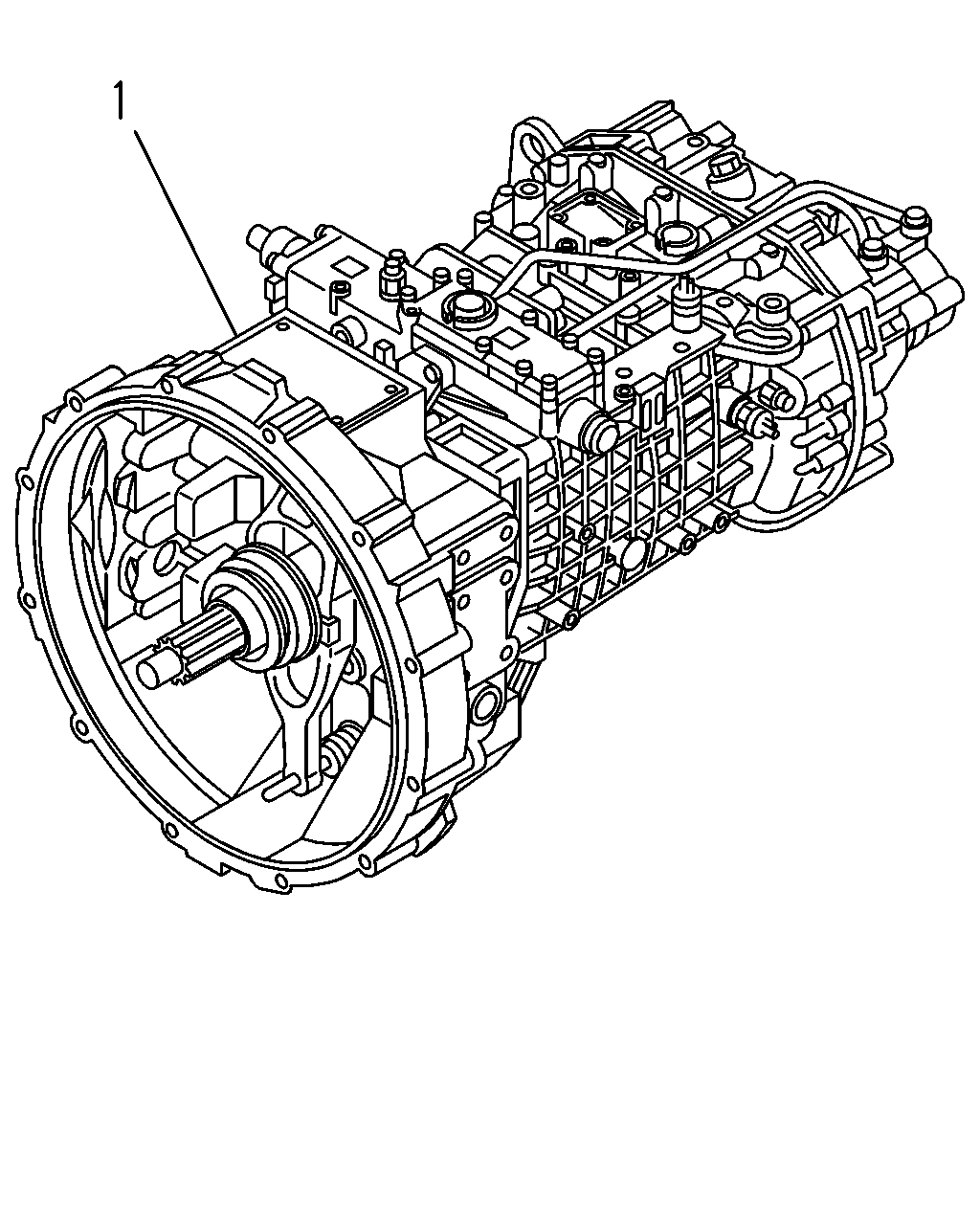

[220A] ASM (2 parça)
▶
82
186
82
186
332
73
71
72
50
430
82
186
435
321
321
322
437
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
50
GASKET; DRAIN PLUG
IMA
1-33119-293-0
01
1
1403-
71
COVER; SIDE,TRANS CASE
IMA
1-33119-622-0
01
1
1403-
72
BOLT; SIDE COVER
M10X22 IMA
1-33119-592-0
06
1
1403-
73
GASKET; SIDE COVER TO TRANS CASE
IMA
1-33119-237-0
01
1
1403-
82
PLUG; SCREW,CASE
(C) IMA
1-33119-618-0
02
1
1403-
82
PLUG; SCREW,CASE
(A) IMA
1-33119-619-0
01
1
1403-
82
PLUG; SCREW,CASE
(B) IMA
1-33119-620-0
02
1
1403-
186
RING; SEAL
(A) IMA
1-33119-249-0
01
1
1403-
186
RING; SEAL
(B) IMA
1-33119-286-0
02
1
1403-
186
RING; SEAL
(C) IMA
1-33119-435-0
02
1
1403-
321
PLATE; NAME
(A) IMA
1-33119-519-0
01
1
1403-
321
PLATE; NAME
(B) IMA
1-33119-520-0
01
1
1403-
322
RIVET; NAME PLATE
IMA
1-33119-617-0
04
1
1403-
332
FILTER; OIL
IMA
1-33119-437-0
01
1
1403-
430
PLUG; OIL DRAIN
IMA
1-33119-621-0
01
1
1403-
435
CASE; TRANS
(B) IMA
1-33111-372-0
01
1
1403-
435
CASE; TRANS
(A) IMA
1-33111-380-0
01
1
1403-
437
BREATHER; TRANS
IMA
1-36122-006-0
01
1
1403-
314
186
82
435
315
33
113
28
29
245
468
329
478
477
27
24
330
463
25
2
412
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
HOUSING; CLU
IMA
1-31111-232-0
01
1
1403-
24
COVER; CHECK HOLE,DUST
IMA
1-31119-061-0
01
1
1403-
25
GASKET; COVER
(A) IMA
1-33139-060-0
01
1
1403-
25
GASKET; COVER
(B)
8-98138-242-0
01
1
1403-
27
BOLT; COVER TO CLU HSG
IMA
1-31119-058-0
03
1
1403-
28
COVER; FRT,TRANS CASE
IMA
1-33121-167-0
01
1
1403-
29
BOLT; FRT COVER
M8X30 IMA
1-33549-581-0
06
1
1403-
33
SEAL; OIL,FRT COVER,T/M
IMA
1-33219-321-0
01
1
1403-
82
PLUG; SCREW,CASE
(C) IMA
1-33119-618-0
02
1
1403-
82
PLUG; SCREW,CASE
(A) IMA
1-33119-619-0
01
1
1403-
82
PLUG; SCREW,CASE
(B) IMA
1-33119-620-0
02
1
1403-
113
GASKET; FRT COVER TO TRANS CASE
IMA
1-33122-024-0
01
1
1403-
186
RING; SEAL
(A) IMA
1-33119-249-0
01
1
1403-
186
RING; SEAL
(B) IMA
1-33119-286-0
02
1
1403-
186
RING; SEAL
(C) IMA
1-33119-435-0
02
1
1403-
245
PIPE; OIL
IMA
1-33119-517-0
01
1
1403-
314
GASKET; CASE
IMA
1-33112-052-0
01
1
1403-
315
BOLT; CASE
M10X70 IMA
1-33119-616-0
17
1
1403-
329
PUMP ASM; OIL
IMA
1-34150-123-0
01
1
1403-
330
RING; RET
IMA
1-33129-005-0
01
1
1403-
412
CAP; CLU HSG
IMA
1-31119-015-0
01
1
1403-
435
CASE; TRANS
(B) IMA
1-33111-372-0
01
1
1403-
435
CASE; TRANS
(A) IMA
1-33111-380-0
01
1
1403-
463
COVER; DUST,FRT COVER
IMA
1-33129-018-0
01
1
1403-
468
GASKET; OIL PUMP
IMA
1-34159-122-0
01
1
1403-
477
BOLT; OIL PUMP
M8X30 IMA
1-33549-581-0
08
1
1403-
478
WASHER; LK,OIL PUMP
IMA
1-33549-583-0
08
1
1403-
86
86
86
86
86
86
86
86
86
327
427
25
519
427
415
421
123
123
62
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
25
GASKET; COVER
(A) IMA
1-33139-060-0
01
1
1403-
25
GASKET; COVER
(B)
8-98138-242-0
01
1
1403-
62
GASKET; RR COVER
IMA
1-33132-087-0
01
1
1403-
86
BOLT; RR COVER
(A) M10X70 IMA
1-33119-616-0
12
1
1403-
86
BOLT; RR COVER
(D) M10X110 IMA
1-33139-235-0
05
1
1403-
86
BOLT; RR COVER
(E) M10X50 IMA
1-33139-236-0
01
1
1403-
86
BOLT; RR COVER
(C) M10X60 IMA
1-33139-237-0
05
1
1403-
86
BOLT; RR COVER
EXC. PTO ZF TRANS RR<BDM> (B) M12X25 IMA
1-33119-594-0
04
1
1403-
123
DOWEL; TRANS CASE
IMA
1-33119-292-0
04
1
1403-
327
COVER; RR,COUNTER
EXC. PTO ZF TRANS RR<BDM> IMA
1-33131-273-0
01
1
1403-
415
COVER; BRG
IMA
1-33131-269-0
01
1
1403-
421
COVER; RR,TRANS
IMA
1-33131-275-0
01
1
1403-
427
GASKET; RR COVER
(B) IMA
1-33132-088-0
01
1
1403-
427
GASKET; RR COVER
EXC. PTO ZF TRANS RR<BDM> (A) IMA
1-33132-054-0
01
1
1403-
519
GASKET; SHAFT
IMA
1-33139-059-0
01
1
1403-
511
303
265
353
290
439
271
406
198
303
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
198
ADAPTER; NYLON TUBE
DIN8 & M12 STRAIGHT
1-09660-873-0
01
1
1403-
265
BOLT; CLIP
FXZ<FG****> M8X25 FLANGE THA
0-28650-825-0
01
1
1403-
265
BOLT; CLIP
GXZ<GG****> M8X20 FLANGE THA
0-28650-820-0
01
1
1403-
271
NUT; CLIP
M8 FLANGE THA
0-91180-108-0
01
1
1403-
290
BRACKET; CLIP
GXZ<GG****> L=95
1-82699-085-0
01
1
1403-
303
TUBE; NYLON
SERVICED BY L=2000 OD=8 THA
1-87411-006-0
01
1
1403-
353
CLIP; NYLON TUBE
FXZ<FG****> ID=18 L=25 H=50
1-09701-096-0
01
1
1403-
353
CLIP; NYLON TUBE
GXZ<GG****> ID=18 L=40
1-09701-111-0
01
1
1403-
406
NUT; BRKT
GXZ<GG****> M8 FLANGE THA
0-91180-108-0
01
1
1403-
439
BOLT; BRKT
GXZ<GG****> M8X25 FLANGE THA
0-28650-825-0
01
1
1403-
511
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 THA
1-87411-019-0
01
1
1403-
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR<BDM> IMA
8-98167-318-1
01
1
1403-
1
TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR<BDM> IMA
8-98167-317-1
01
1
1403-
