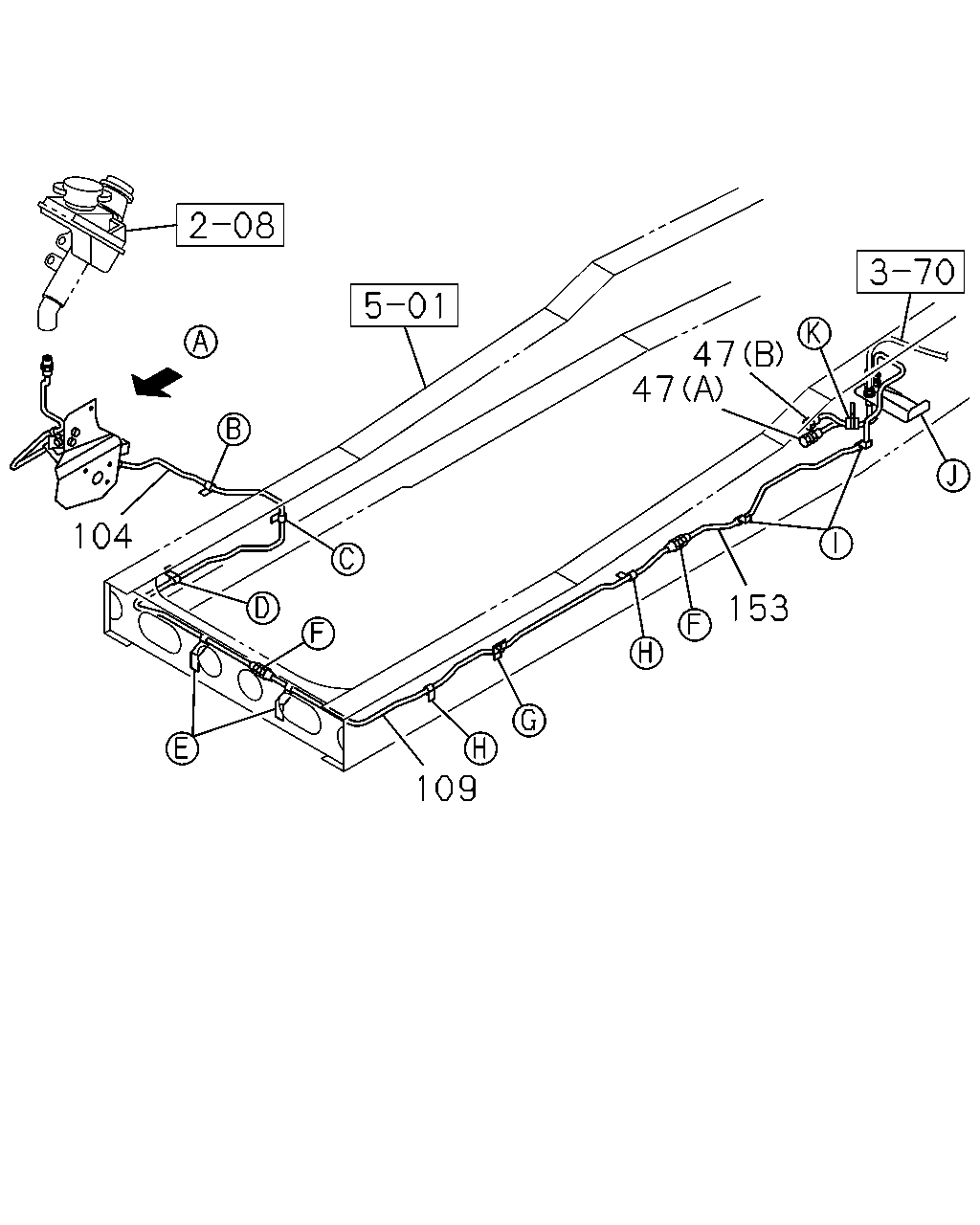

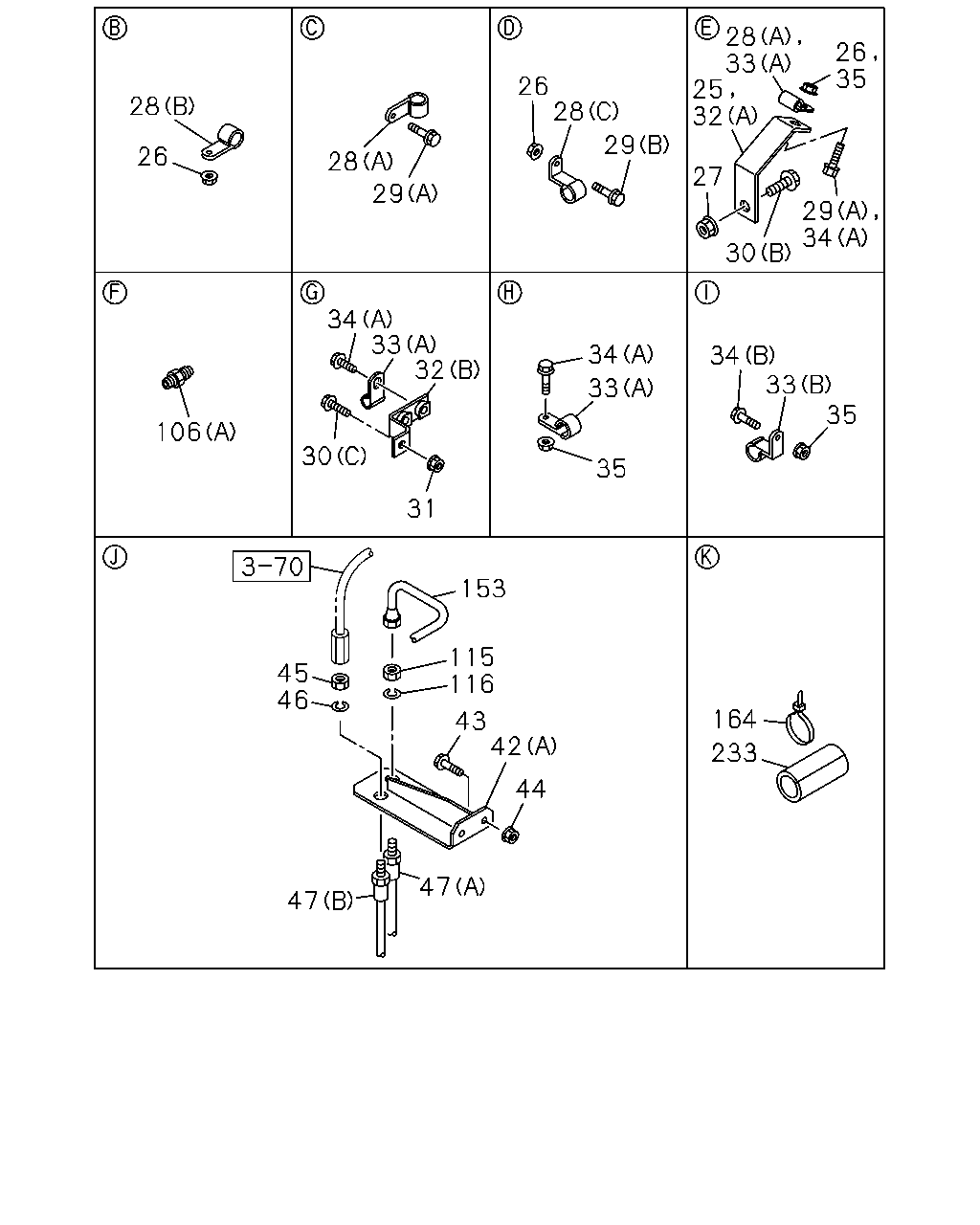

2-05 — CLUTCH PIPING (#136235) — 62 parça

210 101 235 210 16 42 16 207 210 106 16 27 30 42 51 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; FLEX HOSE ID=16 L=28	1-09700-872-0	03	1	1403-	●	●
27	NUT; BRKT M10 FLANGE THA	0-91180-210-0	01	1	1403-	●	●
27	NUT; BRKT M10 FLANGE THA	0-91180-210-0	03	1	1403-	●	●
30	BOLT; BRKT (A) M8X25 FLANGE THA	0-28650-825-0	02	1	1403-	●	●
30	BOLT; BRKT (C) M8X35 FLANGE THA	0-28650-835-0	01	1	1403-	●	●
30	BOLT; BRKT (B) M10X25 FLANGE THA	0-28651-025-0	02	1	1403-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-912-1	01	1	1403-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B) THA	8-97948-682-0	01	1	1403-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (C) THA	8-98179-878-0	01	1	1403-	●	●
51	WASHER; LK ID=14.2	0-91510-514-0	01	1	1403-	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE THA	8-97948-689-0	01	1	1403-	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	1403-	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	1403-	●	●
106	UNION; OIL PIPE (B)	1-09654-191-1	01	1	1403-	●	●
107	NUT; UNION,OIL PIPE M14	0-91111-514-0	01	1	1403-	●	●
207	BOLT; CLIP M8X20 FLANGE THA	0-28650-820-0	01	1	1403-	●	●
210	NUT; CLIP M8 FLANGE THA	0-91180-108-0	03	1	1403-	●	●
235	GASKET; FLEX HOSE ID=10.2 OD=16.0 THA	9-09571-410-0	01	1	1403-	●	●

28 26 28 29 28 26 29 30 34 29 27 32 25 33 28 26 35 34 35 33 33 34 35 32 33 34 30 31 106 153 115 116 43 42 44 164 233 47 47 46 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	BRACKET; OIL PIPE	8-98123-059-0	01	1	1403-	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE THA	0-91180-108-0	03	1	1403-	●	●
27	NUT; BRKT M10 FLANGE THA	0-91180-210-0	01	1	1403-	●	●
27	NUT; BRKT M10 FLANGE THA	0-91180-210-0	03	1	1403-	●	●
28	CLIP; OIL PIPE (A) ID=9 L=20	0-95234-835-0	02	1	1403-	●	●
28	CLIP; OIL PIPE (B) ID=9 L=40	0-95234-875-0	01	1	1403-	●	●
28	CLIP; OIL PIPE (C) ID=8 H=20 L=20	1-09700-604-0	01	1	1403-	●	●
29	BOLT; CLIP,OIL PIPE (A) M8X25 FLANGE THA	0-28650-825-0	02	1	1403-	●	●
29	BOLT; CLIP,OIL PIPE (B) M8X30 FLANGE THA	0-28650-830-0	01	1	1403-	●	●
30	BOLT; BRKT (A) M8X25 FLANGE THA	0-28650-825-0	02	1	1403-	●	●
30	BOLT; BRKT (C) M8X35 FLANGE THA	0-28650-835-0	01	1	1403-	●	●
30	BOLT; BRKT (B) M10X25 FLANGE THA	0-28651-025-0	02	1	1403-	●	●
31	NUT; BRKT M8 FLANGE THA	0-91180-108-0	01	1	1403-	●	●
31	NUT; BRKT M10 FLANGE THA	0-91180-210-0	01	1	1403-	●	●
32	BRACKET; CLIP OIL PIPE (B)	1-47479-482-0	01	1	1403-	●	●
32	BRACKET; CLIP OIL PIPE (A)	8-98123-059-0	01	1	1403-	●	●
33	CLIP; OIL PIPE (A) ID=9 L=20	0-95234-835-0	04	1	1403-	●	●
33	CLIP; OIL PIPE (B) ID=8 H=20 L=20	1-09700-604-0	02	1	1403-	●	●
34	BOLT; PIPE CLIP (A) M8X25 FLANGE THA	0-28650-825-0	04	1	1403-	●	●
34	BOLT; PIPE CLIP (B) M8X30 FLANGE THA	0-28650-830-0	02	1	1403-	●	●
35	NUT; PIPE CLIP M8 FLANGE THA	0-91180-108-0	02	1	1403-	●	●
35	NUT; PIPE CLIP M8 FLANGE THA	0-91180-108-0	02	1	1403-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-912-1	01	1	1403-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B) THA	8-97948-682-0	01	1	1403-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (C) THA	8-98179-878-0	01	1	1403-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE THA	0-28650-835-0	02	1	1403-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE THA	0-91180-108-0	02	1	1403-	●	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	1403-	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	01	1	1403-	●	●
47	HOSE; FLEX,CLU CONT (A) L=350	1-09363-624-0	01	1	1403-	●	●
47	HOSE; FLEX,CLU CONT (B) L=370	8-98072-331-0	01	1	1403-	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	1403-	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	1403-	●	●
106	UNION; OIL PIPE (B)	1-09654-191-1	01	1	1403-	●	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1403-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	1403-	●	●
153	PIPE ASM; CLU,UNION TO FLEX L=1155 SERVICED BY L=1250	1-47428-764-0	01	1	1403-	●	●
164	CLIP; BAND,FLEX HOSE L=350	1-09707-183-0	01	1	1403-	●	●
233	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	1403-	●	●

104 109 153 47 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	HOSE; FLEX,CLU CONT (A) L=350	1-09363-624-0	01	1	1403-	●	●
47	HOSE; FLEX,CLU CONT (B) L=370	8-98072-331-0	01	1	1403-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1747 SERVICED BY L=1800	1-47428-768-0	01	1	1403-	●	●
109	PIPE; AIR,UNION TO UNION L=1680 SERVICED BY L=1700	1-47428-767-0	01	1	1403-	●	●
153	PIPE ASM; CLU,UNION TO FLEX L=1155 SERVICED BY L=1250	1-47428-764-0	01	1	1403-	●	●
