1-50 — EXHAUST PIPE AND SILENCER (#136230) — 126 parça

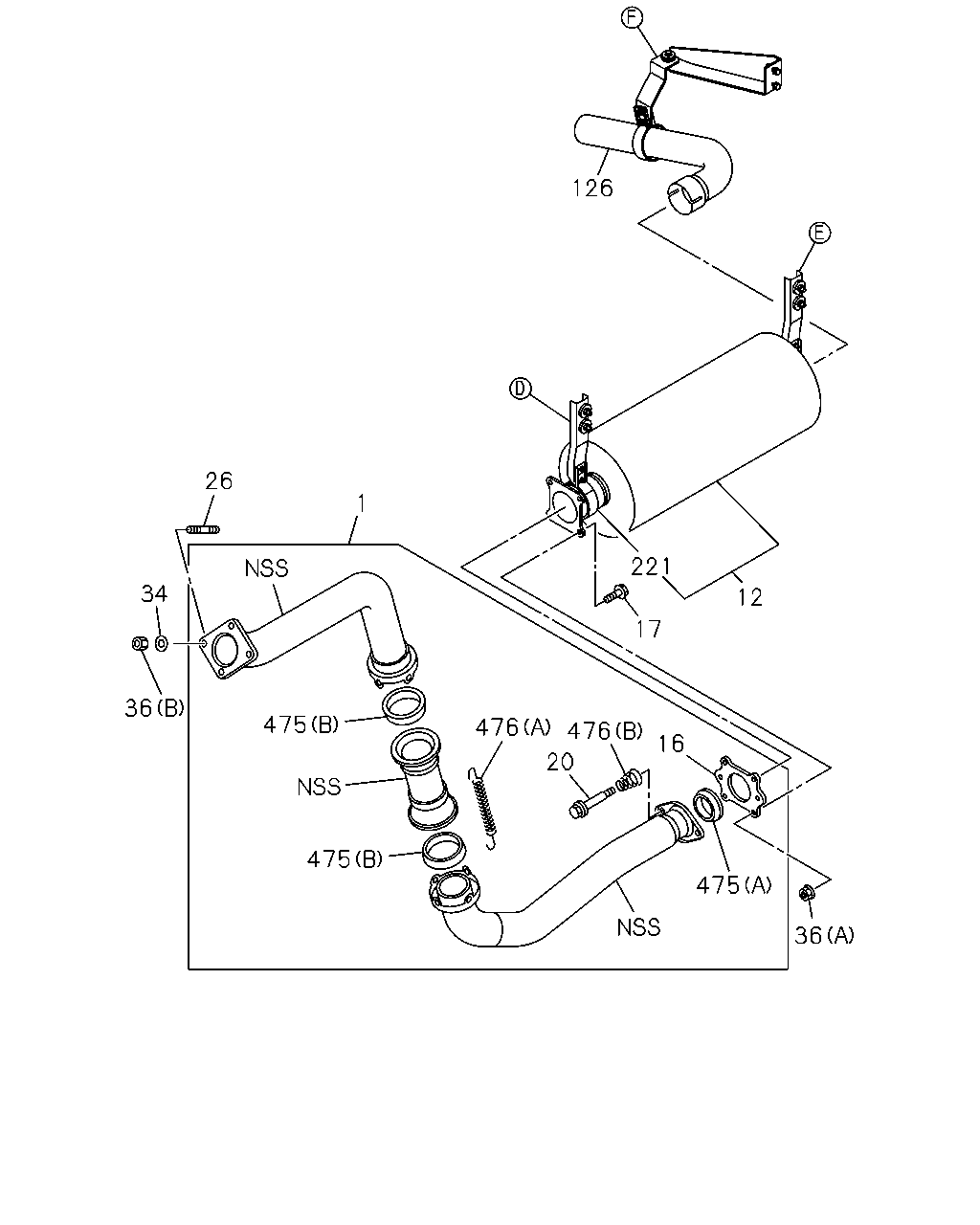

1 126 12 221 17 476 476 16 36 475 20 475 475 36 34 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH THA	8-97925-896-0	01	1	1403-1403	●
1	PIPE; EXH THA	8-97925-896-0	01	1	1404-	●
1	PIPE; EXH THA	8-97925-765-0	01	1	1403-		●
12	SILENCER ASM; EXH	8-98203-518-1	01	1	1403-	●	●
16	FLANGE; EXH PIPE THA	1-22115-217-0	01	1	1403-1403	●	●
16	FLANGE; EXH PIPE THA	1-22115-217-0	01	1	1404-	●	●
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	04	1	1403-	●	●
20	BOLT; FLANGE,EXH PIPE M10X51.4 THA	8-94436-943-0	02	1	1403-1403	●	●
20	BOLT; FLANGE,EXH PIPE M10X51.4 THA	8-94436-943-0	02	1	1404-	●	●
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	04	1	1403-	●	●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	04	1	1403-	●	●
36	NUT; EXH PIPE (A) M12	0-91110-512-0	04	1	1403-	●	●
36	NUT; EXH PIPE (B) M12	1-09400-131-0	04	1	1403-	●	●
126	PIPE; EXH,RR THA	8-97925-780-0	01	1	1403-		●
221	CLAMP; EXH SILENCER D=101.4	1-22133-170-1	01	1	1403-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=112 THA	1-22119-294-0	01	1	1403-1403	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=112 THA	1-22119-294-1	01	1	1404-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=122	1-22119-297-0	02	1	1403-1403	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=122 THA	1-22119-297-1	02	1	1404-	●	●
476	SPRING; VIBNON,EXH PIPE (A) THA	1-09583-248-0	04	1	1403-1403	●	●
476	SPRING; VIBNON,EXH PIPE (A) THA	1-09583-248-0	04	1	1404-	●	●
476	SPRING; VIBNON,EXH PIPE (B) THA	8-94141-851-0	02	1	1403-1403	●	●
476	SPRING; VIBNON,EXH PIPE (B) THA	8-94141-851-0	02	1	1404-	●	●

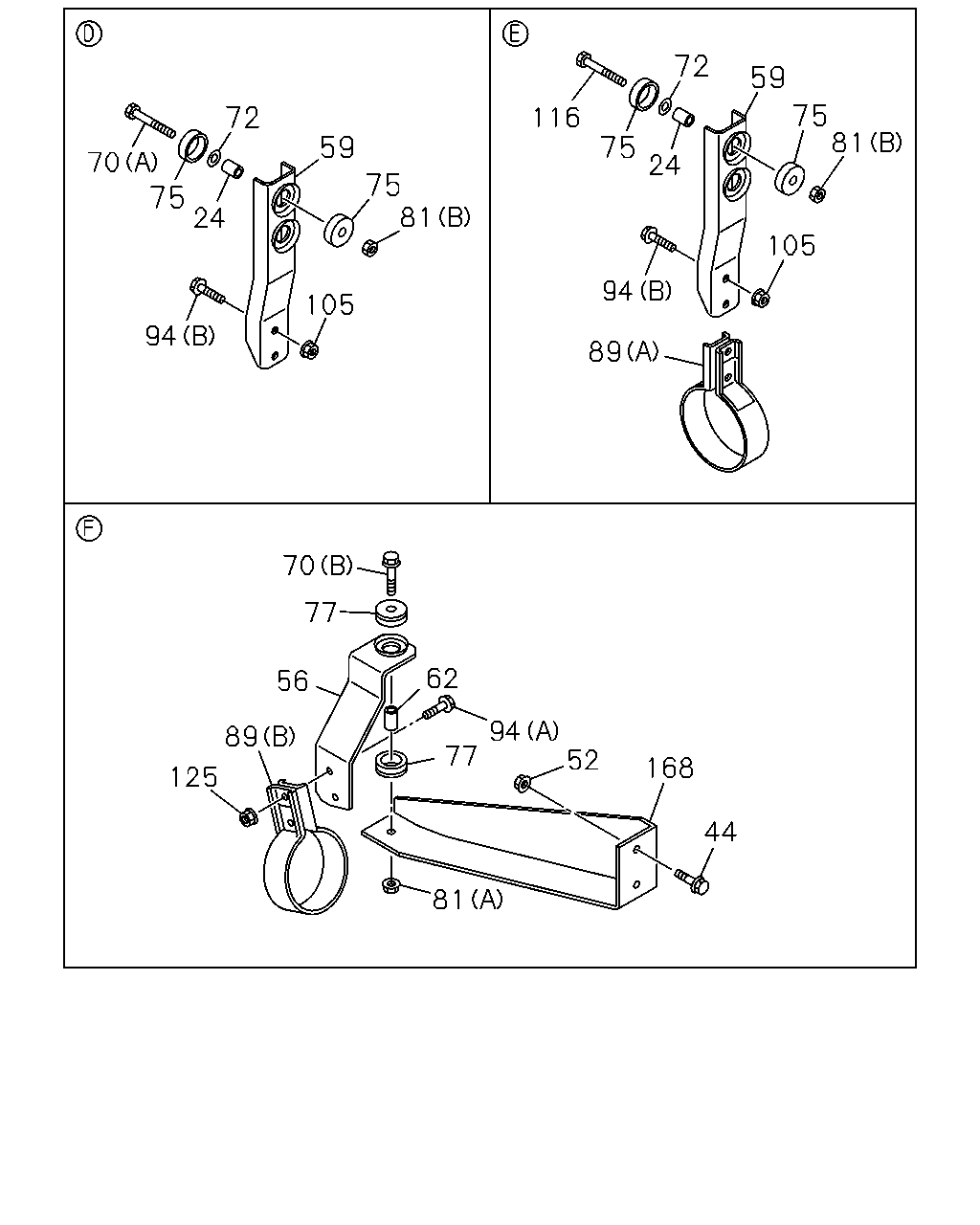

44 168 81 77 52 62 77 70 56 89 125 89 94 24 105 45 116 72 75 59 81 59 81 75 105 94 24 75 70 72 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	1403-	●	●
44	BOLT; BRKT M10X35 FLANGE THA	0-28051-035-0	02	1	1403-1403	●
44	BOLT; BRKT M10X35 FLANGE THA	0-28051-035-0	02	1	1404-	●
44	BOLT; BRKT M10X35 FLANGE THA	0-28651-035-0	02	1	1403-		●
52	NUT; BRKT M10 FLANGE THA	0-91180-210-0	02	1	1403-1403	●	●
52	NUT; BRKT M10 FLANGE THA	0-91180-210-0	02	1	1404-	●	●
56	BRACKET; CLAMP,EXH PIPE THA	8-97926-043-0	01	1	1403-1403	●
56	BRACKET; CLAMP,EXH PIPE THA	8-97926-043-0	01	1	1404-	●
56	BRACKET; CLAMP,EXH PIPE THA	8-97925-781-0	01	1	1403-		●
59	BRACKET; EXH SILENCER,FRT THA	8-97924-889-0	02	1	1403-	●
59	BRACKET; EXH SILENCER,FRT	8-98055-106-0	02	1	1403-		●
62	TUBE; DIST,BRKT L=22	9-22159-024-0	01	1	1403-1403	●	●
62	TUBE; DIST,BRKT L=22	9-22159-024-0	01	1	1404-	●	●
70	BOLT; BRKT (A) M10X50	0-10856-050-0	01	1	1403-	●
70	BOLT; BRKT (A) M10X60	0-10856-060-0	01	1	1403-	●
70	BOLT; BRKT (B) M10X50 FLANGE THA	0-28051-050-0	01	1	1403-1403	●	●
70	BOLT; BRKT (B) M10X50 FLANGE THA	0-28051-050-0	01	1	1404-	●	●
70	BOLT; BRKT (A) M10X60	0-10856-060-0	02	1	1403-		●
72	WASHER; LK,BRKT ID=10.2	0-91510-810-0	04	1	1403-	●	●
75	RUBBER; SUPPORT,BRKT OD=40 THA	1-22159-094-0	02	1	1403-1403	●
75	RUBBER; SUPPORT,BRKT OD=40 THA	1-22159-094-0	02	1	1404-	●
75	RUBBER; SUPPORT,BRKT OD=40 THA	1-22159-094-0	08	1	1403-	●	●
77	RUBBER; CUSHION,BRKT OD=40 THA	1-22159-094-0	02	1	1403-		●
81	NUT; BRKT (B) M10 THA	0-91110-510-0	04	1	1403-	●	●
81	NUT; BRKT (A) M10 FLANGE THA	0-91180-210-0	01	1	1403-1403	●	●
81	NUT; BRKT (A) M10 FLANGE THA	0-91180-210-0	01	1	1404-	●	●
89	CLAMP; EXH SILENCER,RR (A)	1-22133-276-0	01	1	1403-	●	●
89	CLAMP; EXH SILENCER,RR (B) D=101.4	1-22133-170-1	01	1	1403-		●
94	BOLT; CLAMP (B) M8X35 FLANGE THA	0-28050-835-0	04	1	1403-	●	●
94	BOLT; CLAMP (A) M8X35 FLANGE THA	0-28650-835-0	02	1	1403-1403	●	●
94	BOLT; CLAMP (A) M8X35 FLANGE THA	0-28650-835-0	02	1	1404-	●	●
105	NUT; CLAMP M8 FLANGE THA	0-91180-108-0	04	1	1403-	●	●
116	BOLT; BRKT M10X50	0-10856-050-0	02	1	1403-	●
116	BOLT; BRKT M10X60	0-10856-060-0	02	1	1403-		●
125	NUT; CLAMP M8 FLANGE THA	0-91180-108-0	02	1	1403-1403	●	●
125	NUT; CLAMP M8 FLANGE THA	0-91180-108-0	02	1	1404-	●	●
168	BRACKET; EXH PIPE,FRT THA	8-98200-861-1	01	1	1403-		●

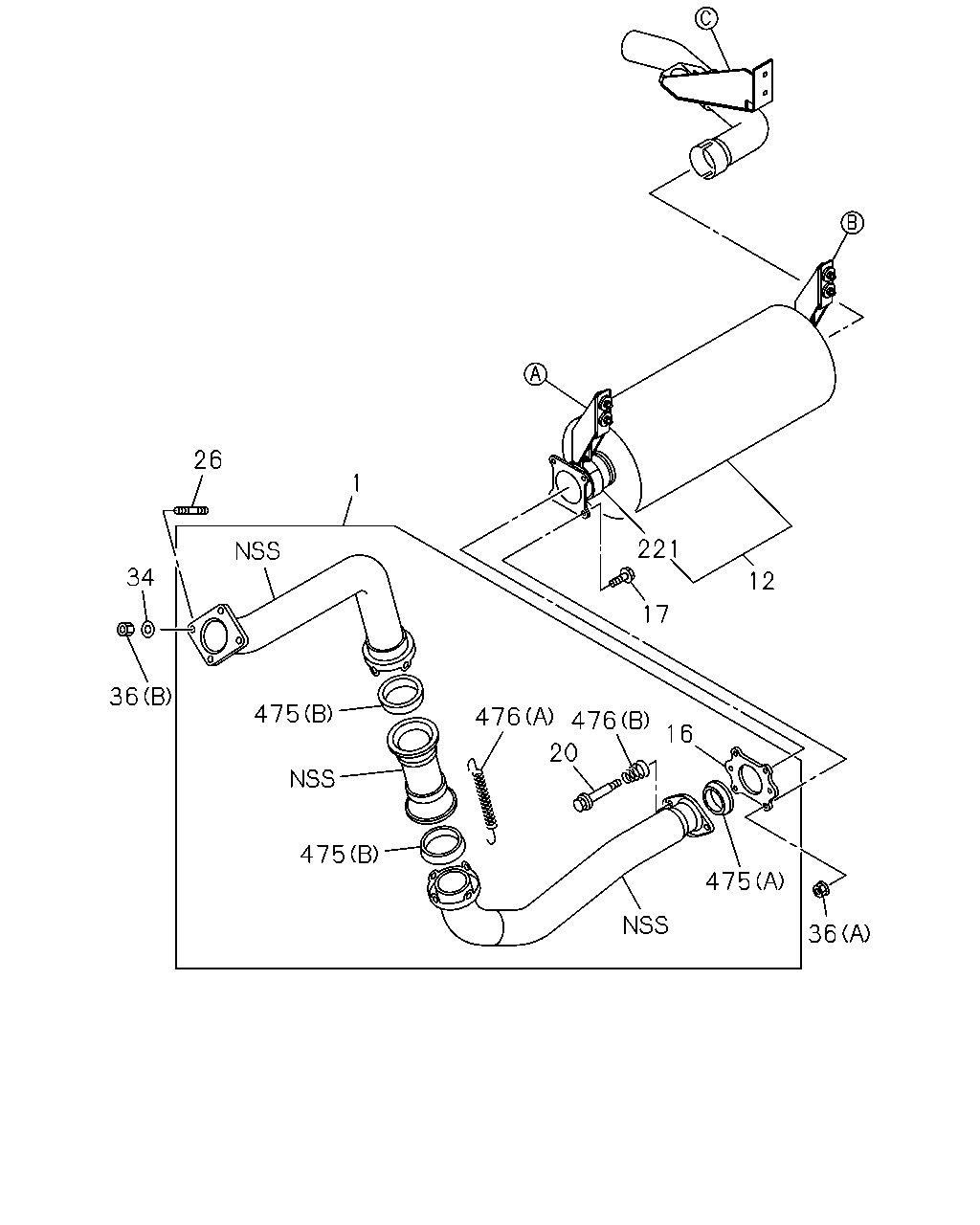

1 26 34 36 475 475 476 476 20 16 475 36 17 221 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH THA	8-97925-896-0	01	1	1403-1403	●
1	PIPE; EXH THA	8-97925-896-0	01	1	1404-	●
1	PIPE; EXH THA	8-97925-765-0	01	1	1403-		●
12	SILENCER ASM; EXH	8-98203-518-1	01	1	1403-	●	●
16	FLANGE; EXH PIPE THA	1-22115-217-0	01	1	1403-1403	●	●
16	FLANGE; EXH PIPE THA	1-22115-217-0	01	1	1404-	●	●
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	04	1	1403-	●	●
20	BOLT; FLANGE,EXH PIPE M10X51.4 THA	8-94436-943-0	02	1	1403-1403	●	●
20	BOLT; FLANGE,EXH PIPE M10X51.4 THA	8-94436-943-0	02	1	1404-	●	●
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	04	1	1403-	●	●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	04	1	1403-	●	●
36	NUT; EXH PIPE (A) M12	0-91110-512-0	04	1	1403-	●	●
36	NUT; EXH PIPE (B) M12	1-09400-131-0	04	1	1403-	●	●
221	CLAMP; EXH SILENCER D=101.4	1-22133-170-1	01	1	1403-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=112 THA	1-22119-294-0	01	1	1403-1403	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=112 THA	1-22119-294-1	01	1	1404-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=122	1-22119-297-0	02	1	1403-1403	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=122 THA	1-22119-297-1	02	1	1404-	●	●
476	SPRING; VIBNON,EXH PIPE (A) THA	1-09583-248-0	04	1	1403-1403	●	●
476	SPRING; VIBNON,EXH PIPE (A) THA	1-09583-248-0	04	1	1404-	●	●
476	SPRING; VIBNON,EXH PIPE (B) THA	8-94141-851-0	02	1	1403-1403	●	●
476	SPRING; VIBNON,EXH PIPE (B) THA	8-94141-851-0	02	1	1404-	●	●

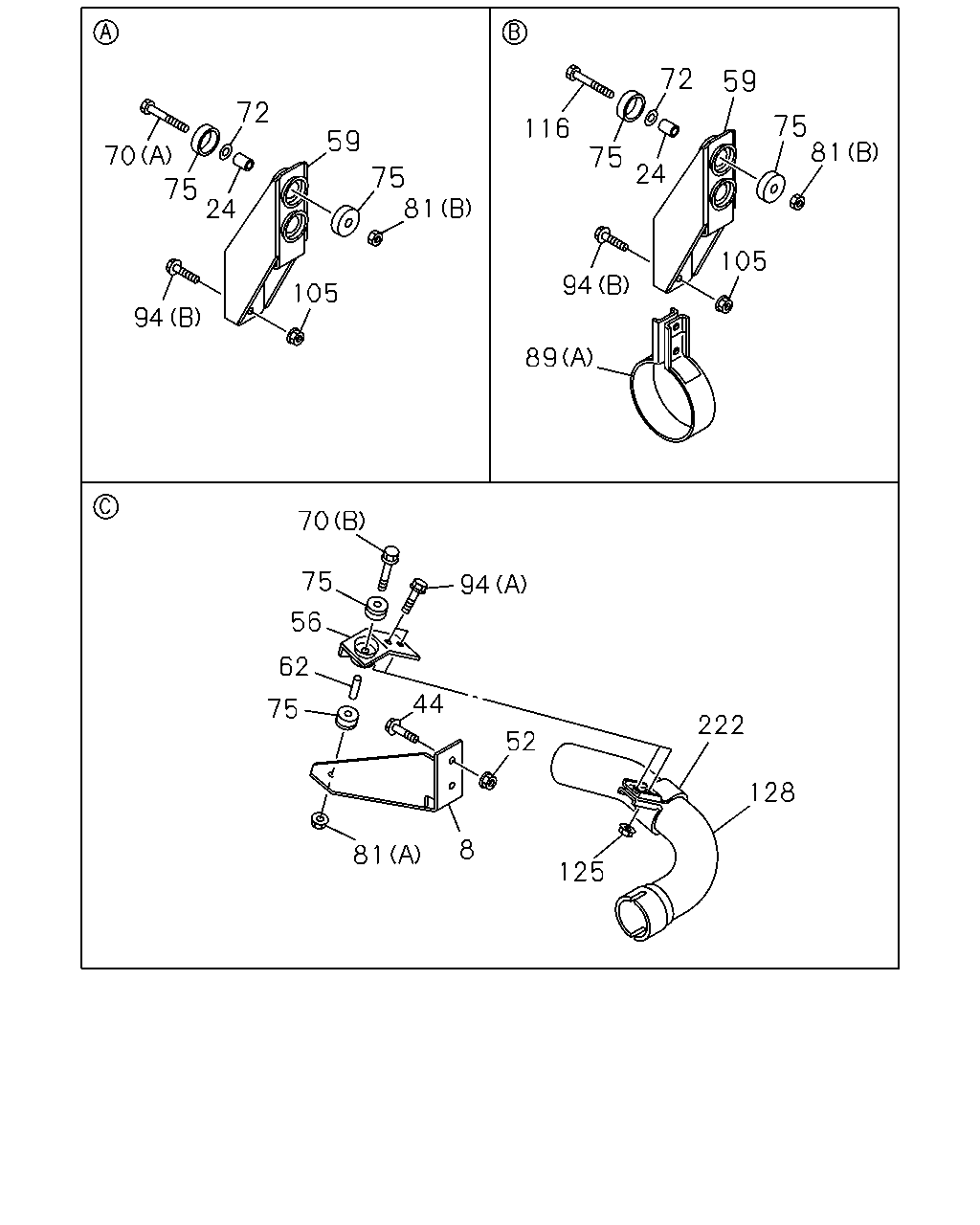

125 128 222 52 8 81 44 94 75 62 56 75 70 89 94 105 81 75 59 72 116 75 24 81 75 59 105 94 24 75 70 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	BRACKET; EXH PIPE THA	8-97640-908-0	01	1	1403-1403	●
8	BRACKET; EXH PIPE THA	8-97640-908-0	01	1	1404-	●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	1403-	●	●
44	BOLT; BRKT M10X35 FLANGE THA	0-28051-035-0	02	1	1403-1403	●
44	BOLT; BRKT M10X35 FLANGE THA	0-28051-035-0	02	1	1404-	●
44	BOLT; BRKT M10X35 FLANGE THA	0-28651-035-0	02	1	1403-		●
52	NUT; BRKT M10 FLANGE THA	0-91180-210-0	02	1	1403-1403	●	●
52	NUT; BRKT M10 FLANGE THA	0-91180-210-0	02	1	1404-	●	●
56	BRACKET; CLAMP,EXH PIPE THA	8-97926-043-0	01	1	1403-1403	●
56	BRACKET; CLAMP,EXH PIPE THA	8-97926-043-0	01	1	1404-	●
56	BRACKET; CLAMP,EXH PIPE THA	8-97925-781-0	01	1	1403-		●
59	BRACKET; EXH SILENCER,FRT THA	8-97924-889-0	02	1	1403-	●
59	BRACKET; EXH SILENCER,FRT	8-98055-106-0	02	1	1403-		●
62	TUBE; DIST,BRKT L=22	9-22159-024-0	01	1	1403-1403	●	●
62	TUBE; DIST,BRKT L=22	9-22159-024-0	01	1	1404-	●	●
70	BOLT; BRKT (A) M10X50	0-10856-050-0	01	1	1403-	●
70	BOLT; BRKT (A) M10X60	0-10856-060-0	01	1	1403-	●
70	BOLT; BRKT (B) M10X50 FLANGE THA	0-28051-050-0	01	1	1403-1403	●	●
70	BOLT; BRKT (B) M10X50 FLANGE THA	0-28051-050-0	01	1	1404-	●	●
70	BOLT; BRKT (A) M10X60	0-10856-060-0	02	1	1403-		●
72	WASHER; LK,BRKT ID=10.2	0-91510-810-0	04	1	1403-	●	●
75	RUBBER; SUPPORT,BRKT OD=40 THA	1-22159-094-0	02	1	1403-1403	●
75	RUBBER; SUPPORT,BRKT OD=40 THA	1-22159-094-0	02	1	1404-	●
75	RUBBER; SUPPORT,BRKT OD=40 THA	1-22159-094-0	08	1	1403-	●	●
81	NUT; BRKT (B) M10 THA	0-91110-510-0	04	1	1403-	●	●
81	NUT; BRKT (A) M10 FLANGE THA	0-91180-210-0	01	1	1403-1403	●	●
81	NUT; BRKT (A) M10 FLANGE THA	0-91180-210-0	01	1	1404-	●	●
89	CLAMP; EXH SILENCER,RR (A)	1-22133-276-0	01	1	1403-	●	●
89	CLAMP; EXH SILENCER,RR (B) D=101.4	1-22133-170-1	01	1	1403-		●
94	BOLT; CLAMP (B) M8X35 FLANGE THA	0-28050-835-0	04	1	1403-	●	●
94	BOLT; CLAMP (A) M8X35 FLANGE THA	0-28650-835-0	02	1	1403-1403	●	●
94	BOLT; CLAMP (A) M8X35 FLANGE THA	0-28650-835-0	02	1	1404-	●	●
105	NUT; CLAMP M8 FLANGE THA	0-91180-108-0	04	1	1403-	●	●
116	BOLT; BRKT M10X50	0-10856-050-0	02	1	1403-	●
116	BOLT; BRKT M10X60	0-10856-060-0	02	1	1403-		●
125	NUT; CLAMP M8 FLANGE THA	0-91180-108-0	02	1	1403-1403	●	●
125	NUT; CLAMP M8 FLANGE THA	0-91180-108-0	02	1	1404-	●	●
128	PIPE; EXH,RR THA	8-97926-046-0	01	1	1403-1403	●
128	PIPE; EXH,RR THA	8-97926-046-0	01	1	1404-	●
222	CLAMP; EXH PIPE D=101.4	1-22133-170-1	01	1	1403-1403	●
222	CLAMP; EXH PIPE D=101.4	1-22133-170-1	01	1	1404-	●

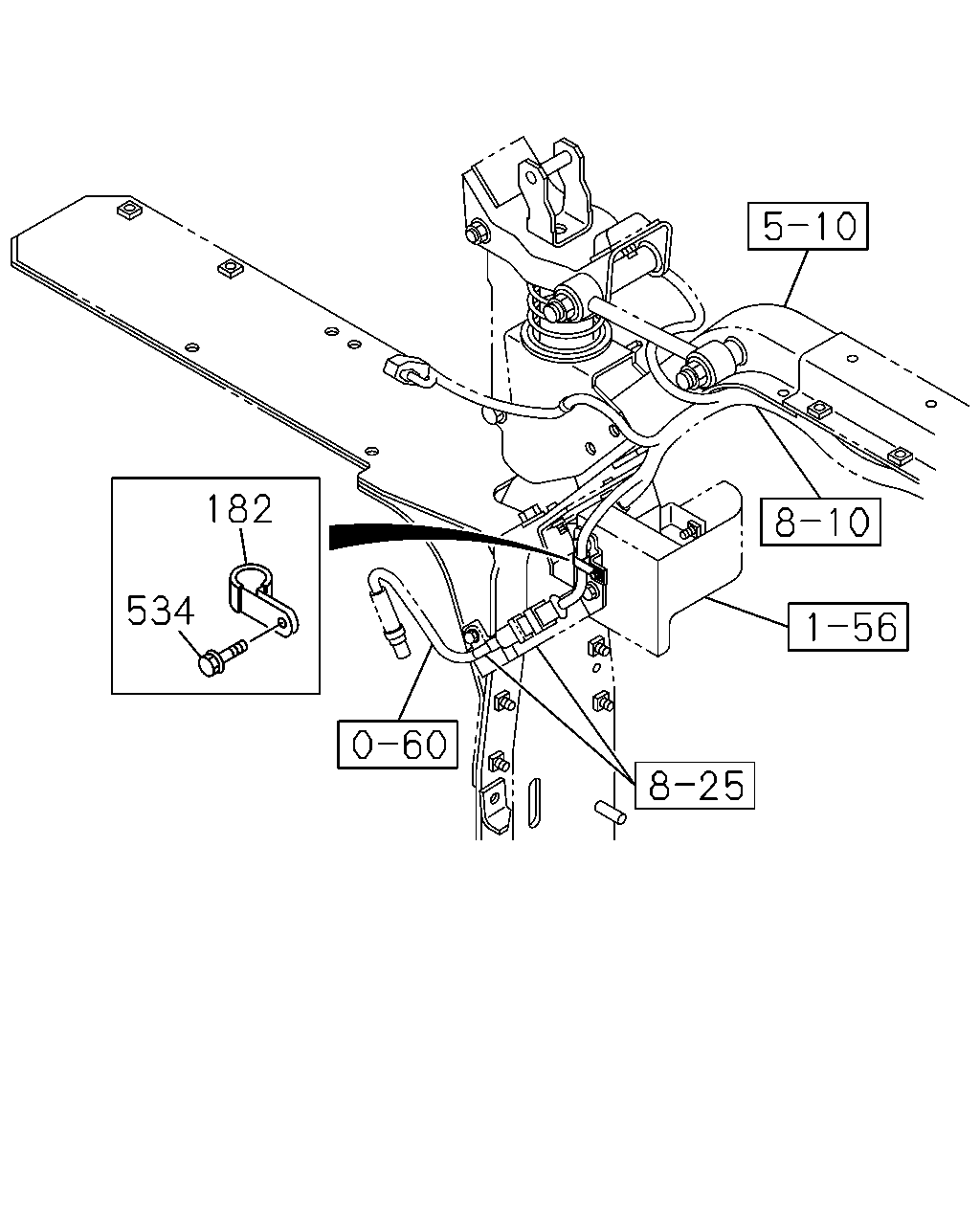

182 534

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
182	CLIP; HARNESS ID=19 L=28	0-95235-856-0	01	1	1403-	●
182	CLIP; HARNESS ID=11 L=24	0-95235-045-0	01	1	1403-		●
534	BOLT; CLIP M8X20 FLANGE THA	0-28650-820-0	01	1	1403-	●	●
