◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11048 - EXZ LHD EURO4 WITH 2STEPS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#13623) — 29 parça

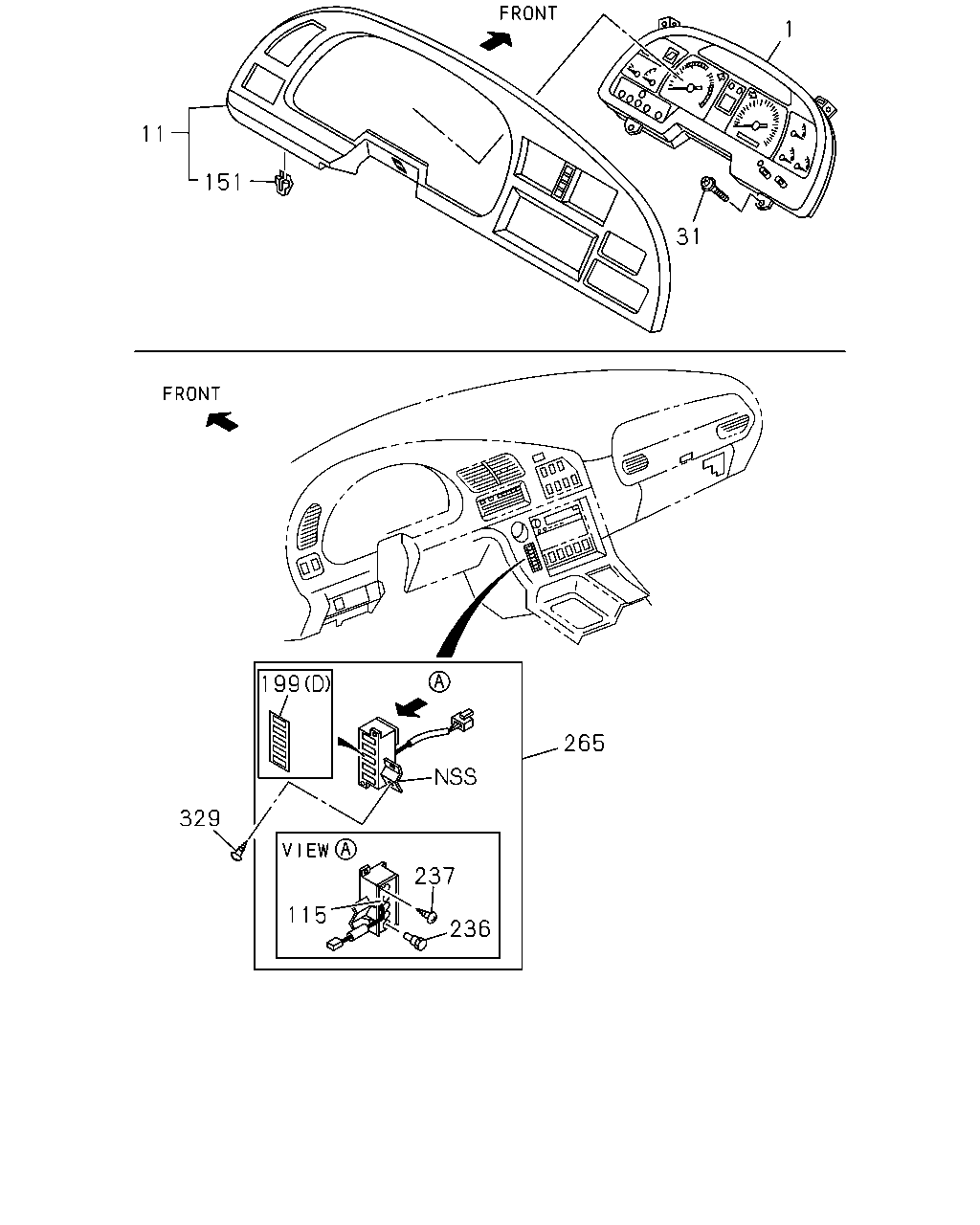

çizim 91671
1 11 151 31 199 265 329 237 115 236
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER 1-83116-398-2 01 1 0611-1103
1 METER COMPL; CLUSTER 8-97638-824-1 01 1 1104-
11 CLUSTER ASM; METER 1-72418-022-7 01 1 0611-
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 04 1 0611-
115 CIRCUIT; PRINTED,CLUSTER METER 1-82259-006-0 01 1 0611-
151 CLIP; METER CLUSTER 8-97217-066-0 10 1 0611-
199 LENS; WARNING LAMP
(D) 		1-82255-315-0 01 1 0611-
199 LENS; WARNING LAMP
(C) 		1-83119-891-0 01 1 0611-
199 LENS; WARNING LAMP
(A) 		1-83119-927-2 01 1 0611-
199 LENS; WARNING LAMP
(B) 		1-83119-928-1 01 1 0611-
236 BULB ASM; WARNING LAMP
24V 1.8W BROWN SOCKET 		1-82194-062-0 05 1 0611-
237 SCREW; CIRCUIT PRINT FIX,WARNING LAMP
M3 TAPPING 		1-83119-052-0 03 1 0611-
265 LAMP ASM; WARNING 1-82250-360-0 01 1 0611-
329 SCREW; WARNING LAMP
M5X14 		8-94279-325-0 02 1 0611-

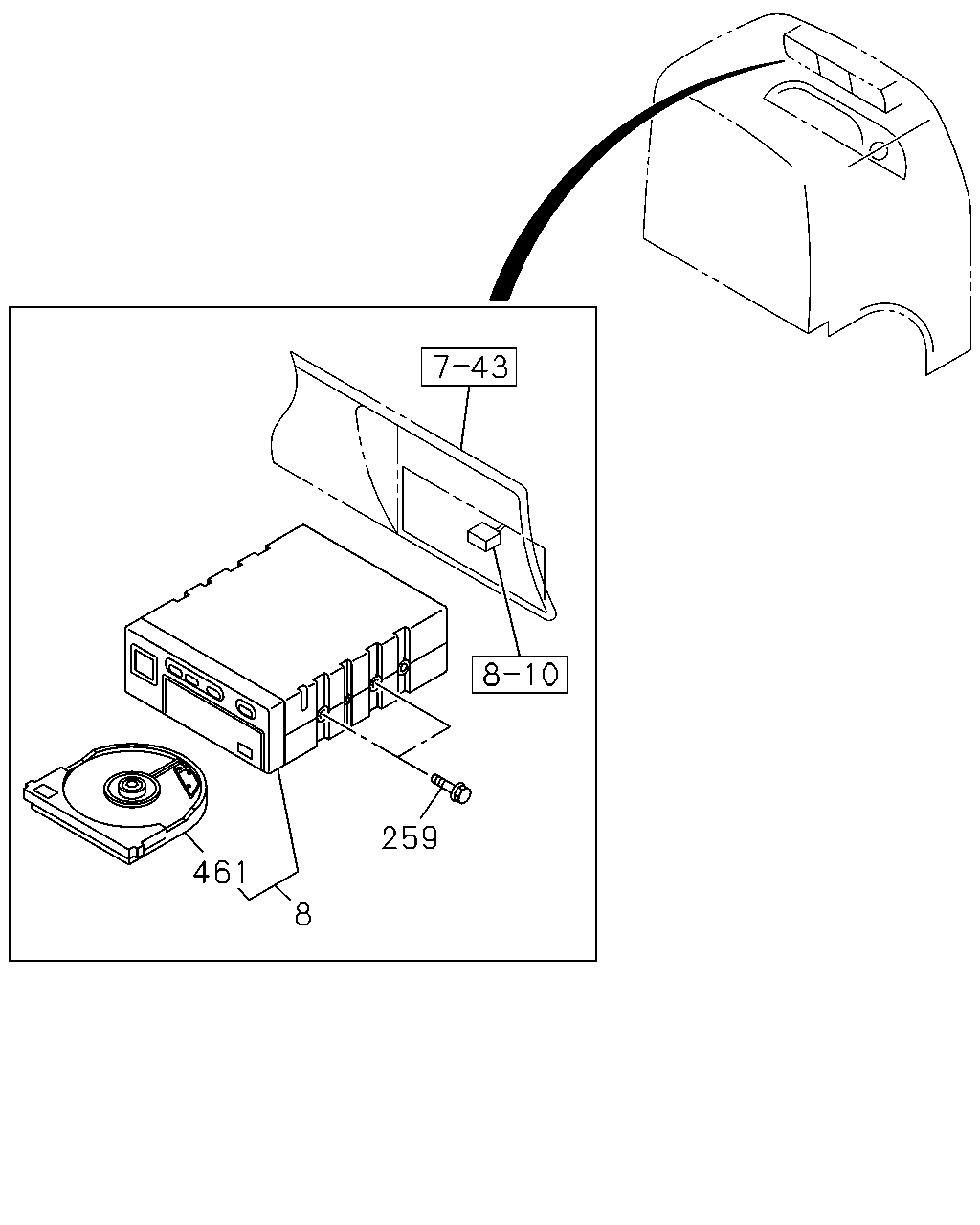

çizim 91877
259 461 8
BalonParca AdiParca NoAdetTipApplied Date
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 120KM/H<SM8> 		1-83120-838-3 01 1 0611-
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7> 		1-83120-840-3 01 1 0611-
259 SCREW; TACHOGRAPH
TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> M5X8 W/LK WASHER 		0-36220-508-0 04 1 0611-
461 CARTRIDGE ASM; TACHOGRAPH
TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> 		1-83129-433-0 01 1 0611-

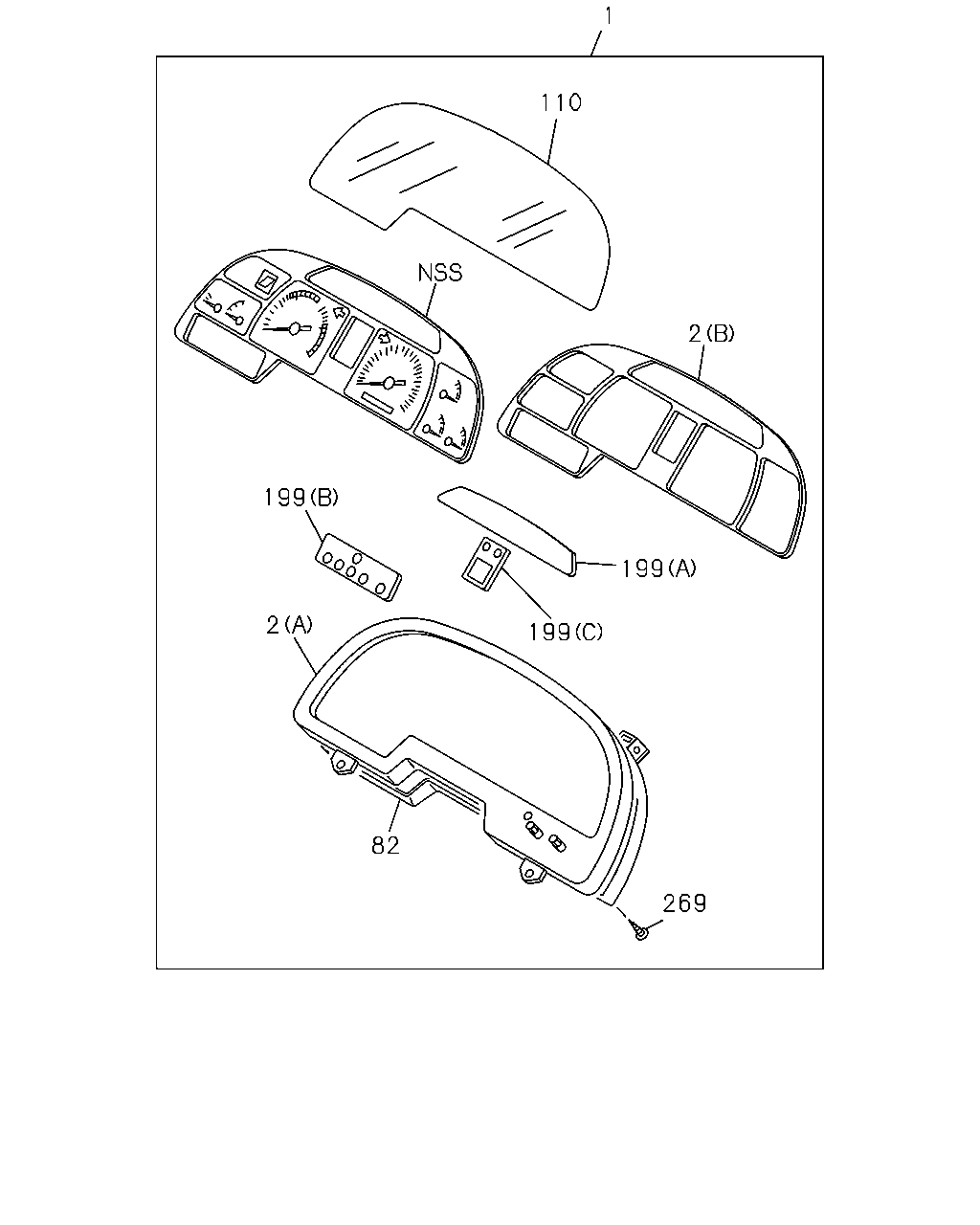

çizim 91884
1 110 2 199 199 2 199 82 269
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER 1-83116-398-2 01 1 0611-1103
1 METER COMPL; CLUSTER 8-97638-824-1 01 1 1104-
2 PANEL; CLUSTER
(B) 		1-83119-885-0 01 1 0611-
2 PANEL; CLUSTER
(A) 		1-83119-887-0 01 1 0611-
82 CASE ASM; CLUSTER METER 1-83119-892-0 01 1 0611-
110 GLASS; CLUSTER METER 1-83119-886-0 01 1 0611-
199 LENS; WARNING LAMP
(D) 		1-82255-315-0 01 1 0611-
199 LENS; WARNING LAMP
(C) 		1-83119-891-0 01 1 0611-
199 LENS; WARNING LAMP
(A) 		1-83119-927-2 01 1 0611-
199 LENS; WARNING LAMP
(B) 		1-83119-928-1 01 1 0611-
269 SCREW; METER CLUSTER 1-83119-893-0 09 1 0611-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
