1-41 — FUEL PIPING; CHASSIS (#136229) — 355 parça

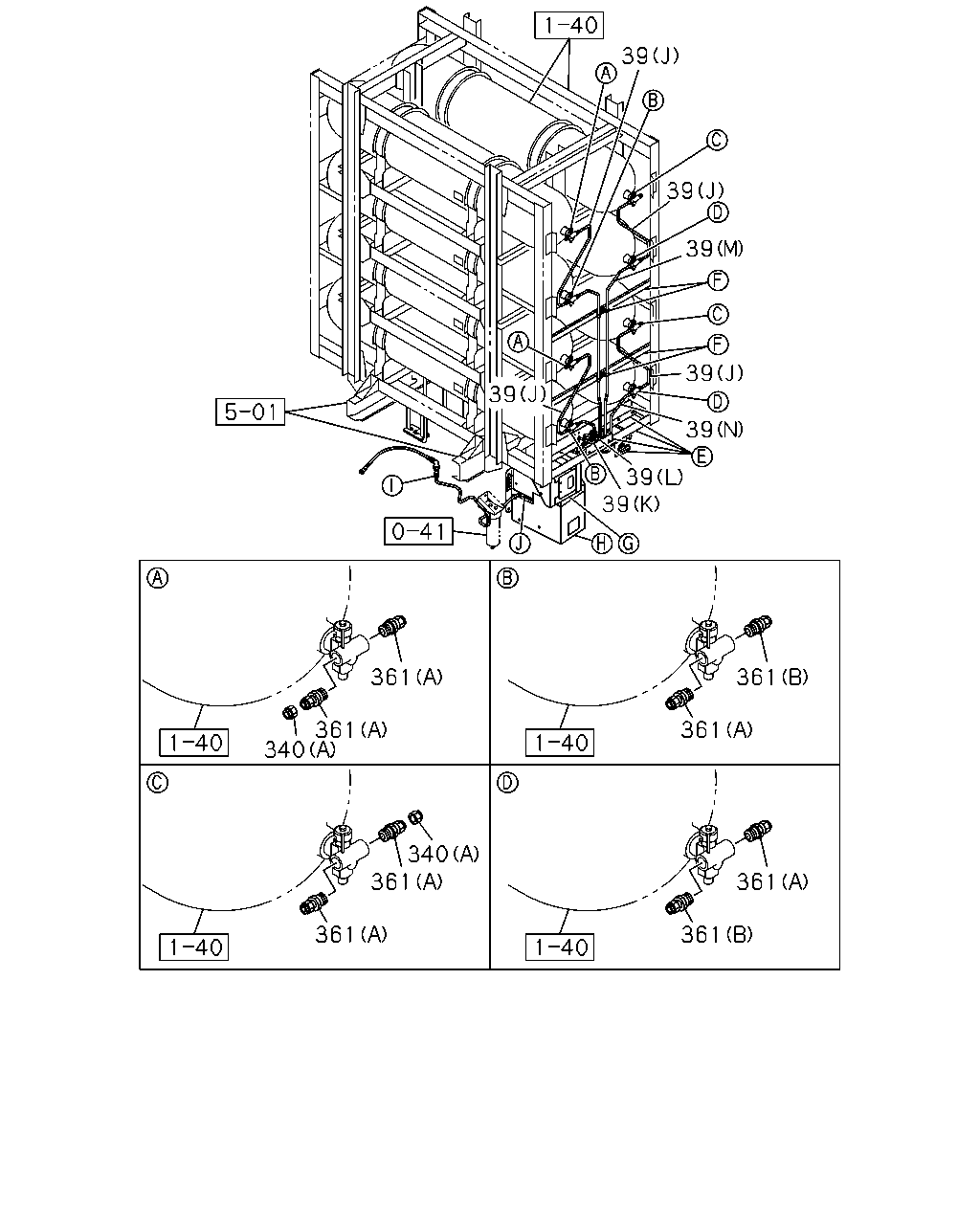

çizim 413163
39 39 39 39 39 39 39 39 361 340 361 340 361 361 361 361 361 361
BalonParca AdiParca NoAdetTipApplied Date A B
39 PIPE; FUEL
(G) THA 		8-97925-876-0 01 1 1403- ●
39 PIPE; FUEL
(H) THA 		8-97925-981-0 01 1 1403- ●
39 PIPE; FUEL
(C) THA 		8-97925-982-0 01 1 1403- ●
39 PIPE; FUEL
(A) THA 		8-97925-724-0 01 1 1403- ● ●
39 PIPE; FUEL
(B) THA 		8-97925-740-0 01 1 1403- ● ●
39 PIPE; FUEL
(D) THA 		8-97925-767-1 01 1 1403- ● ●
39 PIPE; FUEL
(E) THA 		8-97925-768-0 01 1 1403- ● ●
39 PIPE; FUEL
(F) THA 		8-97925-769-0 01 1 1403- ● ●
39 PIPE; FUEL
(I) THA 		8-97925-974-0 01 1 1403- ● ●
39 PIPE; FUEL
(J) THA 		8-97925-976-0 04 1 1403- ● ●
39 PIPE; FUEL
(K) THA 		8-97925-977-0 01 1 1403- ● ●
39 PIPE; FUEL
(L) THA 		8-97925-978-0 01 1 1403- ● ●
39 PIPE; FUEL
(M) THA 		8-97925-979-0 01 1 1403- ● ●
39 PIPE; FUEL
(N) THA 		8-97925-980-0 01 1 1403- ● ●
39 PIPE; FUEL
(O) THA 		8-97926-058-0 01 1 1403- ● ●
39 PIPE; FUEL
(C) THA 		8-97925-758-0 01 1 1403- ●
39 PIPE; FUEL
(G) THA 		8-97925-770-0 01 1 1403- ●
39 PIPE; FUEL
(H) THA 		8-97925-973-0 01 1 1403- ●
340 CONNECTOR; CNG
(H) 		1-22427-145-0 01 1 1403- ● ●
340 CONNECTOR; CNG
(A) 		1-22427-158-0 04 1 1403- ● ●
340 CONNECTOR; CNG
(B) 		8-97925-787-0 01 1 1403- ● ●
340 CONNECTOR; CNG
(C) 		8-97925-790-0 01 1 1403- ● ●
340 CONNECTOR; CNG
(G) 		8-97925-791-0 01 1 1403- ● ●
340 CONNECTOR; CNG
(D) 		8-97925-794-0 01 1 1403- ● ●
340 CONNECTOR; CNG
(E) 		8-97925-796-0 01 1 1403- ● ●
340 CONNECTOR; CNG
(F) 		8-97925-962-0 04 1 1403- ● ●
361 CONNECTOR; FUEL TANK
(A) 		1-22427-010-0 12 1 1403- ● ●
361 CONNECTOR; FUEL TANK
(B) 		1-22427-065-0 04 1 1403- ● ●
361 CONNECTOR; FUEL TANK
(C) THA 		8-97925-762-0 01 1 1403- ● ●
361 CONNECTOR; FUEL TANK
(D) 		8-97925-792-0 02 1 1403- ● ●

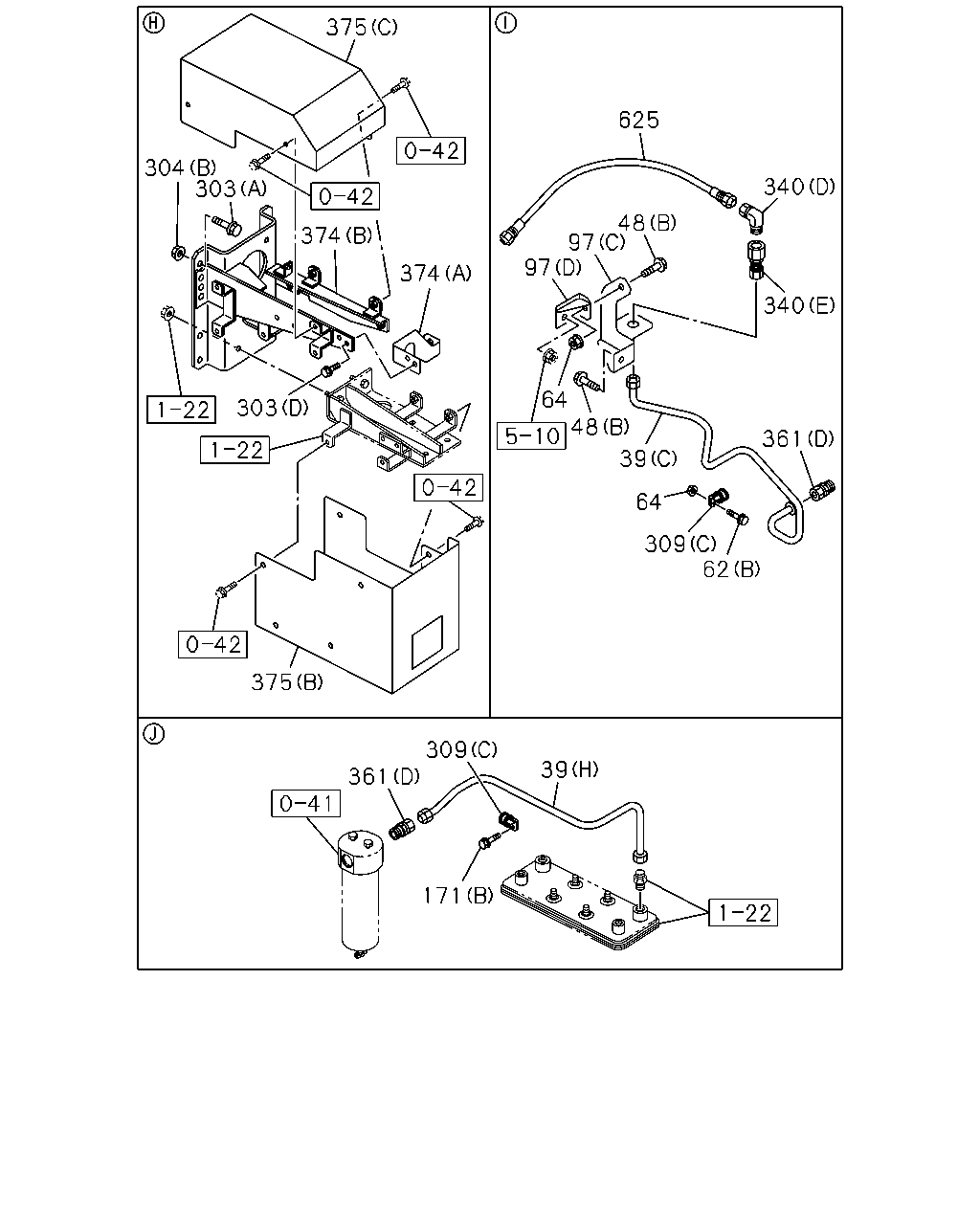

çizim 413166
375 304 374 303 303 48 64 97 97 48 625 340 340 361 39 309 64 62 374 375 309 361 39 171
BalonParca AdiParca NoAdetTipApplied Date A B
39 PIPE; FUEL
(G) THA 		8-97925-876-0 01 1 1403- ●
39 PIPE; FUEL
(H) THA 		8-97925-981-0 01 1 1403- ●
39 PIPE; FUEL
(C) THA 		8-97925-982-0 01 1 1403- ●
39 PIPE; FUEL
(A) THA 		8-97925-724-0 01 1 1403- ● ●
39 PIPE; FUEL
(B) THA 		8-97925-740-0 01 1 1403- ● ●
39 PIPE; FUEL
(D) THA 		8-97925-767-1 01 1 1403- ● ●
39 PIPE; FUEL
(E) THA 		8-97925-768-0 01 1 1403- ● ●
39 PIPE; FUEL
(F) THA 		8-97925-769-0 01 1 1403- ● ●
39 PIPE; FUEL
(I) THA 		8-97925-974-0 01 1 1403- ● ●
39 PIPE; FUEL
(J) THA 		8-97925-976-0 04 1 1403- ● ●
39 PIPE; FUEL
(K) THA 		8-97925-977-0 01 1 1403- ● ●
39 PIPE; FUEL
(L) THA 		8-97925-978-0 01 1 1403- ● ●
39 PIPE; FUEL
(M) THA 		8-97925-979-0 01 1 1403- ● ●
39 PIPE; FUEL
(N) THA 		8-97925-980-0 01 1 1403- ● ●
39 PIPE; FUEL
(O) THA 		8-97926-058-0 01 1 1403- ● ●
39 PIPE; FUEL
(C) THA 		8-97925-758-0 01 1 1403- ●
39 PIPE; FUEL
(G) THA 		8-97925-770-0 01 1 1403- ●
39 PIPE; FUEL
(H) THA 		8-97925-973-0 01 1 1403- ●
48 BOLT; BRKT
(B) M8X35 FLANGE THA 		0-28650-835-0 01 1 1403- ●
48 BOLT; BRKT
(C) M8X16 FLANGE THA 		0-28050-816-0 08 1 1403- ● ●
48 BOLT; BRKT
(A) M8X20 FLANGE THA 		0-28650-820-0 01 1 1403- ● ●
48 BOLT; BRKT
(B) M8X25 FLANGE THA 		0-28650-825-0 02 1 1403- ● ●
48 BOLT; BRKT
(B) M8X25 FLANGE THA 		0-28650-825-0 01 1 1403- ●
62 BOLT; CLIP FIX
(A) M8X20 FLANGE THA 		0-28650-820-0 08 1 1404- ● ●
62 BOLT; CLIP FIX
(A) M8X20 FLANGE THA 		0-28650-820-0 15 1 1403-1403 ● ●
62 BOLT; CLIP FIX
(A) M8X20 FLANGE THA 		0-28650-820-0 07 1 1404- ● ●
62 BOLT; CLIP FIX
(B) M8X30 FLANGE THA 		0-28650-830-0 01 1 1403- ● ●
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 12 1 1404-1502 ● ●
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 08 1 1503- ● ●
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 17 1 1403-1403 ● ●
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 05 1 1404-1502 ● ●
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 09 1 1503- ● ●
97 BRACKET; CLIP
(C) THA 		8-97925-912-0 01 1 1403- ●
97 BRACKET; CLIP
(A) L=55 		1-47475-304-0 01 1 1403- ● ●
97 BRACKET; CLIP
(B) THA 		8-97925-722-0 02 1 1403- ● ●
97 BRACKET; CLIP
(D) THA 		8-97925-759-0 01 1 1403- ● ●
97 BRACKET; CLIP
(E) THA 		8-97925-771-0 01 1 1403- ● ●
97 BRACKET; CLIP
(F) THA 		8-97925-840-0 01 1 1403- ● ●
97 BRACKET; CLIP
(G) THA 		8-97926-026-0 01 1 1403- ● ●
97 BRACKET; CLIP
(C) THA 		8-97925-757-0 01 1 1403- ●
171 BOLT; CLIP
(A) M6X35 FLANGE THA 		0-28650-635-0 03 1 1403- ● ●
171 BOLT; CLIP
(B) M8X20 FLANGE THA 		0-28650-820-0 01 1 1403- ● ●
303 BOLT; BRKT
(D) M8X25 FLANGE THA 		0-28650-825-0 06 1 1503- ● ●
303 BOLT; BRKT
(A) M12X35 FLANGE THA 		0-28051-235-0 06 1 1403- ● ●
303 BOLT; BRKT
(B) M10X16 FLANGE THA 		0-28151-016-0 01 1 1403- ● ●
303 BOLT; BRKT
(C) M8X20 FLANGE THA 		0-28650-820-0 06 1 1403- ● ●
303 BOLT; BRKT
(D) M8X25 FLANGE THA 		0-28650-825-0 09 1 1403-1502 ● ●
303 BOLT; BRKT
(D) M8X25 FLANGE THA 		0-28650-825-0 03 1 1503- ● ●
303 BOLT; BRKT
(E) M12X35 FLANGE THA 		0-28651-235-0 04 1 1403- ● ●
304 NUT; BRKT
(B) M12 FLANGE THA 		0-91180-212-0 06 1 1404- ● ●
304 NUT; BRKT
(A) M8 FLANGE THA 		0-91180-108-0 10 1 1403- ● ●
304 NUT; BRKT
(B) M12 FLANGE THA 		0-91180-212-0 10 1 1403-1403 ● ●
304 NUT; BRKT
(B) M12 FLANGE THA 		0-91180-212-0 04 1 1404- ● ●
309 CLIP; PIPE
(E) ID=11 H=20 L=20 		8-98033-780-0 08 1 1503- ● ●
309 CLIP; PIPE
(C) ID=16 H=30 L=30 		1-09701-080-0 01 1 1403- ●
309 CLIP; PIPE
(A) ID=11 L=28 		0-95235-055-0 01 1 1403- ● ●
309 CLIP; PIPE
(B) ID=6 H=20 L=20 		1-09700-603-0 02 1 1403- ● ●
309 CLIP; PIPE
(C) ID=16 H=25 L=25 		1-09701-162-0 01 1 1403- ● ●
309 CLIP; PIPE
(C) ID=16 H=25 L=25 		1-09701-162-0 01 1 1403- ●
309 CLIP; PIPE
(D) ID=10 & 10 		1-09709-277-1 01 1 1403- ● ●
309 CLIP; PIPE
(E) ID=11 H=20 L=20 		8-98033-780-0 11 1 1403-1502 ● ●
309 CLIP; PIPE
(E) ID=11 H=20 L=20 		8-98033-780-0 03 1 1503- ● ●
309 CLIP; PIPE
(F) 		8-98039-293-0 06 1 1403-1405 ● ●
309 CLIP; PIPE
(F) 		8-98148-996-2 06 1 1406- ● ●
340 CONNECTOR; CNG
(H) 		1-22427-145-0 01 1 1403- ● ●
340 CONNECTOR; CNG
(A) 		1-22427-158-0 04 1 1403- ● ●
340 CONNECTOR; CNG
(B) 		8-97925-787-0 01 1 1403- ● ●
340 CONNECTOR; CNG
(C) 		8-97925-790-0 01 1 1403- ● ●
340 CONNECTOR; CNG
(G) 		8-97925-791-0 01 1 1403- ● ●
340 CONNECTOR; CNG
(D) 		8-97925-794-0 01 1 1403- ● ●
340 CONNECTOR; CNG
(E) 		8-97925-796-0 01 1 1403- ● ●
340 CONNECTOR; CNG
(F) 		8-97925-962-0 04 1 1403- ● ●
361 CONNECTOR; FUEL TANK
(A) 		1-22427-010-0 12 1 1403- ● ●
361 CONNECTOR; FUEL TANK
(B) 		1-22427-065-0 04 1 1403- ● ●
361 CONNECTOR; FUEL TANK
(C) THA 		8-97925-762-0 01 1 1403- ● ●
361 CONNECTOR; FUEL TANK
(D) 		8-97925-792-0 02 1 1403- ● ●
374 BRACKET; REGULATOR
(A) THA 		8-97925-786-0 01 1 1403- ● ●
374 BRACKET; REGULATOR
(B) THA 		8-97925-970-1 01 1 1403- ● ●
375 COVER; REGULATOR
(A) THA 		8-97925-766-0 01 1 1403- ● ●
375 COVER; REGULATOR
(B) THA 		8-97925-971-0 01 1 1403- ● ●
375 COVER; REGULATOR
(C) THA 		8-97925-972-0 01 1 1403- ● ●
625 HOSE; FUEL,CNG 8-97925-799-0 01 1 1403- ● ●

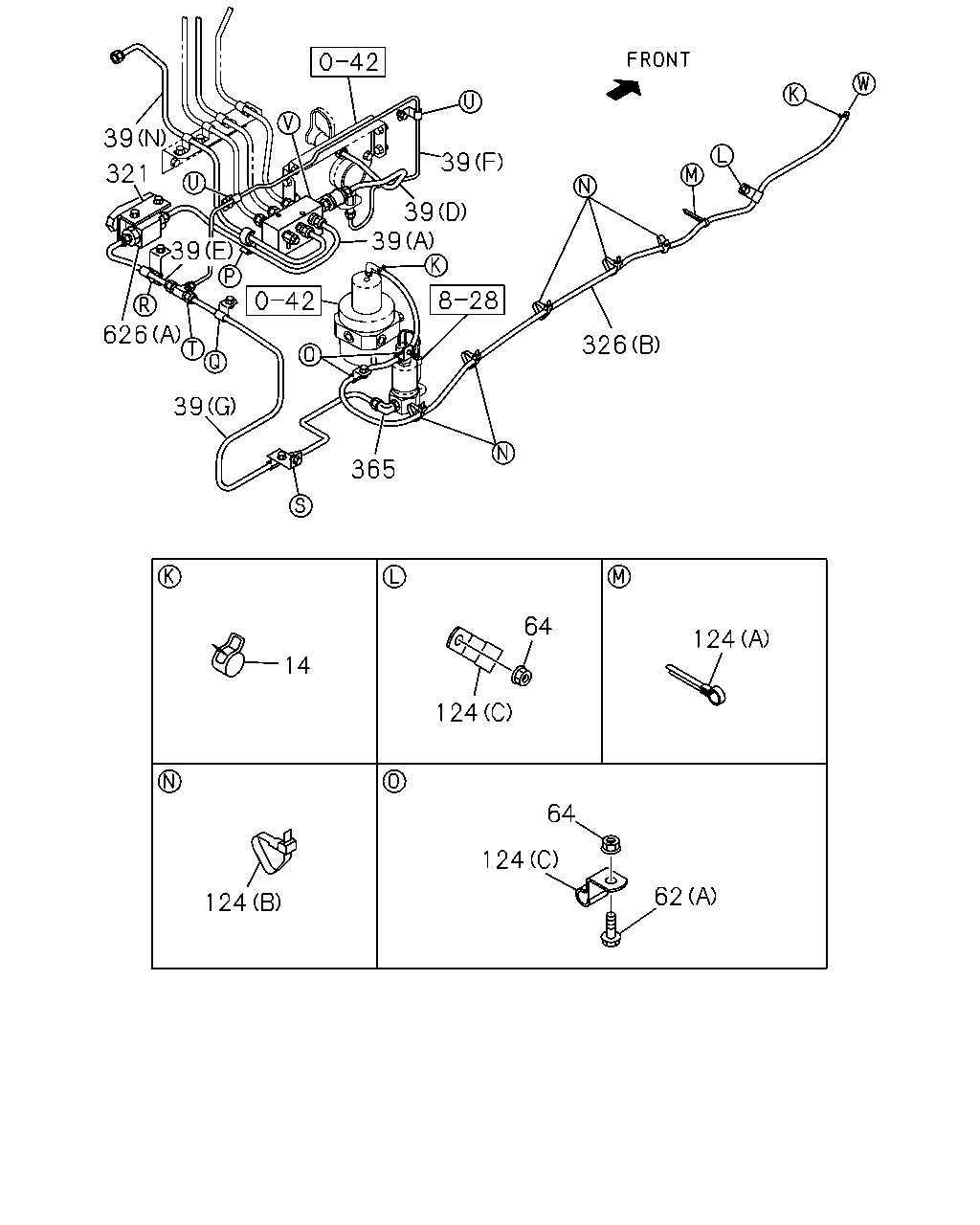

çizim 413167
39 39 321 39 39 39 326 365 39 626 14 124 124 62 64 124 124 64
BalonParca AdiParca NoAdetTipApplied Date A B
14 CLIP; HOSE 8-98209-375-0 02 1 1403- ● ●
39 PIPE; FUEL
(G) THA 		8-97925-876-0 01 1 1403- ●
39 PIPE; FUEL
(H) THA 		8-97925-981-0 01 1 1403- ●
39 PIPE; FUEL
(C) THA 		8-97925-982-0 01 1 1403- ●
39 PIPE; FUEL
(A) THA 		8-97925-724-0 01 1 1403- ● ●
39 PIPE; FUEL
(B) THA 		8-97925-740-0 01 1 1403- ● ●
39 PIPE; FUEL
(D) THA 		8-97925-767-1 01 1 1403- ● ●
39 PIPE; FUEL
(E) THA 		8-97925-768-0 01 1 1403- ● ●
39 PIPE; FUEL
(F) THA 		8-97925-769-0 01 1 1403- ● ●
39 PIPE; FUEL
(I) THA 		8-97925-974-0 01 1 1403- ● ●
39 PIPE; FUEL
(J) THA 		8-97925-976-0 04 1 1403- ● ●
39 PIPE; FUEL
(K) THA 		8-97925-977-0 01 1 1403- ● ●
39 PIPE; FUEL
(L) THA 		8-97925-978-0 01 1 1403- ● ●
39 PIPE; FUEL
(M) THA 		8-97925-979-0 01 1 1403- ● ●
39 PIPE; FUEL
(N) THA 		8-97925-980-0 01 1 1403- ● ●
39 PIPE; FUEL
(O) THA 		8-97926-058-0 01 1 1403- ● ●
39 PIPE; FUEL
(C) THA 		8-97925-758-0 01 1 1403- ●
39 PIPE; FUEL
(G) THA 		8-97925-770-0 01 1 1403- ●
39 PIPE; FUEL
(H) THA 		8-97925-973-0 01 1 1403- ●
62 BOLT; CLIP FIX
(A) M8X20 FLANGE THA 		0-28650-820-0 08 1 1404- ● ●
62 BOLT; CLIP FIX
(A) M8X20 FLANGE THA 		0-28650-820-0 15 1 1403-1403 ● ●
62 BOLT; CLIP FIX
(A) M8X20 FLANGE THA 		0-28650-820-0 07 1 1404- ● ●
62 BOLT; CLIP FIX
(B) M8X30 FLANGE THA 		0-28650-830-0 01 1 1403- ● ●
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 12 1 1404-1502 ● ●
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 08 1 1503- ● ●
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 17 1 1403-1403 ● ●
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 05 1 1404-1502 ● ●
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 09 1 1503- ● ●
124 CLIP; HOSE
(A) ID=11 L=61 		1-09700-484-0 01 1 1403- ● ●
124 CLIP; HOSE
(B) L=250 		5-09707-030-1 05 1 1403- ● ●
124 CLIP; HOSE
(C) ID=11 H=20 L=20 		8-98033-780-0 03 1 1403- ● ●
321 BRACKET; VLV
THA 		8-97925-721-0 01 1 1403- ● ●
326 HOSE; VACUUM
(A) 		8-98209-374-0 01 1 1403- ● ●
326 HOSE; VACUUM
(B) 		8-98211-427-1 01 1 1403- ● ●
365 CONNECTOR; MAGNETIC VLV 8-97925-789-0 02 1 1403- ● ●
626 VALVE; FUEL RECIRCULATION
(B) 		8-97630-824-0 01 1 1403- ● ●
626 VALVE; FUEL RECIRCULATION
(A) 		8-97925-797-0 01 1 1403- ● ●
çizim 413171
326 318 309 309 309 309 97 171 303 282 282 171
BalonParca AdiParca NoAdetTipApplied Date A B
97 BRACKET; CLIP
(C) THA 		8-97925-912-0 01 1 1403- ●
97 BRACKET; CLIP
(A) L=55 		1-47475-304-0 01 1 1403- ● ●
97 BRACKET; CLIP
(B) THA 		8-97925-722-0 02 1 1403- ● ●
97 BRACKET; CLIP
(D) THA 		8-97925-759-0 01 1 1403- ● ●
97 BRACKET; CLIP
(E) THA 		8-97925-771-0 01 1 1403- ● ●
97 BRACKET; CLIP
(F) THA 		8-97925-840-0 01 1 1403- ● ●
97 BRACKET; CLIP
(G) THA 		8-97926-026-0 01 1 1403- ● ●
97 BRACKET; CLIP
(C) THA 		8-97925-757-0 01 1 1403- ●
171 BOLT; CLIP
(A) M6X35 FLANGE THA 		0-28650-635-0 03 1 1403- ● ●
171 BOLT; CLIP
(B) M8X20 FLANGE THA 		0-28650-820-0 01 1 1403- ● ●
282 CLIP; HOSE,RUBBER
(A) L=260 		8-97127-894-0 02 1 1403- ● ●
282 CLIP; HOSE,RUBBER
(B) 		8-98209-375-0 02 1 1403- ● ●
303 BOLT; BRKT
(D) M8X25 FLANGE THA 		0-28650-825-0 06 1 1503- ● ●
303 BOLT; BRKT
(A) M12X35 FLANGE THA 		0-28051-235-0 06 1 1403- ● ●
303 BOLT; BRKT
(B) M10X16 FLANGE THA 		0-28151-016-0 01 1 1403- ● ●
303 BOLT; BRKT
(C) M8X20 FLANGE THA 		0-28650-820-0 06 1 1403- ● ●
303 BOLT; BRKT
(D) M8X25 FLANGE THA 		0-28650-825-0 09 1 1403-1502 ● ●
303 BOLT; BRKT
(D) M8X25 FLANGE THA 		0-28650-825-0 03 1 1503- ● ●
303 BOLT; BRKT
(E) M12X35 FLANGE THA 		0-28651-235-0 04 1 1403- ● ●
309 CLIP; PIPE
(E) ID=11 H=20 L=20 		8-98033-780-0 08 1 1503- ● ●
309 CLIP; PIPE
(C) ID=16 H=30 L=30 		1-09701-080-0 01 1 1403- ●
309 CLIP; PIPE
(A) ID=11 L=28 		0-95235-055-0 01 1 1403- ● ●
309 CLIP; PIPE
(B) ID=6 H=20 L=20 		1-09700-603-0 02 1 1403- ● ●
309 CLIP; PIPE
(C) ID=16 H=25 L=25 		1-09701-162-0 01 1 1403- ● ●
309 CLIP; PIPE
(C) ID=16 H=25 L=25 		1-09701-162-0 01 1 1403- ●
309 CLIP; PIPE
(D) ID=10 & 10 		1-09709-277-1 01 1 1403- ● ●
309 CLIP; PIPE
(E) ID=11 H=20 L=20 		8-98033-780-0 11 1 1403-1502 ● ●
309 CLIP; PIPE
(E) ID=11 H=20 L=20 		8-98033-780-0 03 1 1503- ● ●
309 CLIP; PIPE
(F) 		8-98039-293-0 06 1 1403-1405 ● ●
309 CLIP; PIPE
(F) 		8-98148-996-2 06 1 1406- ● ●
318 PIPE; VACUUM
THA 		8-97926-077-0 01 1 1403- ● ●
326 HOSE; VACUUM
(A) 		8-98209-374-0 01 1 1403- ● ●
326 HOSE; VACUUM
(B) 		8-98211-427-1 01 1 1403- ● ●
çizim 413172
309 309 62 64 97 103 309 48 64 62 309 62 64 340 48 62 309 97 103 64 341 459 340 340 340 626 340 340 340
BalonParca AdiParca NoAdetTipApplied Date A B
48 BOLT; BRKT
(B) M8X35 FLANGE THA 		0-28650-835-0 01 1 1403- ●
48 BOLT; BRKT
(C) M8X16 FLANGE THA 		0-28050-816-0 08 1 1403- ● ●
48 BOLT; BRKT
(A) M8X20 FLANGE THA 		0-28650-820-0 01 1 1403- ● ●
48 BOLT; BRKT
(B) M8X25 FLANGE THA 		0-28650-825-0 02 1 1403- ● ●
48 BOLT; BRKT
(B) M8X25 FLANGE THA 		0-28650-825-0 01 1 1403- ●
62 BOLT; CLIP FIX
(A) M8X20 FLANGE THA 		0-28650-820-0 08 1 1404- ● ●
62 BOLT; CLIP FIX
(A) M8X20 FLANGE THA 		0-28650-820-0 15 1 1403-1403 ● ●
62 BOLT; CLIP FIX
(A) M8X20 FLANGE THA 		0-28650-820-0 07 1 1404- ● ●
62 BOLT; CLIP FIX
(B) M8X30 FLANGE THA 		0-28650-830-0 01 1 1403- ● ●
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 12 1 1404-1502 ● ●
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 08 1 1503- ● ●
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 17 1 1403-1403 ● ●
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 05 1 1404-1502 ● ●
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 09 1 1503- ● ●
97 BRACKET; CLIP
(C) THA 		8-97925-912-0 01 1 1403- ●
97 BRACKET; CLIP
(A) L=55 		1-47475-304-0 01 1 1403- ● ●
97 BRACKET; CLIP
(B) THA 		8-97925-722-0 02 1 1403- ● ●
97 BRACKET; CLIP
(D) THA 		8-97925-759-0 01 1 1403- ● ●
97 BRACKET; CLIP
(E) THA 		8-97925-771-0 01 1 1403- ● ●
97 BRACKET; CLIP
(F) THA 		8-97925-840-0 01 1 1403- ● ●
97 BRACKET; CLIP
(G) THA 		8-97926-026-0 01 1 1403- ● ●
97 BRACKET; CLIP
(C) THA 		8-97925-757-0 01 1 1403- ●
103 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 04 1 1503- ● ●
103 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 06 1 1403-1502 ● ●
103 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 02 1 1503- ● ●
309 CLIP; PIPE
(E) ID=11 H=20 L=20 		8-98033-780-0 08 1 1503- ● ●
309 CLIP; PIPE
(C) ID=16 H=30 L=30 		1-09701-080-0 01 1 1403- ●
309 CLIP; PIPE
(A) ID=11 L=28 		0-95235-055-0 01 1 1403- ● ●
309 CLIP; PIPE
(B) ID=6 H=20 L=20 		1-09700-603-0 02 1 1403- ● ●
309 CLIP; PIPE
(C) ID=16 H=25 L=25 		1-09701-162-0 01 1 1403- ● ●
309 CLIP; PIPE
(C) ID=16 H=25 L=25 		1-09701-162-0 01 1 1403- ●
309 CLIP; PIPE
(D) ID=10 & 10 		1-09709-277-1 01 1 1403- ● ●
309 CLIP; PIPE
(E) ID=11 H=20 L=20 		8-98033-780-0 11 1 1403-1502 ● ●
309 CLIP; PIPE
(E) ID=11 H=20 L=20 		8-98033-780-0 03 1 1503- ● ●
309 CLIP; PIPE
(F) 		8-98039-293-0 06 1 1403-1405 ● ●
309 CLIP; PIPE
(F) 		8-98148-996-2 06 1 1406- ● ●
340 CONNECTOR; CNG
(H) 		1-22427-145-0 01 1 1403- ● ●
340 CONNECTOR; CNG
(A) 		1-22427-158-0 04 1 1403- ● ●
340 CONNECTOR; CNG
(B) 		8-97925-787-0 01 1 1403- ● ●
340 CONNECTOR; CNG
(C) 		8-97925-790-0 01 1 1403- ● ●
340 CONNECTOR; CNG
(G) 		8-97925-791-0 01 1 1403- ● ●
340 CONNECTOR; CNG
(D) 		8-97925-794-0 01 1 1403- ● ●
340 CONNECTOR; CNG
(E) 		8-97925-796-0 01 1 1403- ● ●
340 CONNECTOR; CNG
(F) 		8-97925-962-0 04 1 1403- ● ●
341 MANIFOLD; CNG 8-97925-815-1 01 1 1403- ● ●
459 VALVE; CHECK 8-97925-798-0 01 1 1403- ● ●
626 VALVE; FUEL RECIRCULATION
(B) 		8-97630-824-0 01 1 1403- ● ●
626 VALVE; FUEL RECIRCULATION
(A) 		8-97925-797-0 01 1 1403- ● ●
çizim 413180
365 51 39 455 278 309 340 361 39 455
BalonParca AdiParca NoAdetTipApplied Date A B
39 PIPE; FUEL
(G) THA 		8-97925-876-0 01 1 1403- ●
39 PIPE; FUEL
(H) THA 		8-97925-981-0 01 1 1403- ●
39 PIPE; FUEL
(C) THA 		8-97925-982-0 01 1 1403- ●
39 PIPE; FUEL
(A) THA 		8-97925-724-0 01 1 1403- ● ●
39 PIPE; FUEL
(B) THA 		8-97925-740-0 01 1 1403- ● ●
39 PIPE; FUEL
(D) THA 		8-97925-767-1 01 1 1403- ● ●
39 PIPE; FUEL
(E) THA 		8-97925-768-0 01 1 1403- ● ●
39 PIPE; FUEL
(F) THA 		8-97925-769-0 01 1 1403- ● ●
39 PIPE; FUEL
(I) THA 		8-97925-974-0 01 1 1403- ● ●
39 PIPE; FUEL
(J) THA 		8-97925-976-0 04 1 1403- ● ●
39 PIPE; FUEL
(K) THA 		8-97925-977-0 01 1 1403- ● ●
39 PIPE; FUEL
(L) THA 		8-97925-978-0 01 1 1403- ● ●
39 PIPE; FUEL
(M) THA 		8-97925-979-0 01 1 1403- ● ●
39 PIPE; FUEL
(N) THA 		8-97925-980-0 01 1 1403- ● ●
39 PIPE; FUEL
(O) THA 		8-97926-058-0 01 1 1403- ● ●
39 PIPE; FUEL
(C) THA 		8-97925-758-0 01 1 1403- ●
39 PIPE; FUEL
(G) THA 		8-97925-770-0 01 1 1403- ●
39 PIPE; FUEL
(H) THA 		8-97925-973-0 01 1 1403- ●
51 NUT; CLIP,PIPE
M8 FLANGE THA 		0-91180-108-0 01 1 1403- ● ●
278 BOLT; CLIP
M8X20 FLANGE THA 		0-28650-820-0 01 1 1403- ● ●
309 CLIP; PIPE
(E) ID=11 H=20 L=20 		8-98033-780-0 08 1 1503- ● ●
309 CLIP; PIPE
(C) ID=16 H=30 L=30 		1-09701-080-0 01 1 1403- ●
309 CLIP; PIPE
(A) ID=11 L=28 		0-95235-055-0 01 1 1403- ● ●
309 CLIP; PIPE
(B) ID=6 H=20 L=20 		1-09700-603-0 02 1 1403- ● ●
309 CLIP; PIPE
(C) ID=16 H=25 L=25 		1-09701-162-0 01 1 1403- ● ●
309 CLIP; PIPE
(C) ID=16 H=25 L=25 		1-09701-162-0 01 1 1403- ●
309 CLIP; PIPE
(D) ID=10 & 10 		1-09709-277-1 01 1 1403- ● ●
309 CLIP; PIPE
(E) ID=11 H=20 L=20 		8-98033-780-0 11 1 1403-1502 ● ●
309 CLIP; PIPE
(E) ID=11 H=20 L=20 		8-98033-780-0 03 1 1503- ● ●
309 CLIP; PIPE
(F) 		8-98039-293-0 06 1 1403-1405 ● ●
309 CLIP; PIPE
(F) 		8-98148-996-2 06 1 1406- ● ●
340 CONNECTOR; CNG
(H) 		1-22427-145-0 01 1 1403- ● ●
340 CONNECTOR; CNG
(A) 		1-22427-158-0 04 1 1403- ● ●
340 CONNECTOR; CNG
(B) 		8-97925-787-0 01 1 1403- ● ●
340 CONNECTOR; CNG
(C) 		8-97925-790-0 01 1 1403- ● ●
340 CONNECTOR; CNG
(G) 		8-97925-791-0 01 1 1403- ● ●
340 CONNECTOR; CNG
(D) 		8-97925-794-0 01 1 1403- ● ●
340 CONNECTOR; CNG
(E) 		8-97925-796-0 01 1 1403- ● ●
340 CONNECTOR; CNG
(F) 		8-97925-962-0 04 1 1403- ● ●
361 CONNECTOR; FUEL TANK
(A) 		1-22427-010-0 12 1 1403- ● ●
361 CONNECTOR; FUEL TANK
(B) 		1-22427-065-0 04 1 1403- ● ●
361 CONNECTOR; FUEL TANK
(C) THA 		8-97925-762-0 01 1 1403- ● ●
361 CONNECTOR; FUEL TANK
(D) 		8-97925-792-0 02 1 1403- ● ●
365 CONNECTOR; MAGNETIC VLV 8-97925-789-0 02 1 1403- ● ●
455 CONNECTOR; REGULATOR
(A) 		8-97925-789-0 01 1 1403- ● ●
455 CONNECTOR; REGULATOR
(B) 		8-97925-793-0 01 1 1403- ● ●
çizim 413882
39 80 41 41
BalonParca AdiParca NoAdetTipApplied Date A B
39 PIPE; FUEL
(G) THA 		8-97925-876-0 01 1 1403- ●
39 PIPE; FUEL
(H) THA 		8-97925-981-0 01 1 1403- ●
39 PIPE; FUEL
(C) THA 		8-97925-982-0 01 1 1403- ●
39 PIPE; FUEL
(A) THA 		8-97925-724-0 01 1 1403- ● ●
39 PIPE; FUEL
(B) THA 		8-97925-740-0 01 1 1403- ● ●
39 PIPE; FUEL
(D) THA 		8-97925-767-1 01 1 1403- ● ●
39 PIPE; FUEL
(E) THA 		8-97925-768-0 01 1 1403- ● ●
39 PIPE; FUEL
(F) THA 		8-97925-769-0 01 1 1403- ● ●
39 PIPE; FUEL
(I) THA 		8-97925-974-0 01 1 1403- ● ●
39 PIPE; FUEL
(J) THA 		8-97925-976-0 04 1 1403- ● ●
39 PIPE; FUEL
(K) THA 		8-97925-977-0 01 1 1403- ● ●
39 PIPE; FUEL
(L) THA 		8-97925-978-0 01 1 1403- ● ●
39 PIPE; FUEL
(M) THA 		8-97925-979-0 01 1 1403- ● ●
39 PIPE; FUEL
(N) THA 		8-97925-980-0 01 1 1403- ● ●
39 PIPE; FUEL
(O) THA 		8-97926-058-0 01 1 1403- ● ●
39 PIPE; FUEL
(C) THA 		8-97925-758-0 01 1 1403- ●
39 PIPE; FUEL
(G) THA 		8-97925-770-0 01 1 1403- ●
39 PIPE; FUEL
(H) THA 		8-97925-973-0 01 1 1403- ●
41 CLIP; FUEL PIPE,FUEL TANK 8-97601-912-0 02 1 1403- ● ●
80 BOLT; CLIP,FUEL TANK
M6X35 FLANGE 		0-28050-635-0 01 1 1403- ● ●

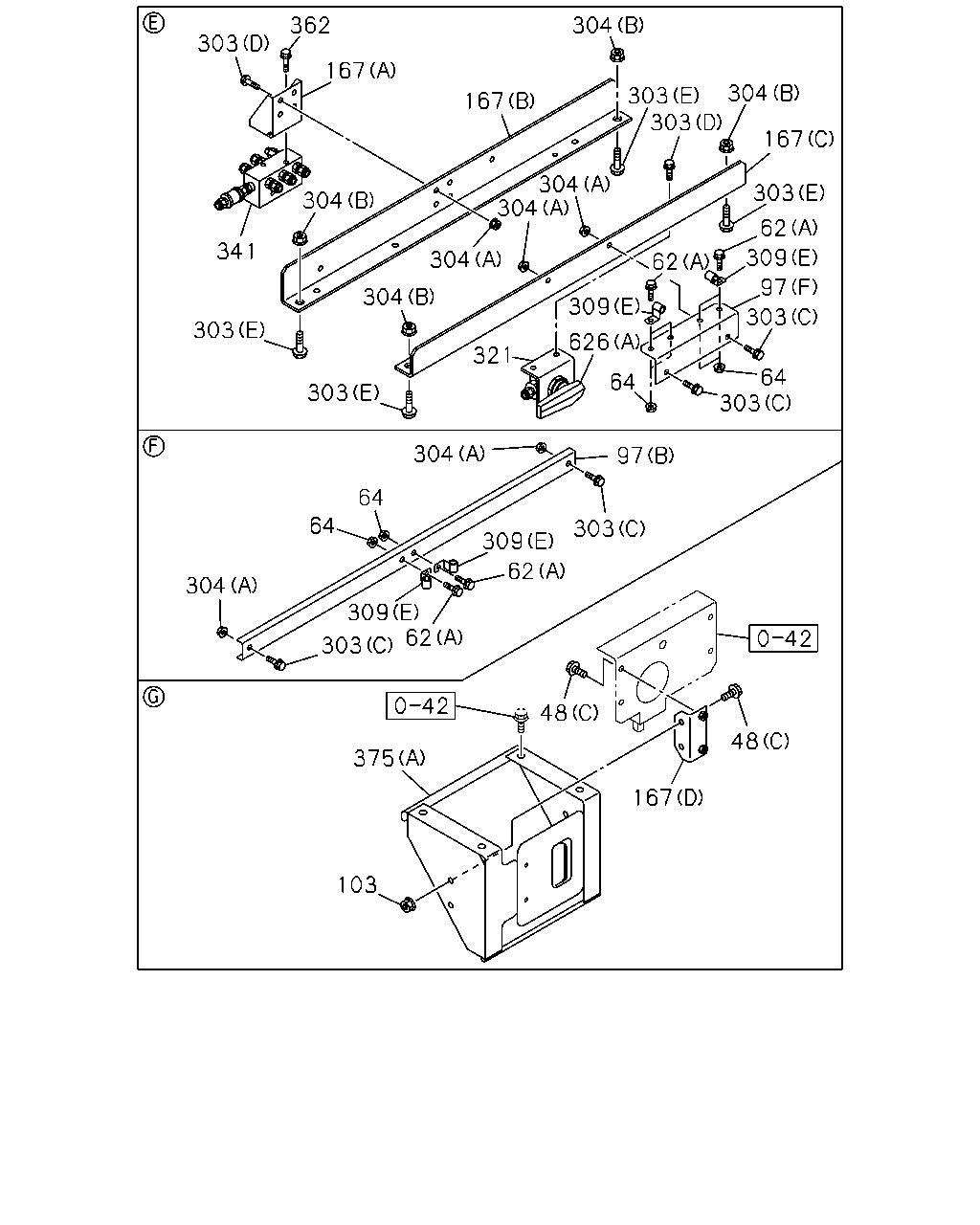

çizim 413889
303 362 167 304 341 303 303 304 167 304 304 304 321 304 303 304 303 167 303 62 62 309 303 64 303 64 626 309 97 304 64 64 304 303 309 62 309 303 375 48 48 167 103 62 97
BalonParca AdiParca NoAdetTipApplied Date A B
48 BOLT; BRKT
(B) M8X35 FLANGE THA 		0-28650-835-0 01 1 1403- ●
48 BOLT; BRKT
(C) M8X16 FLANGE THA 		0-28050-816-0 08 1 1403- ● ●
48 BOLT; BRKT
(A) M8X20 FLANGE THA 		0-28650-820-0 01 1 1403- ● ●
48 BOLT; BRKT
(B) M8X25 FLANGE THA 		0-28650-825-0 02 1 1403- ● ●
48 BOLT; BRKT
(B) M8X25 FLANGE THA 		0-28650-825-0 01 1 1403- ●
62 BOLT; CLIP FIX
(A) M8X20 FLANGE THA 		0-28650-820-0 08 1 1404- ● ●
62 BOLT; CLIP FIX
(A) M8X20 FLANGE THA 		0-28650-820-0 15 1 1403-1403 ● ●
62 BOLT; CLIP FIX
(A) M8X20 FLANGE THA 		0-28650-820-0 07 1 1404- ● ●
62 BOLT; CLIP FIX
(B) M8X30 FLANGE THA 		0-28650-830-0 01 1 1403- ● ●
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 12 1 1404-1502 ● ●
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 08 1 1503- ● ●
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 17 1 1403-1403 ● ●
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 05 1 1404-1502 ● ●
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 09 1 1503- ● ●
97 BRACKET; CLIP
(C) THA 		8-97925-912-0 01 1 1403- ●
97 BRACKET; CLIP
(A) L=55 		1-47475-304-0 01 1 1403- ● ●
97 BRACKET; CLIP
(B) THA 		8-97925-722-0 02 1 1403- ● ●
97 BRACKET; CLIP
(D) THA 		8-97925-759-0 01 1 1403- ● ●
97 BRACKET; CLIP
(E) THA 		8-97925-771-0 01 1 1403- ● ●
97 BRACKET; CLIP
(F) THA 		8-97925-840-0 01 1 1403- ● ●
97 BRACKET; CLIP
(G) THA 		8-97926-026-0 01 1 1403- ● ●
97 BRACKET; CLIP
(C) THA 		8-97925-757-0 01 1 1403- ●
103 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 04 1 1503- ● ●
103 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 06 1 1403-1502 ● ●
103 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 02 1 1503- ● ●
167 BRACKET
(A) THA 		8-97925-720-0 01 1 1403- ● ●
167 BRACKET
(B) THA 		8-97925-727-1 01 1 1403- ● ●
167 BRACKET
(C) THA 		8-97925-728-1 01 1 1403- ● ●
167 BRACKET
(D) THA 		8-97925-843-0 02 1 1403- ● ●
303 BOLT; BRKT
(D) M8X25 FLANGE THA 		0-28650-825-0 06 1 1503- ● ●
303 BOLT; BRKT
(A) M12X35 FLANGE THA 		0-28051-235-0 06 1 1403- ● ●
303 BOLT; BRKT
(B) M10X16 FLANGE THA 		0-28151-016-0 01 1 1403- ● ●
303 BOLT; BRKT
(C) M8X20 FLANGE THA 		0-28650-820-0 06 1 1403- ● ●
303 BOLT; BRKT
(D) M8X25 FLANGE THA 		0-28650-825-0 09 1 1403-1502 ● ●
303 BOLT; BRKT
(D) M8X25 FLANGE THA 		0-28650-825-0 03 1 1503- ● ●
303 BOLT; BRKT
(E) M12X35 FLANGE THA 		0-28651-235-0 04 1 1403- ● ●
304 NUT; BRKT
(B) M12 FLANGE THA 		0-91180-212-0 06 1 1404- ● ●
304 NUT; BRKT
(A) M8 FLANGE THA 		0-91180-108-0 10 1 1403- ● ●
304 NUT; BRKT
(B) M12 FLANGE THA 		0-91180-212-0 10 1 1403-1403 ● ●
304 NUT; BRKT
(B) M12 FLANGE THA 		0-91180-212-0 04 1 1404- ● ●
309 CLIP; PIPE
(E) ID=11 H=20 L=20 		8-98033-780-0 08 1 1503- ● ●
309 CLIP; PIPE
(C) ID=16 H=30 L=30 		1-09701-080-0 01 1 1403- ●
309 CLIP; PIPE
(A) ID=11 L=28 		0-95235-055-0 01 1 1403- ● ●
309 CLIP; PIPE
(B) ID=6 H=20 L=20 		1-09700-603-0 02 1 1403- ● ●
309 CLIP; PIPE
(C) ID=16 H=25 L=25 		1-09701-162-0 01 1 1403- ● ●
309 CLIP; PIPE
(C) ID=16 H=25 L=25 		1-09701-162-0 01 1 1403- ●
309 CLIP; PIPE
(D) ID=10 & 10 		1-09709-277-1 01 1 1403- ● ●
309 CLIP; PIPE
(E) ID=11 H=20 L=20 		8-98033-780-0 11 1 1403-1502 ● ●
309 CLIP; PIPE
(E) ID=11 H=20 L=20 		8-98033-780-0 03 1 1503- ● ●
309 CLIP; PIPE
(F) 		8-98039-293-0 06 1 1403-1405 ● ●
309 CLIP; PIPE
(F) 		8-98148-996-2 06 1 1406- ● ●
321 BRACKET; VLV
THA 		8-97925-721-0 01 1 1403- ● ●
341 MANIFOLD; CNG 8-97925-815-1 01 1 1403- ● ●
362 BOLT; MANIFOLD
M8X16 FLANGE THA 		0-28050-816-0 02 1 1403- ● ●
375 COVER; REGULATOR
(A) THA 		8-97925-766-0 01 1 1403- ● ●
375 COVER; REGULATOR
(B) THA 		8-97925-971-0 01 1 1403- ● ●
375 COVER; REGULATOR
(C) THA 		8-97925-972-0 01 1 1403- ● ●
626 VALVE; FUEL RECIRCULATION
(B) 		8-97630-824-0 01 1 1403- ● ●
626 VALVE; FUEL RECIRCULATION
(A) 		8-97925-797-0 01 1 1403- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
