1-40 — FUEL TANK (#136228) — 173 parça
çizim 413157
457 279 285
BalonParca AdiParca NoAdetTipApplied Date A B
279 UNION; FUEL PIPE 1-22427-070-0 01 1 1403- ● ●
285 BOLT; BRKT
M10X20 FLANGE THA 		0-28151-020-0 02 1 1403- ● ●
457 BRACKET; UNION,FUEL PIPE
THA 		8-97925-750-0 01 1 1403- ● ●

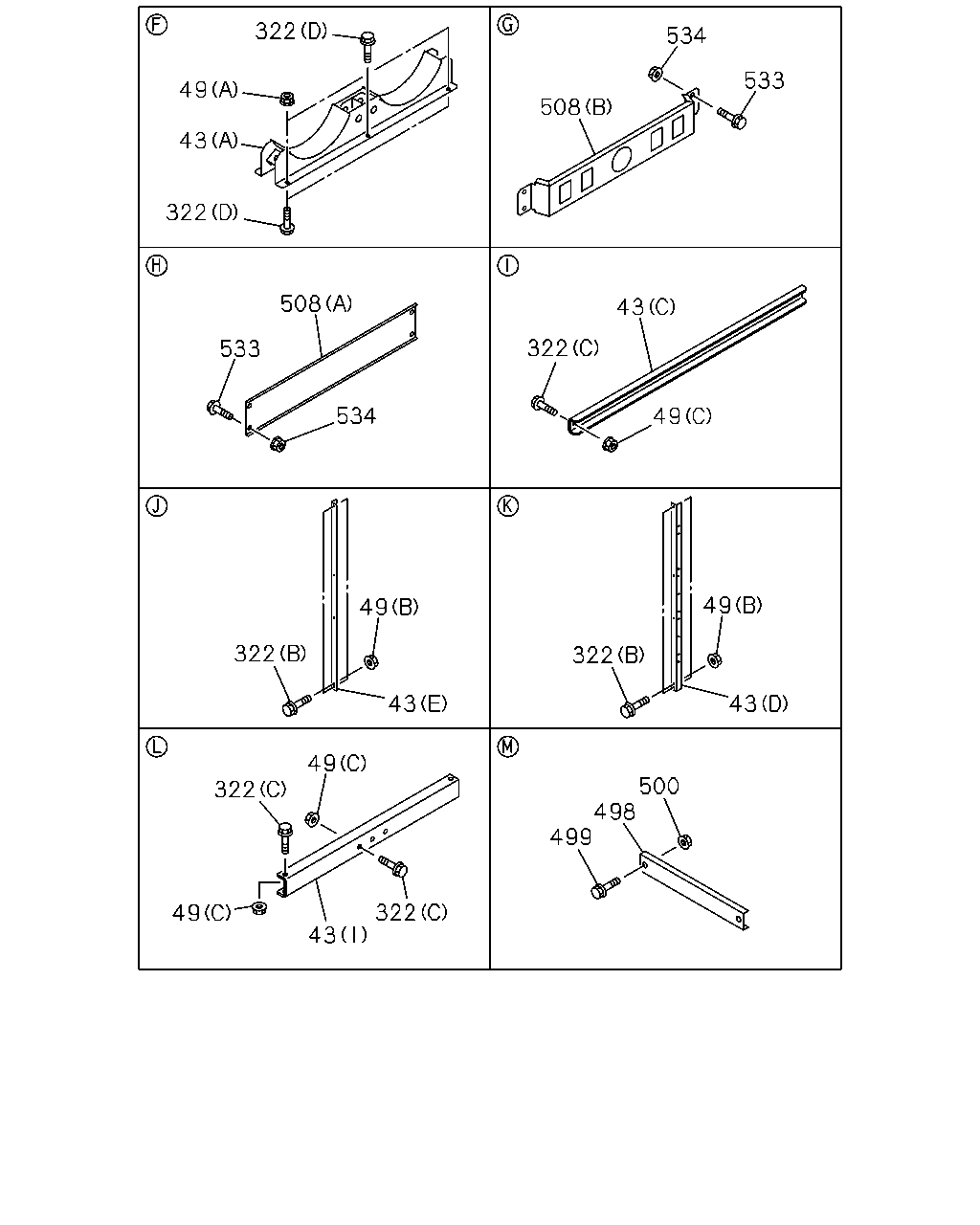

çizim 413158
322 49 43 322 508 533 534 322 49 43 49 322 322 43 49 508 534 533 43 322 49 49 322 43 500 498 499
BalonParca AdiParca NoAdetTipApplied Date A B
43 BRACKET; FUEL TANK
(J) THA 		8-97925-907-1 01 1 1403- ●
43 BRACKET; FUEL TANK
(K) THA 		8-97925-892-1 01 1 1403- ●
43 BRACKET; FUEL TANK
(L) THA 		8-97925-893-2 01 1 1403- ●
43 BRACKET; FUEL TANK
(A) THA 		8-97925-675-1 08 1 1403- ● ●
43 BRACKET; FUEL TANK
(C) THA 		8-97925-696-1 06 1 1403- ● ●
43 BRACKET; FUEL TANK
(D) THA 		8-97925-847-0 02 1 1403- ● ●
43 BRACKET; FUEL TANK
(E) THA 		8-97925-848-0 02 1 1403- ● ●
43 BRACKET; FUEL TANK
(H) THA 		8-97925-951-0 04 1 1403- ● ●
43 BRACKET; FUEL TANK
(I) THA 		8-97925-953-0 02 1 1403- ● ●
43 BRACKET; FUEL TANK
(B) THA 		8-97926-068-0 01 1 1403- ● ●
43 BRACKET; FUEL TANK
(F) THA 		8-97925-933-0 01 1 1403- ●
43 BRACKET; FUEL TANK
(F) THA 		8-97925-934-0 01 1 1403- ●
43 BRACKET; FUEL TANK
(G) THA 		8-97925-935-0 01 1 1403- ●
43 BRACKET; FUEL TANK
(G) THA 		8-97925-936-0 01 1 1403- ●
49 NUT; BRKT
(E) M16 THA 		0-91110-516-0 04 1 1403- ●
49 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-108-0 12 1 1403- ● ●
49 NUT; BRKT
(C) M10 FLANGE THA 		0-91180-210-0 38 1 1403- ● ●
49 NUT; BRKT
(A) M12 FLANGE THA 		0-91180-212-0 32 1 1403- ● ●
49 NUT; BRKT
(D) M14 FLANGE THA 		0-91180-214-0 12 1 1403- ● ●
49 NUT; BRKT
(A) M12 FLANGE THA 		0-91180-212-0 08 1 1403- ●
322 BOLT; BRKT FIX
(F) M18X50 		0-20951-850-0 28 1 1403- ●
322 BOLT; BRKT FIX
(A) M12X35 FLANGE THA 		0-28661-235-0 08 1 1403- ●
322 BOLT; BRKT FIX
(G) M14X40 FLANGE 		0-28661-440-0 12 1 1403- ●
322 BOLT; BRKT FIX
(H) M18X65 		1-09000-789-0 04 1 1403- ●
322 BOLT; BRKT FIX
(B) M8X30 FLANGE THA 		0-28650-830-0 12 1 1403- ● ●
322 BOLT; BRKT FIX
(C) M10X30 FLANGE THA 		0-28651-030-0 38 1 1403- ● ●
322 BOLT; BRKT FIX
(D) M12X35 FLANGE THA 		0-28661-235-0 56 1 1403- ● ●
322 BOLT; BRKT FIX
(E) M14X45 FLANGE 		0-28861-445-0 12 1 1403- ● ●
322 BOLT; BRKT FIX
(A) M12X35 FLANGE 		0-28061-235-0 08 1 1403- ●
498 STAY; BRKT
THA 		8-97926-073-0 08 1 1403- ● ●
499 BOLT; STAY
M8X25 FLANGE THA 		0-28650-825-0 16 1 1403- ● ●
500 NUT; STAY
M8 FLANGE THA 		0-91180-108-0 08 1 1403- ● ●
508 STOPPER
(B) THA 		8-97925-975-0 04 1 1403- ● ●
508 STOPPER
(A) THA 		8-97926-074-0 04 1 1403- ● ●
533 BOLT; STOPPER
M8X20 FLANGE THA 		0-28650-820-0 32 1 1403- ● ●
534 NUT; STOPPER
M8 FLANGE THA 		0-91180-108-0 32 1 1403- ● ●

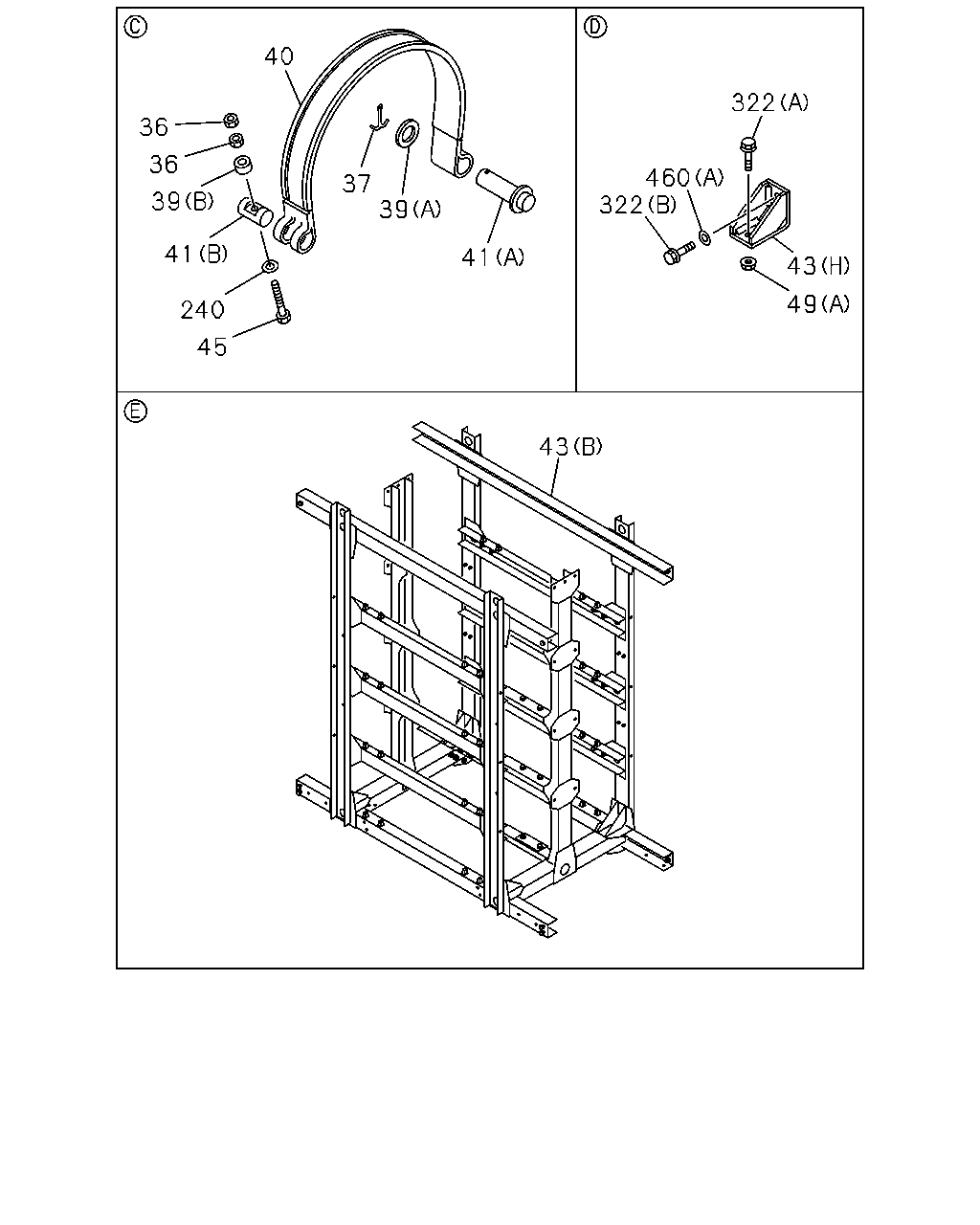

çizim 413159
43 41 39 37 36 36 41 39 240 45 460 322 40 322 43 49
BalonParca AdiParca NoAdetTipApplied Date A B
36 NUT; SPACER,FUEL TANK
M12 		0-91110-512-0 32 1 1403- ● ●
37 PIN; SPLIT,SUPPORT BELT
OD=4.6 L=45 		0-81125-045-0 16 1 1403- ● ●
39 WASHER; PL,SUPPORT BELT
(A) THA 		8-97925-678-0 16 1 1403- ● ●
39 WASHER; PL,SUPPORT BELT
(B) THA 		8-97925-807-0 16 1 1403- ● ●
40 BELT; SUPPORT,FUEL TANK
THA 		8-97925-676-1 16 1 1403- ● ●
41 PIN; SUPPORT BELT
(A) THA 		8-97925-677-0 16 1 1403- ● ●
41 PIN; SUPPORT BELT
(B) THA 		8-97925-806-0 16 1 1403- ● ●
43 BRACKET; FUEL TANK
(J) THA 		8-97925-907-1 01 1 1403- ●
43 BRACKET; FUEL TANK
(K) THA 		8-97925-892-1 01 1 1403- ●
43 BRACKET; FUEL TANK
(L) THA 		8-97925-893-2 01 1 1403- ●
43 BRACKET; FUEL TANK
(A) THA 		8-97925-675-1 08 1 1403- ● ●
43 BRACKET; FUEL TANK
(C) THA 		8-97925-696-1 06 1 1403- ● ●
43 BRACKET; FUEL TANK
(D) THA 		8-97925-847-0 02 1 1403- ● ●
43 BRACKET; FUEL TANK
(E) THA 		8-97925-848-0 02 1 1403- ● ●
43 BRACKET; FUEL TANK
(H) THA 		8-97925-951-0 04 1 1403- ● ●
43 BRACKET; FUEL TANK
(I) THA 		8-97925-953-0 02 1 1403- ● ●
43 BRACKET; FUEL TANK
(B) THA 		8-97926-068-0 01 1 1403- ● ●
43 BRACKET; FUEL TANK
(F) THA 		8-97925-933-0 01 1 1403- ●
43 BRACKET; FUEL TANK
(F) THA 		8-97925-934-0 01 1 1403- ●
43 BRACKET; FUEL TANK
(G) THA 		8-97925-935-0 01 1 1403- ●
43 BRACKET; FUEL TANK
(G) THA 		8-97925-936-0 01 1 1403- ●
45 BOLT; BRKT,FUEL TANK
THA 		8-97925-718-0 16 1 1403- ● ●
49 NUT; BRKT
(E) M16 THA 		0-91110-516-0 04 1 1403- ●
49 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-108-0 12 1 1403- ● ●
49 NUT; BRKT
(C) M10 FLANGE THA 		0-91180-210-0 38 1 1403- ● ●
49 NUT; BRKT
(A) M12 FLANGE THA 		0-91180-212-0 32 1 1403- ● ●
49 NUT; BRKT
(D) M14 FLANGE THA 		0-91180-214-0 12 1 1403- ● ●
49 NUT; BRKT
(A) M12 FLANGE THA 		0-91180-212-0 08 1 1403- ●
240 WASHER; PL,FUEL TANK
ID=12.5 		0-91614-512-0 16 1 1403- ● ●
322 BOLT; BRKT FIX
(F) M18X50 		0-20951-850-0 28 1 1403- ●
322 BOLT; BRKT FIX
(A) M12X35 FLANGE THA 		0-28661-235-0 08 1 1403- ●
322 BOLT; BRKT FIX
(G) M14X40 FLANGE 		0-28661-440-0 12 1 1403- ●
322 BOLT; BRKT FIX
(H) M18X65 		1-09000-789-0 04 1 1403- ●
322 BOLT; BRKT FIX
(B) M8X30 FLANGE THA 		0-28650-830-0 12 1 1403- ● ●
322 BOLT; BRKT FIX
(C) M10X30 FLANGE THA 		0-28651-030-0 38 1 1403- ● ●
322 BOLT; BRKT FIX
(D) M12X35 FLANGE THA 		0-28661-235-0 56 1 1403- ● ●
322 BOLT; BRKT FIX
(E) M14X45 FLANGE 		0-28861-445-0 12 1 1403- ● ●
322 BOLT; BRKT FIX
(A) M12X35 FLANGE 		0-28061-235-0 08 1 1403- ●
460 WASHER; PL,BRKT
(A) ID=12.5 OD=32 		0-91614-712-0 08 1 1403- ● ●
460 WASHER; PL,BRKT
(B) ID=14 OD=40 		8-94457-273-0 12 1 1403- ● ●

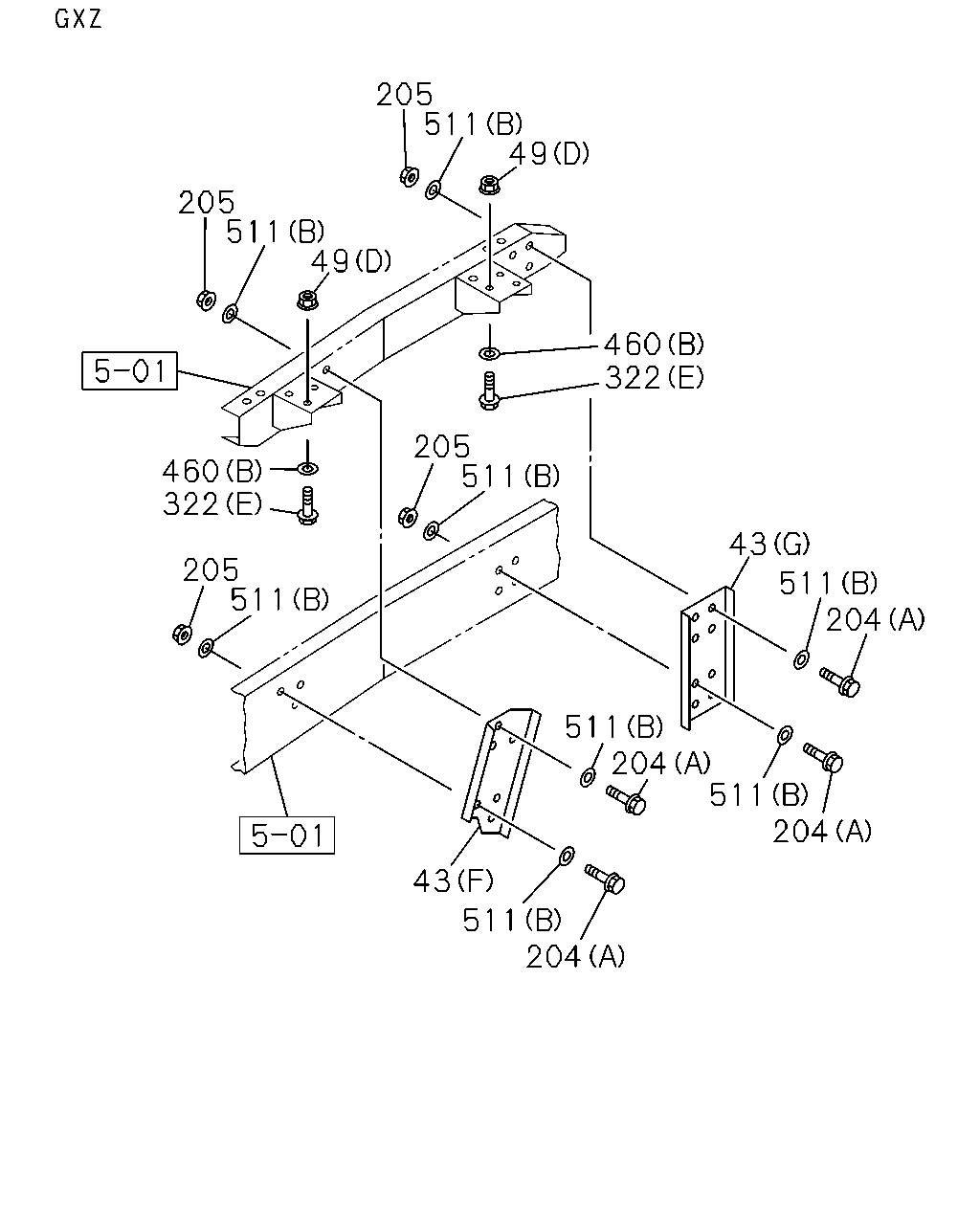

çizim 413161
511 205 205 511 49 205 511 460 322 49 43 511 204 511 204 511 204 511 204 43 511 205 322 460
BalonParca AdiParca NoAdetTipApplied Date A B
43 BRACKET; FUEL TANK
(J) THA 		8-97925-907-1 01 1 1403- ●
43 BRACKET; FUEL TANK
(K) THA 		8-97925-892-1 01 1 1403- ●
43 BRACKET; FUEL TANK
(L) THA 		8-97925-893-2 01 1 1403- ●
43 BRACKET; FUEL TANK
(A) THA 		8-97925-675-1 08 1 1403- ● ●
43 BRACKET; FUEL TANK
(C) THA 		8-97925-696-1 06 1 1403- ● ●
43 BRACKET; FUEL TANK
(D) THA 		8-97925-847-0 02 1 1403- ● ●
43 BRACKET; FUEL TANK
(E) THA 		8-97925-848-0 02 1 1403- ● ●
43 BRACKET; FUEL TANK
(H) THA 		8-97925-951-0 04 1 1403- ● ●
43 BRACKET; FUEL TANK
(I) THA 		8-97925-953-0 02 1 1403- ● ●
43 BRACKET; FUEL TANK
(B) THA 		8-97926-068-0 01 1 1403- ● ●
43 BRACKET; FUEL TANK
(F) THA 		8-97925-933-0 01 1 1403- ●
43 BRACKET; FUEL TANK
(F) THA 		8-97925-934-0 01 1 1403- ●
43 BRACKET; FUEL TANK
(G) THA 		8-97925-935-0 01 1 1403- ●
43 BRACKET; FUEL TANK
(G) THA 		8-97925-936-0 01 1 1403- ●
49 NUT; BRKT
(E) M16 THA 		0-91110-516-0 04 1 1403- ●
49 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-108-0 12 1 1403- ● ●
49 NUT; BRKT
(C) M10 FLANGE THA 		0-91180-210-0 38 1 1403- ● ●
49 NUT; BRKT
(A) M12 FLANGE THA 		0-91180-212-0 32 1 1403- ● ●
49 NUT; BRKT
(D) M14 FLANGE THA 		0-91180-214-0 12 1 1403- ● ●
49 NUT; BRKT
(A) M12 FLANGE THA 		0-91180-212-0 08 1 1403- ●
204 BOLT; MEMBER
(B) M16X40 		0-20951-640-0 04 1 1403- ●
204 BOLT; MEMBER
(A) M18X45 		1-09000-790-0 28 1 1403- ●
205 NUT; MEMBER
M18 THA 		0-91110-518-0 32 1 1403- ●
205 NUT; MEMBER
M18 THA 		0-91110-518-0 28 1 1403- ●
322 BOLT; BRKT FIX
(F) M18X50 		0-20951-850-0 28 1 1403- ●
322 BOLT; BRKT FIX
(A) M12X35 FLANGE THA 		0-28661-235-0 08 1 1403- ●
322 BOLT; BRKT FIX
(G) M14X40 FLANGE 		0-28661-440-0 12 1 1403- ●
322 BOLT; BRKT FIX
(H) M18X65 		1-09000-789-0 04 1 1403- ●
322 BOLT; BRKT FIX
(B) M8X30 FLANGE THA 		0-28650-830-0 12 1 1403- ● ●
322 BOLT; BRKT FIX
(C) M10X30 FLANGE THA 		0-28651-030-0 38 1 1403- ● ●
322 BOLT; BRKT FIX
(D) M12X35 FLANGE THA 		0-28661-235-0 56 1 1403- ● ●
322 BOLT; BRKT FIX
(E) M14X45 FLANGE 		0-28861-445-0 12 1 1403- ● ●
322 BOLT; BRKT FIX
(A) M12X35 FLANGE 		0-28061-235-0 08 1 1403- ●
460 WASHER; PL,BRKT
(A) ID=12.5 OD=32 		0-91614-712-0 08 1 1403- ● ●
460 WASHER; PL,BRKT
(B) ID=14 OD=40 		8-94457-273-0 12 1 1403- ● ●
511 WASHER
(C) ID=17 OD=32 		0-91614-616-0 08 1 1403- ●
511 WASHER
(B) ID=19 		8-98010-401-0 64 1 1403- ●
511 WASHER
(A) ID=21 		0-91610-520-0 08 1 1403- ● ●
511 WASHER
(B) ID=19 		8-98010-401-0 56 1 1403- ●

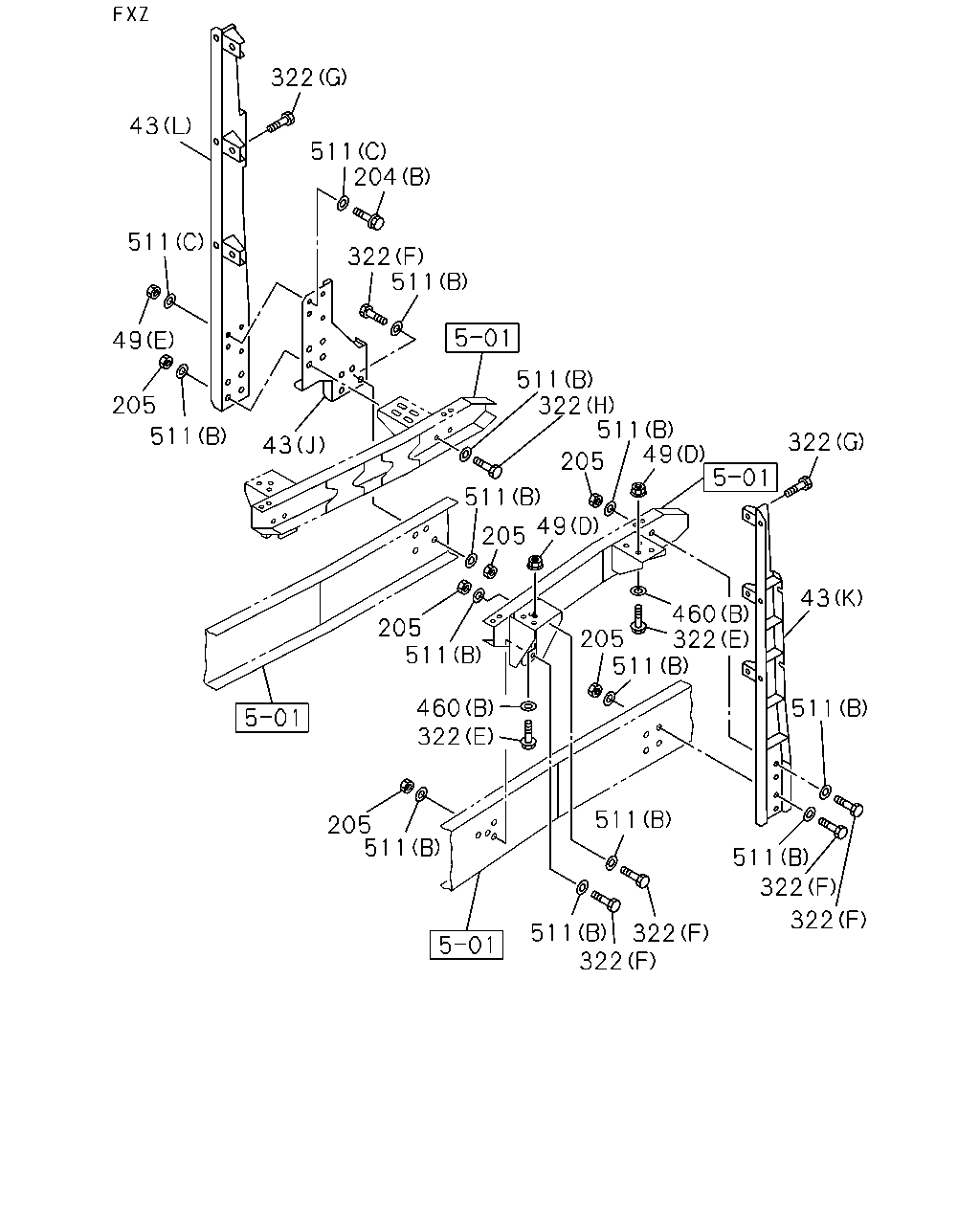

çizim 413718
43 322 511 322 511 49 205 43 511 511 511 322 205 511 205 205 460 205 43 322 511 511 511 322 322 322 511 511 322 511 322 511 49 322 49 205 511 204 460
BalonParca AdiParca NoAdetTipApplied Date A B
43 BRACKET; FUEL TANK
(J) THA 		8-97925-907-1 01 1 1403- ●
43 BRACKET; FUEL TANK
(K) THA 		8-97925-892-1 01 1 1403- ●
43 BRACKET; FUEL TANK
(L) THA 		8-97925-893-2 01 1 1403- ●
43 BRACKET; FUEL TANK
(A) THA 		8-97925-675-1 08 1 1403- ● ●
43 BRACKET; FUEL TANK
(C) THA 		8-97925-696-1 06 1 1403- ● ●
43 BRACKET; FUEL TANK
(D) THA 		8-97925-847-0 02 1 1403- ● ●
43 BRACKET; FUEL TANK
(E) THA 		8-97925-848-0 02 1 1403- ● ●
43 BRACKET; FUEL TANK
(H) THA 		8-97925-951-0 04 1 1403- ● ●
43 BRACKET; FUEL TANK
(I) THA 		8-97925-953-0 02 1 1403- ● ●
43 BRACKET; FUEL TANK
(B) THA 		8-97926-068-0 01 1 1403- ● ●
43 BRACKET; FUEL TANK
(F) THA 		8-97925-933-0 01 1 1403- ●
43 BRACKET; FUEL TANK
(F) THA 		8-97925-934-0 01 1 1403- ●
43 BRACKET; FUEL TANK
(G) THA 		8-97925-935-0 01 1 1403- ●
43 BRACKET; FUEL TANK
(G) THA 		8-97925-936-0 01 1 1403- ●
49 NUT; BRKT
(E) M16 THA 		0-91110-516-0 04 1 1403- ●
49 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-108-0 12 1 1403- ● ●
49 NUT; BRKT
(C) M10 FLANGE THA 		0-91180-210-0 38 1 1403- ● ●
49 NUT; BRKT
(A) M12 FLANGE THA 		0-91180-212-0 32 1 1403- ● ●
49 NUT; BRKT
(D) M14 FLANGE THA 		0-91180-214-0 12 1 1403- ● ●
49 NUT; BRKT
(A) M12 FLANGE THA 		0-91180-212-0 08 1 1403- ●
204 BOLT; MEMBER
(B) M16X40 		0-20951-640-0 04 1 1403- ●
204 BOLT; MEMBER
(A) M18X45 		1-09000-790-0 28 1 1403- ●
205 NUT; MEMBER
M18 THA 		0-91110-518-0 32 1 1403- ●
205 NUT; MEMBER
M18 THA 		0-91110-518-0 28 1 1403- ●
322 BOLT; BRKT FIX
(F) M18X50 		0-20951-850-0 28 1 1403- ●
322 BOLT; BRKT FIX
(A) M12X35 FLANGE THA 		0-28661-235-0 08 1 1403- ●
322 BOLT; BRKT FIX
(G) M14X40 FLANGE 		0-28661-440-0 12 1 1403- ●
322 BOLT; BRKT FIX
(H) M18X65 		1-09000-789-0 04 1 1403- ●
322 BOLT; BRKT FIX
(B) M8X30 FLANGE THA 		0-28650-830-0 12 1 1403- ● ●
322 BOLT; BRKT FIX
(C) M10X30 FLANGE THA 		0-28651-030-0 38 1 1403- ● ●
322 BOLT; BRKT FIX
(D) M12X35 FLANGE THA 		0-28661-235-0 56 1 1403- ● ●
322 BOLT; BRKT FIX
(E) M14X45 FLANGE 		0-28861-445-0 12 1 1403- ● ●
322 BOLT; BRKT FIX
(A) M12X35 FLANGE 		0-28061-235-0 08 1 1403- ●
460 WASHER; PL,BRKT
(A) ID=12.5 OD=32 		0-91614-712-0 08 1 1403- ● ●
460 WASHER; PL,BRKT
(B) ID=14 OD=40 		8-94457-273-0 12 1 1403- ● ●
511 WASHER
(C) ID=17 OD=32 		0-91614-616-0 08 1 1403- ●
511 WASHER
(B) ID=19 		8-98010-401-0 64 1 1403- ●
511 WASHER
(A) ID=21 		0-91610-520-0 08 1 1403- ● ●
511 WASHER
(B) ID=19 		8-98010-401-0 56 1 1403- ●

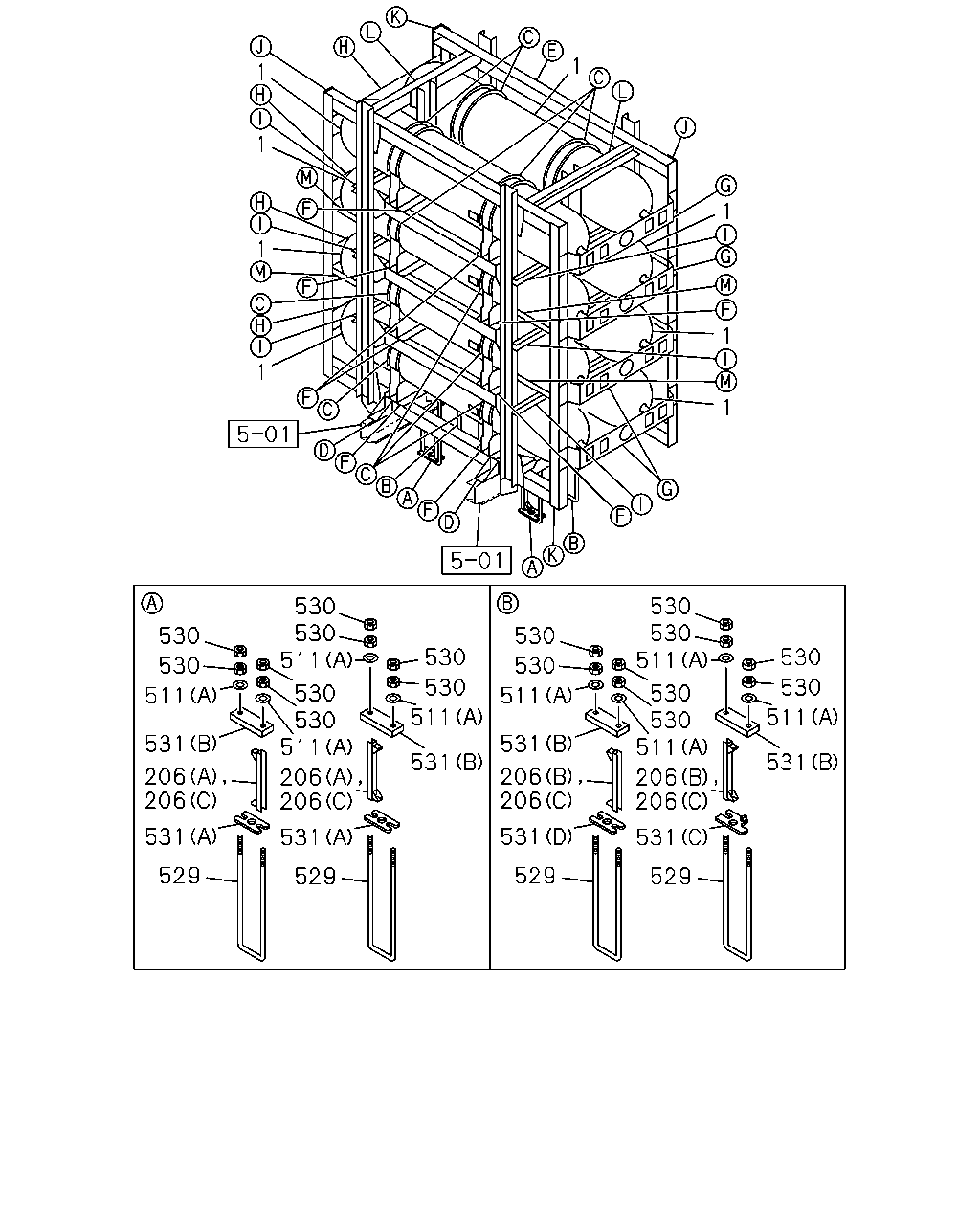

çizim 413968
1 1 1 1 1 1 1 1 530 530 530 530 530 530 530 530 530 530 530 530 530 530 530 530 206 206 206 206 206 206 206 206 529 529 529 529 511 511 511 511 511 511 511 511 531 531 531 531 531 531 531 531
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK; FUEL
OD=356 L=1800 150L THA 		8-97926-964-0 08 1 1403-1408 ● ●
1 TANK; FUEL
OD=356 L=1800 150L THA 		8-98285-753-0 08 1 1409- ● ●
206 SLEEPER; FUEL TANK
(C) THA 		8-97925-881-2 04 1 1403- ●
206 SLEEPER; FUEL TANK
(A) THA 		8-97925-683-2 02 1 1403- ●
206 SLEEPER; FUEL TANK
(B) THA 		8-97925-713-1 02 1 1403- ●
511 WASHER
(C) ID=17 OD=32 		0-91614-616-0 08 1 1403- ●
511 WASHER
(B) ID=19 		8-98010-401-0 64 1 1403- ●
511 WASHER
(A) ID=21 		0-91610-520-0 08 1 1403- ● ●
511 WASHER
(B) ID=19 		8-98010-401-0 56 1 1403- ●
529 U-BOLT
THA 		8-97925-880-0 04 1 1403- ●
529 U-BOLT
THA 		8-97925-717-0 04 1 1403- ●
530 NUT; U-BOLT
M20 		0-91110-520-0 16 1 1403- ● ●
531 PLATE; U-BOLT
(C) THA 		8-97926-364-0 01 1 1403- ●
531 PLATE; U-BOLT
(D) THA 		8-97926-038-0 01 1 1403- ●
531 PLATE; U-BOLT
(B) THA 		8-97925-685-0 04 1 1403- ● ●
531 PLATE; U-BOLT
(A) THA 		8-97925-684-0 02 1 1403- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
