Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11588 - FXZ/GXZ CNG(THAI)EU3
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#136222) — 40 parça
◀
[110A] NO.2 (12 parça)

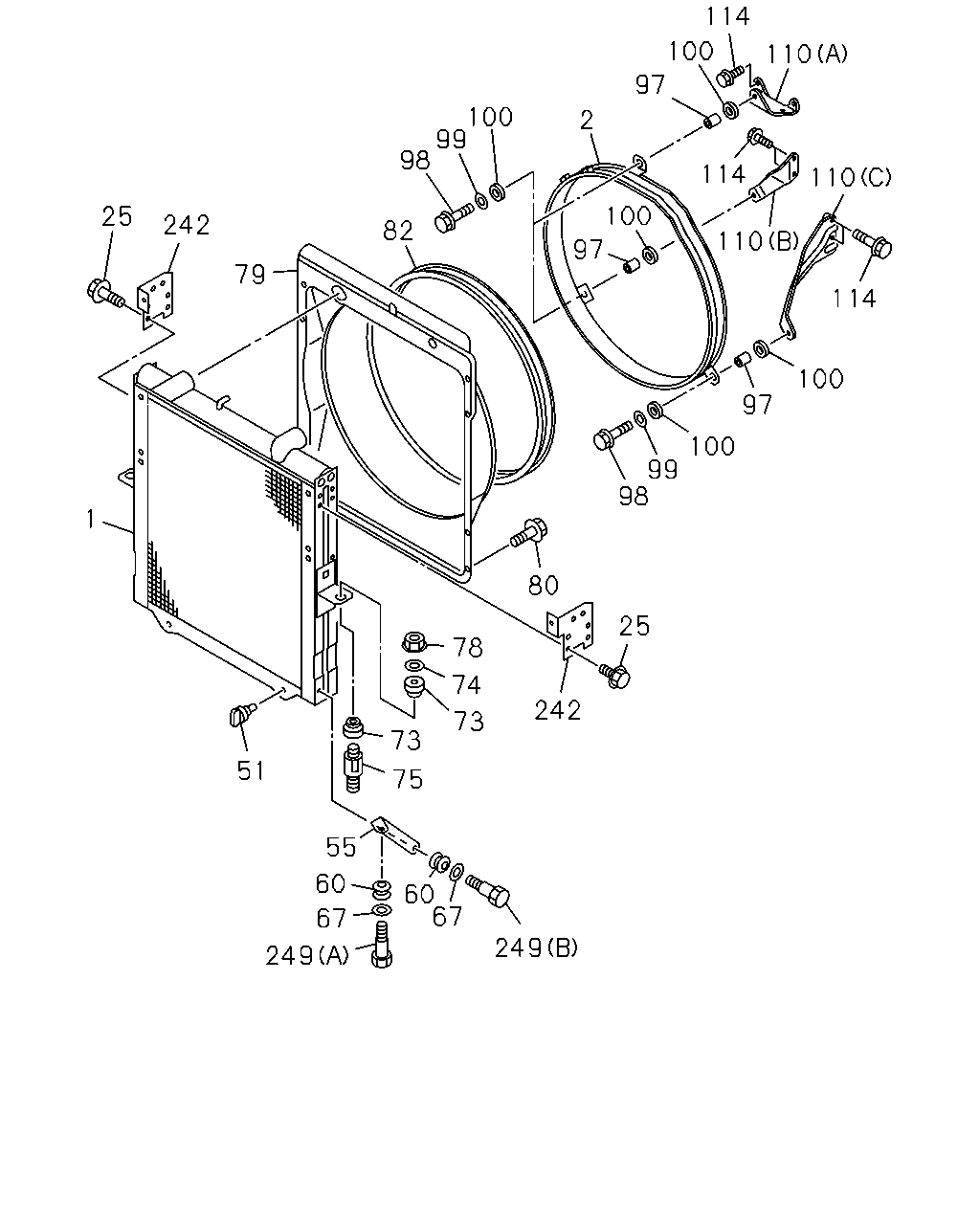

[110A] NO.1 (28 parça)
▶
1
528
529
527
267
235
89
528
89
267
232
529
526
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
THA
8-97520-786-0
01
1
1403-
89
BOLT
(A) M6X12 FLANGE THA
0-28050-612-0
02
1
1403-
89
BOLT
(B) M8X25 THA
1-21469-153-0
04
1
1403-
232
COLLAR; DIST,CUSHION RUBBER
THA
8-98141-232-0
04
1
1403-
235
WASHER; CUSHION RUBBER
THA
1-21469-133-0
02
1
1403-
267
RUBBER; CUSHION
(A) THA
1-21469-130-0
04
1
1403-
267
RUBBER; CUSHION
(B) THA
1-21469-131-0
02
1
1403-
526
TANK; UPR,RADIATOR CORE
THA
1-21414-031-1
01
1
1403-
527
TANK; LWR,RADIATOR CORE
THA
1-21415-031-2
01
1
1403-
528
PLATE; SIDE,RADIATOR CORE
THA
8-97520-787-0
01
1
1403-
528
PLATE; SIDE,RADIATOR CORE
THA
8-97520-788-0
01
1
1403-
529
GASKET; CORE,RADIATOR
THA
8-97948-699-0
02
1
1403-
25
79
242
82
98
99
100
2
97
100
114
114
110
110
110
114
100
97
100
97
100
1
51
75
73
73
78
74
242
25
80
98
99
55
60
67
67
60
249
249
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
THA
8-97520-786-0
01
1
1403-
2
GUIDE; FAN
8-97615-753-1
01
1
1403-
25
BOLT; BRKT
M8X16 FLANGE THA
0-28050-816-0
04
1
1403-
51
PLUG; DRAIN
W/GASKET THA
8-97171-437-0
01
1
1403-
55
STAY; RAD TO UPR MBR
8-98055-802-0
01
1
1403-
55
STAY; RAD TO UPR MBR
8-98055-805-0
01
1
1403-
60
GROMMET
1-09332-117-0
04
1
1403-
67
WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26
0-91610-612-0
04
1
1403-
73
RUBBER; CUSHION,RAD MTG
T=14
1-21467-004-0
04
1
1403-
74
WASHER; PL,CUSHION RUBBER
ID=11 OD=54
1-09503-154-2
02
1
1403-
75
BOLT; CUSHION RUBBER,RAD MTG
1-21466-005-0
02
1
1403-
78
NUT; CUSHION RUBBER
M10 FLANGE THA
0-91180-210-0
02
1
1403-
79
GUIDE; FAN,RAD
THA
1-21551-545-1
01
1
1403-
80
BOLT; FAN GUIDE
M8X16 FLANGE THA
0-28050-816-0
06
1
1403-
82
COVER; FAN,RAD
THA
1-21559-491-1
01
1
1403-
97
TUBE; DIST,FAN GUIDE
ID=11.8 L=27
1-21559-149-0
03
1
1403-
98
BOLT; RAD FAN GUIDE
M10X45 FLANGE THA
0-28051-045-0
03
1
1403-
99
WASHER; PL
ID=10.5 OD=26
0-91614-710-0
03
1
1403-
100
RUBBER; MTG
THA
1-09337-017-0
06
1
1403-
110
STAY; FAN GUIDE
(A)
8-97604-861-1
01
1
1403-
110
STAY; FAN GUIDE
(B)
8-97607-501-0
01
1
1403-
110
STAY; FAN GUIDE
(C)
8-97607-503-0
01
1
1403-
114
BOLT; STAY
M10X20 FLANGE THA
0-28151-020-0
04
1
1403-
114
BOLT; STAY
M10X40 FLANGE
0-28151-040-0
02
1
1403-
242
BRACKET; RAD
THA
8-97520-790-0
01
1
1403-
242
BRACKET; RAD
THA
8-97520-791-0
01
1
1403-
249
BOLT; STAY,RAD MBR
(A) M8X30
1-09009-020-1
02
1
1403-
249
BOLT; STAY,RAD MBR
(B) M8X26
1-09009-175-0
02
1
1403-
