0-60 — ENGINE ELECTRICAL CONTROL PARTS (#136217) — 55 parça

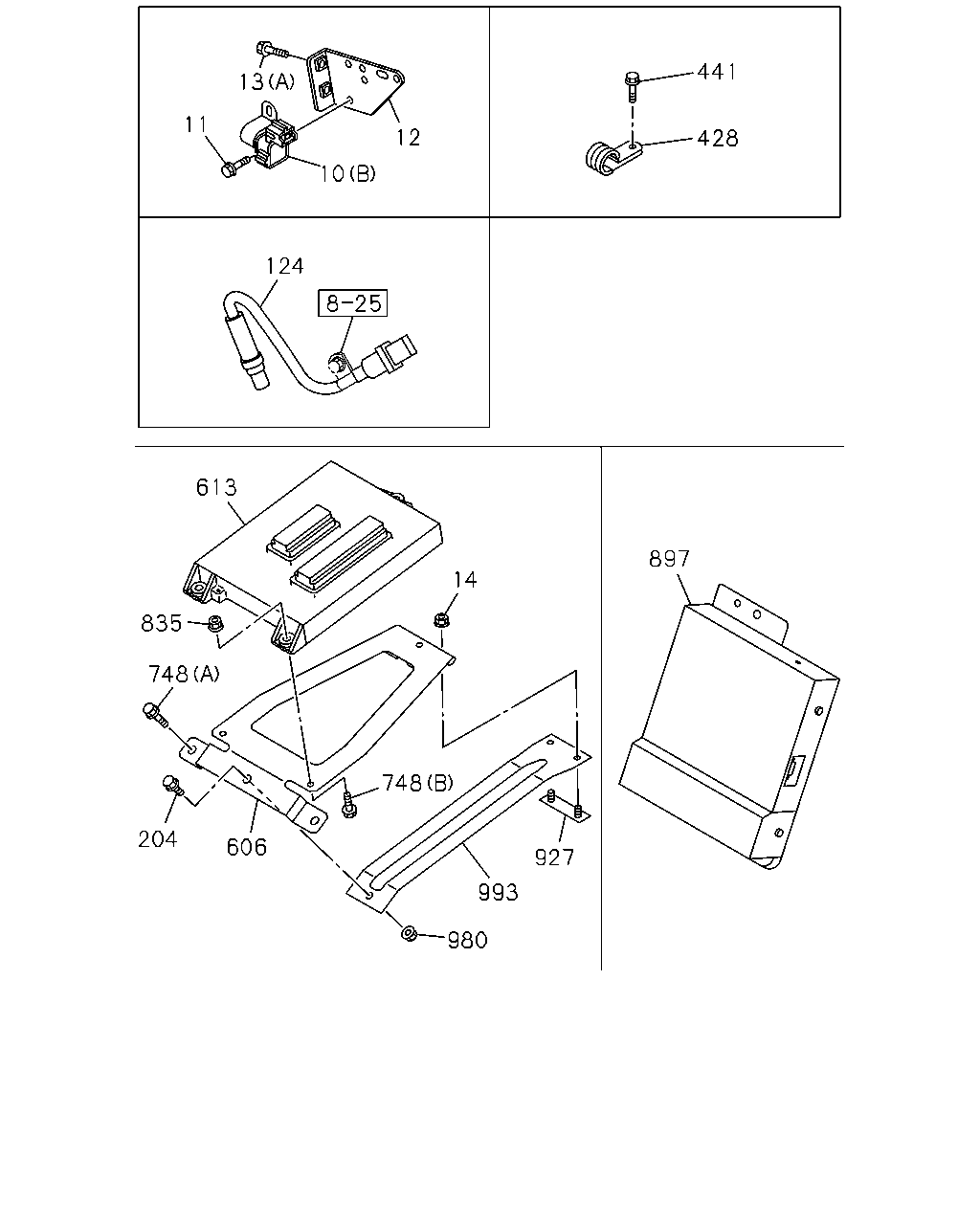

11 13 12 10 124 613 14 835 748 204 606 748 980 993 927 897 428 441

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	RELAY; STARTER (B) 24V NIKKO	8-98005-631-1	01	1	1403-	●	●
10	RELAY; STARTER (A) 24V 10A	8-98167-173-0	01	1	1403-	●	●
11	BOLT; RELAY STARTER M8X25 FLANGE THA	0-28650-825-0	02	1	1403-	●	●
12	BRACKET; STARTER RELAY	8-97620-875-2	01	1	1403-	●	●
13	BOLT; BRKT (B) M8X20 FLANGE THA	0-28650-820-0	03	1	1403-	●	●
13	BOLT; BRKT (A) M8X25 FLANGE THA	0-28650-825-0	02	1	1403-	●	●
14	NUT; BRKT M8 FLANGE THA	0-91180-108-0	02	1	1403-	●	●
124	SENSOR; OXYGEN	8-98195-128-0	01	1	1403-	●	●
204	BOLT; BRKT M8X12 FLANGE THA	0-28050-812-0	01	1	1403-	●	●
428	CLIP; HARNESS ID=32 L=35	1-09701-244-0	03	1	1403-	●	●
441	BOLT; HARNESS TO FRAME M8X20 FLANGE THA	0-28650-820-0	03	1	1403-	●	●
606	BRACKET; CONT UNIT THA	8-97925-937-1	01	1	1403-	●	●
613	CONTROL UNIT; ENG	8-98261-306-0	01	1	1403-1407	●	●
613	CONTROL UNIT; ENG	8-98282-533-0	01	1	1408-1412	●	●
613	CONTROL UNIT; ENG	8-98300-288-0	01	1	1501-	●	●
748	BOLT; CONT UNIT (A) M6X16 FLANGE THA	0-28650-616-0	02	1	1403-	●	●
748	BOLT; CONT UNIT (B) M6X30 FLANGE THA	0-28650-630-0	03	1	1403-	●	●
835	NUT; ECU M6 FLANGE THA	0-91180-106-0	03	1	1403-	●	●
897	DRM THA	8-97948-260-1	01	1	1403-	●	●
927	PLATE THA	8-97925-726-1	01	1	1403-	●	●
980	NUT; CONT UNIT M8 CAP NUT FLANGE	8-98261-347-0	01	1	1403-	●	●
993	BRACKET; ECU THA	8-97925-938-1	01	1	1403-	●	●

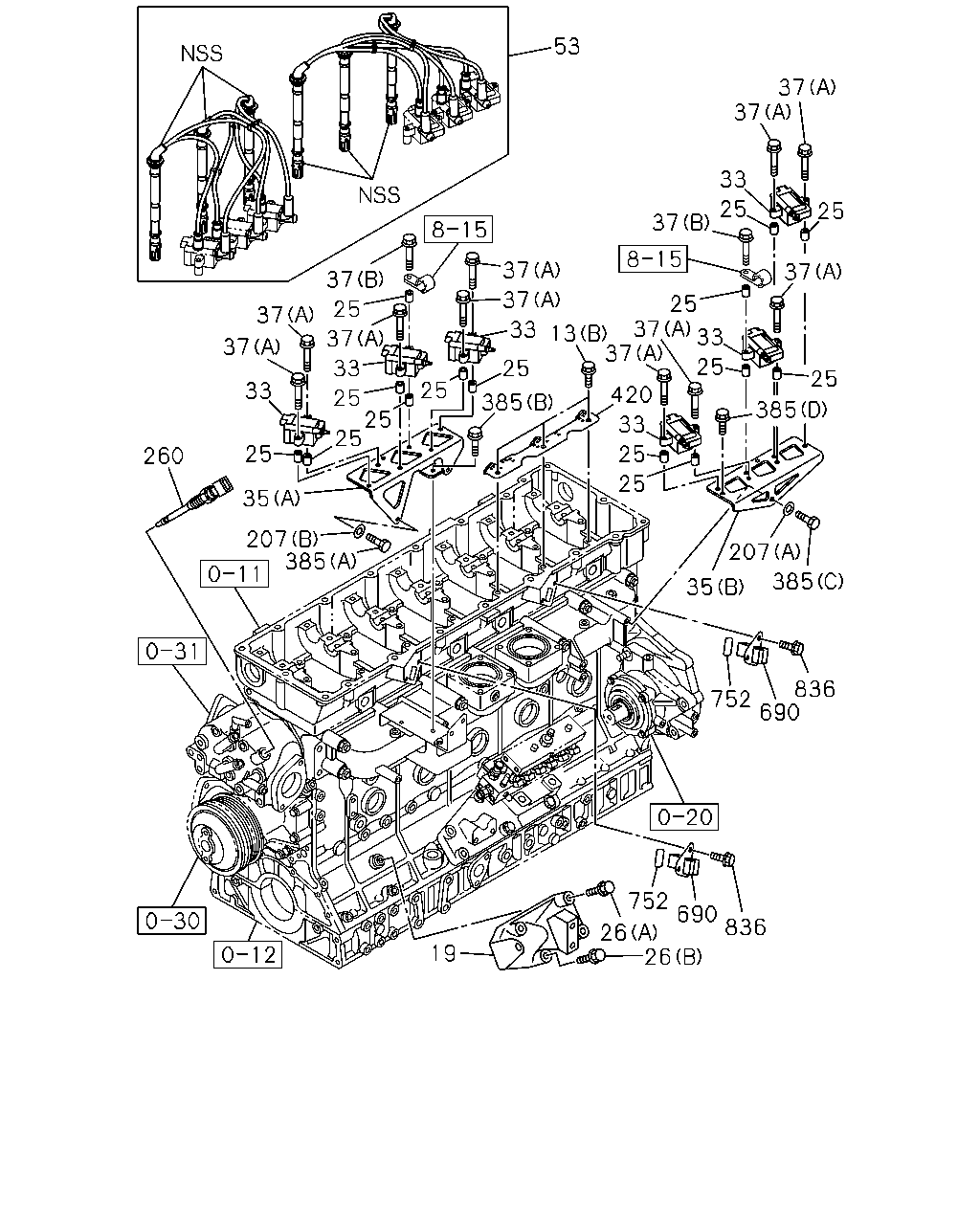

53 37 37 37 260 25 33 35 385 207 25 25 25 33 37 25 37 37 33 25 385 13 37 33 37 37 25 25 37 25 37 37 33 25 25 207 35 385 836 690 752 690 836 752 26 25 385 26 19 25 33 25 420

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	BOLT; BRKT (B) M8X20 FLANGE THA	0-28650-820-0	03	1	1403-	●	●
13	BOLT; BRKT (A) M8X25 FLANGE THA	0-28650-825-0	02	1	1403-	●	●
19	BRACKET; GEN	8-97605-943-0	01	1	1403-	●	●
25	COLLAR; BRKT	8-98216-417-0	14	1	1403-	●	●
26	BOLT; GEN BRKT (A) M12X50 FLANGE THA	0-28151-250-0	03	1	1403-	●	●
26	BOLT; GEN BRKT (B) M12X70 FLANGE	0-28151-270-0	01	1	1403-	●	●
33	COIL ASM; IGN	8-98216-460-0	06	1	1403-	●	●
35	BRACKET; IGN COIL (A)	8-98216-407-0	01	1	1403-	●	●
35	BRACKET; IGN COIL (B)	8-98216-410-0	01	1	1403-	●	●
37	BOLT; IGN COIL (A)	8-98216-414-0	10	1	1403-	●	●
37	BOLT; IGN COIL (B)	8-98216-415-0	02	1	1403-	●	●
53	CABLE; IGN PLUG	8-98216-528-0	01	1	1403-	●	●
207	WASHER; PL,BRKT,IGN COIL (A)	8-98216-412-0	01	1	1403-	●	●
207	WASHER; PL,BRKT,IGN COIL (B)	8-98217-280-0	02	1	1403-	●	●
260	SENSOR; WATER TEMP	1-80210-005-1	01	1	1403-	●	●
385	BOLT; BRKT,IGN COIL (A)	8-98202-873-0	02	1	1403-	●	●
385	BOLT; BRKT,IGN COIL (B)	8-98216-409-0	01	1	1403-	●	●
385	BOLT; BRKT,IGN COIL (C)	8-98216-411-0	01	1	1403-	●	●
385	BOLT; BRKT,IGN COIL (D)	8-98216-413-0	02	1	1403-	●	●
420	BRACKET; HARNESS	8-97603-763-0	01	1	1403-	●	●
690	CONNECTOR	8-94390-858-1	02	1	1403-	●	●
752	GASKET ALSO INCLUDED IN GASKET SET(ENGINE).	8-94391-310-0	02	1	1403-	●	●
836	BOLT; CONNECTOR M8X12 FLANGE THA	0-28050-812-0	04	1	1403-	●	●

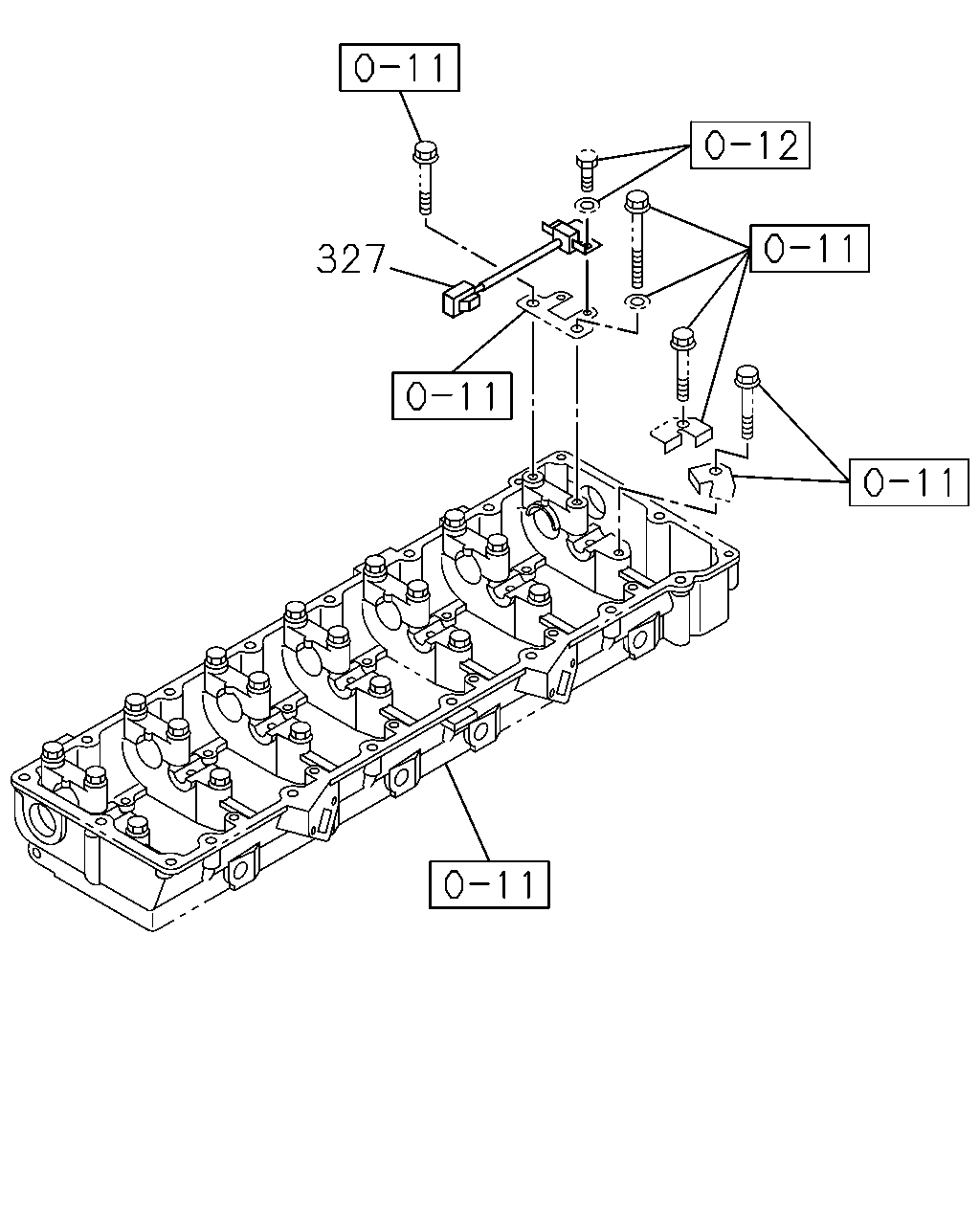

327

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	327	SENSOR; CAMSHAFT POSITION	8-98216-400-0	01	1	1403-	●	●

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	10	RELAY; STARTER (B) 24V NIKKO	8-98005-631-1	01	1	1403-	●	●
	10	RELAY; STARTER (A) 24V 10A	8-98167-173-0	01	1	1403-	●	●

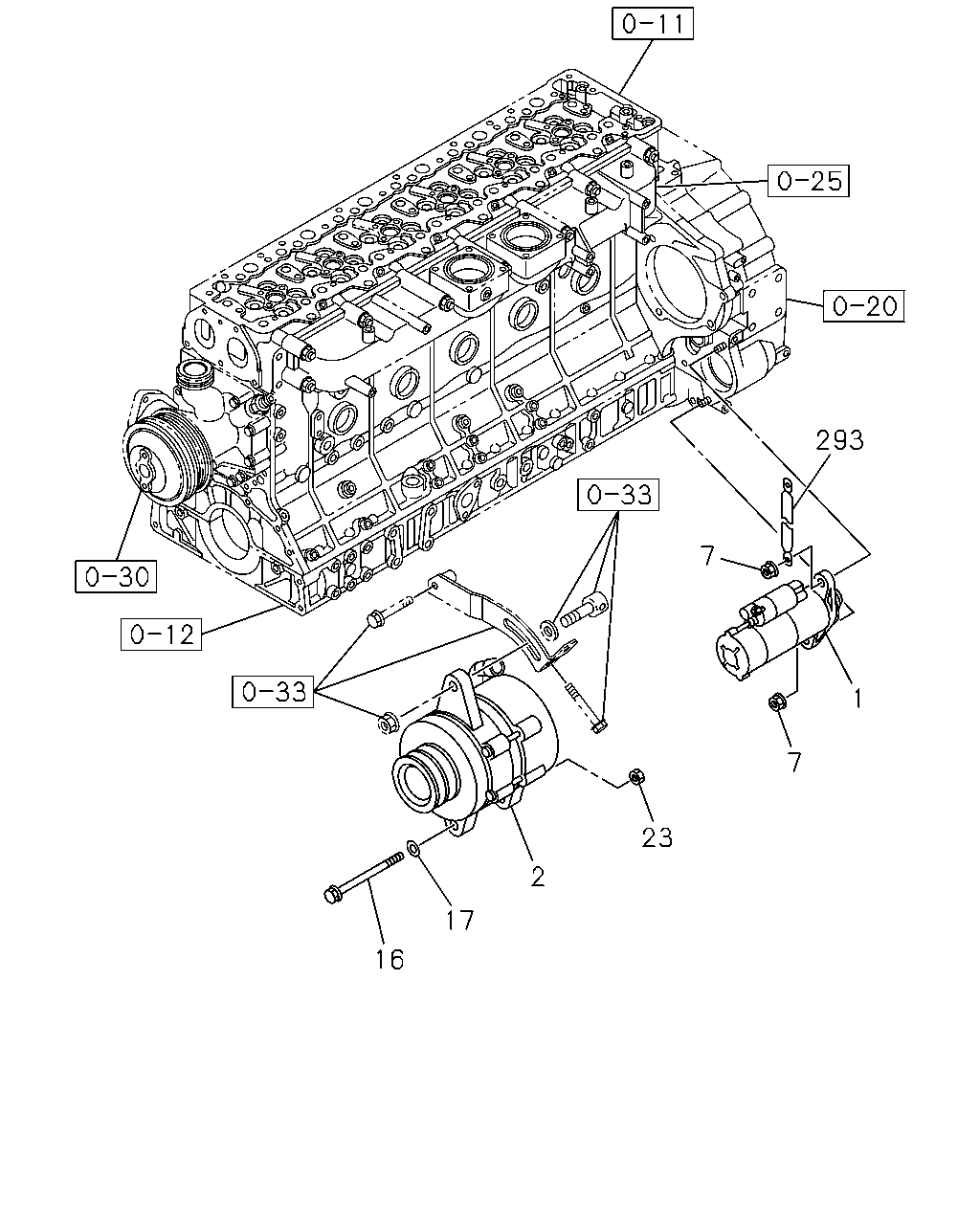

1 7 7 2 17 16 293 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT.	8-98222-203-2	01	1	1403-	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 60A NIKKO	8-98169-360-0	01	1	1403-	●	●
7	NUT; STARTER M14 FLANGE	0-91150-114-0	02	1	1403-	●	●
16	BOLT; GEN M14X123	9-09801-204-1	01	1	1403-	●	●
17	WASHER; PL,GEN ID=15	0-91610-514-0	01	1	1403-	●	●
23	NUT; GEN M14 FLANGE	0-91150-114-0	01	1	1403-	●	●
293	CABLE; STARTER EARTH	1-82650-409-1	01	1	1403-	●	●
