Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#13621) — 467 parça

128 421 48 16 16 48 16 16 223 16 16 470 16 16 263 16 16 16 223 16 16 16 380 16 128 16 16 16 16 16 16

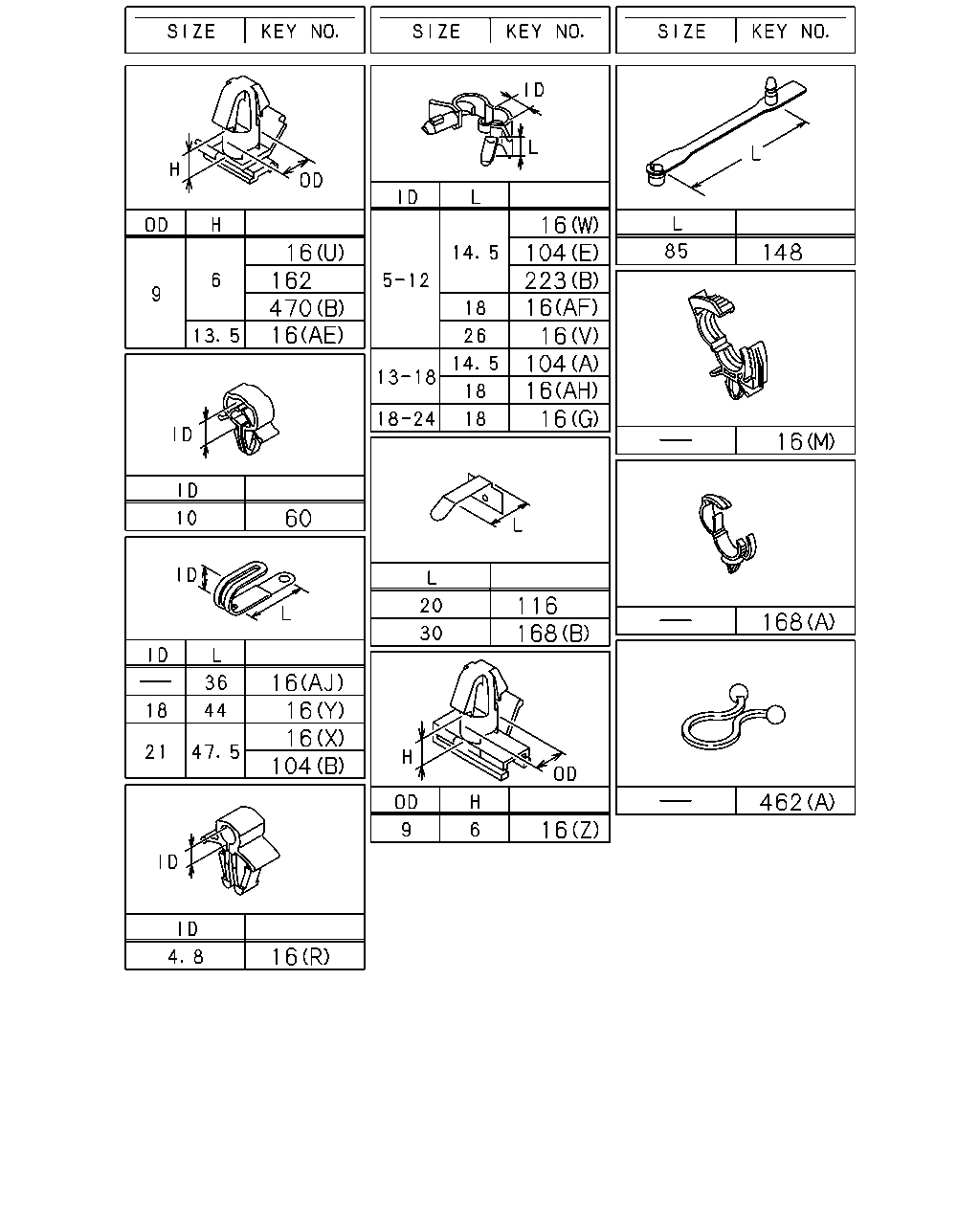

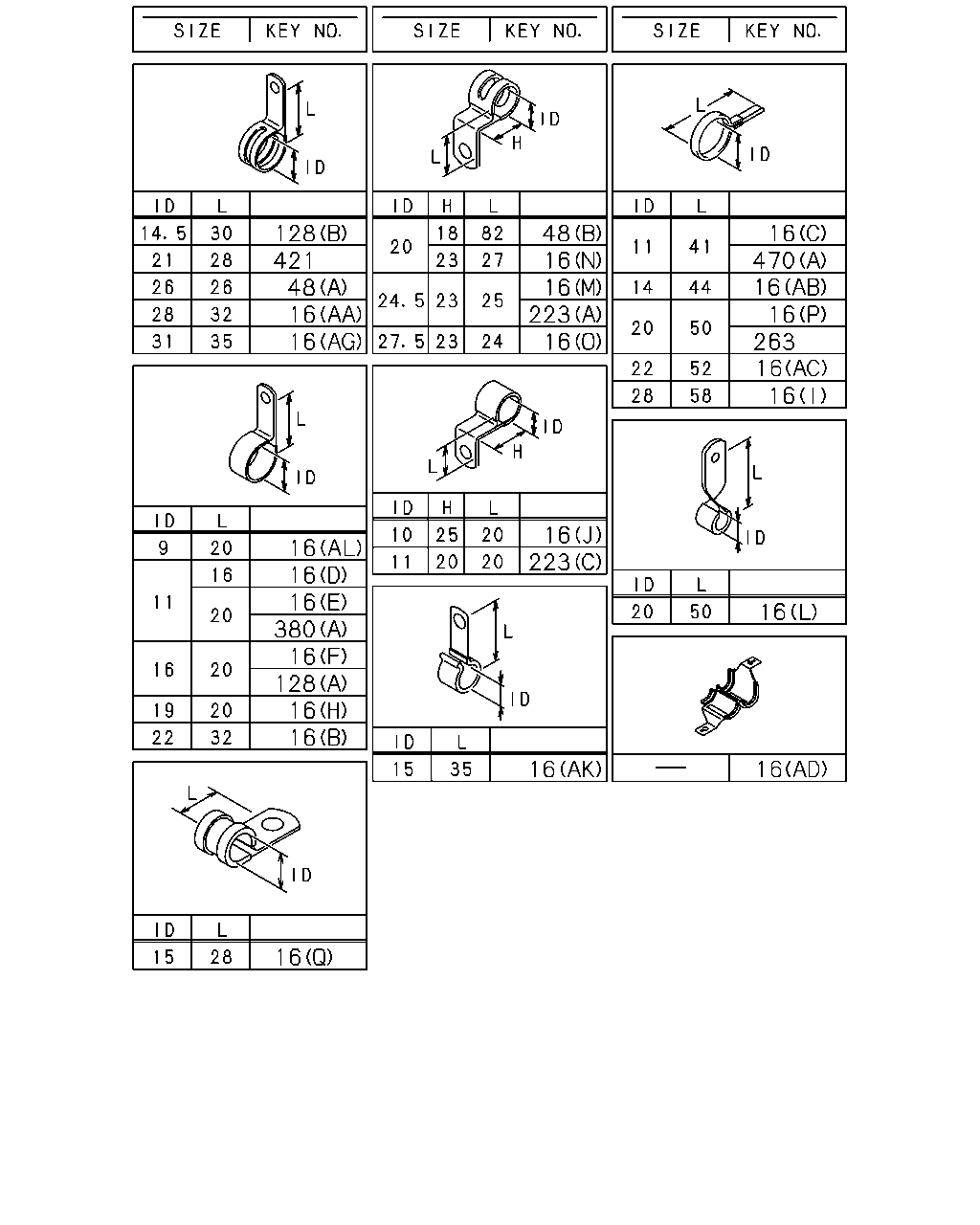

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (AL) ID=9 L=20	0-95234-835-0	02	1	1106-
16	CLIP; HARNESS (AK) ID=15 L=35	1-09700-507-0	01	1	0807-
16	CLIP; HARNESS (AJ) L=36	8-94224-891-1	01	1	0702-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	09	1	0611-0701
16	CLIP; HARNESS (K) L=250	5-09707-030-1	10	1	0702-0704
16	CLIP; HARNESS (K) L=250	5-09707-030-1	09	1	0705-1205
16	CLIP; HARNESS (P) L=250	8-98216-430-0	09	1	1206-
16	CLIP; HARNESS (J) ID=10 H=25 L=20	1-09700-519-0	01	1	0611-
16	CLIP; HARNESS (AF) ID=5-12 L=18	1-09709-287-0	02	1	0611-
16	CLIP; HARNESS (AH) ID=13-18 L=18	1-09709-291-0	01	1	0611-
16	CLIP; HARNESS (G) ID=18-24 L=18	1-09709-294-0	02	1	0611-
16	CLIP; HARNESS (AI)	8-98040-124-0	03	1	0611-0611
16	CLIP; HARNESS (AG) L=251	8-97619-917-0	03	1	0611-
16	CLIP; HARNESS (S) L=180	1-09707-162-1	03	1	0611-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	05	1	0611-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	01	1	0611-0702
16	CLIP; HARNESS (T) L=350	1-09707-183-0	01	1	0703-1009
16	CLIP; HARNESS (T) L=350	1-09707-183-0	01	1	0703-1009
16	CLIP; HARNESS (T) L=350	1-09707-183-0	01	1	1010-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	01	1	1010-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	01	1	1010-
16	CLIP; HARNESS (AC) ID=22 L=52	9-09917-431-0	05	1	0611-
16	CLIP; HARNESS (D) ID=11 L=16	0-95235-025-0	02	1	0611-
16	CLIP; HARNESS (E) ID=11 L=20	0-95235-035-0	05	1	0611-1105
16	CLIP; HARNESS (E) ID=11 L=20	0-95235-035-0	03	1	1106-
16	CLIP; HARNESS (E) ID=11 L=20	0-95235-035-0	02	1	0611-
16	CLIP; HARNESS (F) T=0.8 ID=16 L=20	0-95235-535-0	01	1	0611-
16	CLIP; HARNESS (F) T=1.2 ID=16 L=20	0-95235-536-0	02	1	0611-
16	CLIP; HARNESS (H) ID=19 L=20	0-95235-836-0	03	1	0611-
16	CLIP; HARNESS (B) ID=22 L=32	1-09700-126-1	01	1	0611-
16	CLIP; HARNESS (AG) ID=31 L=35	1-09700-329-1	01	1	0611-
16	CLIP; HARNESS (I) ID=28 L=58	1-09700-400-0	01	1	0611-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	02	1	0611-0702
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	09	1	0611-0611
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	08	1	0611-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	01	1	0611-1409
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	01	1	0611-1409
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	01	1	1410-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	01	1	1410-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	01	1	1410-
16	CLIP; HARNESS (L) ID=20 L=50	1-09700-679-1	01	1	0611-
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	0611-0701
16	CLIP; HARNESS (H) ID=19 L=20	0-95235-836-0	01	1	0702-
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	02	1	0611-0701
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	0702-
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	0702-
16	CLIP; HARNESS (O) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0611-
16	CLIP; HARNESS (O) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0611-
16	CLIP; HARNESS (AA) ID=28 L=32	1-09701-107-1	02	1	0611-1002
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	0611-
16	CLIP; HARNESS (R) ID=4.8	1-09701-218-0	01	1	0611-
16	CLIP; HARNESS (S) L=180	1-09707-162-1	08	1	0611-0611
16	CLIP; HARNESS (S) L=180	1-09707-162-1	02	1	0611-
16	CLIP; HARNESS (A) L=175	1-09707-176-1	01	1	0611-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	05	1	0611-
16	CLIP; HARNESS (AD) W/SPONGE RUBBER	1-09709-150-0	01	1	0611-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	03	1	0611-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	06	1	0611-1409
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	05	1	1410-
16	CLIP; HARNESS (AE) OD=9 H=13.5	1-09709-180-0	01	1	0611-
16	CLIP; HARNESS (AF) ID=5-12 L=18	1-09709-287-0	03	1	0611-
16	CLIP; HARNESS (V) ID=5-12 L=26	1-09709-289-0	01	1	0611-0611
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	01	1	0611-0702
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	03	1	0703-0904
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	01	1	0905-1409
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	03	1	1410-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	01	1	0611-0705
16	CLIP; HARNESS (K) L=250	5-09707-030-1	01	1	0706-
16	CLIP; HARNESS TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (K) L=250	5-09707-030-1	01	1	0706-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	04	1	0611-0805
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	0806-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	0806-
16	CLIP; HARNESS (X) ID=21 L=47.5	8-94178-108-0	03	1	0611-
16	CLIP; HARNESS (Y) ID=18 L=44	8-94225-185-0	05	1	0611-0801
16	CLIP; HARNESS (Y) ID=18 L=44	8-97367-985-1	05	1	0802-
16	CLIP; HARNESS (M) ID=7-10	8-94472-578-0	01	1	0611-
16	CLIP; HARNESS (Z) OD=9 H=6	8-97368-793-0	01	1	0611-
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	02	1	0611-
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	03	1	0611-0611
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	01	1	0611-
16	CLIP; HARNESS (P) ID=20 L=50	9-09917-430-0	01	1	0611-
16	CLIP; HARNESS (P) ID=20 L=50	9-09917-430-0	03	1	0611-
16	CLIP; HARNESS (P) ID=20 L=50	9-09917-430-0	05	1	0611-1409
16	CLIP; HARNESS (P) ID=20 L=50	9-09917-430-0	07	1	1410-
16	CLIP; HARNESS (AC) ID=22 L=52	9-09917-431-0	03	1	0611-
16	CLIP; HARNESS INSPECTION LAMP<T95> (S) L=180	1-09707-162-1	01	1	0611-0611
16	CLIP; HARNESS (S) L=180	1-09707-162-1	01	1	0611-
16	CLIP; HARNESS INSPECTION LAMP<T95> (S) L=180	1-09707-162-1	01	1	0611-
16	CLIP; HARNESS INSPECTION LAMP<T95> (U) OD=9 H=6	1-09709-178-0	01	1	0611-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	01	1	0611-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	04	1	0612-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	05	1	0612-
48	CLIP; FRAME HARNESS (A) ID=26 L=26	1-09701-236-0	01	1	0611-
48	CLIP; FRAME HARNESS (B) ID=20 H=18 L=82	1-09701-288-0	01	1	0611-
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	0-95235-535-0	01	1	0611-
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=14.5 L=30	9-09916-893-1	01	1	0611-
223	CLIP; AIR TANK HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	02	1	0611-
223	CLIP; AIR TANK HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	03	1	0611-
223	CLIP; AIR TANK HARNESS (C) ID=11 H=20 L=20	5-09700-351-0	04	1	0611-0707
223	CLIP; AIR TANK HARNESS (C) ID=11 H=20 L=20	8-98033-780-0	04	1	0708-
263	CLIP; HARNESS,CLIP TO BATTERY RELAY ID=20 L=50	9-09917-430-0	02	1	0611-
380	CLIP; EARTH HARNESS (A) ID=11 L=20	0-95235-035-0	01	1	0611-
380	CLIP; EARTH HARNESS (B) L=250	5-09707-030-1	03	1	0611-0611
380	CLIP; EARTH HARNESS (B) L=250	5-09707-030-1	04	1	0611-
421	CLIP; FLOOR HARNESS ID=21 L=28	1-09700-673-1	02	1	0611-1202
470	CLIP; HARNESS,LICENSE LAMP (A) ID=11 L=41	1-09700-403-0	01	1	0611-
470	CLIP; HARNESS,LICENSE LAMP (B) OD=9 H=6	1-09709-178-0	01	1	0611-

516 19 38 242 139 150 38 242 38 313 38 38 242 386 480 38 313 86 139 242 313 38 242 139 239 38 88 133 358 239 38 88

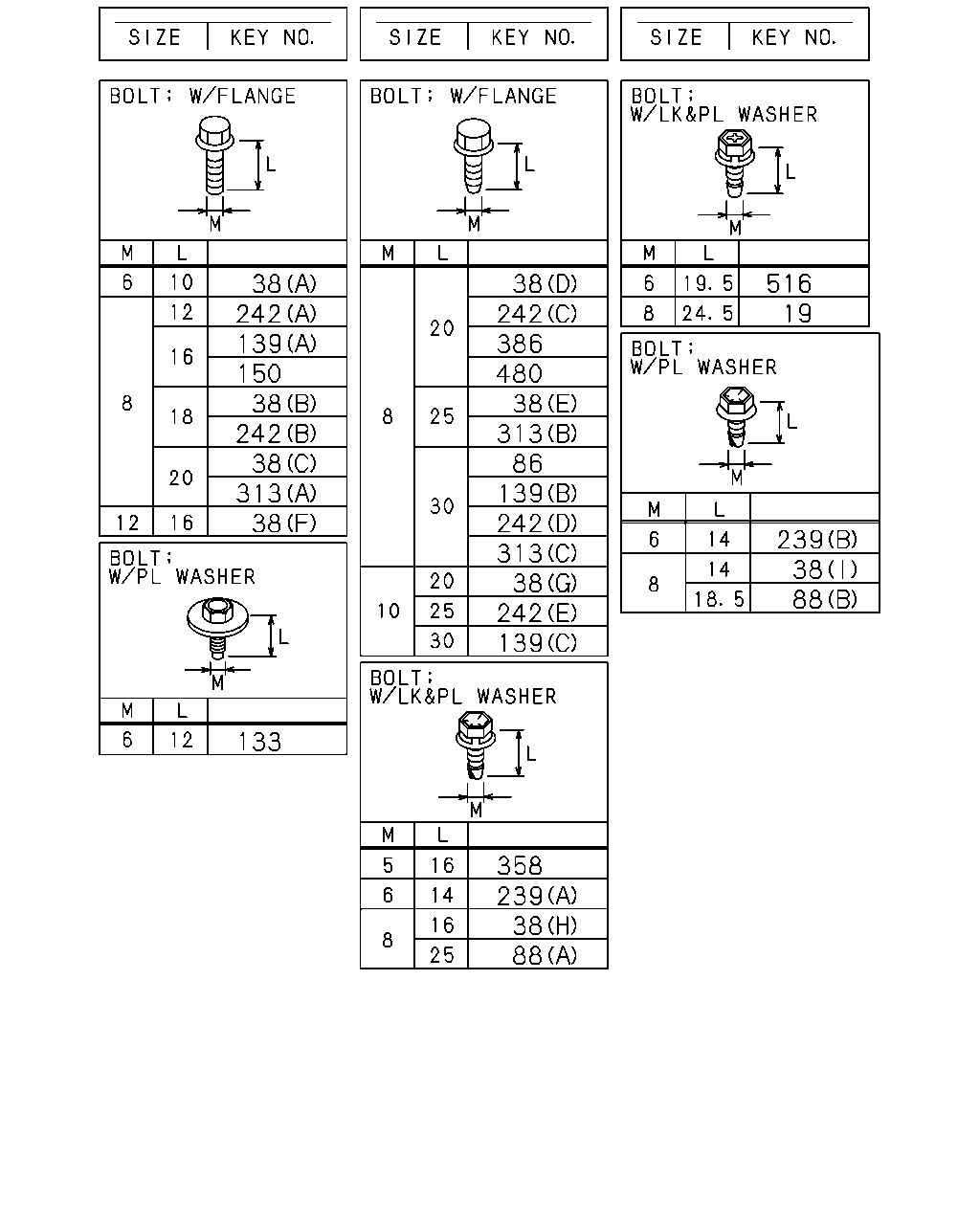

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	BOLT; PROTECTOR M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0701-0904
19	BOLT; PROTECTOR M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	1410-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	1410-
38	BOLT; CLIP,HARNESS (C) M8X20 FLANGE	0-28050-820-0	04	1	0703-
38	BOLT; CLIP,HARNESS (B) M8X18 FLANGE	0-28080-818-0	01	1	0703-
38	BOLT; CLIP,HARNESS (C) M8X20 FLANGE	0-28050-820-0	06	1	0611-0702
38	BOLT; CLIP,HARNESS (C) M8X20 FLANGE	0-28050-820-0	01	1	0703-
38	BOLT; CLIP,HARNESS (A) M6X10 FLANGE	0-28050-610-0	01	1	0611-
38	BOLT; CLIP,HARNESS (B) M8X18 FLANGE	0-28080-818-0	03	1	0611-0806
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	01	1	0611-1001
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	1002-1409
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	1002-1409
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	1002-1409
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	1002-1409
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	04	1	1410-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	05	1	0611-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	0611-1001
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	0611-1001
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	0611-1001
38	BOLT; CLIP,HARNESS (E) M8X25 FLANGE	0-28650-825-0	01	1	0611-
38	BOLT; CLIP,HARNESS (E) M8X25 FLANGE	0-28650-825-0	01	1	0611-
38	BOLT; CLIP,HARNESS (G) M10X20 FLANGE	0-28751-020-0	01	1	0611-
38	BOLT; CLIP,HARNESS (F) M12X16 FLANGE	1-09044-079-0	01	1	0611-1105
38	BOLT; CLIP,HARNESS (F) M12X16 FLANGE	0-28051-216-0	01	1	1106-
38	BOLT; CLIP,HARNESS (H) M8X16 W/LK&PL WASHER	8-97087-055-0	04	1	0611-1201
38	BOLT; CLIP,HARNESS (I) M8X14 W/PL WASHER	8-98164-837-0	04	1	1202-
86	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	0611-
88	BOLT; DOOR HARNESS EARTH AUTO DOOR LOCK<AU4> (A) M8X25 W/LK&PL WASHER	8-97087-203-0	02	1	0611-1007
88	BOLT; DOOR HARNESS EARTH AUTO DOOR LOCK<AU4> (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1008-
88	BOLT; DOOR HARNESS EARTH EXC. AUTO DOOR LOCK<AU4> (A) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0611-1007
88	BOLT; DOOR HARNESS EARTH EXC. AUTO DOOR LOCK<AU4> (B) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1008-
133	SCREW; HARNESS CLIP,STRG COLUMN M6X12 W/PL WASHER	8-97806-950-0	01	1	0611-
139	BOLT; BRKT (C) M10X30 FLANGE	0-28151-030-0	01	1	1112-
139	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	0611-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0611-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	05	1	0611-
150	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	13	1	0611-
239	BOLT; GRAND (A) M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	0611-1007
239	BOLT; GRAND (B) M6X14 W/PL WASHER	8-98164-836-0	02	1	1008-
242	BOLT; BRKT,HARNESS (A) M8X12 FLANGE	0-28050-812-0	01	1	0611-
242	BOLT; BRKT,HARNESS (B) M8X18 FLANGE	0-28080-818-0	02	1	0611-
242	BOLT; BRKT,HARNESS (C) M8X20 FLANGE	0-28650-820-0	03	1	0611-
242	BOLT; BRKT,HARNESS (D) M8X30 FLANGE	0-28650-830-0	01	1	0611-
242	BOLT; BRKT,HARNESS (E) M10X25 FLANGE	0-28651-025-0	02	1	0611-0611
313	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	02	1	0611-
313	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	0611-
313	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	05	1	0611-
313	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	01	1	0611-
358	BOLT; EARTH M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	0611-
386	BOLT; GRAND HARNESS M8X20 FLANGE	0-28650-820-0	01	1	0611-
480	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	04	1	0611-
516	BOLT; HARNESS M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0611-

53 27 53 53 53 53 53 53 312 53 53 312 312 312 334 53 312 211 375 342

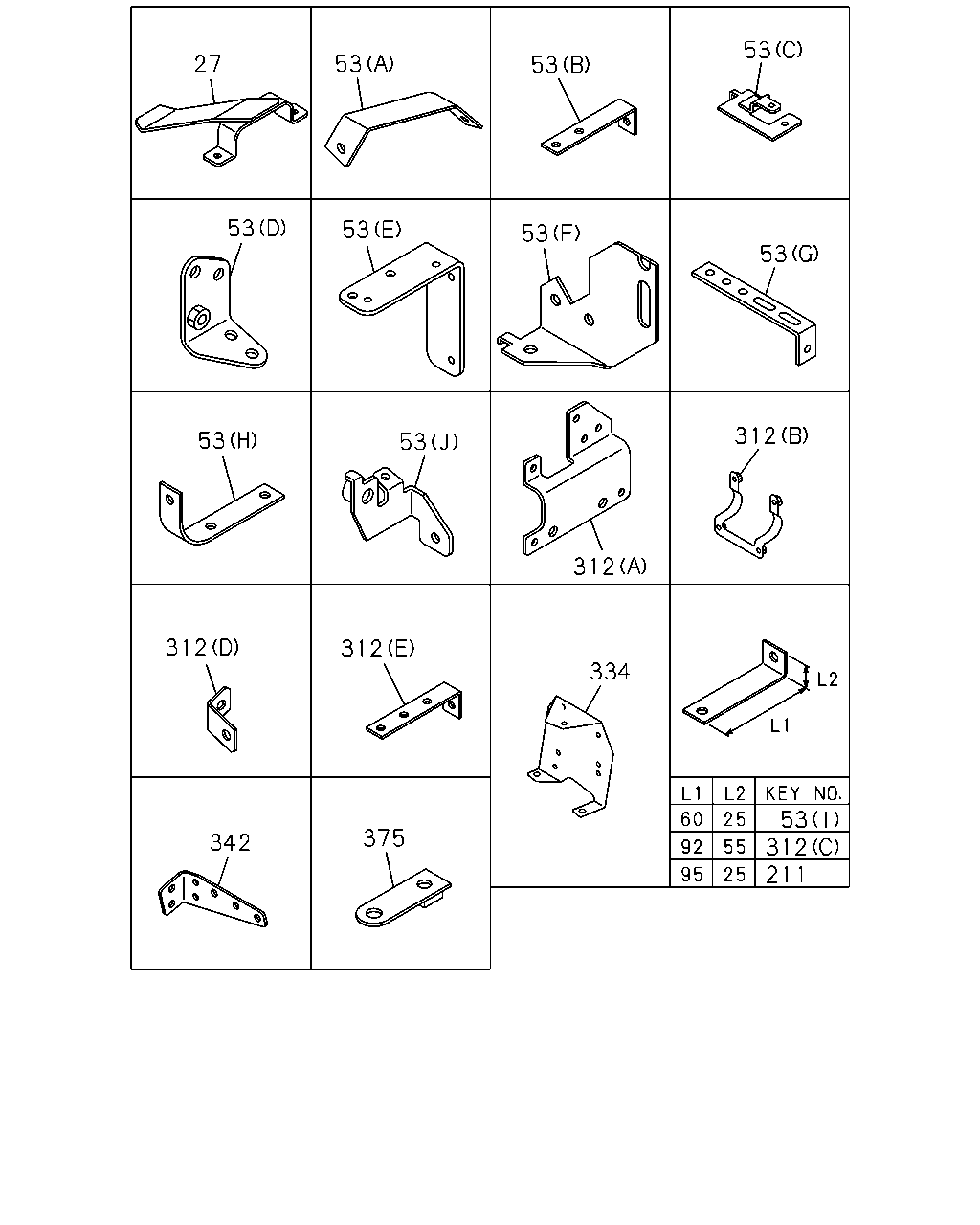

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	PROTECTOR; EDGE	8-97618-028-0	01	1	0701-
53	BRACKET; HARNESS (J)	8-98194-068-0	01	1	1112-
53	BRACKET; HARNESS (A)	1-47479-537-0	04	1	0611-
53	BRACKET; HARNESS (A)	1-47479-537-0	05	1	0611-
53	BRACKET; HARNESS (I) L=60	1-47475-455-0	01	1	0611-
53	BRACKET; HARNESS (F)	8-97617-970-0	01	1	0611-
53	BRACKET; HARNESS (H)	1-47479-342-0	01	1	0611-
53	BRACKET; HARNESS (G) L=160 H=30	1-47479-759-0	01	1	0611-
53	BRACKET; HARNESS (B)	1-82698-382-0	01	1	0611-
53	BRACKET; HARNESS (C)	1-82698-495-2	01	1	0611-
53	BRACKET; HARNESS (D)	8-97610-339-1	01	1	0611-
53	BRACKET; HARNESS (E)	8-97610-340-1	01	1	0611-
211	BRACKET; AXLE HARNESS L=95	1-82699-085-0	02	1	0611-
312	BRACKET; CLIP HARNESS (E) L=120 H=35	1-82698-088-0	01	1	0611-
312	BRACKET; CLIP HARNESS (B)	1-82698-476-0	01	1	0611-
312	BRACKET; CLIP HARNESS (A)	1-82698-648-0	01	1	0611-
312	BRACKET; CLIP HARNESS (C)	1-21464-481-0	01	1	0611-
312	BRACKET; CLIP HARNESS (D)	1-82699-199-0	01	1	0611-
334	BRACKET	1-53458-709-1	01	1	0611-
342	BRACKET; HARNESS CAB MTG	1-82699-625-0	01	1	0611-
375	BRACKET; AC GEN HARNESS CLIP	1-82699-182-0	01	1	0611-

224 1 1 1 224 1 530 530 510 178 178 178 178 178 178 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER (D) ID=17 OD=21 L=40	1-09337-012-0	01	1	0611-
1	SLEEVE; RUBBER (A) ID=14 OD=18 L=60	1-09337-030-0	01	1	0611-0611
1	SLEEVE; RUBBER (C) ID=18 OD=22 L=25	8-94412-773-0	01	1	0611-
1	SLEEVE; RUBBER AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=38.1 L=50	5-09360-835-0	01	1	0611-1108
1	SLEEVE; RUBBER (B) ID=38.1 L=50	5-09360-835-0	01	1	1109-
178	GROMMET; HARNESS (D) ID=15 OD=20 T=26	1-09332-132-0	01	1	0611-
178	GROMMET; HARNESS (F) ID=28 OD=35 T=25	1-09332-011-1	01	1	0611-
178	GROMMET; HARNESS (A) ID=24 OD=30 T=22	1-09332-104-0	01	1	0611-
178	GROMMET; HARNESS (B) ID=32 OD=40 T=23	1-09332-112-0	01	1	0611-
178	GROMMET; HARNESS (E) ID=32 OD=40 T=18	1-09891-003-0	02	1	0611-
178	GROMMET; HARNESS (C) ID=28 OD=35 T=17	9-09956-256-2	04	1	0611-
178	GROMMET; HARNESS INSPECTION LAMP<T95> (G) ID=19 OD=23 T=18	9-09956-130-1	01	1	0611-
224	SLEEVE; RUBBER,HARNESS (A) ID=23 OD=27 L=40	1-09337-015-0	01	1	1109-
224	SLEEVE; RUBBER,HARNESS (B) ID=6 L=30	5-09360-352-0	01	1	0611-
510	GROMMET; SCREW D=9.7X9.7 L=8	8-94222-314-0	02	1	0611-1202
530	SEAL; HARNESS (A) 180X40	1-72498-019-1	04	1	0611-
530	SEAL; HARNESS (A) 180X40	1-72498-019-1	08	1	0611-
530	SEAL; HARNESS (B) 100X40	1-72498-022-1	01	1	0611-

16 470 162 16 60 16 16 16 104 16 16 223 104 16 16 16 104 16 116 168 16 148 16 168 462

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (AL) ID=9 L=20	0-95234-835-0	02	1	1106-
16	CLIP; HARNESS (AK) ID=15 L=35	1-09700-507-0	01	1	0807-
16	CLIP; HARNESS (AJ) L=36	8-94224-891-1	01	1	0702-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	09	1	0611-0701
16	CLIP; HARNESS (K) L=250	5-09707-030-1	10	1	0702-0704
16	CLIP; HARNESS (K) L=250	5-09707-030-1	09	1	0705-1205
16	CLIP; HARNESS (P) L=250	8-98216-430-0	09	1	1206-
16	CLIP; HARNESS (J) ID=10 H=25 L=20	1-09700-519-0	01	1	0611-
16	CLIP; HARNESS (AF) ID=5-12 L=18	1-09709-287-0	02	1	0611-
16	CLIP; HARNESS (AH) ID=13-18 L=18	1-09709-291-0	01	1	0611-
16	CLIP; HARNESS (G) ID=18-24 L=18	1-09709-294-0	02	1	0611-
16	CLIP; HARNESS (AI)	8-98040-124-0	03	1	0611-0611
16	CLIP; HARNESS (AG) L=251	8-97619-917-0	03	1	0611-
16	CLIP; HARNESS (S) L=180	1-09707-162-1	03	1	0611-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	05	1	0611-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	01	1	0611-0702
16	CLIP; HARNESS (T) L=350	1-09707-183-0	01	1	0703-1009
16	CLIP; HARNESS (T) L=350	1-09707-183-0	01	1	0703-1009
16	CLIP; HARNESS (T) L=350	1-09707-183-0	01	1	1010-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	01	1	1010-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	01	1	1010-
16	CLIP; HARNESS (AC) ID=22 L=52	9-09917-431-0	05	1	0611-
16	CLIP; HARNESS (D) ID=11 L=16	0-95235-025-0	02	1	0611-
16	CLIP; HARNESS (E) ID=11 L=20	0-95235-035-0	05	1	0611-1105
16	CLIP; HARNESS (E) ID=11 L=20	0-95235-035-0	03	1	1106-
16	CLIP; HARNESS (E) ID=11 L=20	0-95235-035-0	02	1	0611-
16	CLIP; HARNESS (F) T=0.8 ID=16 L=20	0-95235-535-0	01	1	0611-
16	CLIP; HARNESS (F) T=1.2 ID=16 L=20	0-95235-536-0	02	1	0611-
16	CLIP; HARNESS (H) ID=19 L=20	0-95235-836-0	03	1	0611-
16	CLIP; HARNESS (B) ID=22 L=32	1-09700-126-1	01	1	0611-
16	CLIP; HARNESS (AG) ID=31 L=35	1-09700-329-1	01	1	0611-
16	CLIP; HARNESS (I) ID=28 L=58	1-09700-400-0	01	1	0611-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	02	1	0611-0702
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	09	1	0611-0611
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	08	1	0611-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	01	1	0611-1409
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	01	1	0611-1409
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	01	1	1410-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	01	1	1410-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	01	1	1410-
16	CLIP; HARNESS (L) ID=20 L=50	1-09700-679-1	01	1	0611-
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	0611-0701
16	CLIP; HARNESS (H) ID=19 L=20	0-95235-836-0	01	1	0702-
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	02	1	0611-0701
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	0702-
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	0702-
16	CLIP; HARNESS (O) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0611-
16	CLIP; HARNESS (O) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0611-
16	CLIP; HARNESS (AA) ID=28 L=32	1-09701-107-1	02	1	0611-1002
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	0611-
16	CLIP; HARNESS (R) ID=4.8	1-09701-218-0	01	1	0611-
16	CLIP; HARNESS (S) L=180	1-09707-162-1	08	1	0611-0611
16	CLIP; HARNESS (S) L=180	1-09707-162-1	02	1	0611-
16	CLIP; HARNESS (A) L=175	1-09707-176-1	01	1	0611-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	05	1	0611-
16	CLIP; HARNESS (AD) W/SPONGE RUBBER	1-09709-150-0	01	1	0611-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	03	1	0611-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	06	1	0611-1409
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	05	1	1410-
16	CLIP; HARNESS (AE) OD=9 H=13.5	1-09709-180-0	01	1	0611-
16	CLIP; HARNESS (AF) ID=5-12 L=18	1-09709-287-0	03	1	0611-
16	CLIP; HARNESS (V) ID=5-12 L=26	1-09709-289-0	01	1	0611-0611
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	01	1	0611-0702
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	03	1	0703-0904
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	01	1	0905-1409
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	03	1	1410-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	01	1	0611-0705
16	CLIP; HARNESS (K) L=250	5-09707-030-1	01	1	0706-
16	CLIP; HARNESS TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (K) L=250	5-09707-030-1	01	1	0706-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	04	1	0611-0805
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	0806-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	0806-
16	CLIP; HARNESS (X) ID=21 L=47.5	8-94178-108-0	03	1	0611-
16	CLIP; HARNESS (Y) ID=18 L=44	8-94225-185-0	05	1	0611-0801
16	CLIP; HARNESS (Y) ID=18 L=44	8-97367-985-1	05	1	0802-
16	CLIP; HARNESS (M) ID=7-10	8-94472-578-0	01	1	0611-
16	CLIP; HARNESS (Z) OD=9 H=6	8-97368-793-0	01	1	0611-
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	02	1	0611-
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	03	1	0611-0611
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	01	1	0611-
16	CLIP; HARNESS (P) ID=20 L=50	9-09917-430-0	01	1	0611-
16	CLIP; HARNESS (P) ID=20 L=50	9-09917-430-0	03	1	0611-
16	CLIP; HARNESS (P) ID=20 L=50	9-09917-430-0	05	1	0611-1409
16	CLIP; HARNESS (P) ID=20 L=50	9-09917-430-0	07	1	1410-
16	CLIP; HARNESS (AC) ID=22 L=52	9-09917-431-0	03	1	0611-
16	CLIP; HARNESS INSPECTION LAMP<T95> (S) L=180	1-09707-162-1	01	1	0611-0611
16	CLIP; HARNESS (S) L=180	1-09707-162-1	01	1	0611-
16	CLIP; HARNESS INSPECTION LAMP<T95> (S) L=180	1-09707-162-1	01	1	0611-
16	CLIP; HARNESS INSPECTION LAMP<T95> (U) OD=9 H=6	1-09709-178-0	01	1	0611-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	01	1	0611-
60	CLIP; CONSOLE HARNESS,SW PTO DUMP CONTROL LEVER<RC4> ID=10	8-94450-392-0	01	1	0611-
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (E) ID=5-12 L=14.5	1-09987-221-0	04	1	0707-
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (A) ID=13-18 L=14.5	1-09709-290-0	06	1	0611-
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (C) L=250	5-09707-030-1	02	1	0611-
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (D) L=140	5-09707-031-1	06	1	0611-
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (B) ID=21 L=47.5	8-94178-108-0	02	1	0611-0710
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	05	1	0611-1409
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	06	1	1410-
148	CLIP; BAND,HEADLAMP HARNESS L=85	8-94232-611-0	01	1	0611-
162	CLIP; SW HARNESS OD=9 H=6	1-09709-178-0	01	1	1410-
168	CLIP; DASH HARNESS (A) ID=6 & 10-13	8-97069-515-0	02	1	0611-
168	CLIP; DASH HARNESS EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 SET=10 PIECE	1-09987-265-0	01	1	0611-
223	CLIP; AIR TANK HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	02	1	0611-
223	CLIP; AIR TANK HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	03	1	0611-
223	CLIP; AIR TANK HARNESS (C) ID=11 H=20 L=20	5-09700-351-0	04	1	0611-0707
223	CLIP; AIR TANK HARNESS (C) ID=11 H=20 L=20	8-98033-780-0	04	1	0708-
462	CLIP; HARNESS,HTR EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20	1-09709-068-0	01	1	0611-
462	CLIP; HARNESS,HTR EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140	5-09707-031-1	01	1	0611-
470	CLIP; HARNESS,LICENSE LAMP (A) ID=11 L=41	1-09700-403-0	01	1	0611-
470	CLIP; HARNESS,LICENSE LAMP (B) OD=9 H=6	1-09709-178-0	01	1	0611-

51 81 104 206 212 305 462 104 16 142 194 171 227 228 305 380 14 194 212 14 16 48 194 208 212 16 51 142 194 16 142 16 305 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	CLIP; BAND,HARNESS (A) L=250	1-09707-126-0	02	1	0611-
14	CLIP; BAND,HARNESS (B) L=350	1-09707-183-0	02	1	0611-
16	CLIP; HARNESS (AL) ID=9 L=20	0-95234-835-0	02	1	1106-
16	CLIP; HARNESS (AK) ID=15 L=35	1-09700-507-0	01	1	0807-
16	CLIP; HARNESS (AJ) L=36	8-94224-891-1	01	1	0702-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	09	1	0611-0701
16	CLIP; HARNESS (K) L=250	5-09707-030-1	10	1	0702-0704
16	CLIP; HARNESS (K) L=250	5-09707-030-1	09	1	0705-1205
16	CLIP; HARNESS (P) L=250	8-98216-430-0	09	1	1206-
16	CLIP; HARNESS (J) ID=10 H=25 L=20	1-09700-519-0	01	1	0611-
16	CLIP; HARNESS (AF) ID=5-12 L=18	1-09709-287-0	02	1	0611-
16	CLIP; HARNESS (AH) ID=13-18 L=18	1-09709-291-0	01	1	0611-
16	CLIP; HARNESS (G) ID=18-24 L=18	1-09709-294-0	02	1	0611-
16	CLIP; HARNESS (AI)	8-98040-124-0	03	1	0611-0611
16	CLIP; HARNESS (AG) L=251	8-97619-917-0	03	1	0611-
16	CLIP; HARNESS (S) L=180	1-09707-162-1	03	1	0611-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	05	1	0611-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	01	1	0611-0702
16	CLIP; HARNESS (T) L=350	1-09707-183-0	01	1	0703-1009
16	CLIP; HARNESS (T) L=350	1-09707-183-0	01	1	0703-1009
16	CLIP; HARNESS (T) L=350	1-09707-183-0	01	1	1010-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	01	1	1010-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	01	1	1010-
16	CLIP; HARNESS (AC) ID=22 L=52	9-09917-431-0	05	1	0611-
16	CLIP; HARNESS (D) ID=11 L=16	0-95235-025-0	02	1	0611-
16	CLIP; HARNESS (E) ID=11 L=20	0-95235-035-0	05	1	0611-1105
16	CLIP; HARNESS (E) ID=11 L=20	0-95235-035-0	03	1	1106-
16	CLIP; HARNESS (E) ID=11 L=20	0-95235-035-0	02	1	0611-
16	CLIP; HARNESS (F) T=0.8 ID=16 L=20	0-95235-535-0	01	1	0611-
16	CLIP; HARNESS (F) T=1.2 ID=16 L=20	0-95235-536-0	02	1	0611-
16	CLIP; HARNESS (H) ID=19 L=20	0-95235-836-0	03	1	0611-
16	CLIP; HARNESS (B) ID=22 L=32	1-09700-126-1	01	1	0611-
16	CLIP; HARNESS (AG) ID=31 L=35	1-09700-329-1	01	1	0611-
16	CLIP; HARNESS (I) ID=28 L=58	1-09700-400-0	01	1	0611-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	02	1	0611-0702
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	09	1	0611-0611
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	08	1	0611-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	01	1	0611-1409
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	01	1	0611-1409
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	01	1	1410-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	01	1	1410-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	01	1	1410-
16	CLIP; HARNESS (L) ID=20 L=50	1-09700-679-1	01	1	0611-
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	0611-0701
16	CLIP; HARNESS (H) ID=19 L=20	0-95235-836-0	01	1	0702-
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	02	1	0611-0701
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	0702-
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	0702-
16	CLIP; HARNESS (O) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0611-
16	CLIP; HARNESS (O) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0611-
16	CLIP; HARNESS (AA) ID=28 L=32	1-09701-107-1	02	1	0611-1002
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	0611-
16	CLIP; HARNESS (R) ID=4.8	1-09701-218-0	01	1	0611-
16	CLIP; HARNESS (S) L=180	1-09707-162-1	08	1	0611-0611
16	CLIP; HARNESS (S) L=180	1-09707-162-1	02	1	0611-
16	CLIP; HARNESS (A) L=175	1-09707-176-1	01	1	0611-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	05	1	0611-
16	CLIP; HARNESS (AD) W/SPONGE RUBBER	1-09709-150-0	01	1	0611-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	03	1	0611-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	06	1	0611-1409
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	05	1	1410-
16	CLIP; HARNESS (AE) OD=9 H=13.5	1-09709-180-0	01	1	0611-
16	CLIP; HARNESS (AF) ID=5-12 L=18	1-09709-287-0	03	1	0611-
16	CLIP; HARNESS (V) ID=5-12 L=26	1-09709-289-0	01	1	0611-0611
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	01	1	0611-0702
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	03	1	0703-0904
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	01	1	0905-1409
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	03	1	1410-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	01	1	0611-0705
16	CLIP; HARNESS (K) L=250	5-09707-030-1	01	1	0706-
16	CLIP; HARNESS TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (K) L=250	5-09707-030-1	01	1	0706-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	04	1	0611-0805
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	0806-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	0806-
16	CLIP; HARNESS (X) ID=21 L=47.5	8-94178-108-0	03	1	0611-
16	CLIP; HARNESS (Y) ID=18 L=44	8-94225-185-0	05	1	0611-0801
16	CLIP; HARNESS (Y) ID=18 L=44	8-97367-985-1	05	1	0802-
16	CLIP; HARNESS (M) ID=7-10	8-94472-578-0	01	1	0611-
16	CLIP; HARNESS (Z) OD=9 H=6	8-97368-793-0	01	1	0611-
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	02	1	0611-
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	03	1	0611-0611
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	01	1	0611-
16	CLIP; HARNESS (P) ID=20 L=50	9-09917-430-0	01	1	0611-
16	CLIP; HARNESS (P) ID=20 L=50	9-09917-430-0	03	1	0611-
16	CLIP; HARNESS (P) ID=20 L=50	9-09917-430-0	05	1	0611-1409
16	CLIP; HARNESS (P) ID=20 L=50	9-09917-430-0	07	1	1410-
16	CLIP; HARNESS (AC) ID=22 L=52	9-09917-431-0	03	1	0611-
16	CLIP; HARNESS INSPECTION LAMP<T95> (S) L=180	1-09707-162-1	01	1	0611-0611
16	CLIP; HARNESS (S) L=180	1-09707-162-1	01	1	0611-
16	CLIP; HARNESS INSPECTION LAMP<T95> (S) L=180	1-09707-162-1	01	1	0611-
16	CLIP; HARNESS INSPECTION LAMP<T95> (U) OD=9 H=6	1-09709-178-0	01	1	0611-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	01	1	0611-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	04	1	0612-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	05	1	0612-
48	CLIP; FRAME HARNESS (A) ID=26 L=26	1-09701-236-0	01	1	0611-
48	CLIP; FRAME HARNESS (B) ID=20 H=18 L=82	1-09701-288-0	01	1	0611-
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180	1-09707-162-1	01	1	0611-1108
51	CLIP; COOLER CMPR (A) L=180	1-09707-162-1	01	1	1109-
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140	5-09707-031-1	01	1	0611-1108
51	CLIP; COOLER CMPR (B) L=140	5-09707-031-1	01	1	1109-
81	CLIP; HARNESS L=140	5-09707-031-1	02	1	0611-
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (E) ID=5-12 L=14.5	1-09987-221-0	04	1	0707-
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (A) ID=13-18 L=14.5	1-09709-290-0	06	1	0611-
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (C) L=250	5-09707-030-1	02	1	0611-
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (D) L=140	5-09707-031-1	06	1	0611-
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (B) ID=21 L=47.5	8-94178-108-0	02	1	0611-0710
142	CLIP; HARNESS,ENG (A) L=180	1-09707-162-1	01	1	0611-1207
142	CLIP; HARNESS,ENG (A) L=180	8-98216-427-0	01	1	1208-
142	CLIP; HARNESS,ENG (B) L=250	5-09707-030-1	01	1	0611-1205
142	CLIP; HARNESS,ENG (C) L=250	8-98216-430-0	01	1	1206-
171	CLIP; STARTER HARNESS L=250	5-09707-030-1	05	1	0611-
194	CLIP; BAND (A) L=300	1-09707-001-1	01	1	0611-
194	CLIP; BAND (B) L=180	1-09707-162-1	01	1	0611-1001
194	CLIP; BAND (C) L=350	1-09707-183-0	02	1	0611-
194	CLIP; BAND (C) L=350	1-09707-183-0	09	1	0611-1202
194	CLIP; BAND (C) L=350	1-09707-183-0	10	1	1203-
194	CLIP; BAND (D) L=250	5-09707-030-1	01	1	0611-
194	CLIP; BAND (D) L=250	5-09707-030-1	05	1	0611-0611
206	CLIP; FUEL TANK HARNESS L=140	5-09707-031-1	02	1	0611-
208	CLIP; HARNESS,MAG VLV L=350	1-09707-183-0	01	1	0611-
212	CLIP; HORN HARNESS (A) L=300	1-09707-001-1	01	1	0611-
212	CLIP; HORN HARNESS (B) L=350	1-09707-183-0	01	1	0611-
212	CLIP; HORN HARNESS (C) L=140	5-09707-031-1	01	1	0611-
227	CLIP; FOG LAMP HARNESS L=250	5-09707-030-1	01	1	0611-
228	CLIP; COOLER HARNESS AIR CONDITIONER MANUAL CONTROL(C60) L=250	5-09707-030-1	02	1	0611-1112
228	CLIP; COOLER HARNESS L=250	5-09707-030-1	02	1	1201-
305	CLIP; ENG HARNESS (A) L=382	1-09707-196-0	01	1	1109-
305	CLIP; ENG HARNESS (B) L=250	5-09707-030-1	01	1	1109-
305	CLIP; ENG HARNESS (C) L=140	5-09707-031-1	01	1	0611-
380	CLIP; EARTH HARNESS (A) ID=11 L=20	0-95235-035-0	01	1	0611-
380	CLIP; EARTH HARNESS (B) L=250	5-09707-030-1	03	1	0611-0611
380	CLIP; EARTH HARNESS (B) L=250	5-09707-030-1	04	1	0611-
462	CLIP; HARNESS,HTR EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20	1-09709-068-0	01	1	0611-
462	CLIP; HARNESS,HTR EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140	5-09707-031-1	01	1	0611-

119 64 524 24 219 294 340 515 552 515 423

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	NUT; HARNESS M8 FLANGE	0-91180-108-0	01	1	0611-
64	SCREW; CLIP M6X12 TAPPING W/PL WASHER	0-74100-612-0	02	1	0611-1202
119	SCREW; DOOR HARNESS EARTH AUTO DOOR LOCK<AU4> M5X14 W/PL WASHER	8-94447-551-0	02	1	0611-
219	NUT M8 FLANGE	0-91180-108-0	02	1	0611-
219	NUT M8 FLANGE	0-91180-108-0	06	1	0611-
219	NUT M8 FLANGE	0-91180-108-0	14	1	0611-0806
219	NUT M8 FLANGE	0-91180-108-0	11	1	0807-1409
219	NUT M8 FLANGE	0-91180-108-0	10	1	1410-
219	NUT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	0611-1409
219	NUT M8 FLANGE	0-91180-108-0	01	1	0611-1409
219	NUT M8 FLANGE	0-91180-108-0	01	1	0611-1409
219	NUT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	1410-
219	NUT M8 FLANGE	0-91180-108-0	01	1	1410-
219	NUT M8 FLANGE	0-91180-108-0	01	1	1410-
219	NUT M8 FLANGE	0-91180-108-0	01	1	1410-
294	NUT M8 FLANGE	0-91180-108-0	01	1	0611-
294	NUT M8 FLANGE	0-91180-108-0	04	1	0611-
294	NUT M8 FLANGE	0-91180-108-0	02	1	0611-
340	NUT; HARNESS CAB TO FRAME M8 FLANGE	0-91180-108-0	01	1	0611-
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	04	1	0611-
515	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	04	1	0611-
515	NUT; BRKT (B) M10 FLANGE	0-91180-110-0	02	1	0611-0611
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	02	1	0611-
552	NUT; BRKT,HARNESS M8 FLANGE	0-91180-108-0	01	1	0611-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
