Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11588 - FXZ/GXZ CNG(THAI)EU3
▶
0 - Engine, Emission, Engine Electrical
▶
0-39 - AIR COMPRESSOR; BRAKE
▶

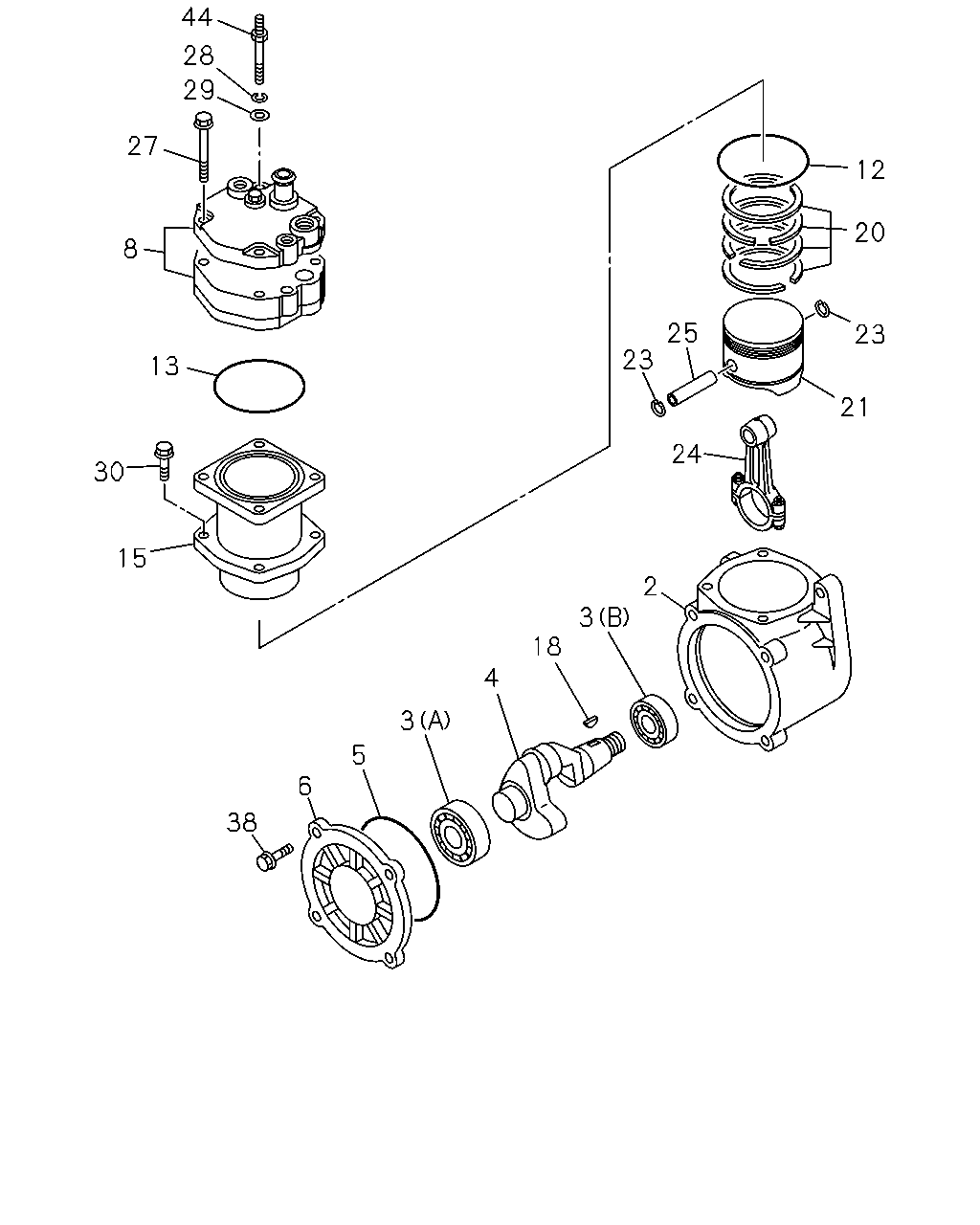

0-39 — AIR COMPRESSOR; BRAKE
(#136209) — 22 parça
44
29
28
27
8
13
30
15
23
25
24
21
23
20
12
18
4
3
3
5
6
38
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
CRANKCASE; AIR CMPR
1-19171-091-1
01
1
1403-
3
BEARING; AIR CMPR
(B)
1-09800-311-0
01
1
1403-
3
BEARING; AIR CMPR
(A)
9-00090-152-0
01
1
1403-
4
CRANKSHAFT; AIR CMPR
1-19171-092-0
01
1
1403-
5
GASKET; AIR CMPR
1-09623-686-0
01
1
1403-
6
COVER ASM; BRG,AIR CMPR
1-19156-087-0
01
1
1403-
8
HEAD ASM; CYL,AIR CMPR
8-98271-056-0
01
1
1403-
12
GASKET; AIR CMPR
1-09623-651-1
01
1
1403-
13
GASKET; AIR CMPR
1-09623-650-1
01
1
1403-
15
CYLINDER; AIR CMPR
8-98233-399-0
01
1
1403-
18
KEY; AIR CMPR
9-08055-516-0
01
1
1403-
20
RING KIT; PISTON,AIR CMPR
8-98231-458-0
01
1
1403-
21
PISTON; AIR CMPR
8-98231-457-0
01
1
1403-
23
RING; SNAP,PISTON,AIR CMPR
1-19169-001-0
02
1
1403-
24
ROD ASM; CONN,AIR CMPR
1-19171-093-0
01
1
1403-
25
PIN; PISTON,AIR CMPR
1-19167-007-0
01
1
1403-
27
BOLT; HD
M10X75
8-98167-018-0
03
1
1403-
28
WASHER; LK,HD BOLT
8-97613-694-0
01
1
1403-
29
WASHER; PL,HD BOLT
8-97613-686-0
01
1
1403-
30
BOLT; CYL TO CRANKCASE
8-97613-704-0
04
1
1403-
38
BOLT; COVER FIX
8-97613-704-0
04
1
1403-
44
STUD; CYL HD,AIR CMPR
8-98119-751-0
01
1
1403-
