Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11588 - FXZ/GXZ CNG(THAI)EU3
▶
0 - Engine, Emission, Engine Electrical
▶
0-36 - TURBOCHARGER SYSTEM
▶

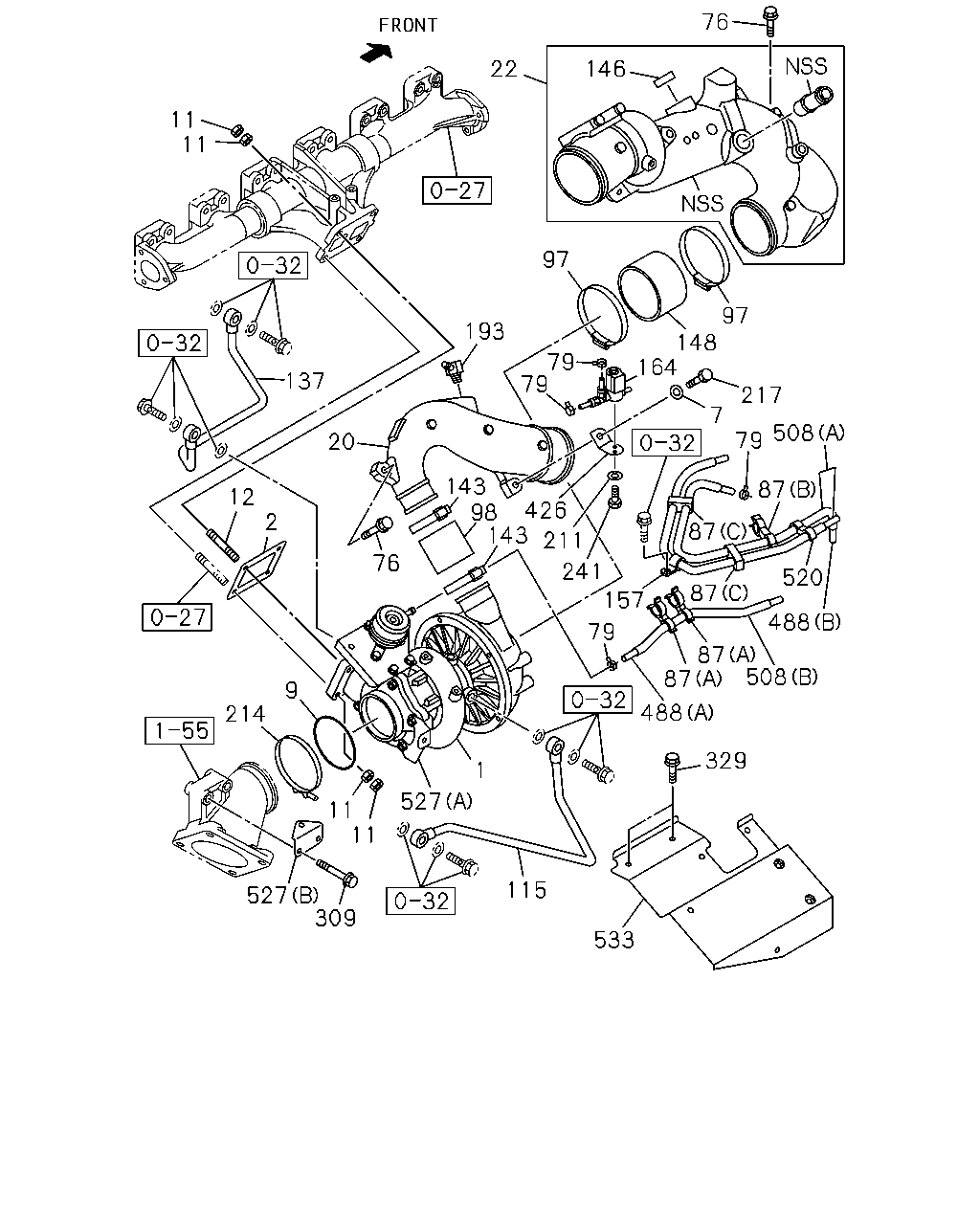

0-36 — TURBOCHARGER SYSTEM
(#136207) — 38 parça
11
11
137
20
12
2
9
214
11
11
527
309
527
1
115
533
329
488
508
87
87
87
488
520
87
87
157
79
241
211
143
426
98
143
76
193
79
79
97
22
146
76
97
217
508
79
7
148
164
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TURBOCHARGER ASM
8-98216-463-0
01
1
1403-
2
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98216-464-0
01
1
1403-
7
WASHER; PL,BRKT
8-98216-412-0
01
1
1403-
9
GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97618-761-1
01
1
1403-
11
NUT; TURBOCHARGER
M10
1-09420-005-0
08
1
1403-
12
STUD; TURBOCHARGER
M10X25 L=47
8-97378-071-0
02
1
1403-
20
PIPE; INL,TURBOCHARGER OUT
8-98216-530-0
01
1
1403-
22
DUCT; INL,ACL TO TURBOCHARGER
8-97614-187-1
01
1
1403-
76
BOLT; AIR DUCT
M10X45 FLANGE THA
0-28151-045-0
03
1
1403-
79
CLIP; RUBBER HOSE
8-98216-477-0
04
1
1403-
87
CLIP; RUBBER HOSE FIX
(A)
8-98217-281-0
02
1
1403-
87
CLIP; RUBBER HOSE FIX
(B)
8-98217-282-0
01
1
1403-
87
CLIP; RUBBER HOSE FIX
(C)
8-98217-283-0
02
1
1403-
97
CLIP; HOSE,TURBOCHARGER,INL
ID=87-116
1-09707-138-0
02
1
1403-
98
HOSE; RUBBER,TURBOCHARGER OUTLET
8-98169-677-0
01
1
1403-
115
PIPE; WATER,TURBOCHARGER OUT
8-97605-217-0
01
1
1403-
137
PIPE; WATER,TURBOCHARGER IN
8-97607-435-0
01
1
1403-
143
CLIP; HOSE,TURBOCHARGER OUTLET
ID=68-85
8-98096-592-0
02
1
1403-
146
PLUG; INL PIPE
OD=40
8-94241-637-0
01
1
1403-
148
HOSE; TURBOCHARGER,INL
1-09360-913-0
01
1
1403-
157
CLIP; HOSE,INL
ID=19 L=25
1-09700-515-1
01
1
1403-
164
VALVE; WASTE GATE
8-98216-536-0
01
1
1403-
193
NIPPLE; UNION
8-98217-285-0
01
1
1403-
211
WASHER; PL
8-98216-474-0
02
1
1403-
214
BAND; "V",TURBOCHARGER TO EXH PIPE
8-98006-007-1
01
1
1403-
217
BOLT; BRKT
8-98216-471-0
01
1
1403-
241
BOLT
8-98216-473-0
02
1
1403-
309
BOLT; TURBOCHARGER
8-98216-469-0
02
1
1403-
329
BOLT; INSULATOR
8-98216-409-0
06
1
1403-
426
BRACKET; VLV
8-98216-470-0
01
1
1403-
488
HOSE; RUBBER
(A)
8-98216-475-0
01
1
1403-
488
HOSE; RUBBER
(B)
8-98216-476-0
01
1
1403-
508
TUBE; CORRUGATE
(A)
8-98216-519-0
01
1
1403-
508
TUBE; CORRUGATE
(B)
8-98216-520-0
01
1
1403-
520
CLIP; BAND
8-98217-284-0
01
1
1403-
527
BRACKET; TURBOCHARGER
(A)
8-98216-465-0
01
1
1403-
527
BRACKET; TURBOCHARGER
(B)
8-98216-466-0
01
1
1403-
533
INSULATOR; HEAT
8-98216-467-0
01
1
1403-
