0-31 — THERMOSTAT AND HOUSING (#136203) — 27 parça

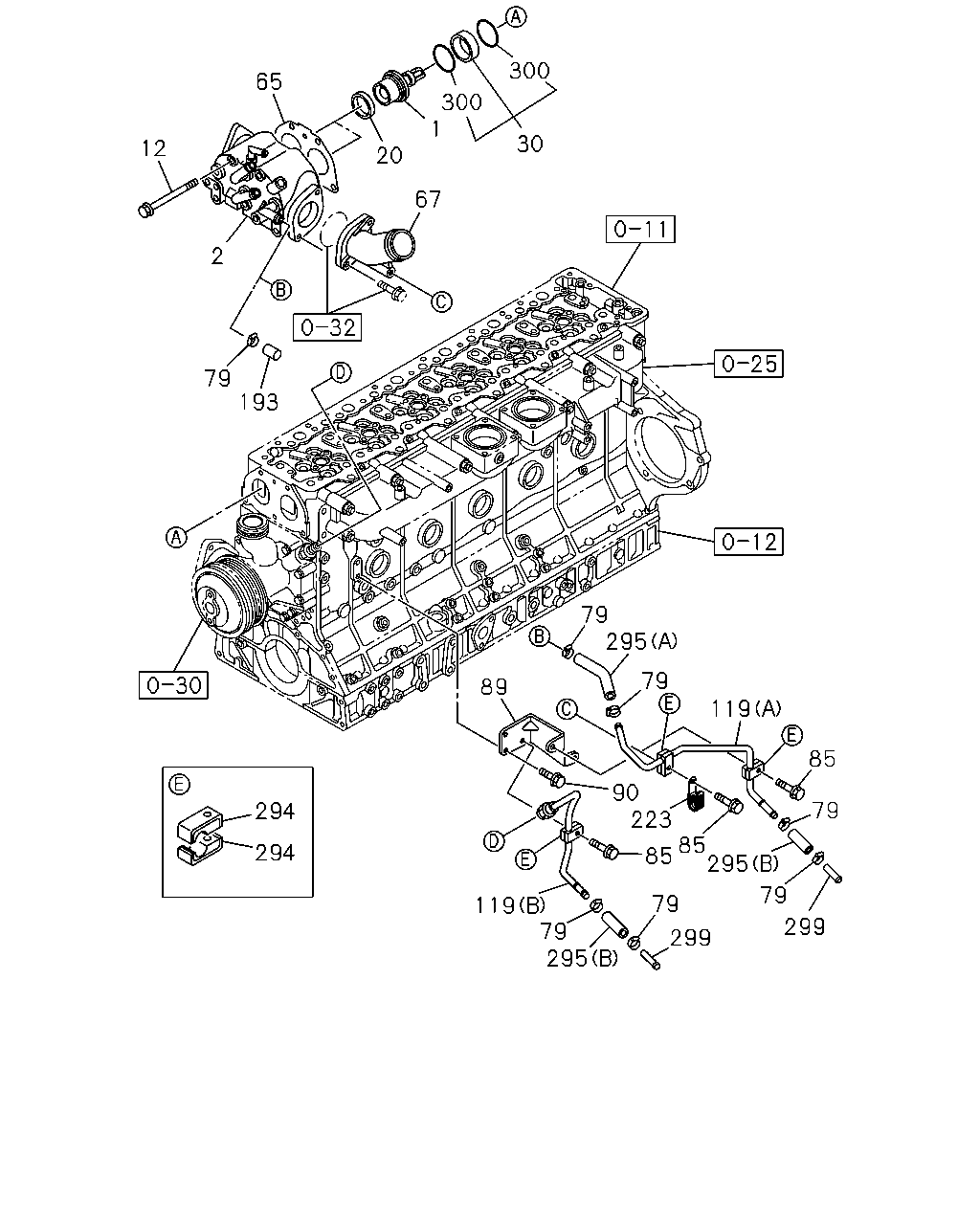

65 12 2 20 300 1 300 30 193 79 294 294 89 79 295 119 85 295 85 223 90 85 79 79 299 299 79 295 79 119 79 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	THERMOSTAT 82 CELSIUS	8-98271-161-0	02	1	1403-
2	HOUSING; THERMOSTAT	8-98236-233-0	01	1	1403-
12	BOLT; HSG M10X120 FLANGE	0-28156-012-0	05	1	1403-
20	RING; SEAL	1-13779-011-0	02	1	1403-
30	SPACER	8-98158-701-0	02	1	1403-
65	GASKET; HSG TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98089-091-0	01	1	1403-
67	DUCT; WATER,OUTLET	8-97603-796-0	01	1	1403-
79	CLIP; RUBBER HOSE ID=25	8-97177-581-0	08	1	1403-
85	BOLT; CLIP M8X45 FLANGE THA	0-28050-845-0	03	1	1403-
89	BRACKET	8-97606-634-0	01	1	1403-
90	BOLT; BRKT M10X20 FLANGE THA	0-28151-020-0	02	1	1403-
119	PIPE; HTR (A)	8-97606-632-1	01	1	1403-
119	PIPE; HTR (B)	8-97606-633-0	01	1	1403-
193	CAP; RUBBER ID=15 L=42	8-94231-115-0	02	1	1403-
223	CLIP; HARNESS	8-94136-604-0	01	1	1403-
294	CLIP; HTR PIPE	1-09701-284-0	06	1	1403-
295	HOSE; RUBBER,HTR (B) SERVICED BY L=3000	0-03566-300-0	02	1	1403-
295	HOSE; RUBBER,HTR (A)	8-97608-473-0	01	1	1403-
299	PIPE; JOINT	8-98216-509-0	02	1	1403-
300	GASKET; SPACER	8-98088-101-0	04	1	1403-

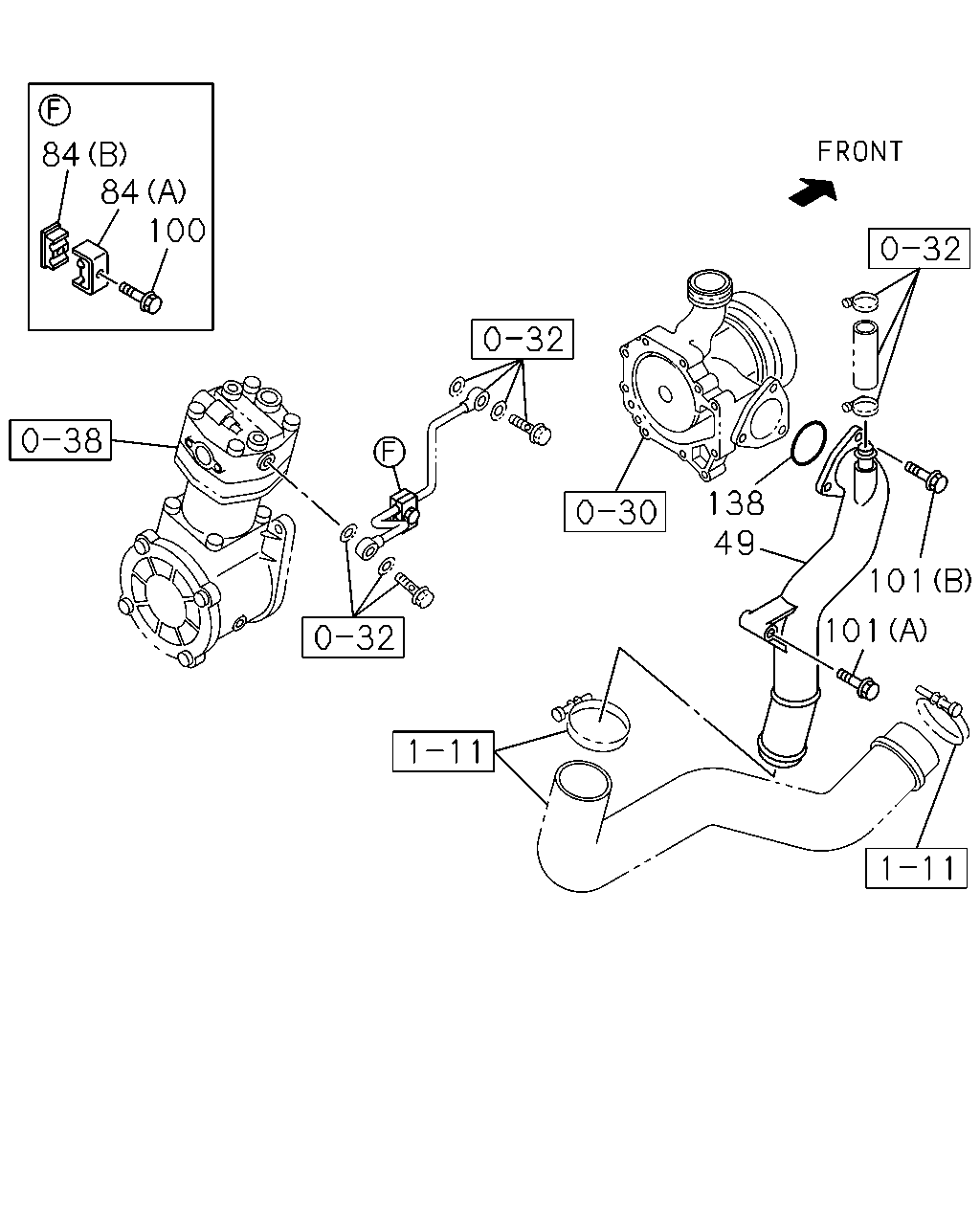

84 100 84 138 101 101 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
49	PIPE; WATER OUTLET	8-98252-190-0	01	1	1403-
84	CLIP; WATER PIPE (A)	1-09701-174-0	01	1	1403-
84	CLIP; WATER PIPE (B)	1-09701-175-0	01	1	1403-
100	BOLT; WATER PIPE M6X35 FLANGE THA	0-28650-635-0	01	1	1403-
101	BOLT; PIPE (A) M12X60 FLANGE	0-28151-260-0	01	1	1403-
101	BOLT; PIPE (B) M8X30 FLANGE THA	0-28650-830-0	03	1	1403-
138	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=70.6	9-09565-271-0	01	1	1403-
