Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11588 - FXZ/GXZ CNG(THAI)EU3
▶
0 - Engine, Emission, Engine Electrical
▶
0-30 - WATER PUMP AND CORROSION RESISTOR
▶

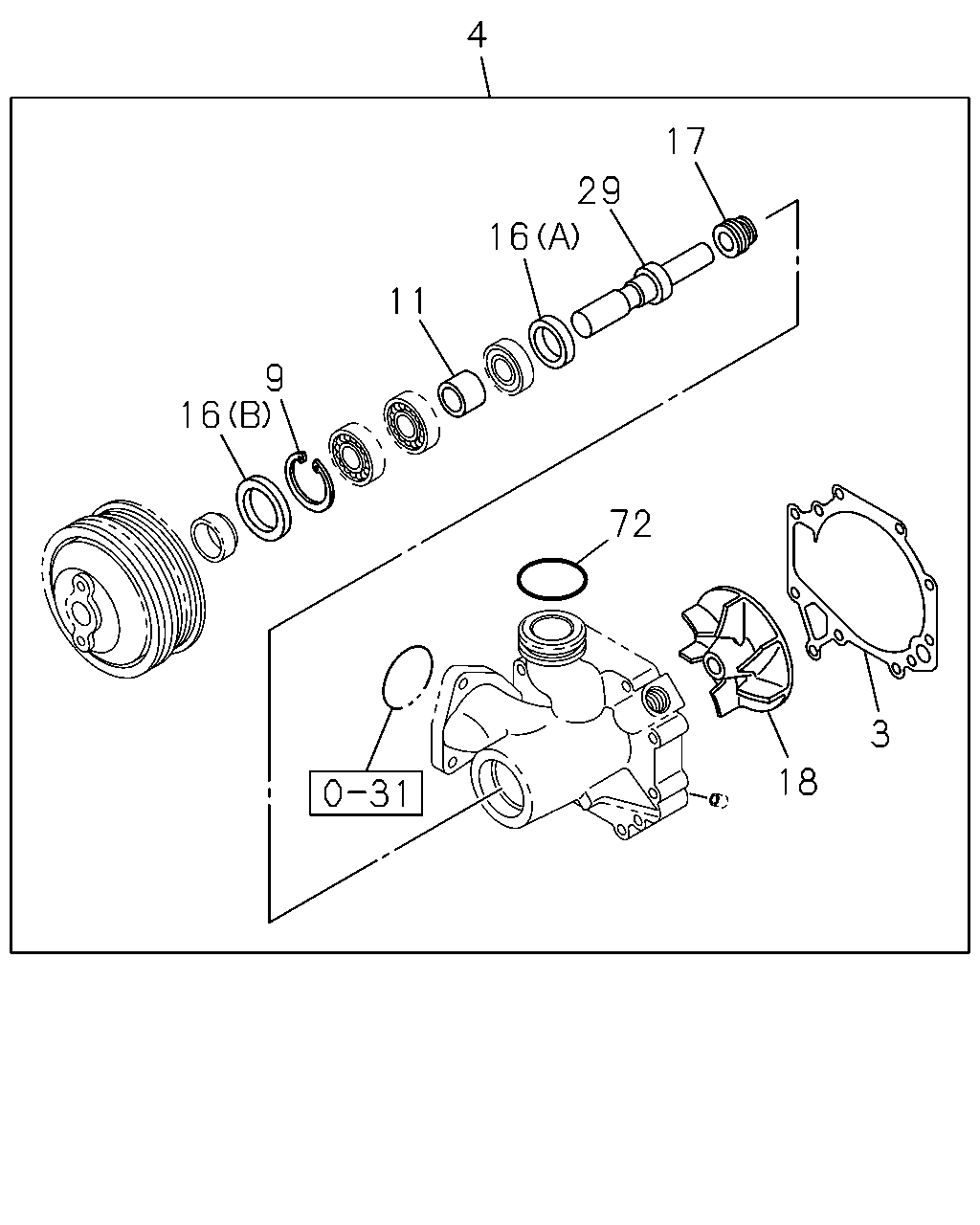

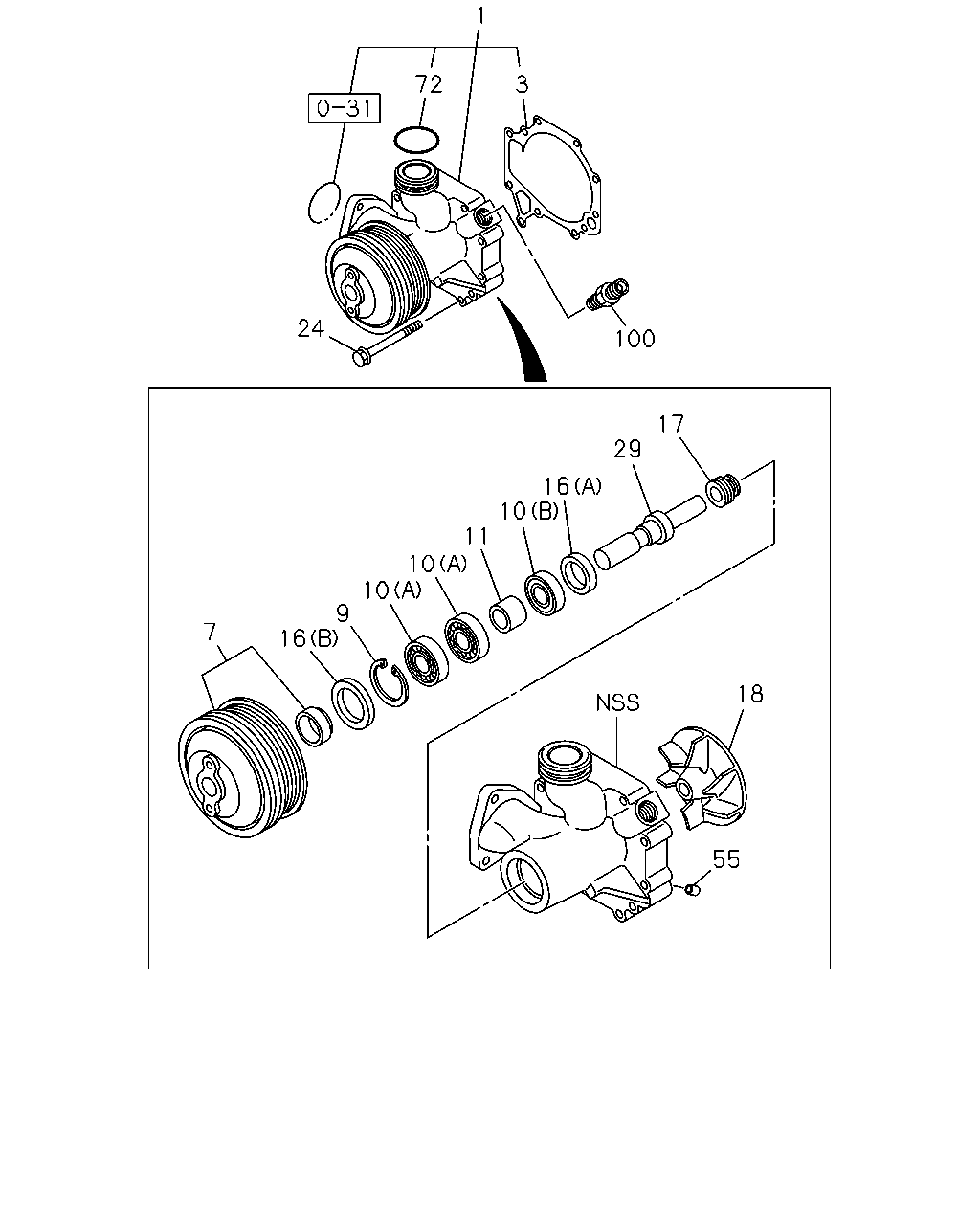

0-30 — WATER PUMP AND CORROSION RESISTOR
(#136202) — 30 parça
◀
[030A] REPAIR KIT (12 parça)
[030A] COMPONENT (18 parça)
▶
4
17
29
16
11
9
16
72
3
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
1-13614-027-0
01
1
1403-
4
REPAIR KIT; WATER PUMP
1-87814-201-0
01
1
1403-1406
4
REPAIR KIT; WATER PUMP
1-87814-616-0
01
1
1407-
9
RING; SNAP,WATER PUMP
ID=57.9
9-09180-162-0
01
1
1403-
11
SPACER; BRG,WATER PUMP
1-13634-035-0
01
1
1403-
16
SEAL; OIL,WATER PUMP
(A)
1-09625-388-0
01
1
1403-
16
SEAL; OIL,WATER PUMP
(B)
1-09625-389-0
01
1
1403-
17
SEAL UNIT; WATER PUMP
8-94392-090-0
01
1
1403-1406
17
SEAL UNIT; WATER PUMP
8-98272-791-0
01
1
1407-
18
IMPELLER; WATER PUMP
8-97605-265-0
01
1
1403-
29
SHAFT; WATER PUMP
1-13631-081-0
01
1
1403-
72
GASKET; PUMP TO THERMO HSG
ALSO INCLUDED IN GASKET SET(ENGINE).
8-98236-254-0
01
1
1403-
1
3
72
100
24
17
29
16
10
11
10
10
9
16
7
18
55
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PUMP ASM; WATER,W/GASKET
1-87310-954-0
01
1
1403-1406
1
PUMP ASM; WATER,W/GASKET
1-87310-991-0
01
1
1407-
3
GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
1-13614-027-0
01
1
1403-
7
PULLEY; WATER PUMP
8-97606-580-0
01
1
1403-
9
RING; SNAP,WATER PUMP
ID=57.9
9-09180-162-0
01
1
1403-
10
BEARING; WATER PUMP
(A)
1-09800-252-0
02
1
1403-
10
BEARING; WATER PUMP
(B)
8-97605-268-0
01
1
1403-
11
SPACER; BRG,WATER PUMP
1-13634-035-0
01
1
1403-
16
SEAL; OIL,WATER PUMP
(A)
1-09625-388-0
01
1
1403-
16
SEAL; OIL,WATER PUMP
(B)
1-09625-389-0
01
1
1403-
17
SEAL UNIT; WATER PUMP
8-94392-090-0
01
1
1403-1406
17
SEAL UNIT; WATER PUMP
8-98272-791-0
01
1
1407-
18
IMPELLER; WATER PUMP
8-97605-265-0
01
1
1403-
24
BOLT; WATER PUMP
M10X45 FLANGE THA
0-28151-045-0
11
1
1403-
29
SHAFT; WATER PUMP
1-13631-081-0
01
1
1403-
55
NOZZLE; OIL FEED,WATER PUMP
1-13619-046-0
01
1
1403-
72
GASKET; PUMP TO THERMO HSG
ALSO INCLUDED IN GASKET SET(ENGINE).
8-98236-254-0
01
1
1403-
100
JOINT; HTR
1-09660-210-0
01
1
1403-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
