Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11588 - FXZ/GXZ CNG(THAI)EU3
▶
0 - Engine, Emission, Engine Electrical
▶
0-28 - VENTILATION SYSTEM
▶

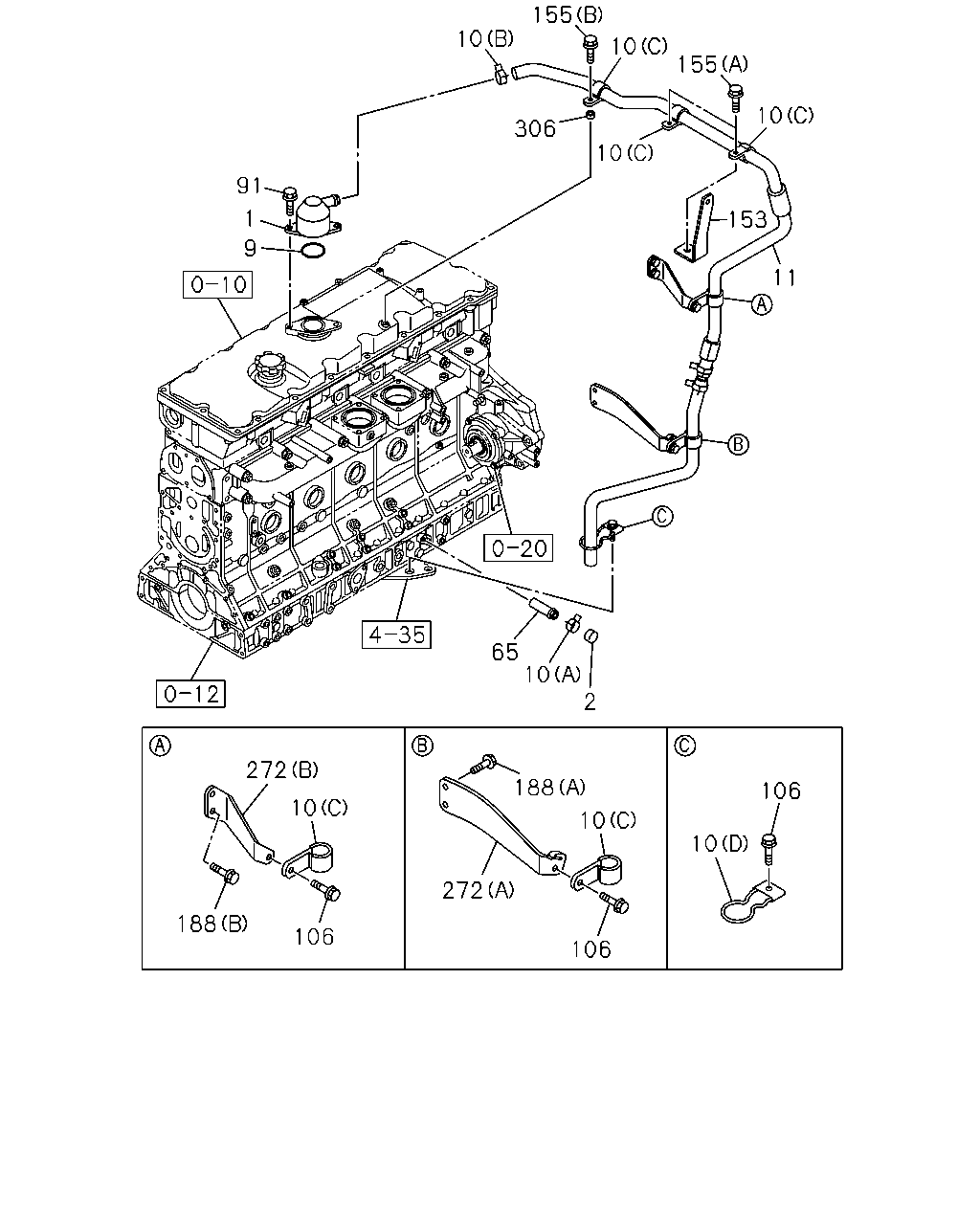

0-28 — VENTILATION SYSTEM
(#136201) — 19 parça
155
10
306
10
155
10
10
153
11
91
9
1
65
10
2
272
10
188
106
272
188
10
106
10
106
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BREATHER; AIR
1-11740-181-1
01
1
1403-
2
CAP; AIR BREATHER BODY
ID=9.0
8-94207-303-0
01
1
1403-
9
GASKET; AIR BREATHER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6
1-09623-565-0
01
1
1403-
10
CLIP; AIR BREATHER
(C) ID=31 L=30
1-09700-969-0
05
1
1403-
10
CLIP; AIR BREATHER
(A) ID=14
1-09704-102-0
01
1
1403-
10
CLIP; AIR BREATHER
(B) ID=28.5
1-09707-150-0
01
1
1403-
10
CLIP; AIR BREATHER
(D)
1-11369-115-0
01
1
1403-
11
HOSE; RUBBER,AIR
8-98212-983-0
01
1
1403-
65
PIPE; BREATHER
8-94176-713-0
01
1
1403-
91
BOLT; AIR BREATHER
M10X20 FLANGE THA
0-28151-020-0
02
1
1403-
106
BOLT; DRAIN PIPE
M8X20 FLANGE THA
0-28050-820-0
03
1
1403-
153
STAY; HOSE,AIR BREATHER
8-98216-511-0
01
1
1403-
155
BOLT; CLIP
(A)
8-98216-409-0
02
1
1403-
155
BOLT; CLIP
(B)
8-98216-421-0
01
1
1403-
188
BOLT; BRKT
(A) M8X16 FLANGE THA
0-28050-816-0
02
1
1403-
188
BOLT; BRKT
(B) M10X20 FLANGE THA
0-28151-020-0
02
1
1403-
272
BRACKET; PIPE
(B)
8-97620-047-0
01
1
1403-
272
BRACKET; PIPE
(A)
8-98090-631-1
01
1
1403-
306
SPACER; CLIP
8-98216-513-0
01
1
1403-
