Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11588 - FXZ/GXZ CNG(THAI)EU3
▶
0 - Engine, Emission, Engine Electrical
▶
0-15 - CRANKSHAFT,PISTON AND FLYWHEEL
▶

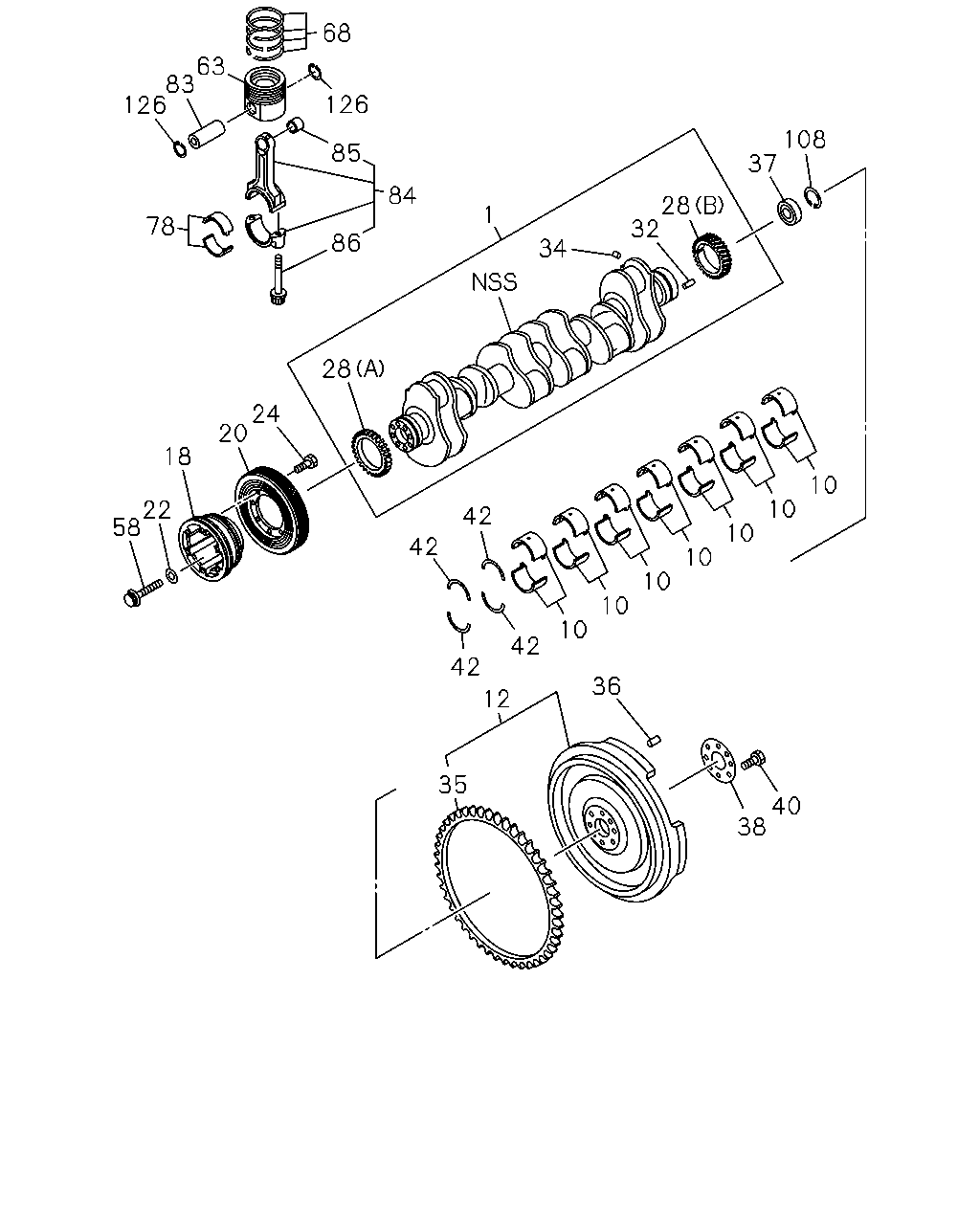

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL
(#136196) — 30 parça
38
40
36
12
35
42
42
10
10
10
10
10
10
10
108
37
28
32
34
1
28
24
20
18
22
58
78
126
83
63
68
126
85
84
86
42
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CRANKSHAFT
THA
8-97603-046-5
01
1
1403-
10
METAL SET; CRANKSHAFT,STANDARD
BLUE
8-97609-768-0
07
1
1403-
10
METAL SET; CRANKSHAFT,STANDARD
BLACK
8-97609-769-0
07
1
1403-
10
METAL SET; CRANKSHAFT,STANDARD
BROWN
8-97609-770-0
07
1
1403-
12
FLYWHEEL
1-12330-553-0
01
1
1403-
18
PULLEY; CR/SHF
1-GROOVE
8-97603-953-0
01
1
1403-
20
DAMPER; CR/SHF
1-12375-195-0
01
1
1403-
22
PLATE; PULLEY
ID=17 OD=30
9-09851-935-0
04
1
1403-
24
BOLT; DAMPER
M12X25 FLANGE
0-28161-225-0
08
1
1403-
28
GEAR; CR/SHF
(A)
8-97607-583-1
01
1
1403-
28
GEAR; CR/SHF
(B)
8-98002-332-1
01
1
1403-
32
PIN; FLYWHEEL
OD=8 L=16
9-08150-816-0
01
1
1403-
34
PIN; GEAR SETTING
OD=5 L=6
9-09878-626-0
01
1
1403-
35
GEAR; RING
Z=139
1-12333-013-1
01
1
1403-
36
PIN; FLYWHEEL
OD=10 L=22
9-08151-022-0
02
1
1403-
37
BEARING; PILOT,TOP GEAR SHAFT
1-09800-257-0
01
1
1403-
38
WASHER; FLYWHEEL
1-12336-006-0
01
1
1403-
40
BOLT; FLYWHEEL
M16X62
1-09070-146-1
08
1
1403-
42
WASHER; THRUST,CR/SHF
8-98106-007-0
04
1
1403-
58
BOLT; CR/SHF PULLEY
M16X70 FLANGE
0-28861-670-0
04
1
1403-
63
PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX
8-98206-358-0
06
1
1403-
63
PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX
8-98206-359-0
06
1
1403-
68
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. THA
8-98056-464-1
06
1
1403-
78
METAL; CONNROD
THA
8-97605-484-0
06
1
1403-
83
PIN; PISTON
ALSO INCLUDED IN LINER SET.
8-97603-263-0
06
1
1403-
84
ROD ASM; CONN
8-98044-950-0
06
1
1403-
85
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
1-12251-051-0
06
1
1403-
86
BOLT; CONNROD
1-12235-046-0
12
1
1403-
108
RING; SNAP,BRG SET
OD=67.2
9-09180-163-0
01
1
1403-
126
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET.
1-09587-075-1
12
1
1403-
