Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11588 - FXZ/GXZ CNG(THAI)EU3
▶
0 - Engine, Emission, Engine Electrical
▶

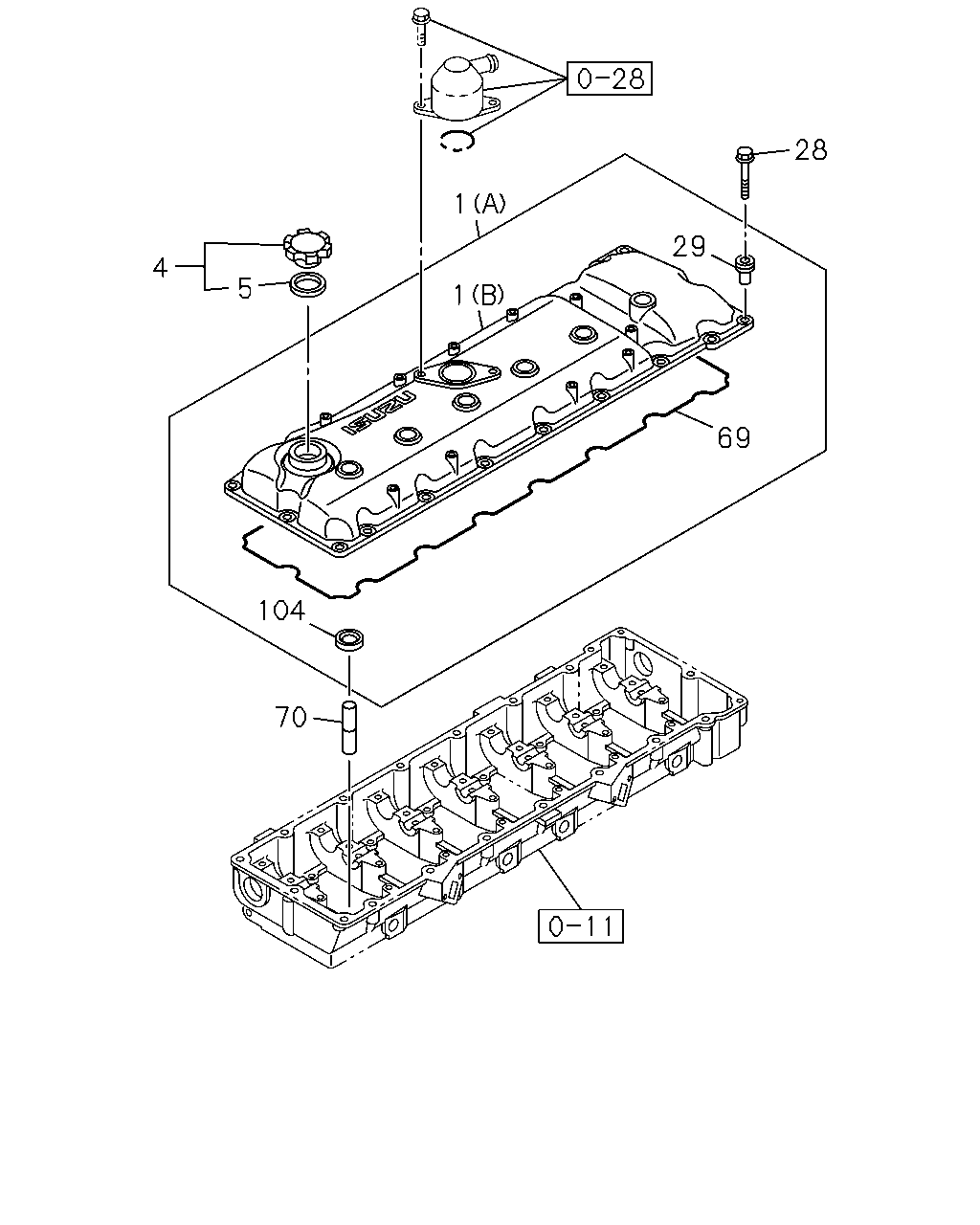

0-10 - CYLINDER HEAD COVER
▶
0-10 — CYLINDER HEAD COVER
(#136191) — 9 parça
69
28
29
1
1
5
4
104
70
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COVER; CYL HD
(A)
8-98194-648-0
01
1
1403-
1
COVER; CYL HD
(B)
8-98196-929-0
01
1
1403-
4
CAP; OIL FILLER
8-94399-723-0
01
1
1403-
5
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58
8-94399-689-0
01
1
1403-
28
BOLT; HD COVER
M8X35 FLANGE THA
0-28650-835-0
20
1
1403-
29
RUBBER; MTG,HD COVER
OD=22
8-94395-684-0
20
1
1403-
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-11173-118-0
01
1
1403-
70
PIPE; HD COVER
8-98194-633-0
06
1
1403-
104
GASKET; PLUG
8-98196-930-0
06
1
1403-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
