◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11587 - FXZ/GXZ(THAI)EURO3 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-75 - CONDENSER ▶
8-75 — CONDENSER (#136186) — 23 parça

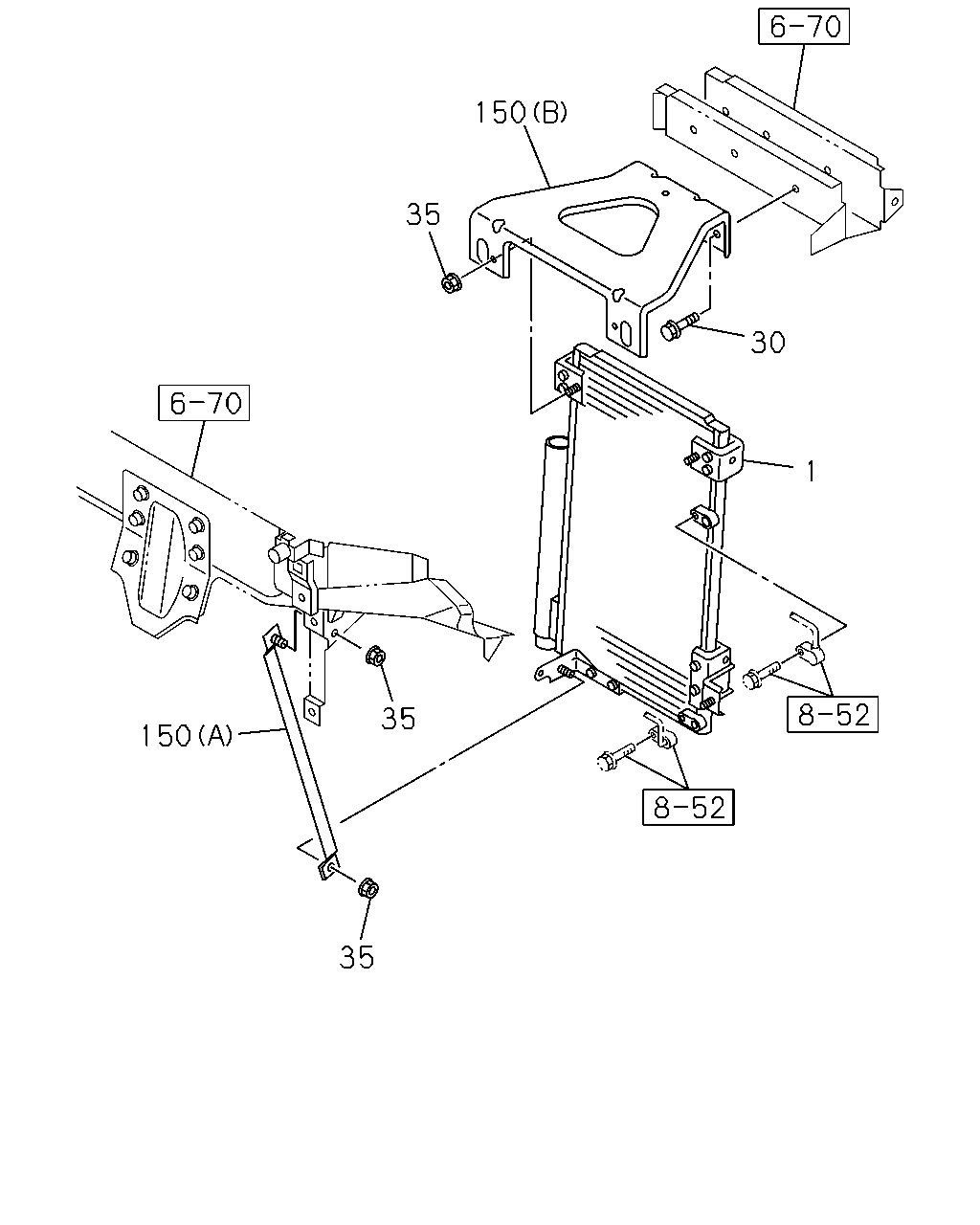

çizim 413906
150 35 30 1 35 35 150
BalonParca AdiParca NoAdetTipApplied Date A B
1 CONDENSER; A/C
THA 		8-97926-687-1 01 1 1403- ● ●
30 BOLT; CONDENSER,A/C
M8X20 FLANGE THA 		0-28650-820-0 02 1 1403- ● ●
35 NUT; CONDENSER,A/C
M8 FLANGE THA 		0-91180-108-0 05 1 1403- ● ●
150 BRACKET; CONDENSER,MTG
(A) 		8-98041-321-0 01 1 1403-1405 ● ●
150 BRACKET; CONDENSER,MTG
(A) 		8-98270-947-0 01 1 1406- ● ●
150 BRACKET; CONDENSER,MTG
(B) 		8-98041-322-0 01 1 1403-1409 ● ●
150 BRACKET; CONDENSER,MTG
(B) 		8-98242-412-0 01 1 1410- ● ●

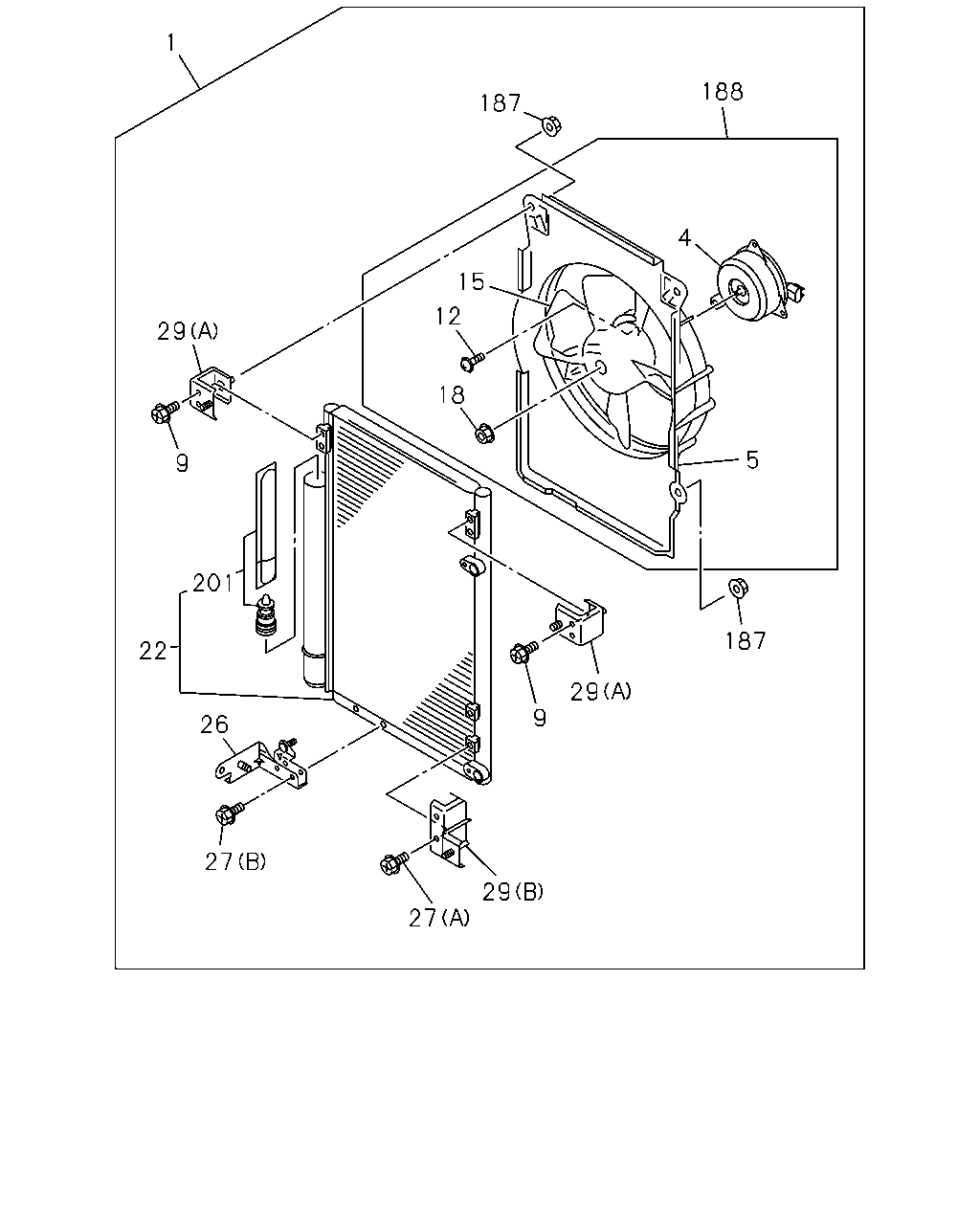

çizim 414206
1 187 188 4 15 12 18 5 187 29 9 29 27 27 26 22 201 29 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 CONDENSER; A/C
THA 		8-97926-687-1 01 1 1403- ● ●
4 MOTOR ASM; FAN
THA 		8-98076-091-0 01 1 1403- ● ●
5 SHROUD; FAN MOTOR
THA 		8-98076-093-0 01 1 1403- ● ●
9 BOLT; BRKT
M6X14 THA 		1-83539-382-0 04 1 1403- ● ●
12 BOLT; FAN MOTOR
THA 		8-97180-269-0 03 1 1403- ● ●
15 FAN; MOTOR
THA 		8-98152-860-0 01 1 1403- ● ●
18 NUT; FAN,CENTER
M5 FLANGE THA 		8-94157-075-0 01 1 1403- ● ●
22 CONDENSER ASM; A/C
THA 		1-83534-261-0 01 1 1403- ● ●
26 BRACKET; LOW
THA 		1-83573-281-0 01 1 1403- ● ●
27 BOLT; BRKT,LOW SIDE
(A) M6X14 THA 		1-83539-382-0 02 1 1403- ● ●
27 BOLT; BRKT,LOW SIDE
(B) M5X25 THA 		8-97178-770-0 02 1 1403- ● ●
29 BRACKET; SIDE
(A) THA 		8-98065-914-0 02 1 1403- ● ●
29 BRACKET; SIDE
(B) THA 		8-98065-915-0 01 1 1403- ● ●
187 NUT; SHROUD
M6 THA 		1-83539-354-0 04 1 1403- ● ●
188 BLOWER ASM; SHROUD
THA 		8-98235-916-1 01 1 1403- ● ●
201 DRYER ASM; CONDENSER
THA 		1-83535-097-0 01 1 1403- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
