Sayfa 8-28 - Isuzu EPC

584 744 584

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
584	SENSOR; PRESSURE (A)	8-98020-514-0	01	1	1403-1502	●	●
584	SENSOR; PRESSURE (B)	8-98214-375-0	01	1	1403-	●	●
744	NUT; SENSOR M6 FLANGE THA	0-91180-106-0	02	1	1403-	●	●

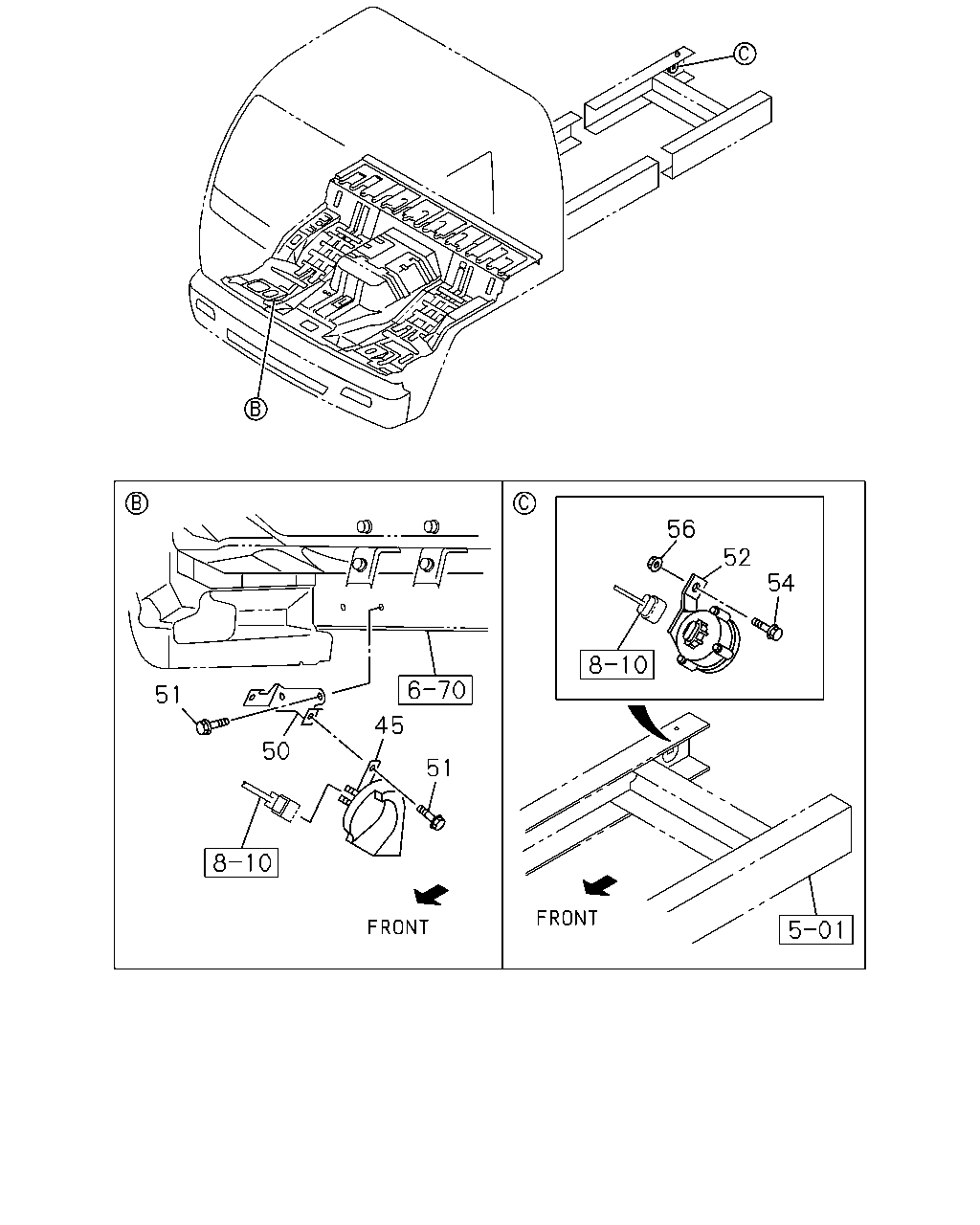

51 50 45 51 56 54 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
45	HORN; LOW NOTE THA	8-97925-172-0	01	1	1403-	●	●
50	BRACKET; HORN	8-97613-300-2	01	1	1403-	●	●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	1403-	●	●
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9>	8-97617-027-0	01	1	1403-	●	●
54	BOLT; BACK BUZZER REVERSING WARNING BUZZER<YM9> M10X30 FLANGE THA	0-28651-030-0	01	1	1403-		●
56	NUT; BACK BUZZER REVERSING WARNING BUZZER<YM9> M10 FLANGE THA	0-91180-210-0	01	1	1403-		●

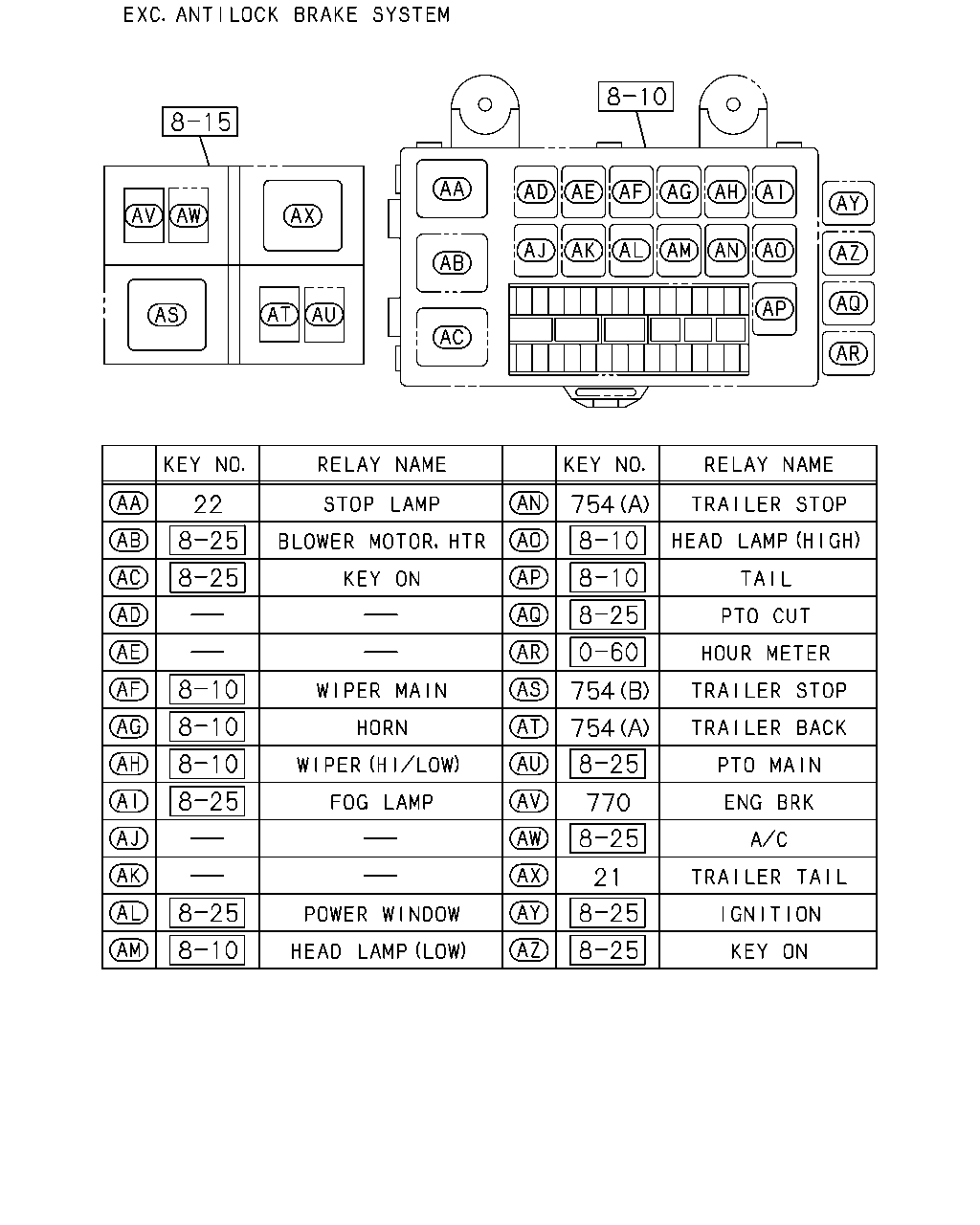

22 21 770 754 754 754

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
21	RELAY; TRAILER TAIL MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> EXC. ENGINE REAR PTO<SV1> 24V 12.5A PANASONIC	8-97262-933-0	01	1	1403-1403	●
21	RELAY; TRAILER TAIL 24V 12.5A PANASONIC	8-97262-933-0	01	1	1403-1403		●
21	RELAY; TRAILER TAIL MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> EXC. ENGINE REAR PTO<SV1> 24V 10A PANASONIC	8-97173-035-1	01	1	1404-1404	●
21	RELAY; TRAILER TAIL ZF9S1310 M/T<Y5K> 24V 10A PANASONIC	8-97173-035-1	01	1	1404-1404		●
21	RELAY; TRAILER TAIL MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> EXC. ENGINE REAR PTO<SV1> 24V 12.5A PANASONIC	8-97262-933-0	01	1	1405-	●
21	RELAY; TRAILER TAIL ZF9S1310 M/T<Y5K> 24V 12.5A PANASONIC	8-97262-933-0	01	1	1405-		●
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	1403-	●	●
754	RELAY; TRAILER STOP MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> EXC. ENGINE REAR PTO<SV1> (A) 24V 10A PANASONIC	8-97173-035-1	01	1	1403-1403	●
754	RELAY; TRAILER STOP MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> EXC. ENGINE REAR PTO<SV1> (A) 24V 10A PANASONIC	8-97173-035-1	01	1	1403-1403	●
754	RELAY; TRAILER STOP EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) 24V 10A PANASONIC	8-97173-035-1	01	1	1403-1403		●
754	RELAY; TRAILER STOP (A) 24V 10A PANASONIC	8-97173-035-1	01	1	1403-1403		●
754	RELAY; TRAILER STOP MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> EXC. ENGINE REAR PTO<SV1> (A) 24V 10A PANASONIC	8-97173-035-1	01	1	1404-1404	●
754	RELAY; TRAILER STOP (A) 24V 10A PANASONIC	8-97173-035-1	01	1	1404-1404		●
754	RELAY; TRAILER STOP ZF9S1310 M/T<Y5K> ANTILOCK BRAKE SYSTEM<BFA> (A) 24V 10A PANASONIC	8-97173-035-1	01	1	1404-1404		●
754	RELAY; TRAILER STOP MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> EXC. ENGINE REAR PTO<SV1> (A) 24V 10A PANASONIC	8-97173-035-1	01	1	1405-	●
754	RELAY; TRAILER STOP MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> EXC. ENGINE REAR PTO<SV1> (A) 24V 10A PANASONIC	8-97173-035-1	01	1	1405-	●
754	RELAY; TRAILER STOP (A) 24V 10A PANASONIC	8-97173-035-1	01	1	1405-		●
754	RELAY; TRAILER STOP ZF9S1310 M/T<Y5K> EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) 24V 10A PANASONIC	8-97173-035-1	01	1	1405-		●
754	RELAY; TRAILER STOP MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> EXC. ENGINE REAR PTO<SV1> (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1403-1403	●
754	RELAY; TRAILER STOP (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1403-1403		●
754	RELAY; TRAILER STOP MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> EXC. ENGINE REAR PTO<SV1> (B) 24V 10A PANASONIC	8-97173-035-1	02	1	1404-1404	●
754	RELAY; TRAILER STOP ZF9S1310 M/T<Y5K> EXC. ANTILOCK BRAKE SYSTEM<BFA> (B) 24V 10A PANASONIC	8-97173-035-1	02	1	1404-1404		●
754	RELAY; TRAILER STOP MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> EXC. ENGINE REAR PTO<SV1> (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1405-	●
754	RELAY; TRAILER STOP ZF9S1310 M/T<Y5K> (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1405-		●
770	RELAY; ENG BRK 24V 10A PANASONIC	8-97173-035-1	01	1	1403-	●	●

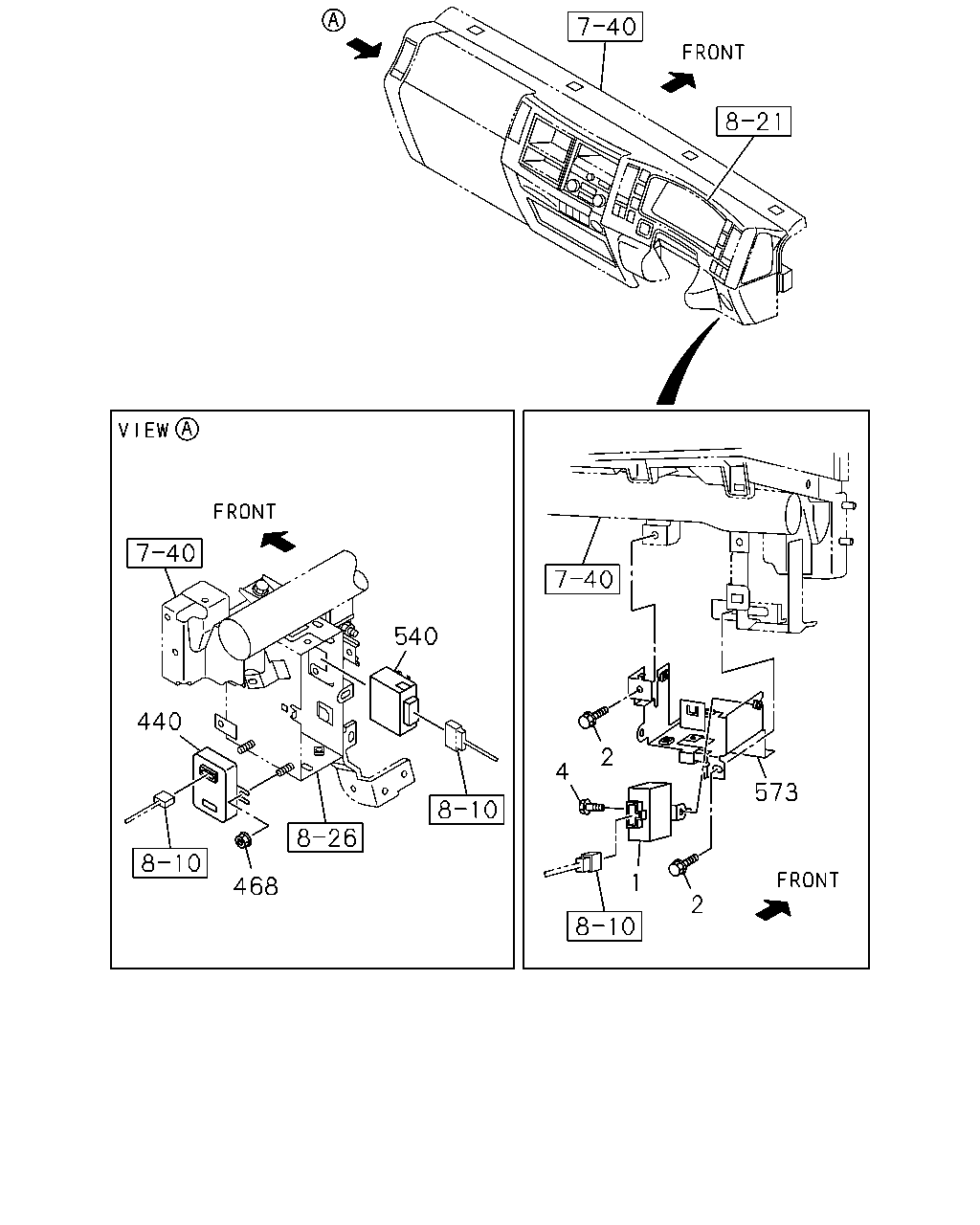

540 468 440 4 2 1 2 573

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	UNIT; FLASHER	8-98025-533-1	01	1	1403-	●
1	UNIT; FLASHER	8-97613-970-1	01	1	1403-		●
2	BOLT; FLASHER UNIT M6X16 FLANGE THA	0-28650-616-0	02	1	1403-	●	●
4	SCREW; FLASHER UNIT BOLT M6X16 FLANGE THA	0-28050-616-0	01	1	1403-	●	●
440	MODULE; INFORMATION,ABS ANTILOCK BRAKE SYSTEM<BFA>	1-81510-701-0	01	1	1403-		●
468	NUT; MODULE ANTILOCK BRAKE SYSTEM<BFA> M6 FLANGE THA	0-91180-106-0	02	1	1403-		●
540	RELAY; WIPER INTERVAL	8-98233-976-0	01	1	1403-	●	●
573	BRACKET; FLASHER UNIT	8-97609-984-5	01	1	1403-	●	●

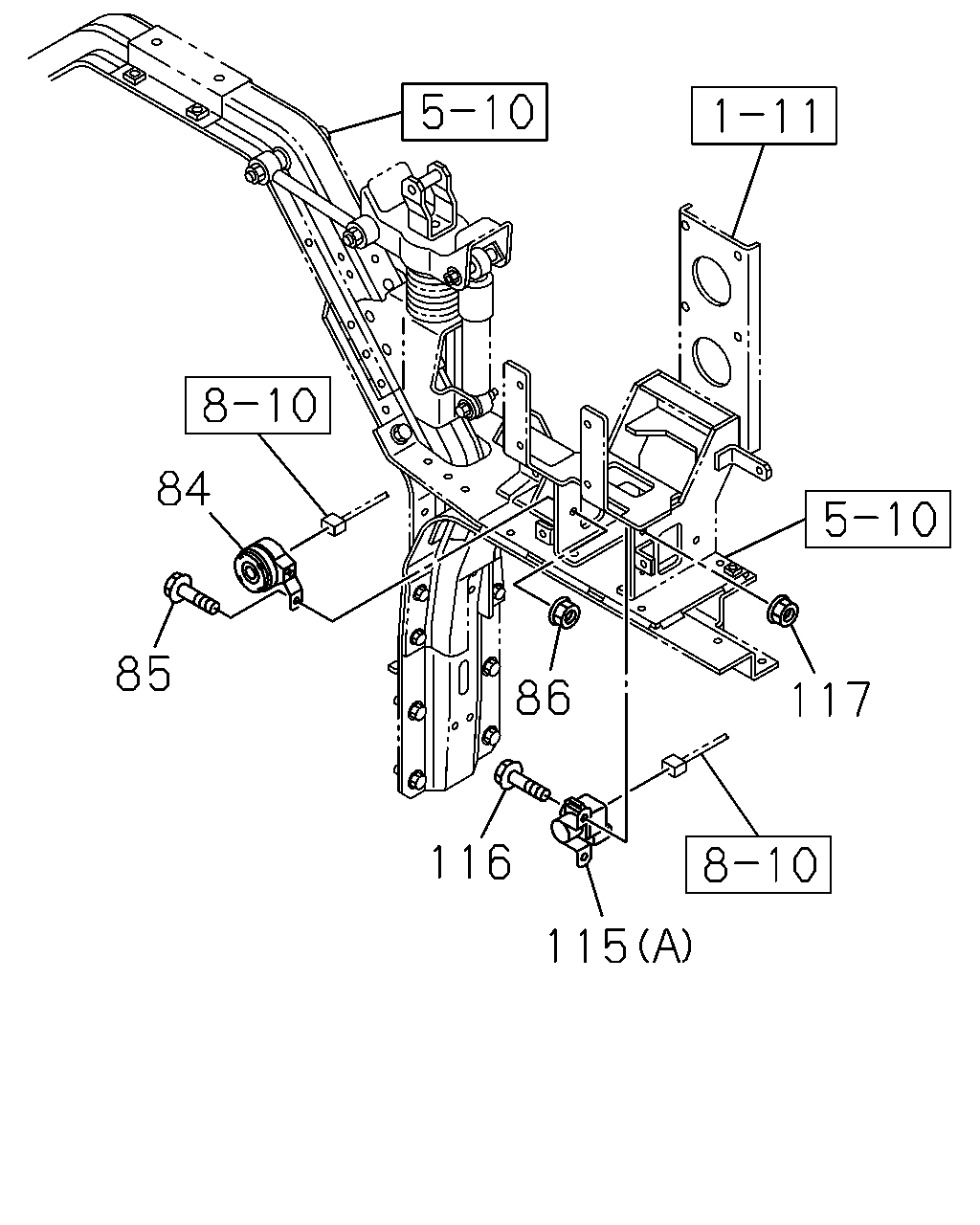

84 85 116 86 117 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
84	BUZZER; POWER CAB TILT AUTO CAB TILT<WV2> METRO DENSO	8-98069-860-0	01	1	1403-	●	●
85	BOLT; BUZZER,POWER CAB TILT AUTO CAB TILT<WV2> M8X20 FLANGE THA	0-28650-820-0	01	1	1403-	●	●
86	NUT; BUZZER AUTO CAB TILT<WV2> M8 FLANGE THA	0-91180-108-0	01	1	1403-	●	●
115	RELAY; POWER CAB TILT UNIT (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1403-	●	●
115	RELAY; POWER CAB TILT UNIT AUTO CAB TILT<WV2> (A) 24V NIKKO	8-98005-631-1	01	1	1403-	●	●
116	BOLT; RELAY FIX AUTO CAB TILT<WV2> M8X25 FLANGE THA	0-28650-825-0	02	1	1403-	●	●
117	NUT; RELAY FIX AUTO CAB TILT<WV2> M8 FLANGE THA	0-91180-108-0	02	1	1403-	●	●

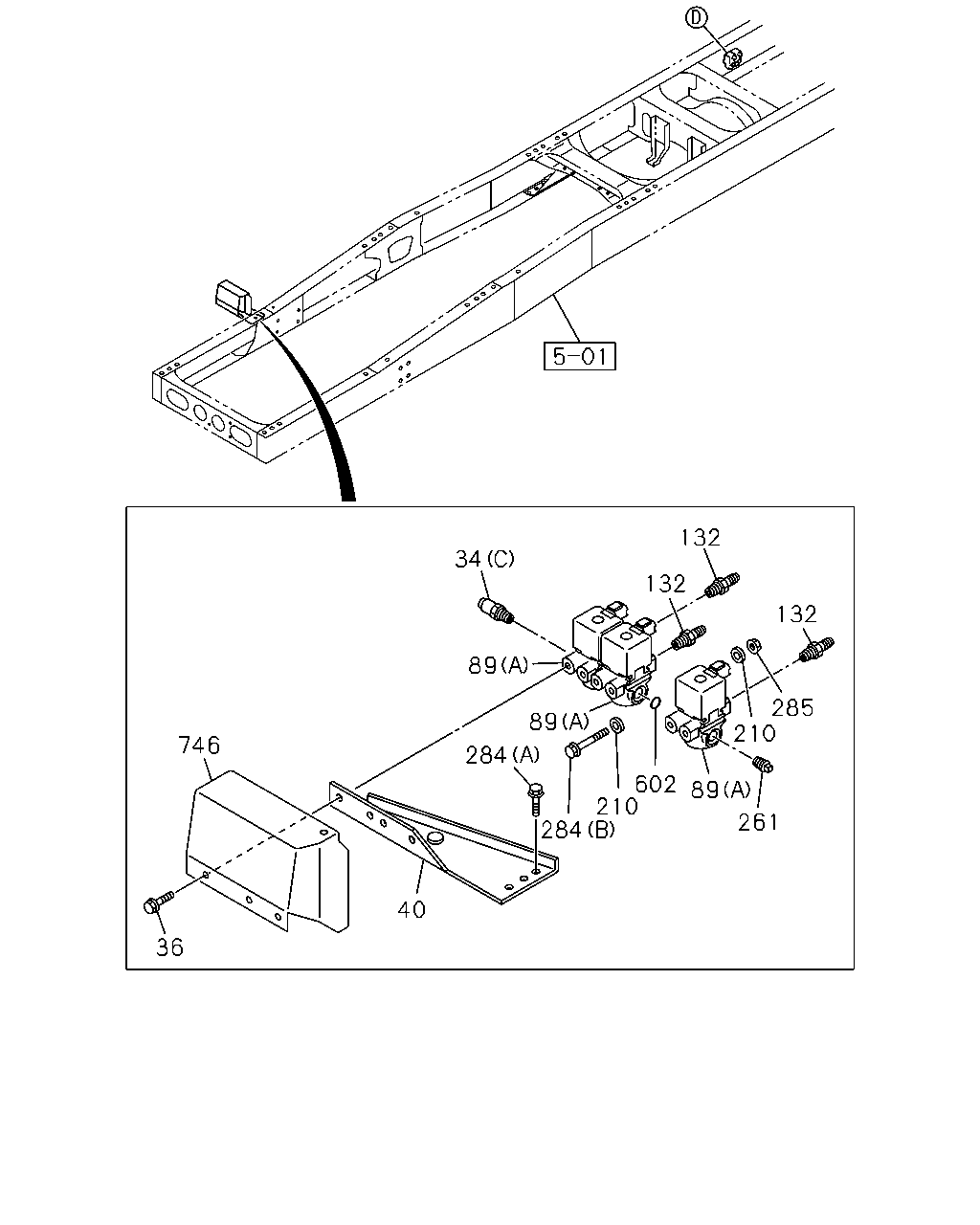

746 36 40 284 284 261 89 602 210 89 89 34 132 132 132 285 210

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1403-	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR<BDM> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1403-		●
34	CONNECTOR; MAG VLV,INL PORT EXC. PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1403-	●
34	CONNECTOR; MAG VLV,INL PORT EXC. PTO ZF TRANS RR<BDM> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1403-		●
34	CONNECTOR; MAG VLV,INL PORT (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1403-	●	●
34	CONNECTOR; MAG VLV,INL PORT (C) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	1403-	●	●
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE THA	0-28650-820-0	04	1	1403-	●	●
40	BRACKET; MAG VLV	8-98100-335-0	01	1	1403-	●	●
89	VALVE; MAG,DIFF LOCK PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> (A) THA	8-97948-152-0	01	1	1403-	●
89	VALVE; MAG,DIFF LOCK PTO ZF TRANS RR<BDM> (A) THA	8-97948-152-0	01	1	1403-		●
89	VALVE; MAG,DIFF LOCK (A) THA	8-97948-152-0	03	1	1403-	●	●
89	VALVE; MAG,DIFF LOCK (B) THA	8-97948-256-0	01	1	1403-	●	●
132	CONNECTOR; OUTLET,MAG VLV M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	1403-	●	●
210	WASHER; PL,BRKT PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-82569-266-0	02	1	1403-	●
210	WASHER; PL,BRKT PTO ZF TRANS RR<BDM>	1-82569-266-0	02	1	1403-		●
210	WASHER; PL,BRKT	1-82569-266-0	04	1	1403-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1403-	●	●
284	BOLT; MAG VLV PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> (B) M6X50 FLANGE	0-28050-650-0	01	1	1403-	●
284	BOLT; MAG VLV PTO ZF TRANS RR<BDM> (B) M6X50 FLANGE	0-28050-650-0	01	1	1403-		●
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	02	1	1403-	●	●
284	BOLT; MAG VLV (A) M8X30 FLANGE THA	0-28650-830-0	02	1	1403-	●	●
285	NUT; MAG VLV PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> M6 FLANGE THA	0-91180-106-0	01	1	1403-	●
285	NUT; MAG VLV PTO ZF TRANS RR<BDM> M6 FLANGE THA	0-91180-106-0	01	1	1403-		●
285	NUT; MAG VLV M6 FLANGE THA	0-91180-106-0	02	1	1403-	●	●
602	GASKET; MAG VLV PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> ID=16.8	9-09565-117-0	01	1	1403-	●
602	GASKET; MAG VLV PTO ZF TRANS RR<BDM> ID=16.8	9-09565-117-0	01	1	1403-		●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	02	1	1403-	●	●
746	COVER; NOISE,MAG VLV	8-98096-340-0	01	1	1403-	●	●

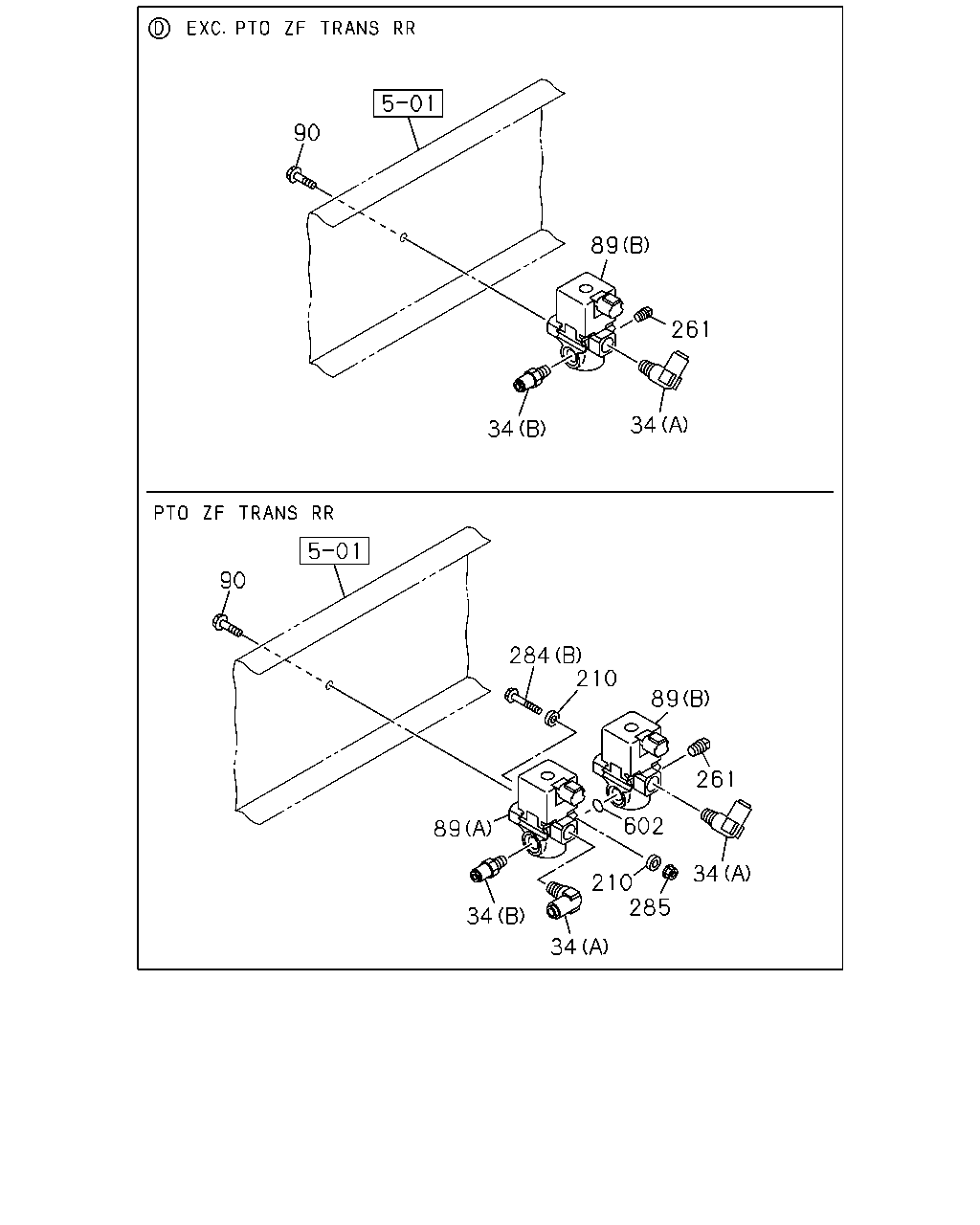

90 89 261 34 34 90 284 210 89 261 34 602 210 285 89 34 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1403-	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR<BDM> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1403-		●
34	CONNECTOR; MAG VLV,INL PORT EXC. PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1403-	●
34	CONNECTOR; MAG VLV,INL PORT EXC. PTO ZF TRANS RR<BDM> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1403-		●
34	CONNECTOR; MAG VLV,INL PORT (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1403-	●	●
34	CONNECTOR; MAG VLV,INL PORT (C) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	1403-	●	●
89	VALVE; MAG,DIFF LOCK PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> (A) THA	8-97948-152-0	01	1	1403-	●
89	VALVE; MAG,DIFF LOCK PTO ZF TRANS RR<BDM> (A) THA	8-97948-152-0	01	1	1403-		●
89	VALVE; MAG,DIFF LOCK (A) THA	8-97948-152-0	03	1	1403-	●	●
89	VALVE; MAG,DIFF LOCK (B) THA	8-97948-256-0	01	1	1403-	●	●
90	BOLT; MAG VLV PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> M8X25 FLANGE THA	0-28650-825-0	03	1	1403-	●
90	BOLT; MAG VLV PTO ZF TRANS RR<BDM> M8X25 FLANGE THA	0-28650-825-0	03	1	1403-		●
90	BOLT; MAG VLV EXC. PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> M8X25 FLANGE THA	0-28650-825-0	02	1	1403-	●
90	BOLT; MAG VLV EXC. PTO ZF TRANS RR<BDM> M8X25 FLANGE THA	0-28650-825-0	02	1	1403-		●
210	WASHER; PL,BRKT PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5>	1-82569-266-0	02	1	1403-	●
210	WASHER; PL,BRKT PTO ZF TRANS RR<BDM>	1-82569-266-0	02	1	1403-		●
210	WASHER; PL,BRKT	1-82569-266-0	04	1	1403-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1403-	●	●
284	BOLT; MAG VLV PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> (B) M6X50 FLANGE	0-28050-650-0	01	1	1403-	●
284	BOLT; MAG VLV PTO ZF TRANS RR<BDM> (B) M6X50 FLANGE	0-28050-650-0	01	1	1403-		●
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	02	1	1403-	●	●
284	BOLT; MAG VLV (A) M8X30 FLANGE THA	0-28650-830-0	02	1	1403-	●	●
285	NUT; MAG VLV PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> M6 FLANGE THA	0-91180-106-0	01	1	1403-	●
285	NUT; MAG VLV PTO ZF TRANS RR<BDM> M6 FLANGE THA	0-91180-106-0	01	1	1403-		●
285	NUT; MAG VLV M6 FLANGE THA	0-91180-106-0	02	1	1403-	●	●
602	GASKET; MAG VLV PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> ID=16.8	9-09565-117-0	01	1	1403-	●
602	GASKET; MAG VLV PTO ZF TRANS RR<BDM> ID=16.8	9-09565-117-0	01	1	1403-		●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	02	1	1403-	●	●

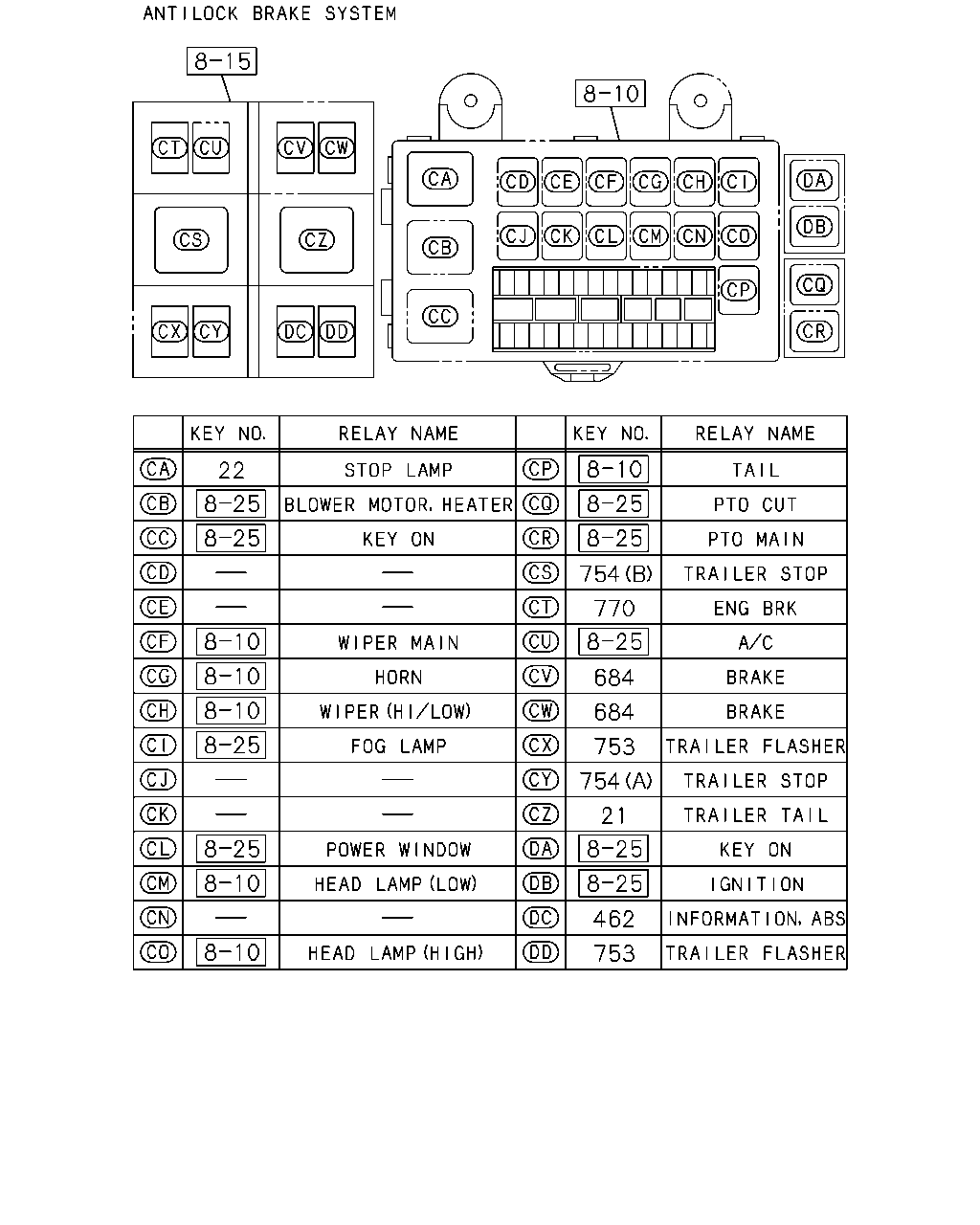

22 753 754 21 462 753 684 684 770 754

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
21	RELAY; TRAILER TAIL MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> EXC. ENGINE REAR PTO<SV1> 24V 12.5A PANASONIC	8-97262-933-0	01	1	1403-1403	●
21	RELAY; TRAILER TAIL 24V 12.5A PANASONIC	8-97262-933-0	01	1	1403-1403		●
21	RELAY; TRAILER TAIL MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> EXC. ENGINE REAR PTO<SV1> 24V 10A PANASONIC	8-97173-035-1	01	1	1404-1404	●
21	RELAY; TRAILER TAIL ZF9S1310 M/T<Y5K> 24V 10A PANASONIC	8-97173-035-1	01	1	1404-1404		●
21	RELAY; TRAILER TAIL MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> EXC. ENGINE REAR PTO<SV1> 24V 12.5A PANASONIC	8-97262-933-0	01	1	1405-	●
21	RELAY; TRAILER TAIL ZF9S1310 M/T<Y5K> 24V 12.5A PANASONIC	8-97262-933-0	01	1	1405-		●
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	1403-	●	●
462	RELAY; INFORMATION,ABS ANTILOCK BRAKE SYSTEM<BFA> 24V 10A PANASONIC	8-97173-035-1	01	1	1403-		●
684	RELAY; BRAKE ANTILOCK BRAKE SYSTEM<BFA> 24V 10A PANASONIC	8-97173-035-1	02	1	1403-		●
753	RELAY; TRAILER FLASHER ANTILOCK BRAKE SYSTEM<BFA> 24V 10A PANASONIC	8-97173-035-1	02	1	1403-		●
754	RELAY; TRAILER STOP MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> EXC. ENGINE REAR PTO<SV1> (A) 24V 10A PANASONIC	8-97173-035-1	01	1	1403-1403	●
754	RELAY; TRAILER STOP MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> EXC. ENGINE REAR PTO<SV1> (A) 24V 10A PANASONIC	8-97173-035-1	01	1	1403-1403	●
754	RELAY; TRAILER STOP EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) 24V 10A PANASONIC	8-97173-035-1	01	1	1403-1403		●
754	RELAY; TRAILER STOP (A) 24V 10A PANASONIC	8-97173-035-1	01	1	1403-1403		●
754	RELAY; TRAILER STOP MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> EXC. ENGINE REAR PTO<SV1> (A) 24V 10A PANASONIC	8-97173-035-1	01	1	1404-1404	●
754	RELAY; TRAILER STOP (A) 24V 10A PANASONIC	8-97173-035-1	01	1	1404-1404		●
754	RELAY; TRAILER STOP ZF9S1310 M/T<Y5K> ANTILOCK BRAKE SYSTEM<BFA> (A) 24V 10A PANASONIC	8-97173-035-1	01	1	1404-1404		●
754	RELAY; TRAILER STOP MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> EXC. ENGINE REAR PTO<SV1> (A) 24V 10A PANASONIC	8-97173-035-1	01	1	1405-	●
754	RELAY; TRAILER STOP MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> EXC. ENGINE REAR PTO<SV1> (A) 24V 10A PANASONIC	8-97173-035-1	01	1	1405-	●
754	RELAY; TRAILER STOP (A) 24V 10A PANASONIC	8-97173-035-1	01	1	1405-		●
754	RELAY; TRAILER STOP ZF9S1310 M/T<Y5K> EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) 24V 10A PANASONIC	8-97173-035-1	01	1	1405-		●
754	RELAY; TRAILER STOP MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> EXC. ENGINE REAR PTO<SV1> (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1403-1403	●
754	RELAY; TRAILER STOP (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1403-1403		●
754	RELAY; TRAILER STOP MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> EXC. ENGINE REAR PTO<SV1> (B) 24V 10A PANASONIC	8-97173-035-1	02	1	1404-1404	●
754	RELAY; TRAILER STOP ZF9S1310 M/T<Y5K> EXC. ANTILOCK BRAKE SYSTEM<BFA> (B) 24V 10A PANASONIC	8-97173-035-1	02	1	1404-1404		●
754	RELAY; TRAILER STOP MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> EXC. ENGINE REAR PTO<SV1> (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1405-	●
754	RELAY; TRAILER STOP ZF9S1310 M/T<Y5K> (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1405-		●
770	RELAY; ENG BRK 24V 10A PANASONIC	8-97173-035-1	01	1	1403-	●	●

531 115 769

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
115	RELAY; POWER CAB TILT UNIT (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1403-	●	●
115	RELAY; POWER CAB TILT UNIT AUTO CAB TILT<WV2> (A) 24V NIKKO	8-98005-631-1	01	1	1403-	●	●
531	RELAY; MAIN 24V 30A MITUBA	8-97238-540-0	01	1	1403-1403	●	●
531	RELAY; MAIN 24V 30A MITSUBA	8-98259-779-0	01	1	1403-1403	●	●
531	RELAY; MAIN 24V 10A PANASONIC	8-97173-035-1	01	1	1404-1404	●	●
531	RELAY; MAIN 24V 30A MITSUBA	8-98259-779-0	01	1	1405-	●	●
769	RELAY; TURBO CONT 24V 10A PANASONIC	8-97173-035-1	01	1	1403-	●	●
