◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11587 - FXZ/GXZ(THAI)EURO3 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#136175) — 13 parça

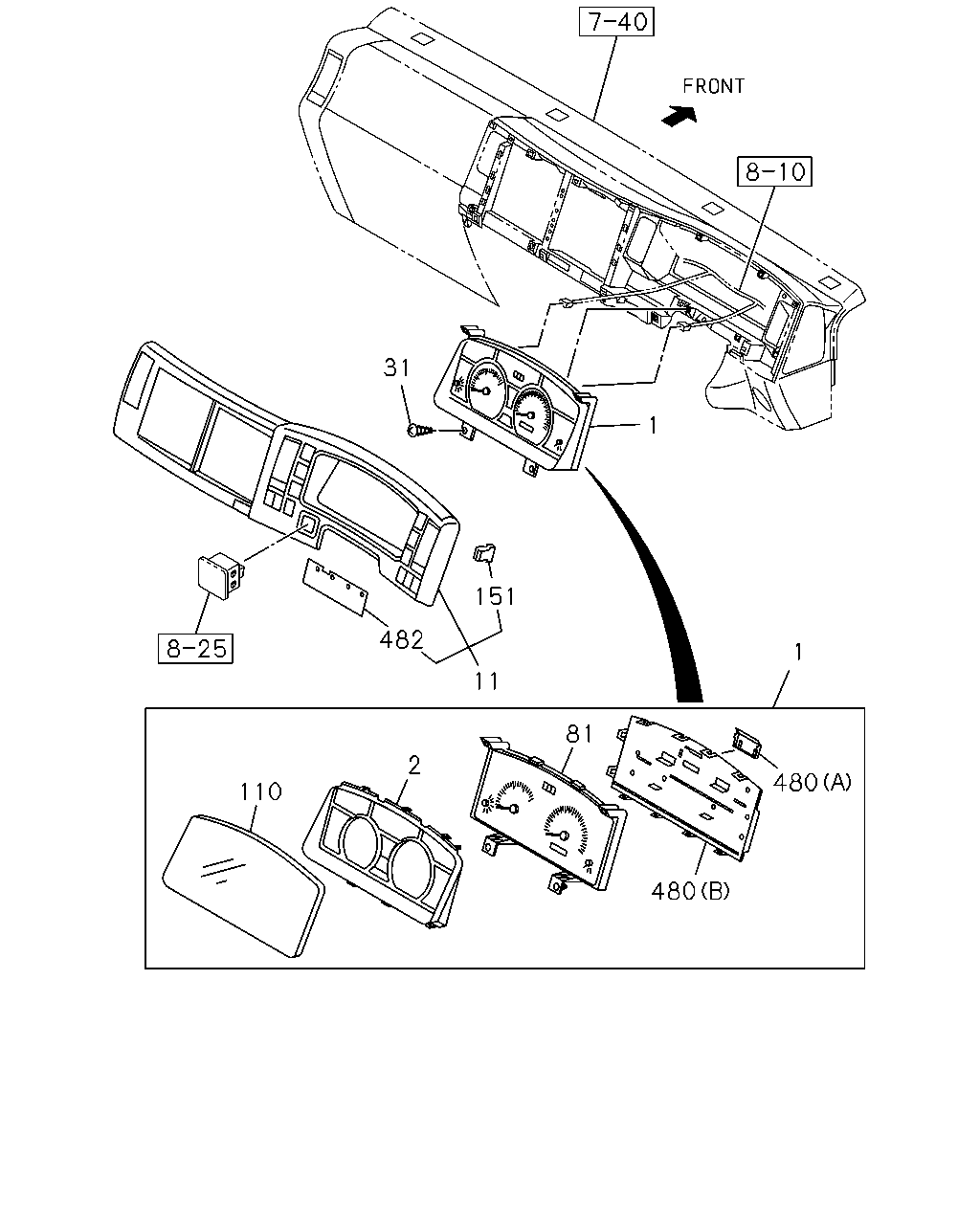

çizim 414119
31 1 151 482 11 1 480 480 2 81 110
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER
MULTI INFORMATION DISPLAY<7NY> 		8-98179-479-2 01 1 1403- ● ●
1 METER COMPL; CLUSTER
EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98179-478-2 01 1 1403- ● ●
2 PANEL; CLUSTER 8-98054-432-0 01 1 1403- ● ●
11 CLUSTER ASM; METER
THA 		8-97926-378-2 01 1 1403- ● ●
31 SCREW; METER,INST PANEL
T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1403- ● ●
81 METER SUB ASM
MULTI INFORMATION DISPLAY<7NY> 		8-98179-487-0 01 1 1403- ● ●
81 METER SUB ASM
EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98179-486-0 01 1 1403- ● ●
110 GLASS; CLUSTER METER
MULTI INFORMATION DISPLAY<7NY> 		8-98054-642-0 01 1 1403- ● ●
110 GLASS; CLUSTER METER
EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98054-431-0 01 1 1403- ● ●
151 CLIP; METER CLUSTER
THA 		8-97926-387-0 13 1 1403- ● ●
480 COVER; METER
(B) BLACK 		8-98054-433-0 01 1 1403- ● ●
480 COVER; METER
MULTI INFORMATION DISPLAY<7NY> (A) BLACK DOT MATRIX FOR FPC PROTECTION 		8-98054-881-0 01 1 1403- ● ●
482 SEAL; CLUSTER METER
THA 		8-97926-388-0 01 1 1403- ● ●
